Description

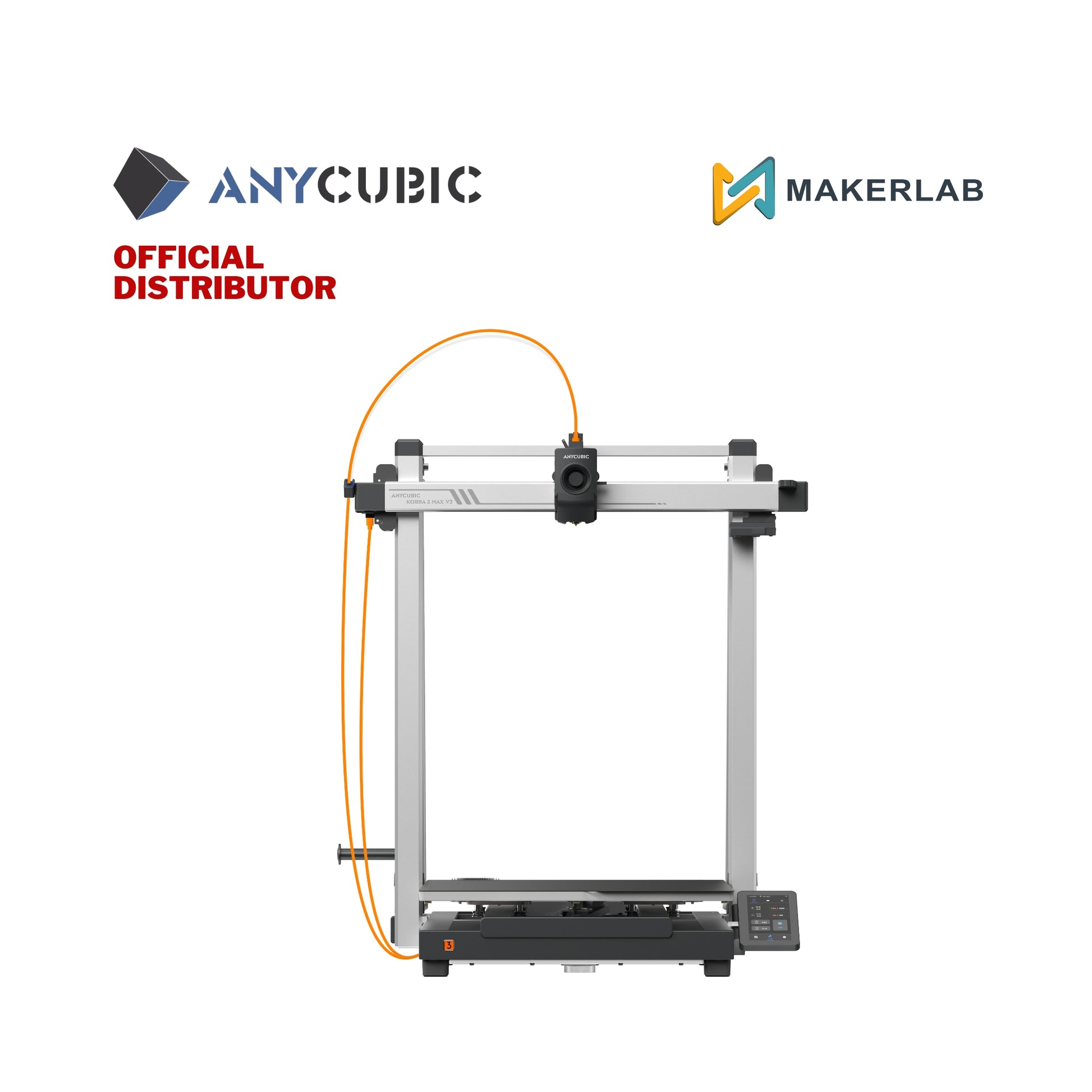

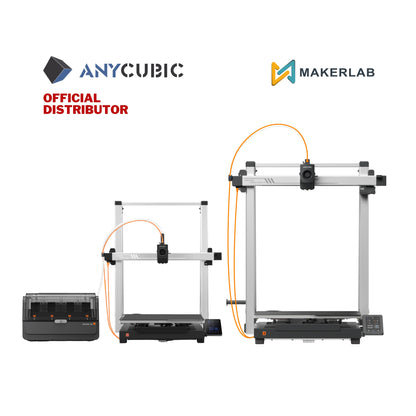

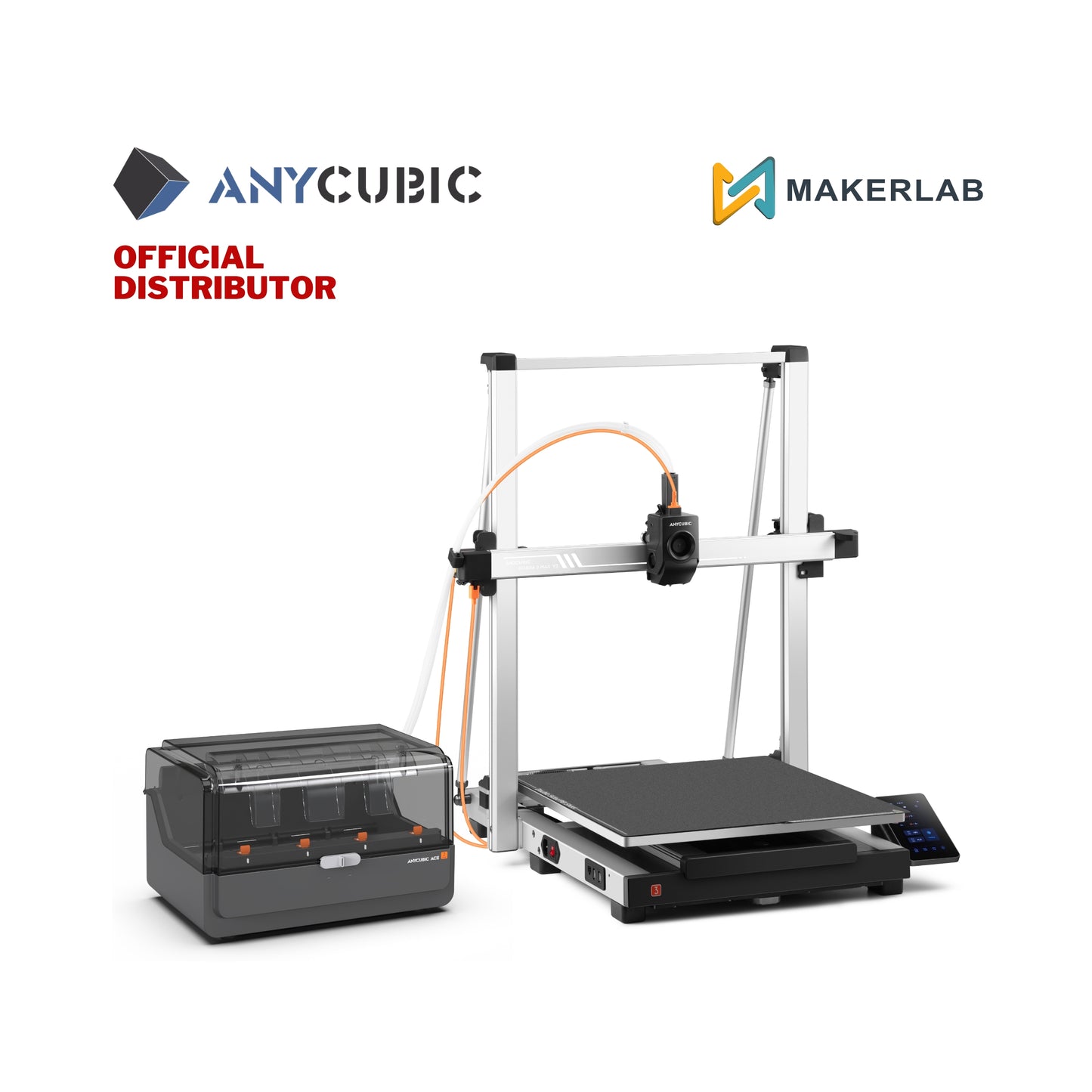

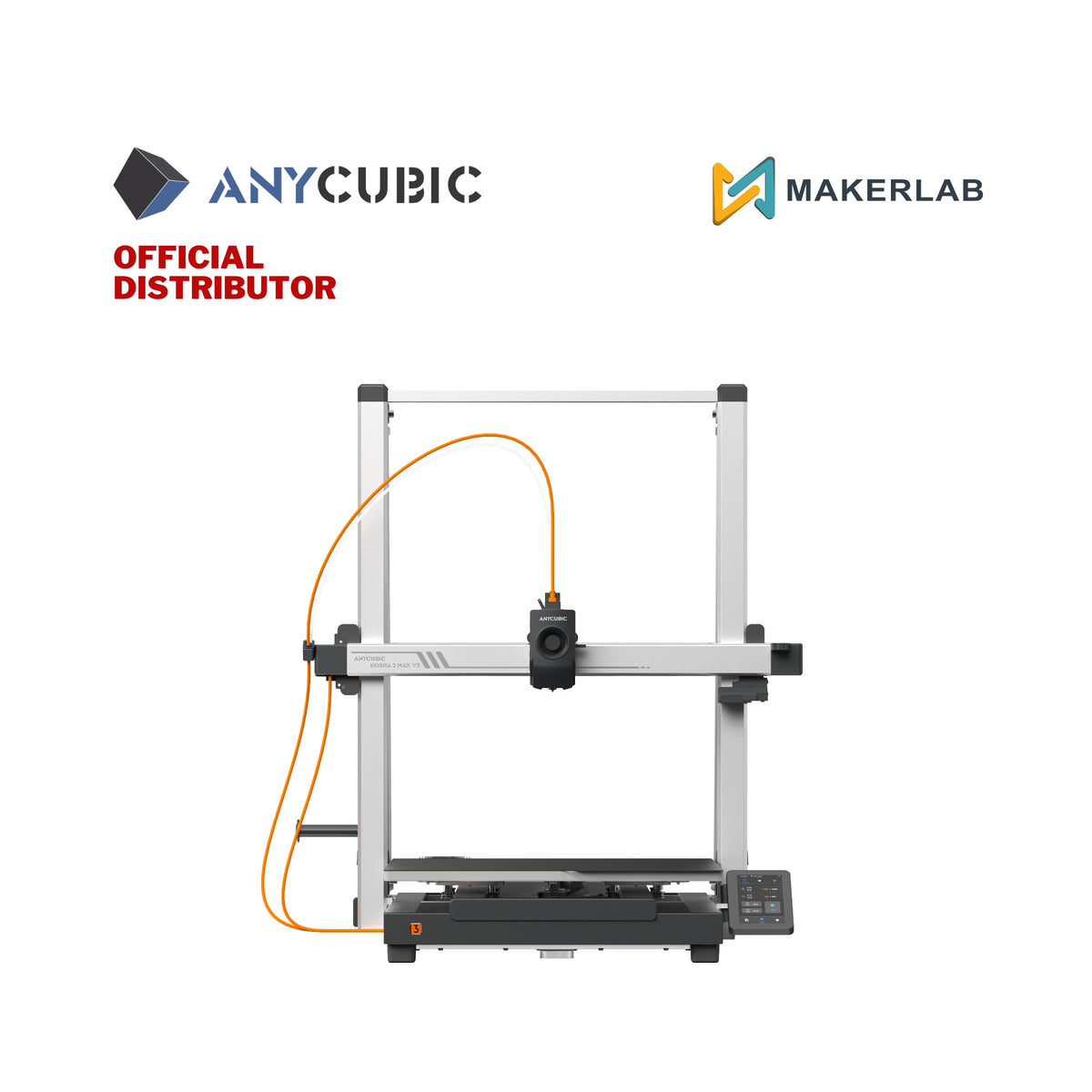

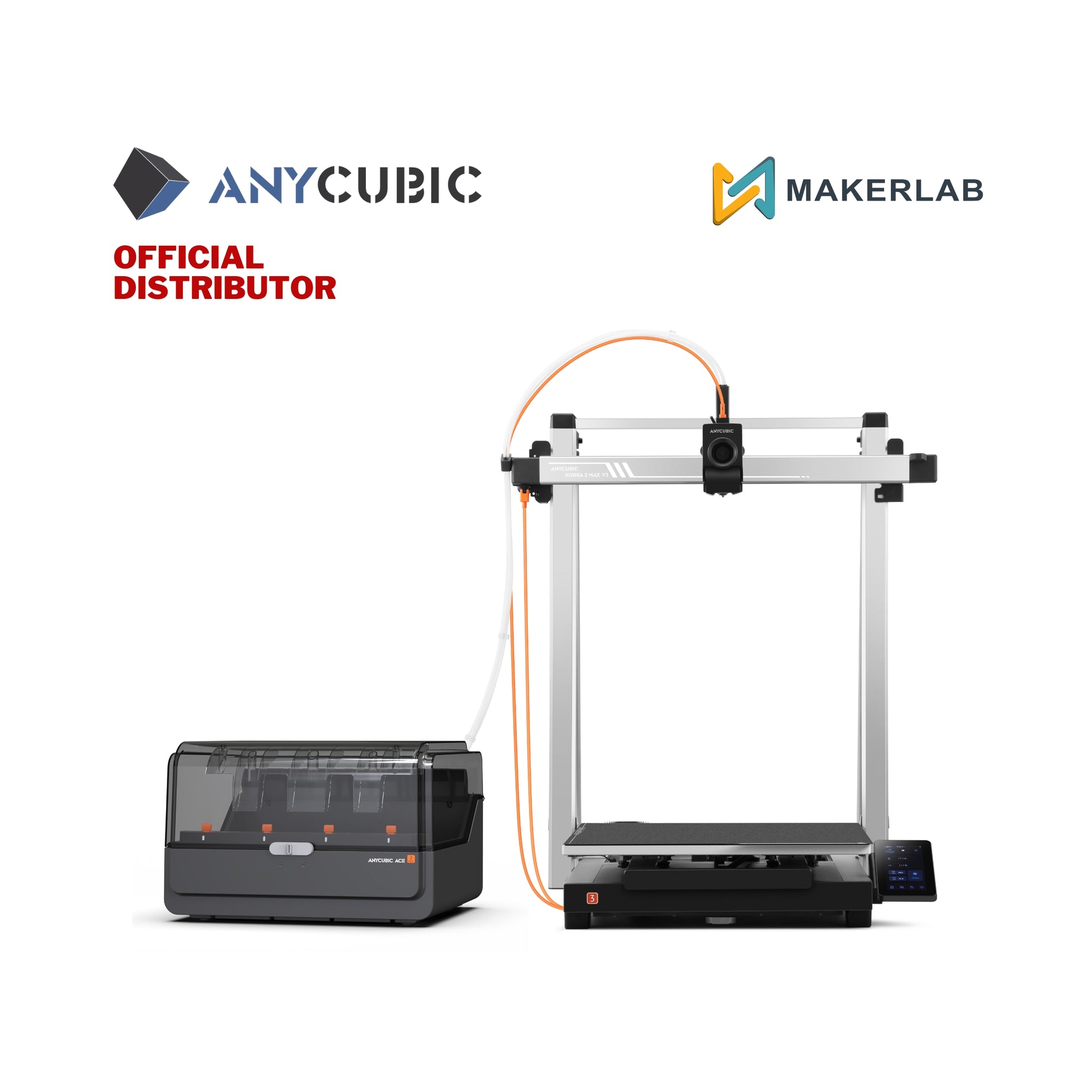

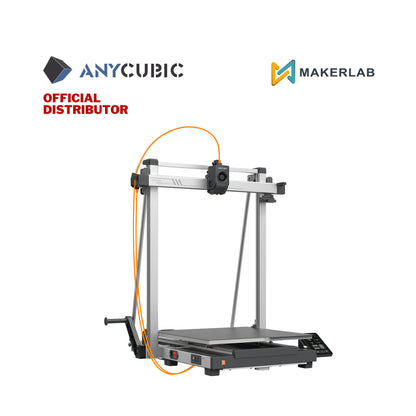

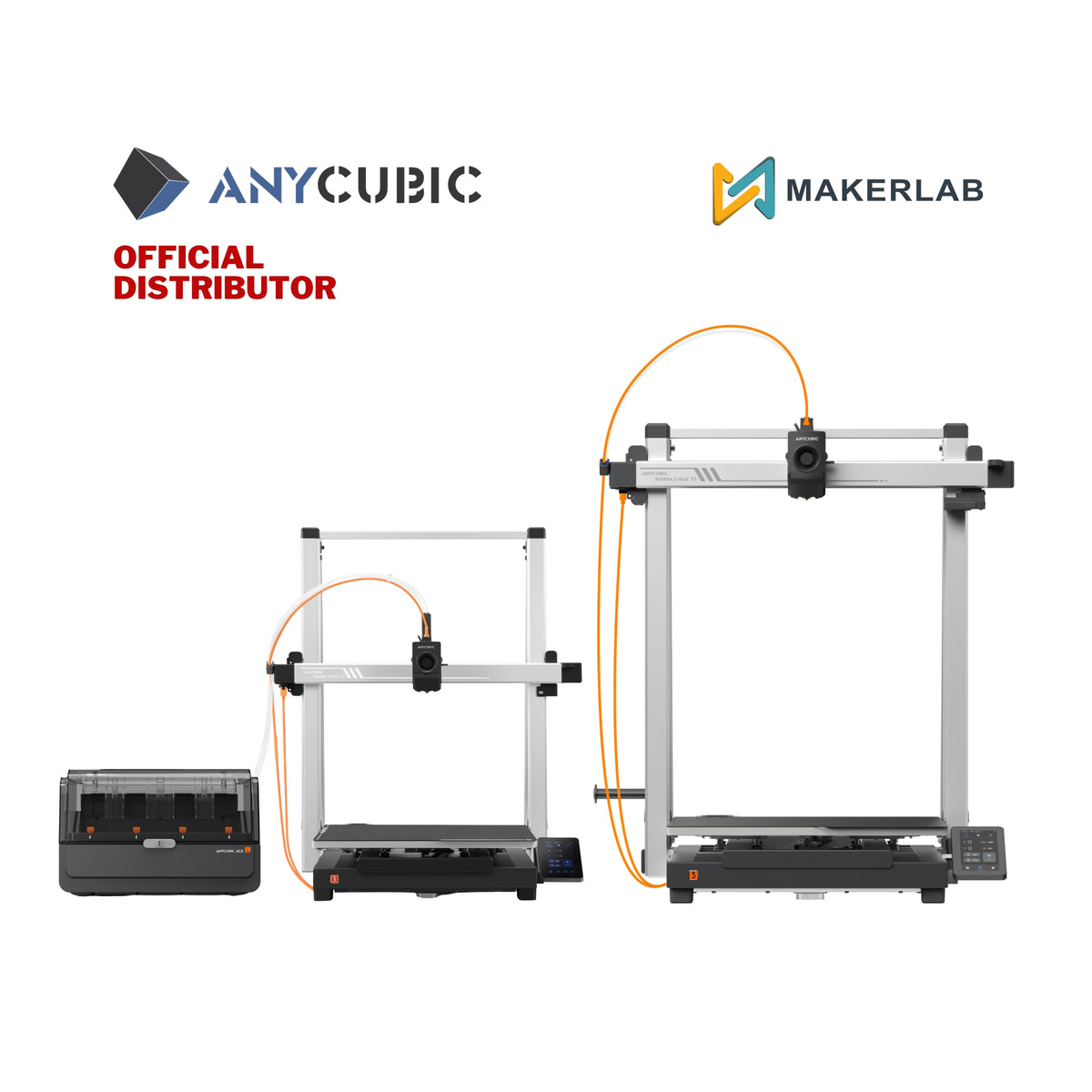

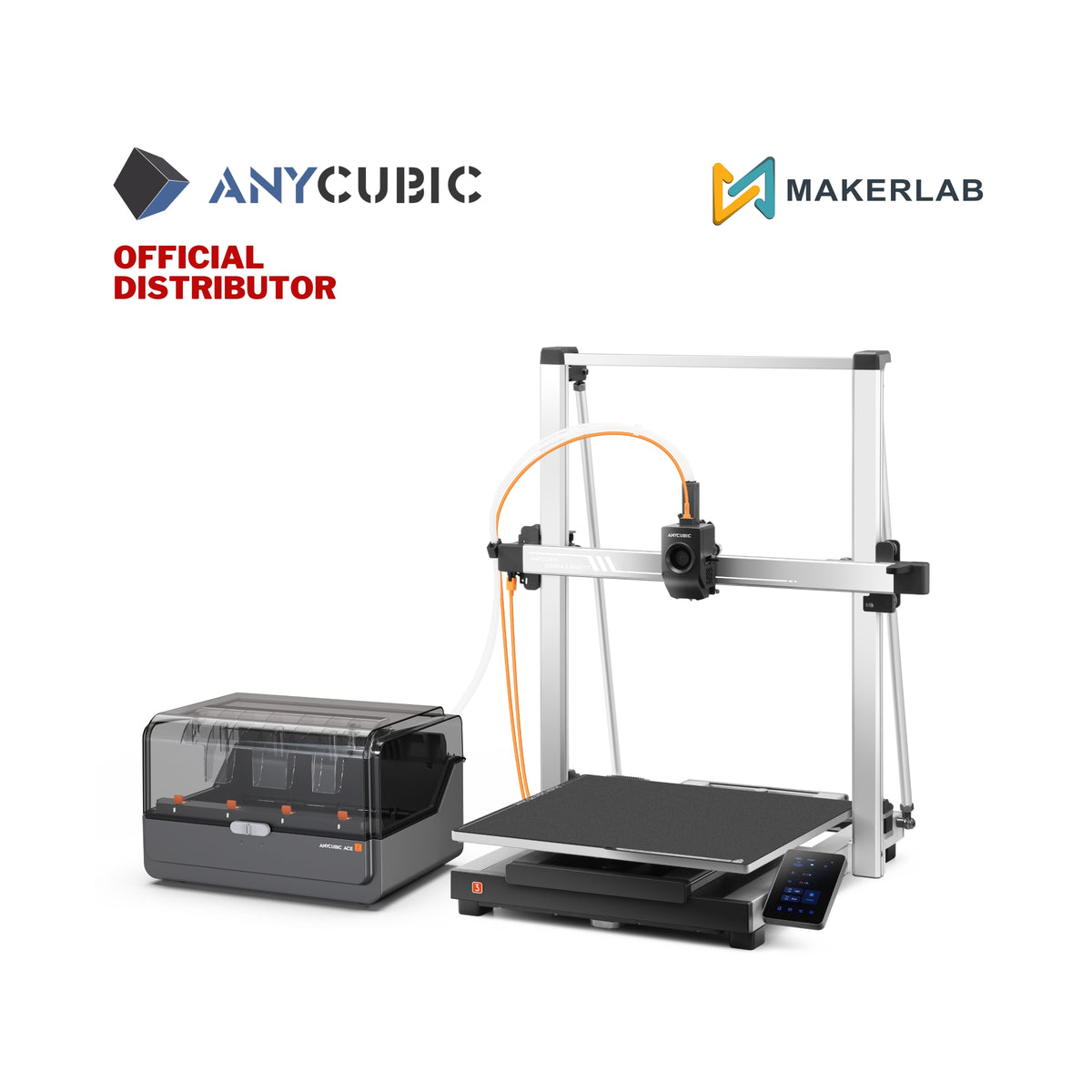

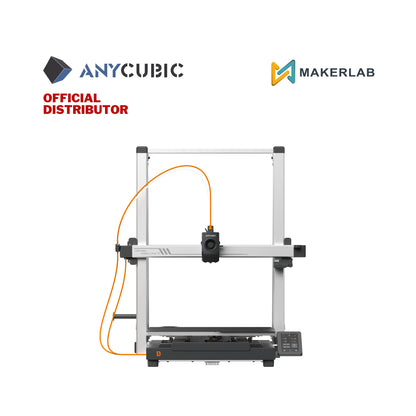

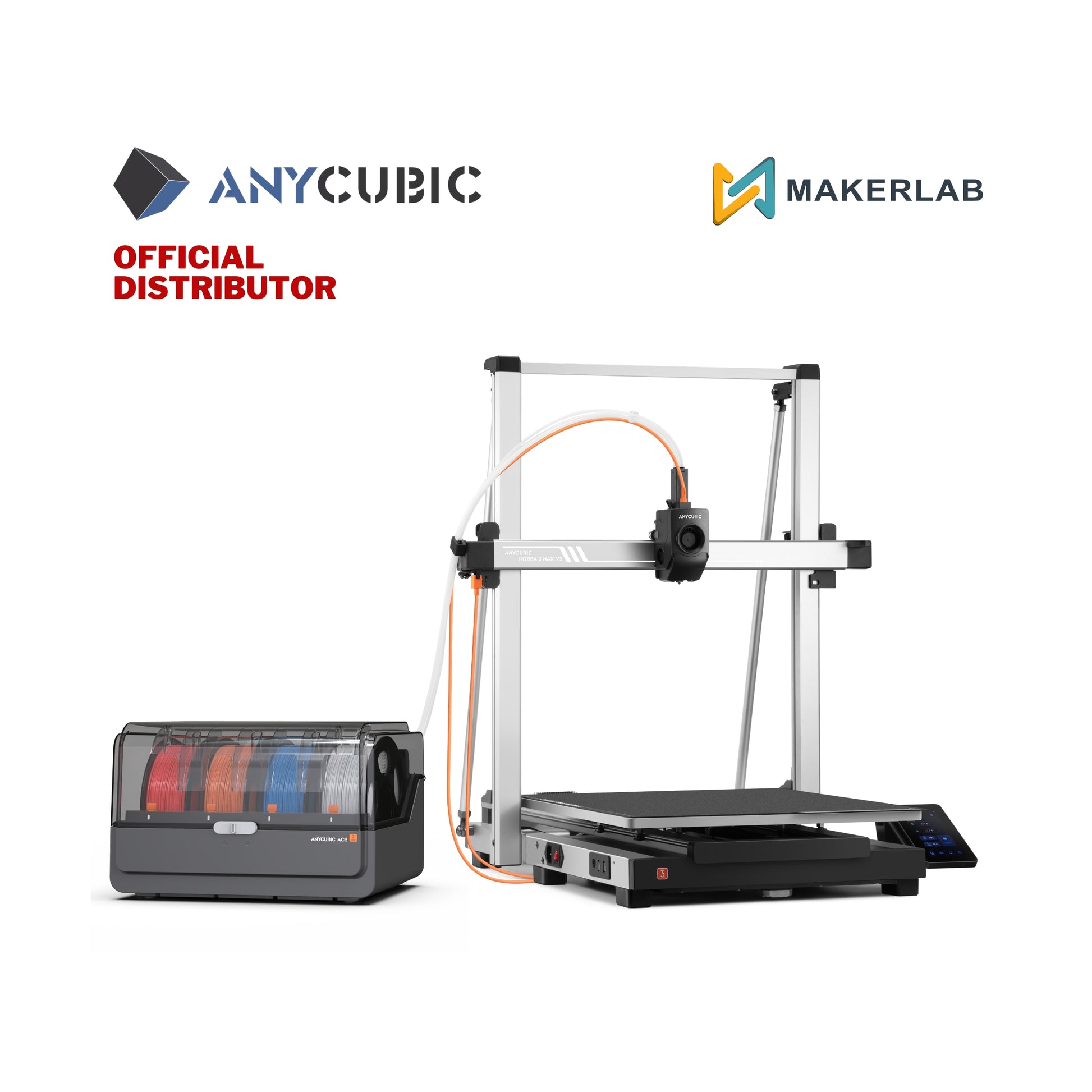

The Anycubic Kobra 3 Max V2 is a large-format, high-speed CoreXY 3D printer engineered for printing big functional prototypes, cosplay armor, and high-volume batch items. The Combo edition pairs the Kobra 3 Max V2 with the Anycubic Color Engine Pro (ACE 2 Pro) multi-material system, enabling multi-color printing across up to 4 spools (or up to 8 spools with dual units connected) alongside automated filament drying during print jobs.

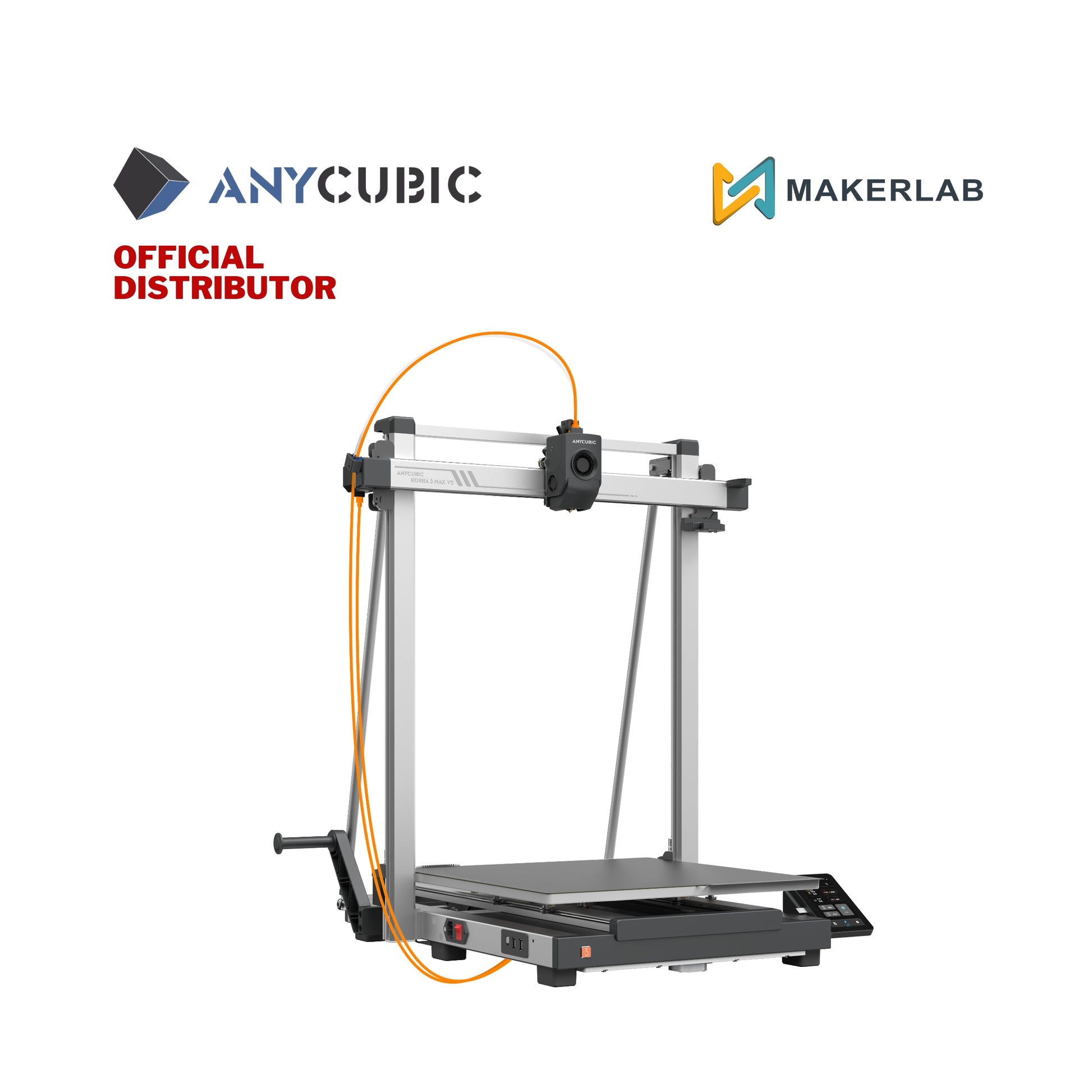

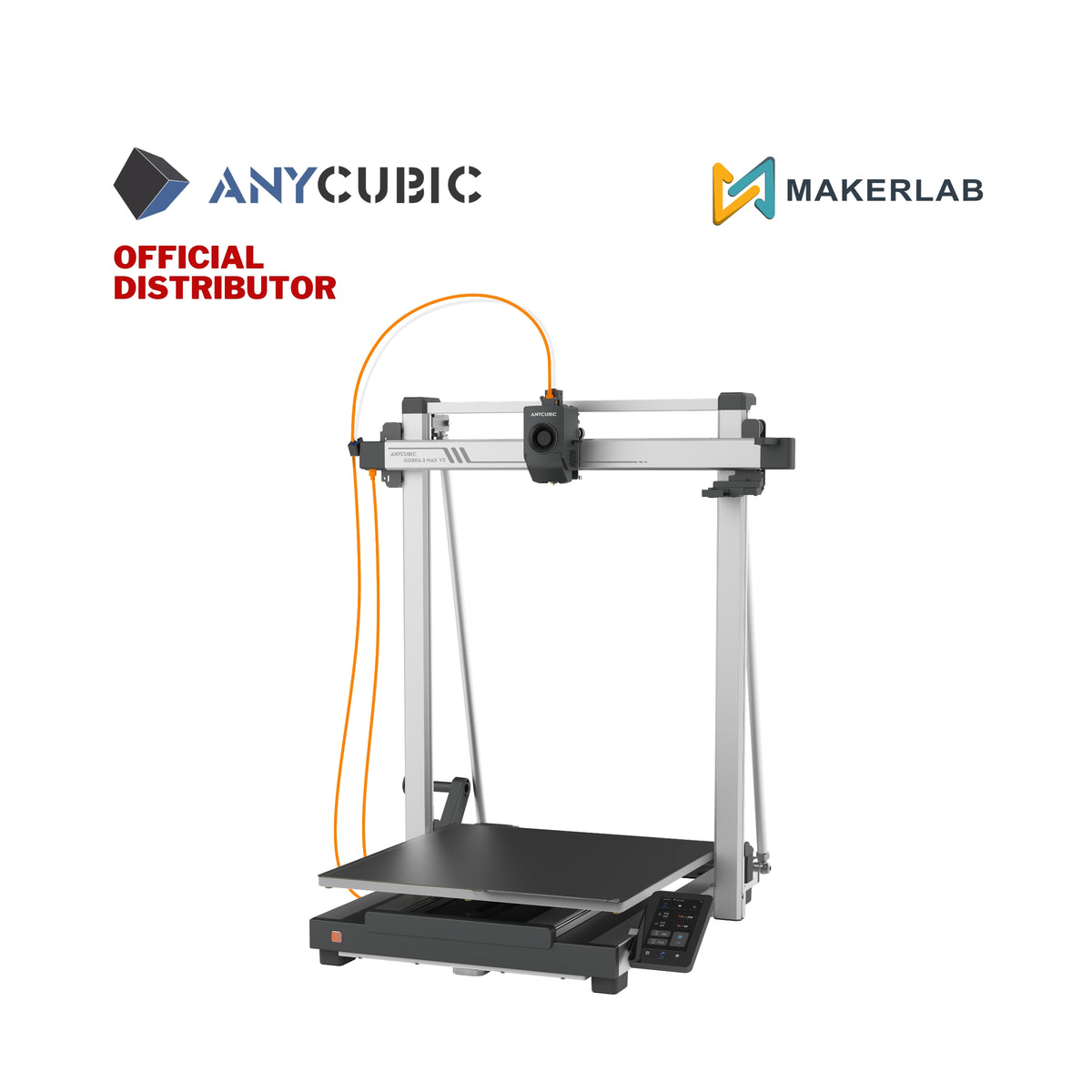

Built with high-rigidity structural frame supports and a dual Z-axis motor configuration, the Kobra 3 Max V2 delivers high speed and stability over its expansive building area. Features like automatic vibration compensation (input shaping), automated bed leveling, and a high-flow hotend allow the printer to deliver fast print times without compromising dimensional accuracy.
Why Choose Kobra 3 Max V2 Combo?
-
420 × 420 × 500 mm³ Print Volume
-
Comes Standard with ACE 2 Pro for 8-Color Printing
-
Full-Metal Hotend, Improved Experience
-
Precise Auto-Leveling & Motor Anti-Skip
-
600 mm/s High-Speed Printing
-
Extremely Easy to Use
Features
Full-Metal Hotend, Improved Experience
-
Quick-Release Design: Tool-less assembly for rapid replacement and effortless maintenance.
-
Comes Standard with Hardened Steel Nozzle: Superior wear resistance for long-term precision.
-
All-Metal Hotend: Engineered to eliminate clogging and prevent filament leakage.
Innov8ive & Crea8ive Multicolor Solution
Start with the ACE 2 Pro for 4-color printing. Then, expand your color palette by combining four of them to achieve 16-color printing. Now, when it comes to creativity, sky is the limit!
Stable, Silent
4 upgraded independent brushless motors.
Smooth and Stable Feeding
Engineered for maximum reliability, the new system features four independent brushless motors and a next-generation buffering mechanism. These components work together to ensure smooth, jam-free filament feed and retraction for every channel.
Quiet and Durable
Operates at under 48 dB[1] noise level, with independent brushless motors offering a lifespan of ≥5000 hours.
65 °C High-Temperature Drying While Printing
Want to print perfect models? Filament drying is key. The ACE 2 Pro supports simultaneous drying and printing, keeping the filaments as fresh as the day they came in.
Supersized 420 × 420 × 500 mm³ Print Volume
88 L Maximum Print Volume > 2 Carry-on Suitcases
Less Time + Less Filament = More Prints
When printing in bulk, the large printing size of the Anycubic Kobra 3 Max V2 Combo enables more models to be printed in each batch, reducing the overall number of printing cycles. This will save time and conserve materials when printing multicolor models in mass production.
Dual-Y-Axis Motor
The implementation of a dual Y-axis motor design enhances the robustness and stability of the Y-axis movement, effectively reducing the occurrence of step loss, and layer misalignment.
Fast Color-Switching
The Anycubic Kobra 3 Max V2 now features a cutting knife positioned on the right side of the hotend, minimizing the distance the hotend must travel during multicolor printing. This enhancement significantly speeds up the cutting process.
Specifications
Multicolor Printing: Standard 4 colors, up to 8 colors
Printing Volume: 420*420*500mm³
Active Drying: Supported, drying temperature up to 65°C
Supporting Filaments: PLA/PETG/TPU (68D)
Printing Speed: Recommended 300 mm/s, Maximum 600 mm/s
Acceleration: Maximum 10,000 mm/s²
Nozzle Specs: Max Temperature 350 °C, diameter standard 0.4 mm (optional: 0.25 mm / 0.6 mm / 0.8 mm); Nozzle Material: Hardened steel
Hotbed Specs: Max Temperature 90°C, Material PEI Spring Steel Build Plate
What's In The Box
1.Bag NO.1 For Frame
2. Bag NO.2 For Support Rod
3. Bag NO.3 For Printhead Cable
4. Bag NO.4 For Printhead
5. Bag NO.5 For Touchscreen
6. Bag NO.6 For Spool Holder
7. Cable Holder
8. Nozzle Cleaner
9. Grease
10. Spool Holder
11. Filament Tube (5pcs)
12. Wrench
13. Filament Sample
14. 6.0/4.0/3.0/2.5/2.0/1.5 Allen Keys
15. Cable Organizer (5pcs)
16. Power Cord (2pcs)
17. Signal Cable
18. Touchscreen
19. Base Housing
20. ACE 2 Pro
21. Support Rod
22. Printhead
23. Printer Frame
