Description

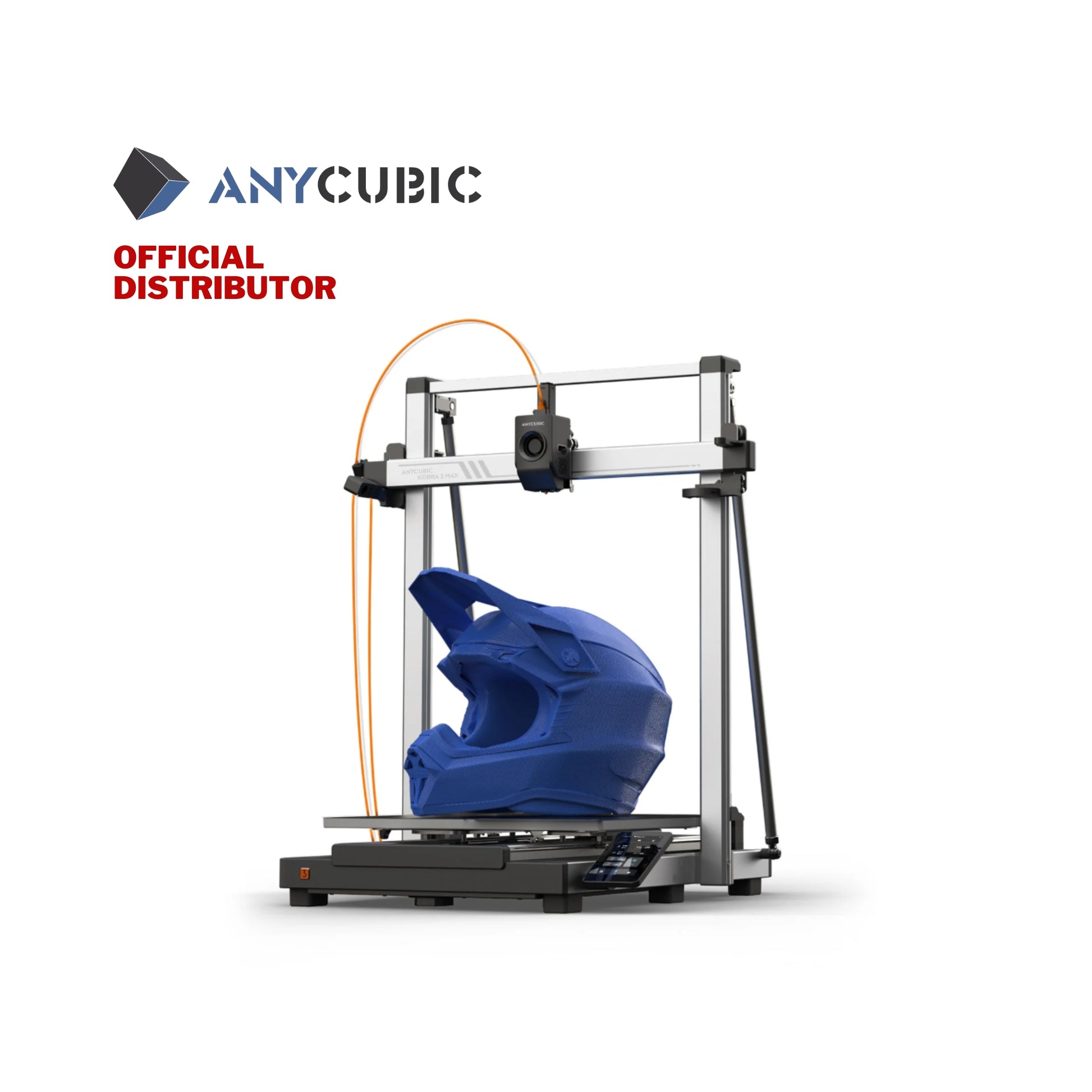

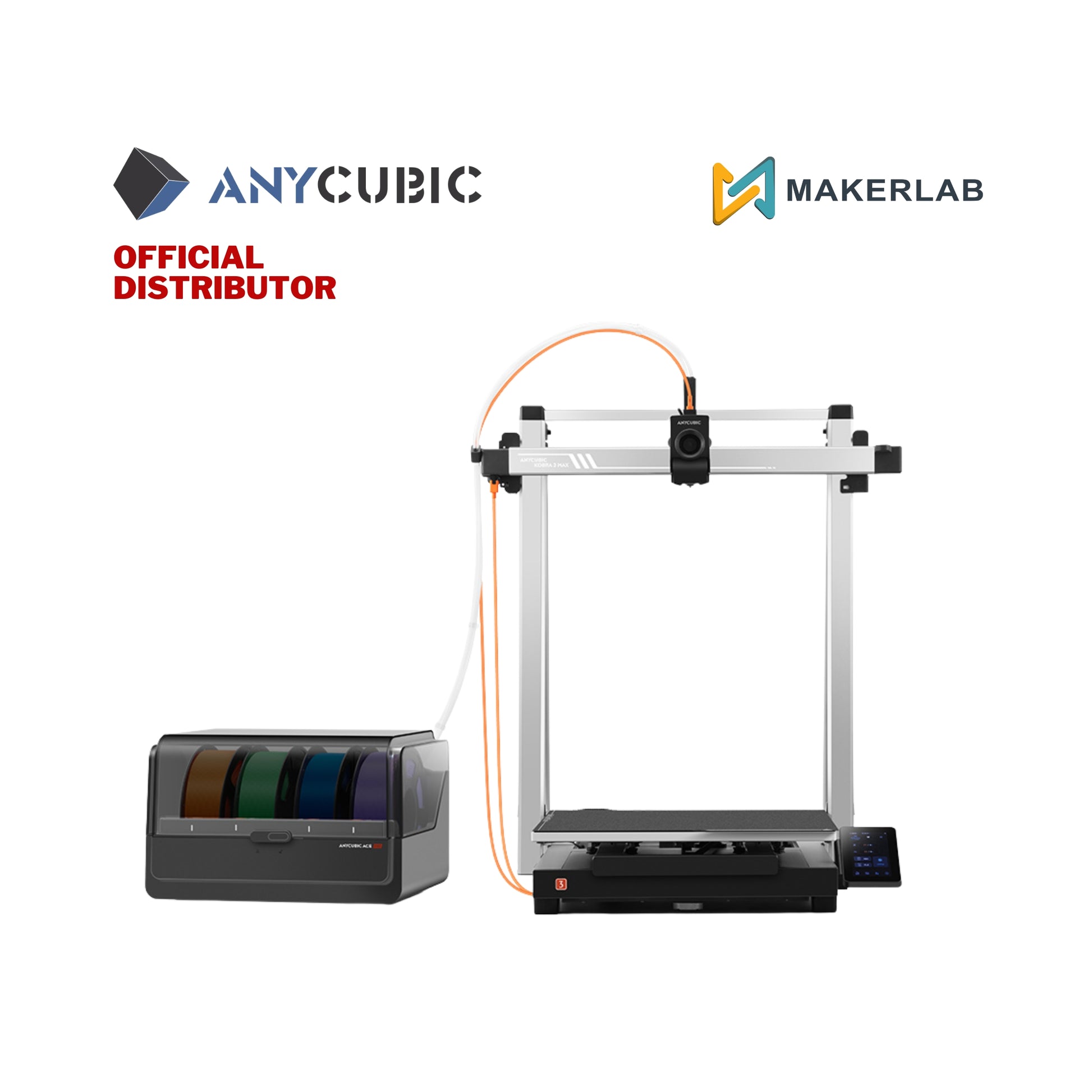

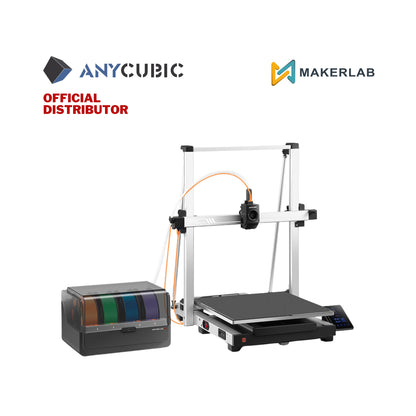

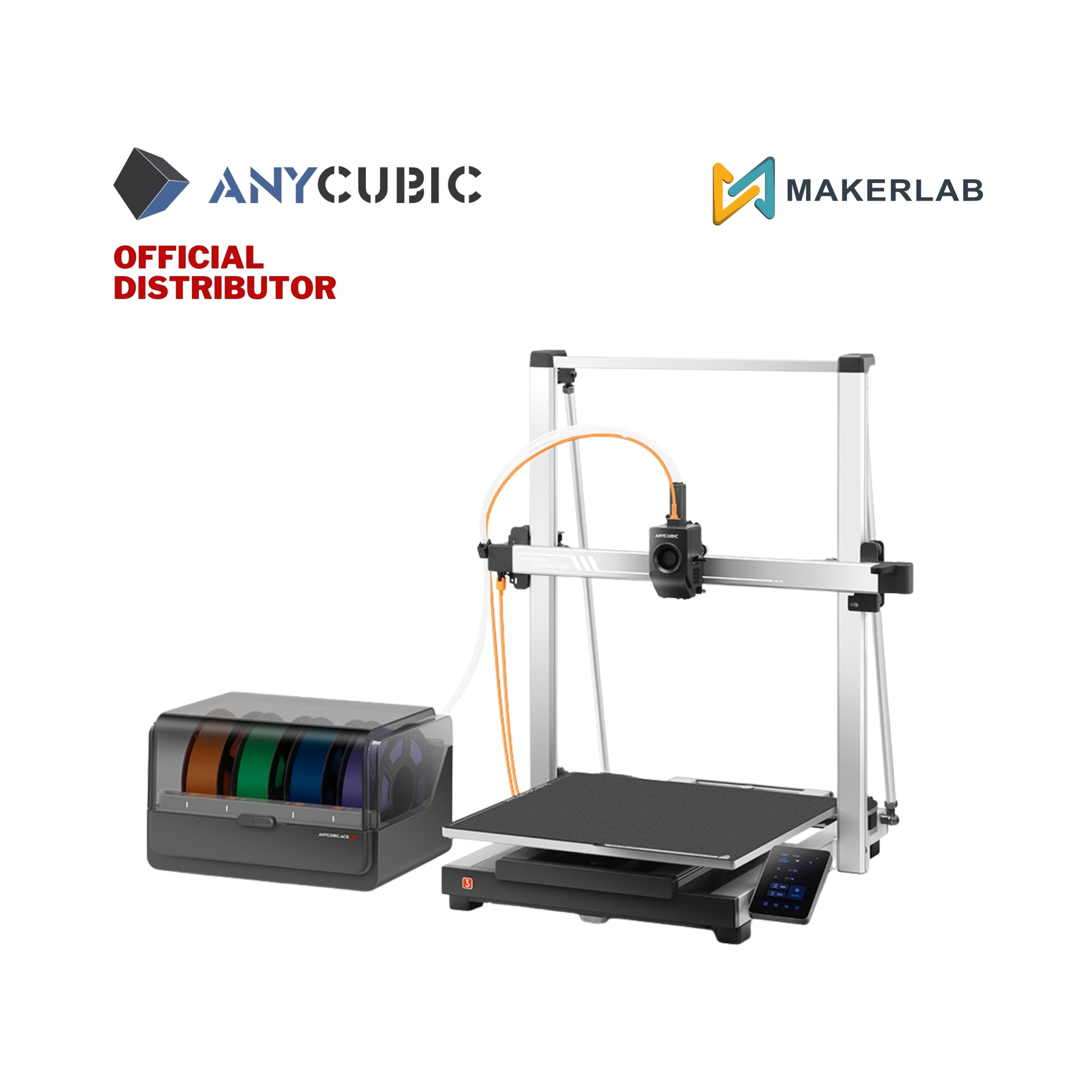

The Kobra 3 Max is an ultra-large format FDM printer boasting a massive 88-liter build volume. It is designed to print huge models—like full-sized cosplay helmets or large industrial prototypes—in a single go. The Combo version elevates this by including the ACE Pro, a smart filament box that enables 4-color (or 8-color with an additional unit) printing while simultaneously drying the filament to ensure high-quality finishes. Equipped with the Kobra OS, the series features advanced AI capabilities, including AI Spaghetti Detection and Filament Entanglement Detection, providing peace of mind for multi-day prints.
Features

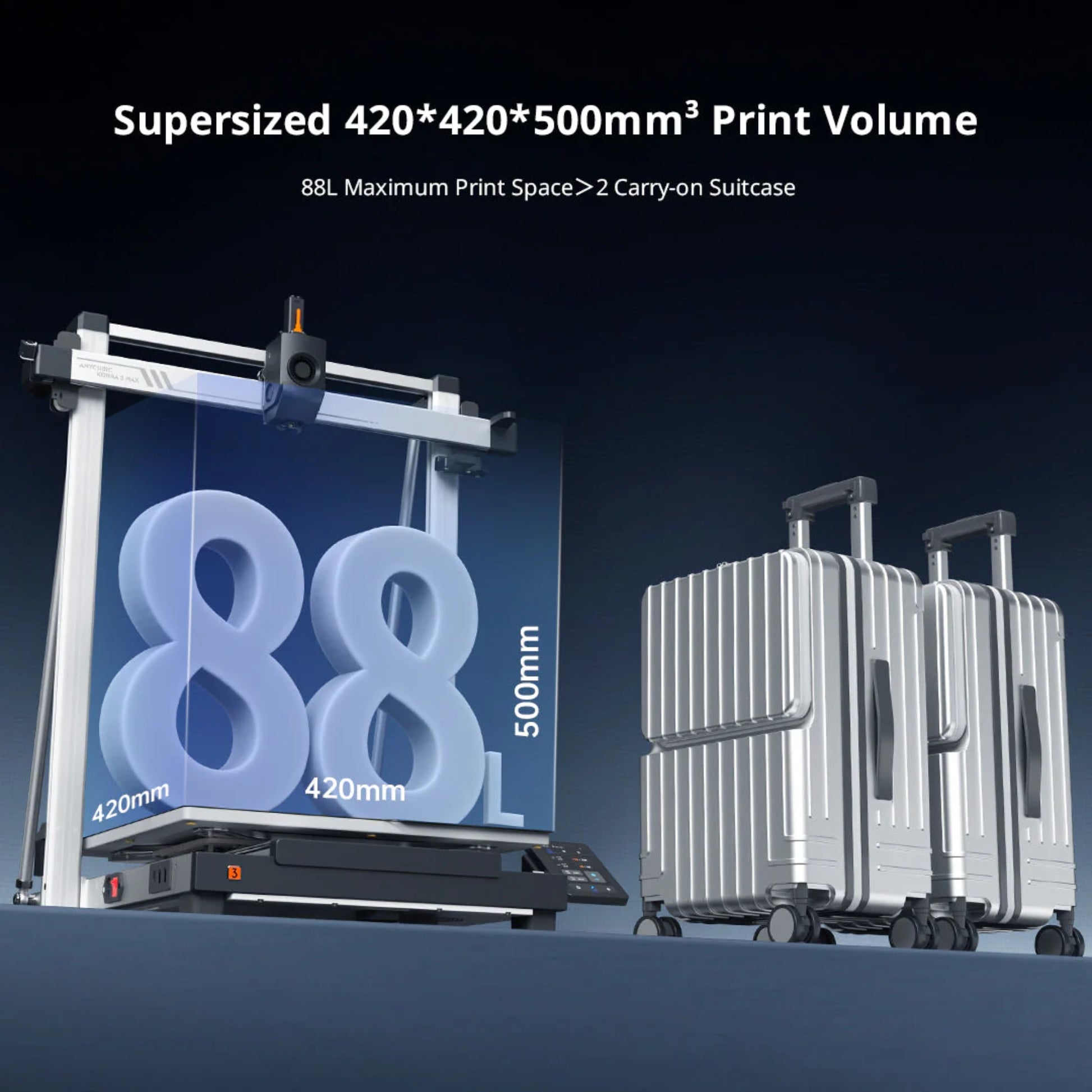

420*420*500mm³ Print Space ＞ 2 Carry-on Suitcases
Ultra-Large Model in a Single Print
Reduce Filament Wastage during Mass Productions
Skip Objects Function Boosts Efficiency & Cuts Costs

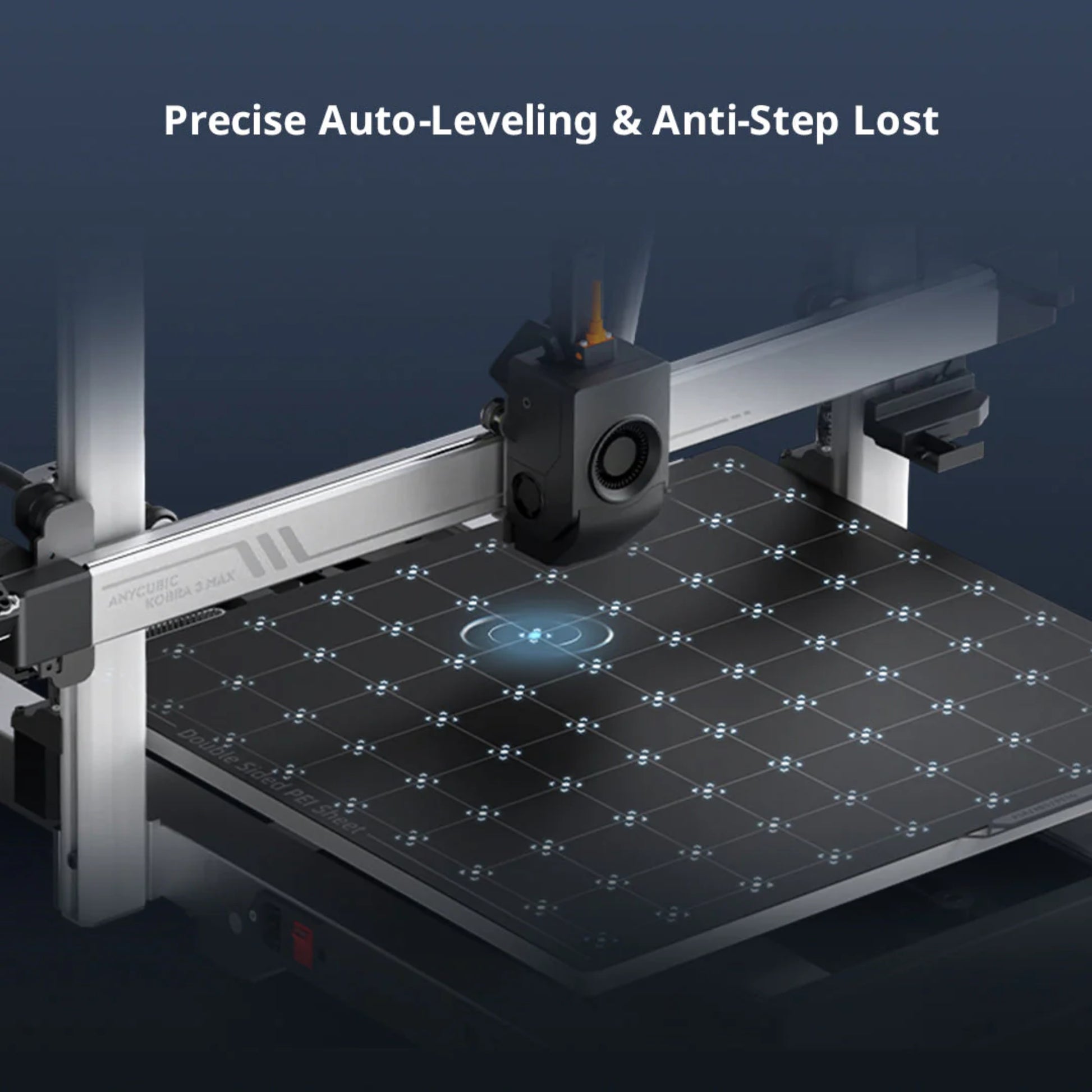

Auto-Leveling & Anti-Skip
LeviQ3.0 Auto-Leveling + Z-axis Offset

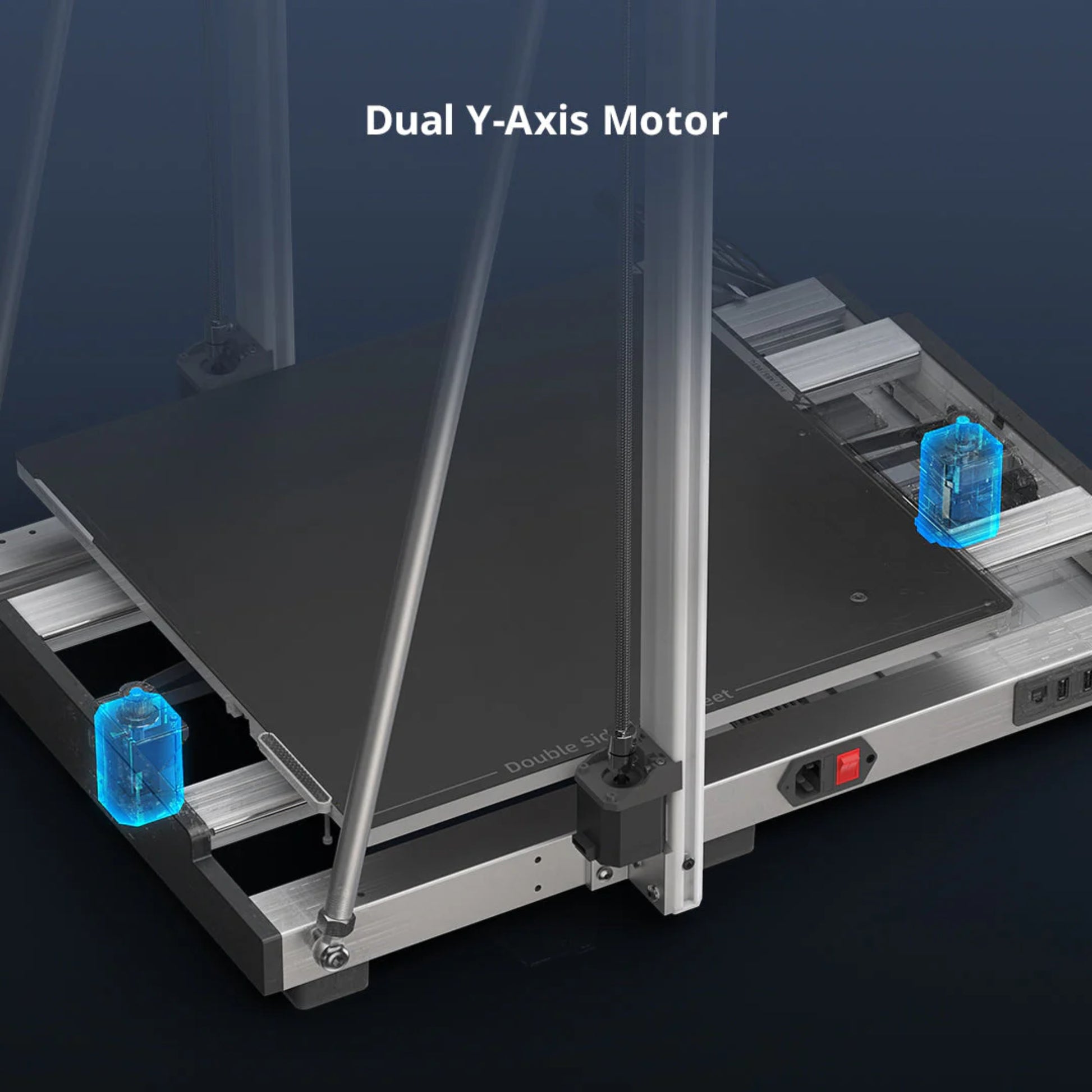

Dual-Y-axis Motor to Eliminate Layer Misalignment
Anti-Skip Semi-Automatic Belt Tensioning
One-Click Resonance Compensation + Dynamic
Performance, to the Max

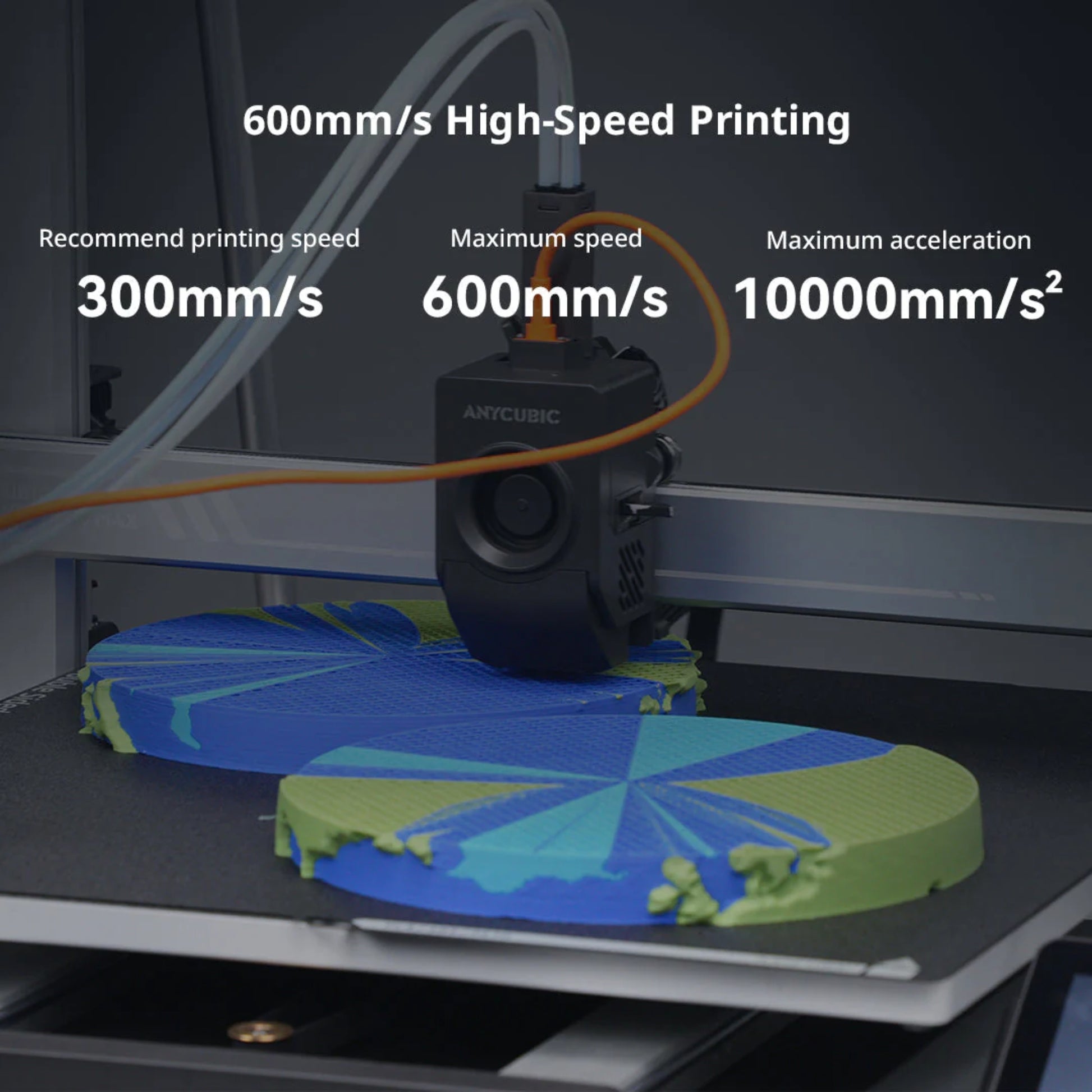

Maximum Print Speed of 600mm/s
Ultra-Large Hotbed Heats up in Just 125s
Improved Filament Cutter Location for more Efficient Cutting
Quick-Release Hotend
300℃ High-Temperature Hotend + Aerospace Grade Ceramic Composite Throat Tube
Dual-Spring Design
AI Spaghetti Detection
Specifications
Multicolor Printing: Sold separately
Printing Volume: 420*420*500mm (88L)
Supporting Filaments: PLA/PETG/TPU
Printing Speed: Recommended 300 mm/s, Maximum 600 mm/s
Firmware solution: Kobra OS
Construction: Gantry System
Extruder Type: Short distance extrusion
Machine Leveling: LeviQ3.0 Auto-leveling, Z-Offset
Pressure Advance / Flow Calibration: Supported
Power Loss Resume: Supported
Filament Detection & Auto Resume: Supported
Filament Entanglement Detection: Supported
AI Spaghetti Detection: Supported
Object-Skip & Area Leveling: Supported
Control & Print Methods: Via printer, slicing software, Anycubic APP, USB (print only)
Touchscreen: 4.3-inch capacitive touch screen
Noise: ≤60dB (Standard mode)
Video Monitoring: -

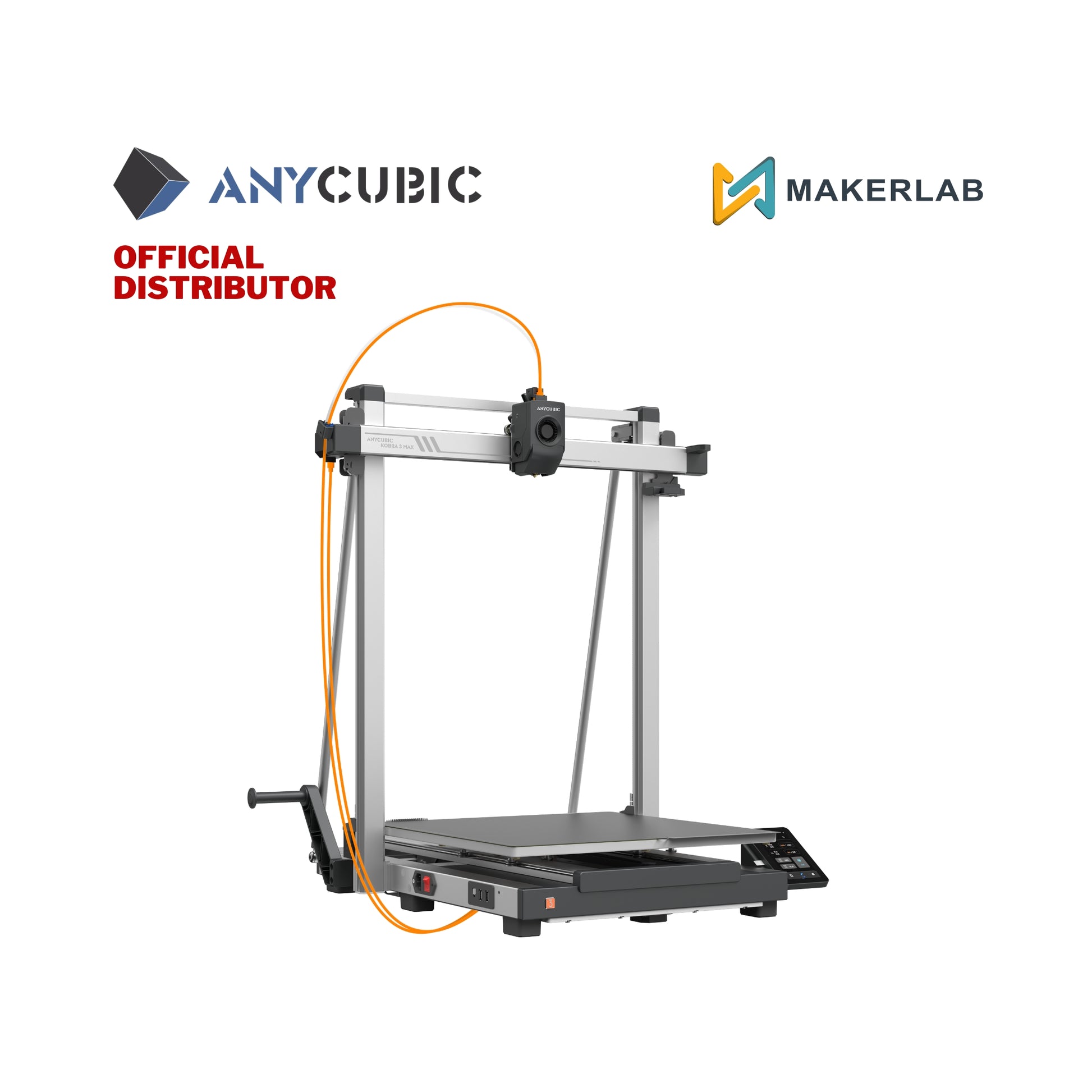

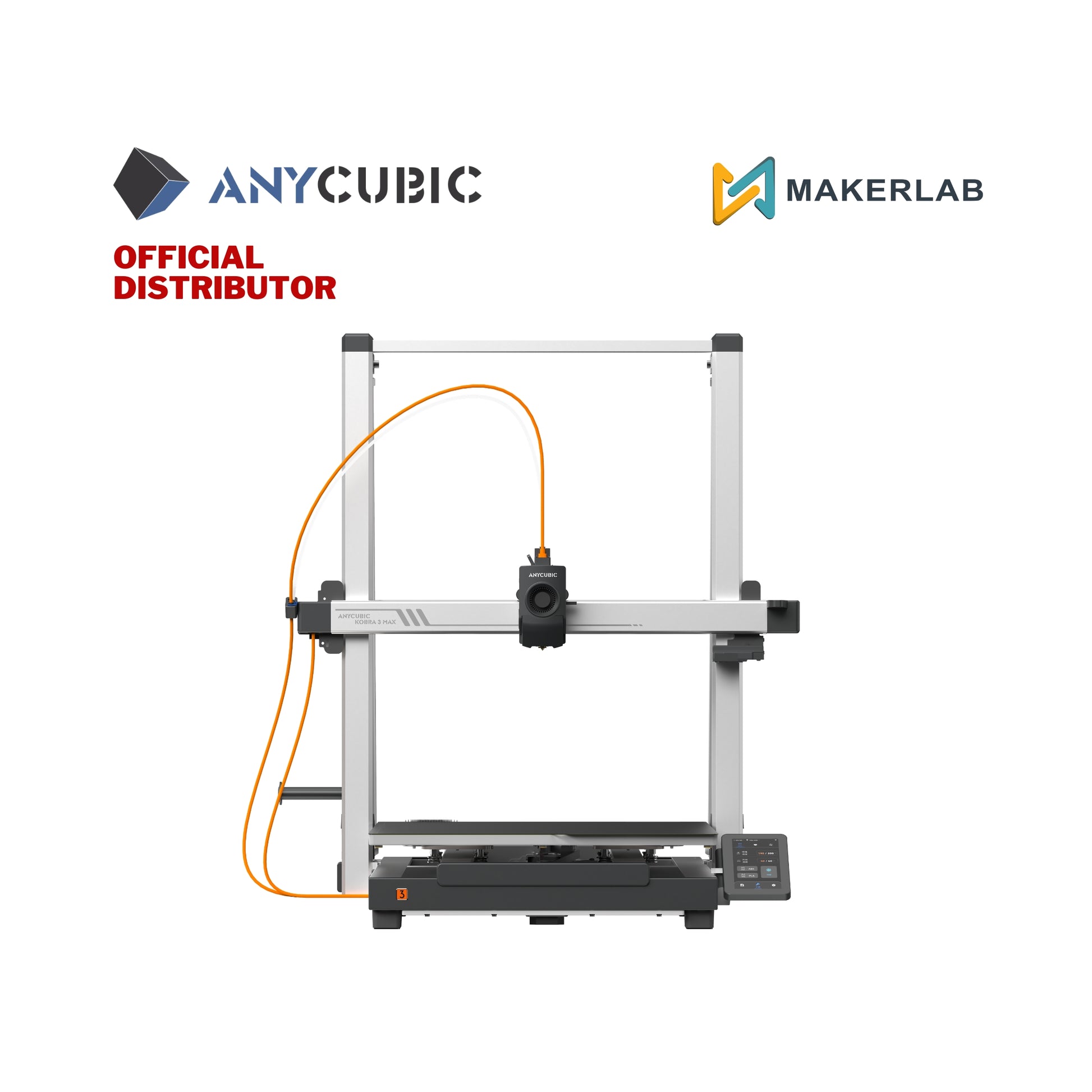

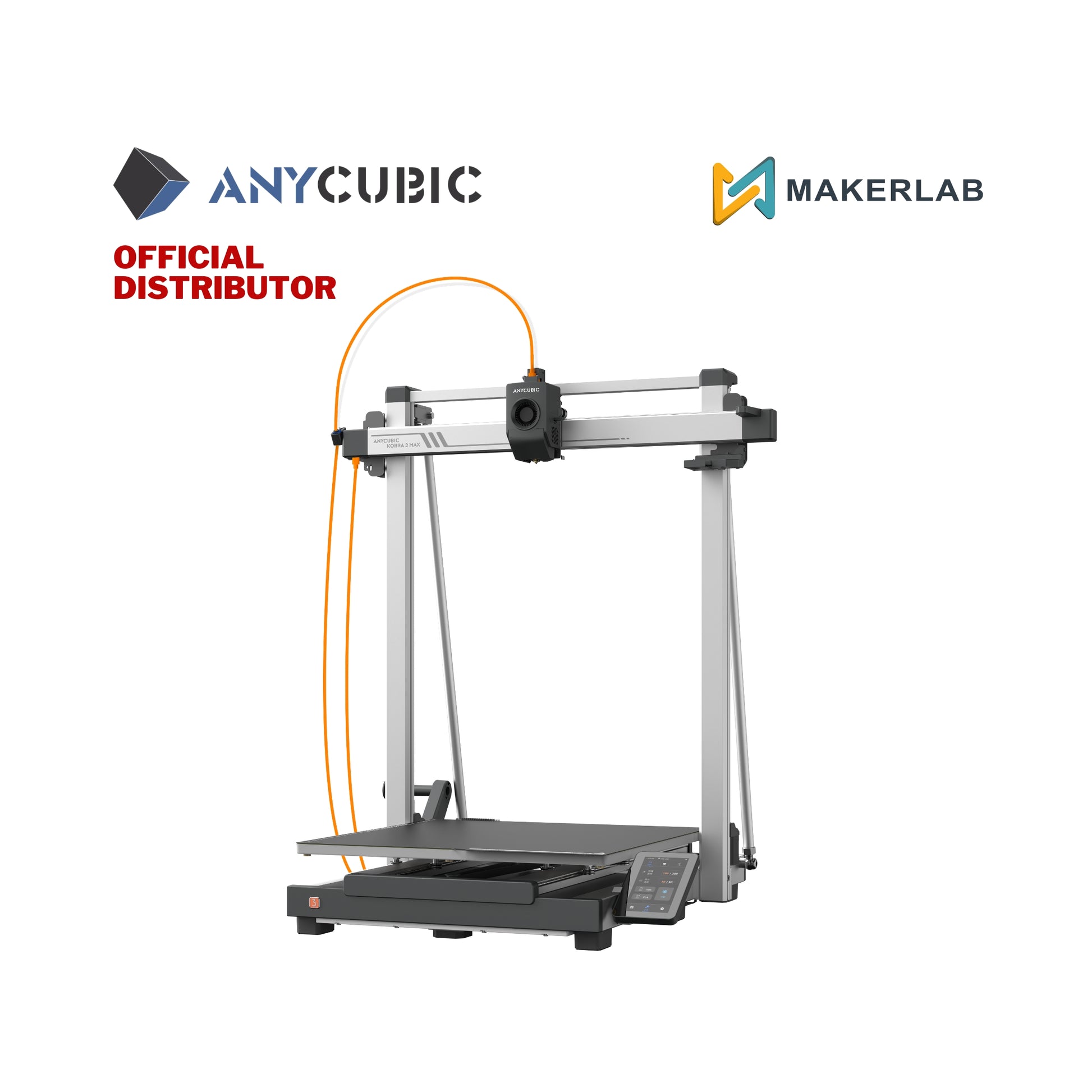

KOBRA 3 MAX
Machine Weight: 19kg
Package Weight: 22.1kg
Machine dimensions: 706*640*753mm
Packaging dimensions: 830*700*205mm

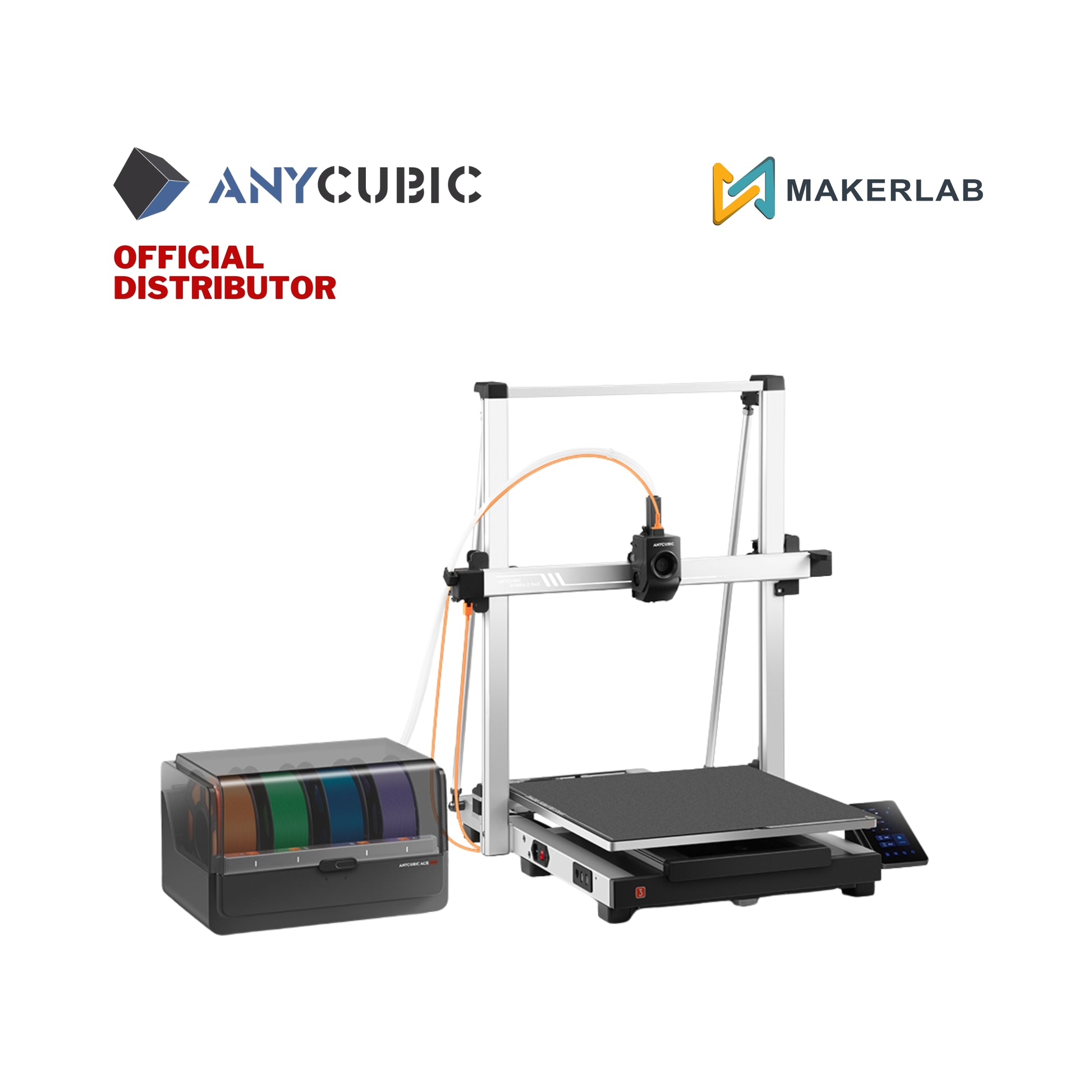

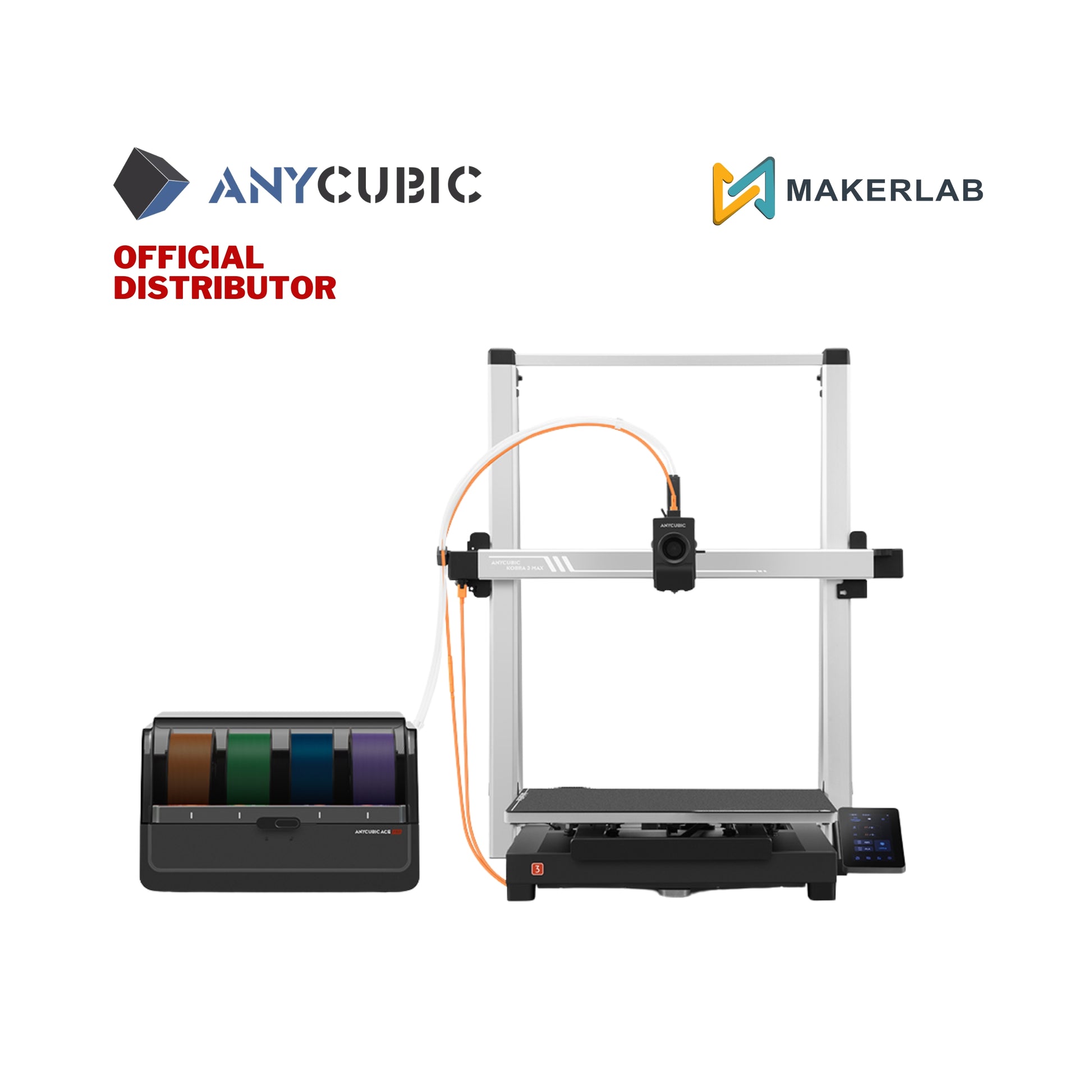

KOBRA 3 MAX COMBO
Machine Weight: Kobra 3 Max - 19kg, ACE Pro - 4.6kg
Package Weight: Kobra 3 Max - 22.1kg, ACE Pro - 5.7kg
Machine dimensions: Kobra 3 Max 706*640*753mm, ACE Pro 365.94*282.84*234.5mm
Packaging dimensions: Kobra 3 Max 830*700*205mm, ACE Pro 430*335*305mm
