Description

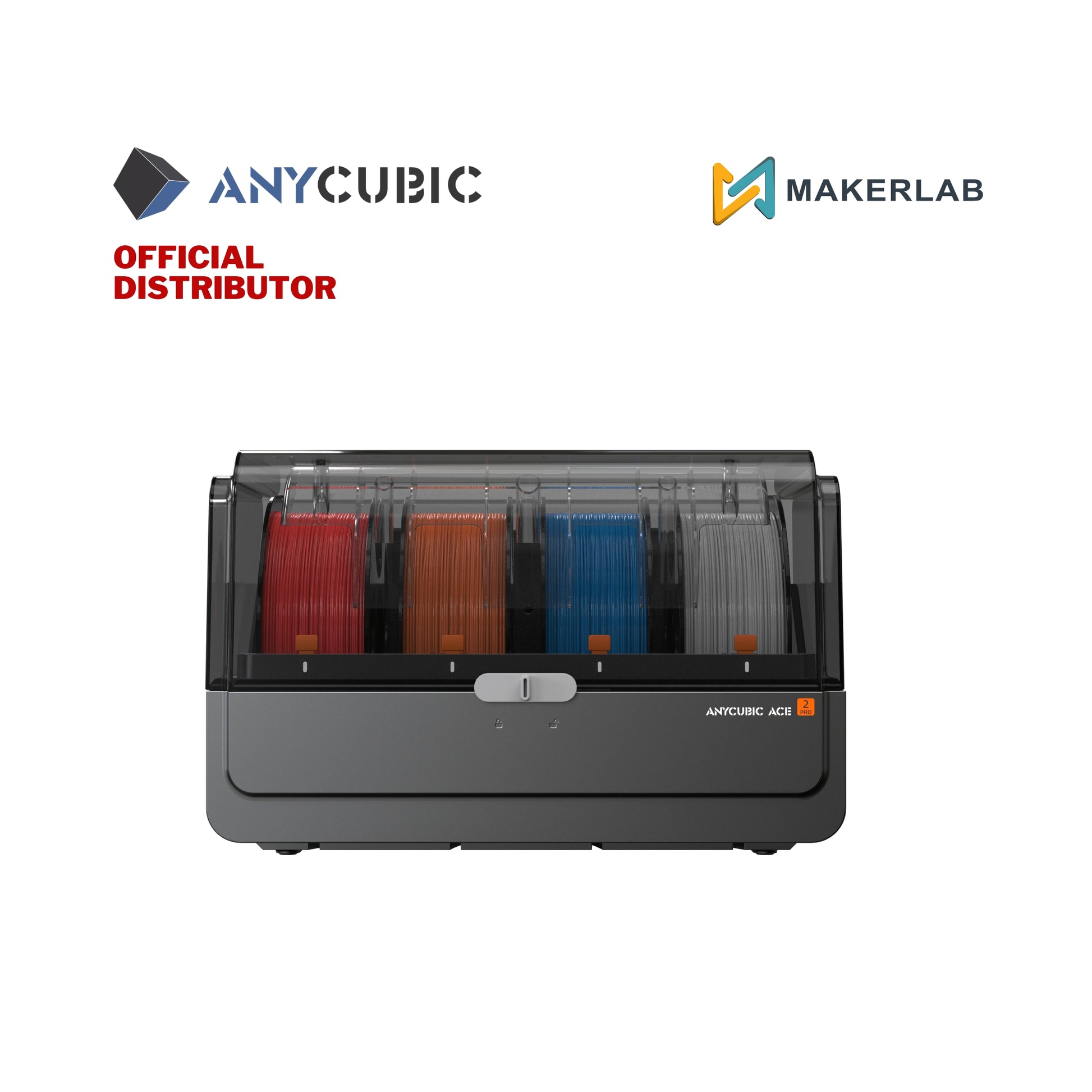

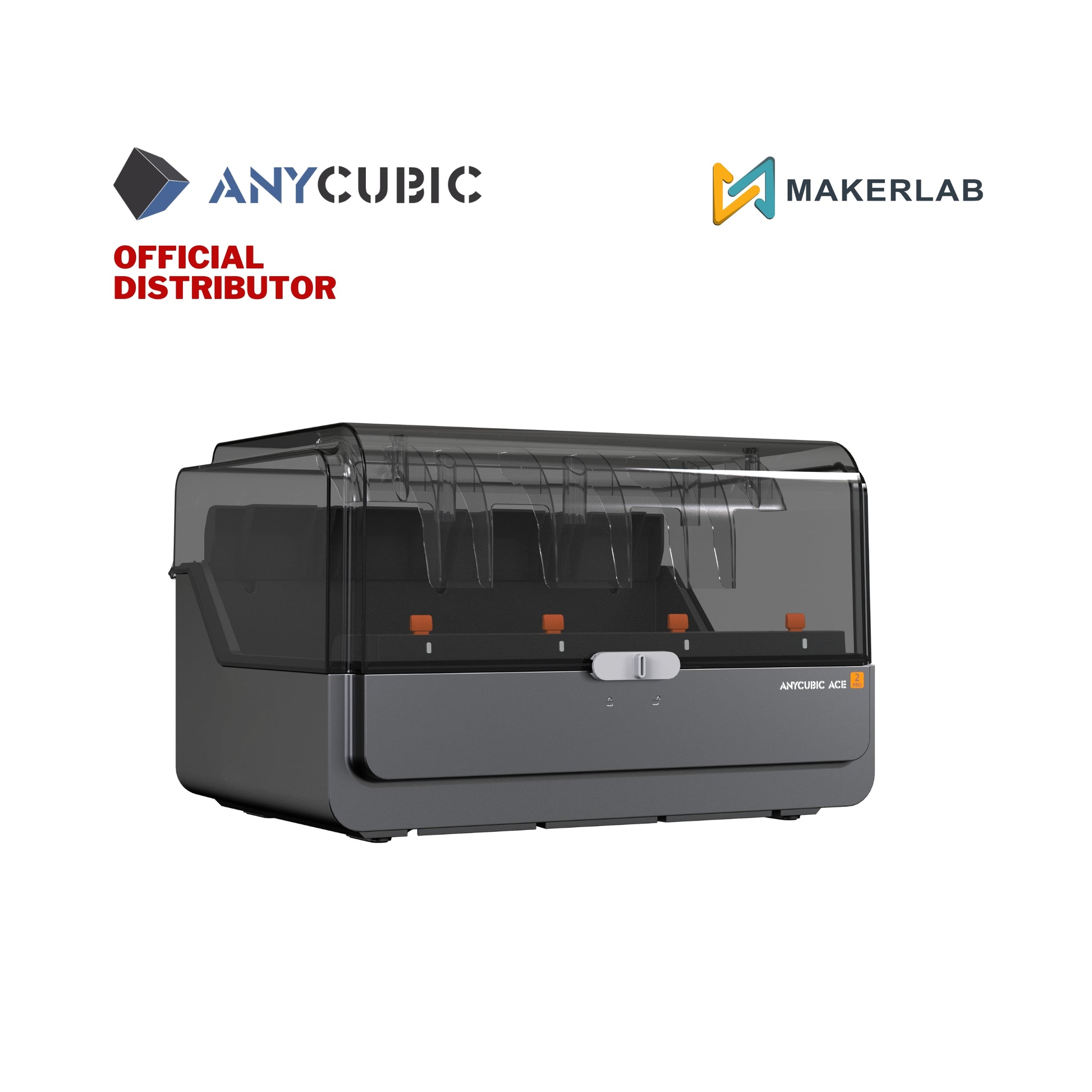

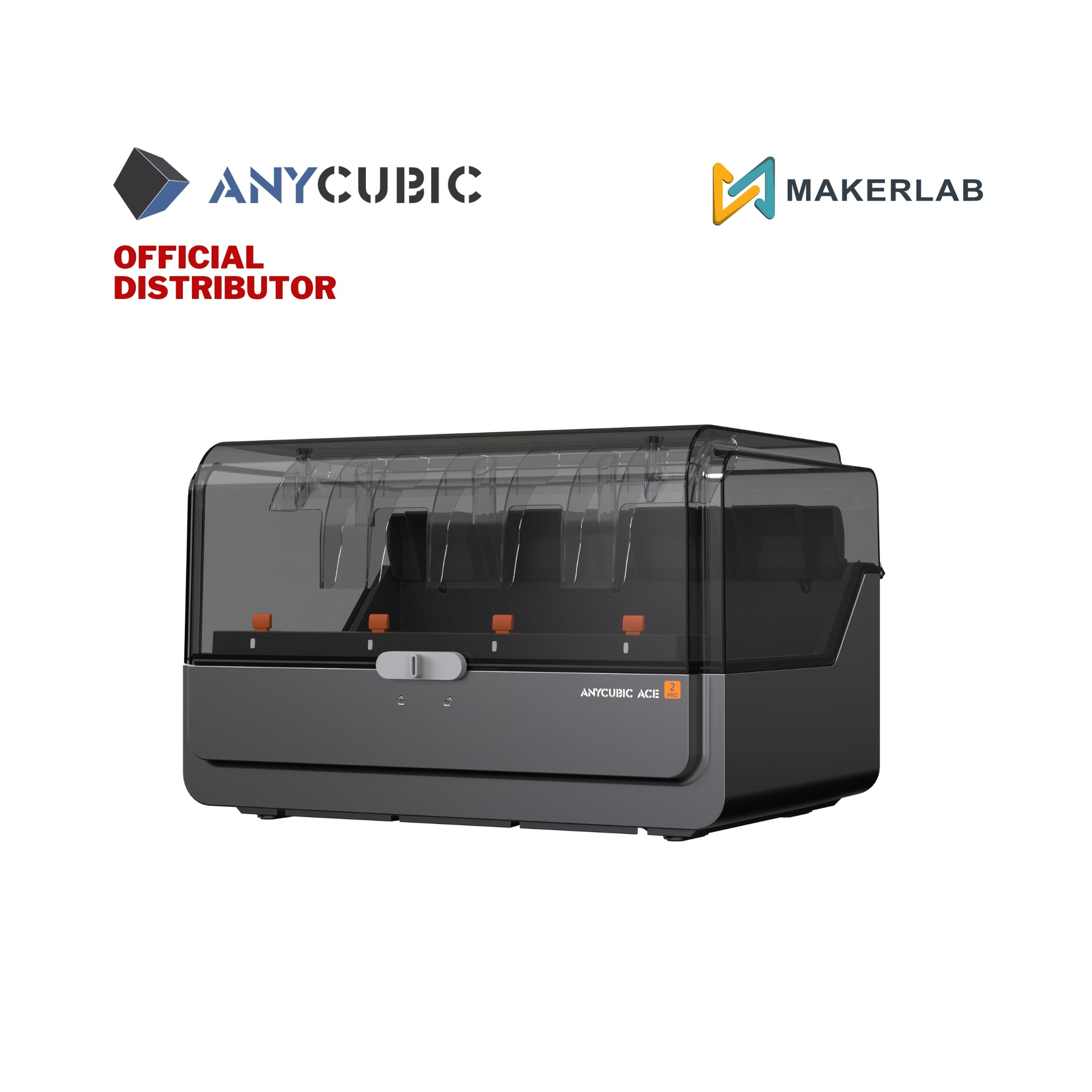

The ACE 2 Pro is an all-in-one dry-and-drive unit that holds up to four 1kg spools. It serves as the bridge between your material library and the printer, allowing for seamless color transitions. Unlike standard passive storage boxes, the ACE 2 Pro features a 65°C Active Drying system that works while the printer is running, ensuring that moisture-sensitive materials (like Nylon, PETG, or TPU) remain in peak condition.
A major upgrade in this version is the Quad-Motor Drive, which utilizes independent brushless motors for each channel. This significantly reduces the risk of filament jams and allows for a lightning-fast filament change speed of 56 seconds, making complex multi-color prints much more efficient.
Features
Print up to 16 Colors
Start with the ACE 2 Pro for 4-color printing. Then, expand your color palette by combining four of them to achieve 16-color printing. Now, when it comes to creativity, sky is the limit!
*ACE 2 Pro is compatible with the entire Anycubic series of multicolor printers. The number of colors supported may vary depending on the specific printer model—refer to the printer's manual for details.
Stable, Silent, Super-Efficient
Upgraded 4 independent brushless motors
Smooth and Stable Feeding
Engineered for maximum reliability, the new system features four independent brushless motors and a next-generation buffering mechanism. These components work together to ensure smooth, jam-free filament feed and retraction for every channel.
*Please avoid using cardboard spools, as long-term use may interfere with the normal operation of the ACE 2 Pro due to cardboard spool quality issues.
Faster Filament Change
Filament loading speed increased by 100%[1], saving 47 minutes per 100 filament changes.
[1] ACE Pro has a feed rate of 25 mm/s, with a filament change time of approximately 84 seconds. ACE 2 Pro has a feed rate of 50 mm/s, with a filament change time of approximately 56 seconds. Note that filament change times may vary with future firmware updates.
Quiet and Durable
Operates at under 48 dB[2] noise level, with independent brushless motors offering a lifespan of ≥ 5000 hours.
[2] ACE 2 Pro Noise Levels: 48 dB (closed-door printing), 55dB (printing with drying enabled). (Measured at 1 meter away in front of the printer by Anycubic Lab; subject to unit variation.)
65℃ High-Temperature Drying While Printing
Want to print perfect models? Filament drying is key. The ACE 2 Pro supports simultaneous drying and printing, keeping the filaments as fresh as the day they came in.
Alumina Ceramic Filament Feeding Port
Engineered for minimal wear during heavy use, the Alumina Ceramic offers superior abrasion resistance compared to standard plastic. Offering extended operational lifespan with significantly lower maintenance costs.
External Feeding Channel and Buffer Mechanism
The quick-release design allows for rapid disassembly, making it easy to clear jams or troubleshoot in seconds. Keeping your downtime to an absolute minimum.
Compatible with All Anycubic Multicolor 3D Printers
The ACE 2 Pro is compatible with K3, K3V2, K3 Max, S1, S1 Max, and KX series multicolor printers.
*ACE Pro and ACE 2 Pro cannot be used simultaneously.
Specifications
CORE PRINTING PERFORMANCE
Supporting Filaments: PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dry), BVOH (dry), PP, POM, HIPS, PLA-CF, PETG-CF, PAHT-CF, TPU (for ACE), PVB
Filament Diameter: 1.75 mm
Spool Compatibility
Flange diameter: 195-200mm; Spool width: 60-68mm; Flange thickness: 3-6mm
Printer Compatibility: Kobra X / Kobra S1 Max / Kobra S1 / Kobra 3 Max / Kobra 3 V2 / Kobra 3
Drying Efficacy: Suitable for drying: PLA, PETG, PVB; Compatible but not optimal: ASA, ABS, PET, PA, PC, PP, BVOH, POM, HIPS, Fiber-reinforced materials
SYSTEM & MECHANICAL DESIGN
Housing Material: ABS / PC
Motors: Brushless motor *4
Active Moisture Control: Supported
Sealed Storage: Supported
Externally Mounted PTFE Tube: Supported
Temp.&Humidity Monitoring: Supported, display on APP, slicer & printer screeN
Filament Intelligent Identification: Supported
Filament Runout Detection: Supported
Auto-Resume Printing: Supported
Power Rating: 220V: 330W Max; 110V: 235W Max
Max. Drying Temp.: 65 ℃
USER EXPERIENCE & FEATURES
Machine Weight: 3.7kg
Machine Dimensions: 368*291.5*236.5mm³
Package Weight: 4.8kg
Packaging Dimensions: 445*345*320mm³
