Description

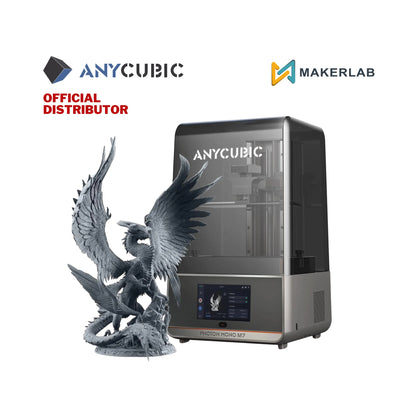

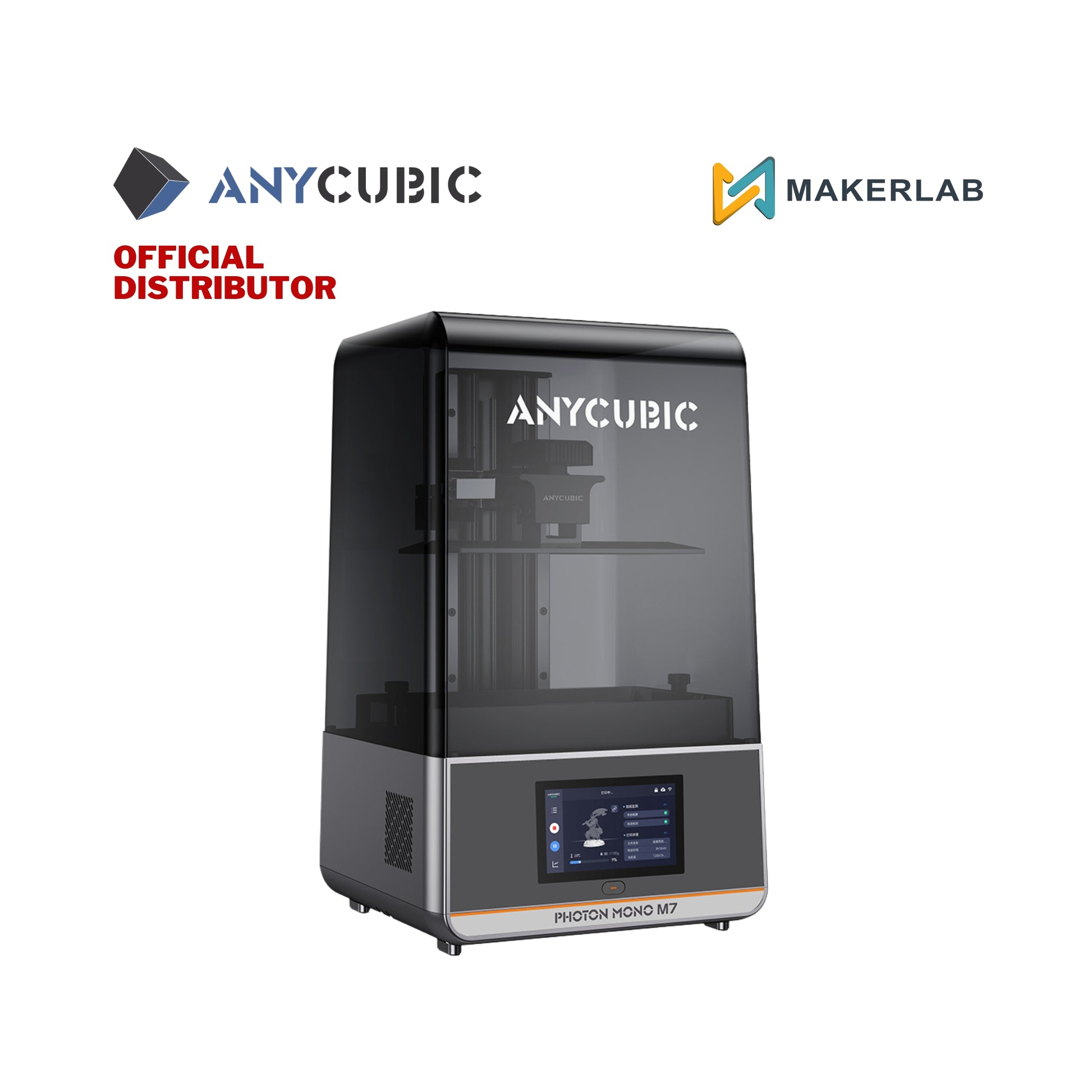

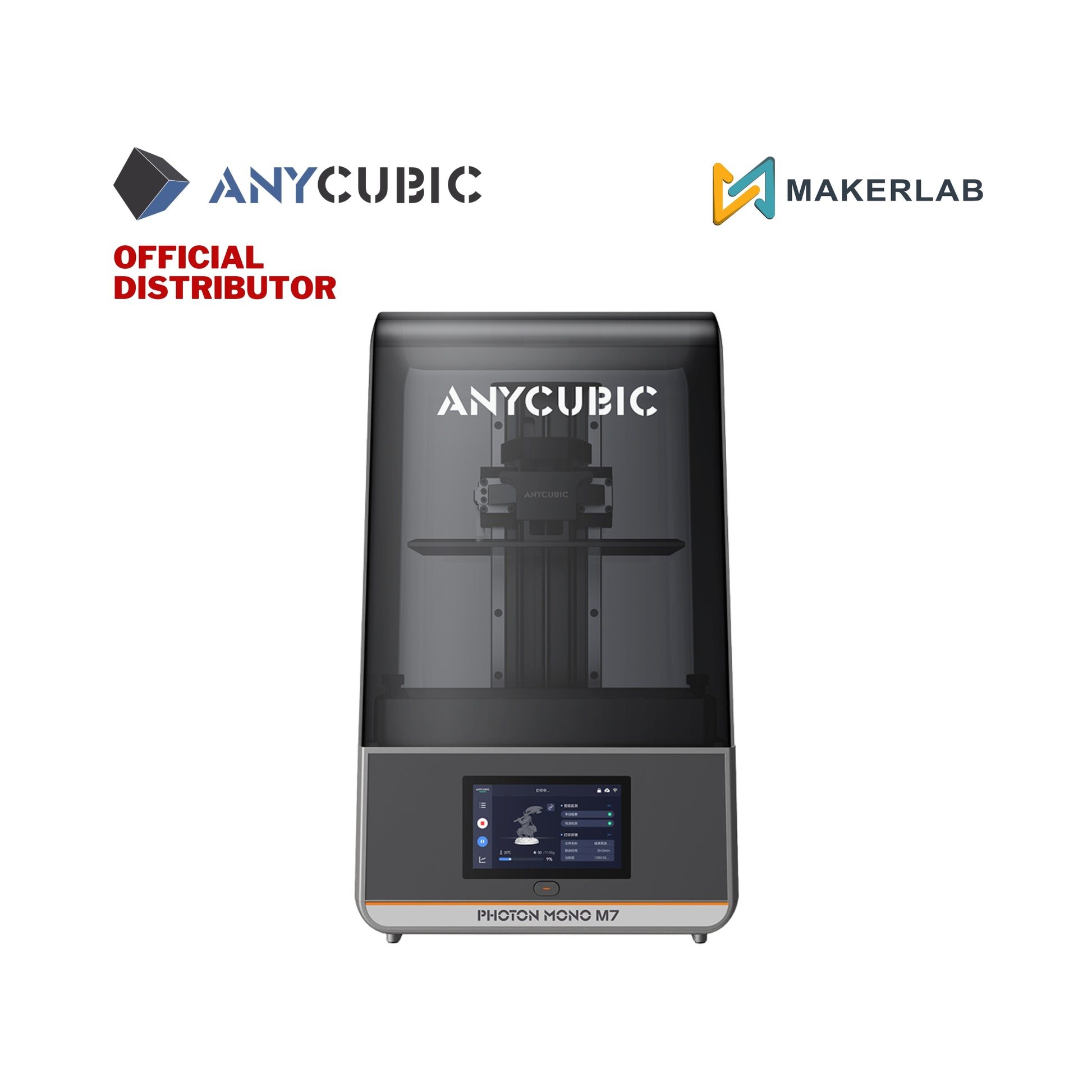

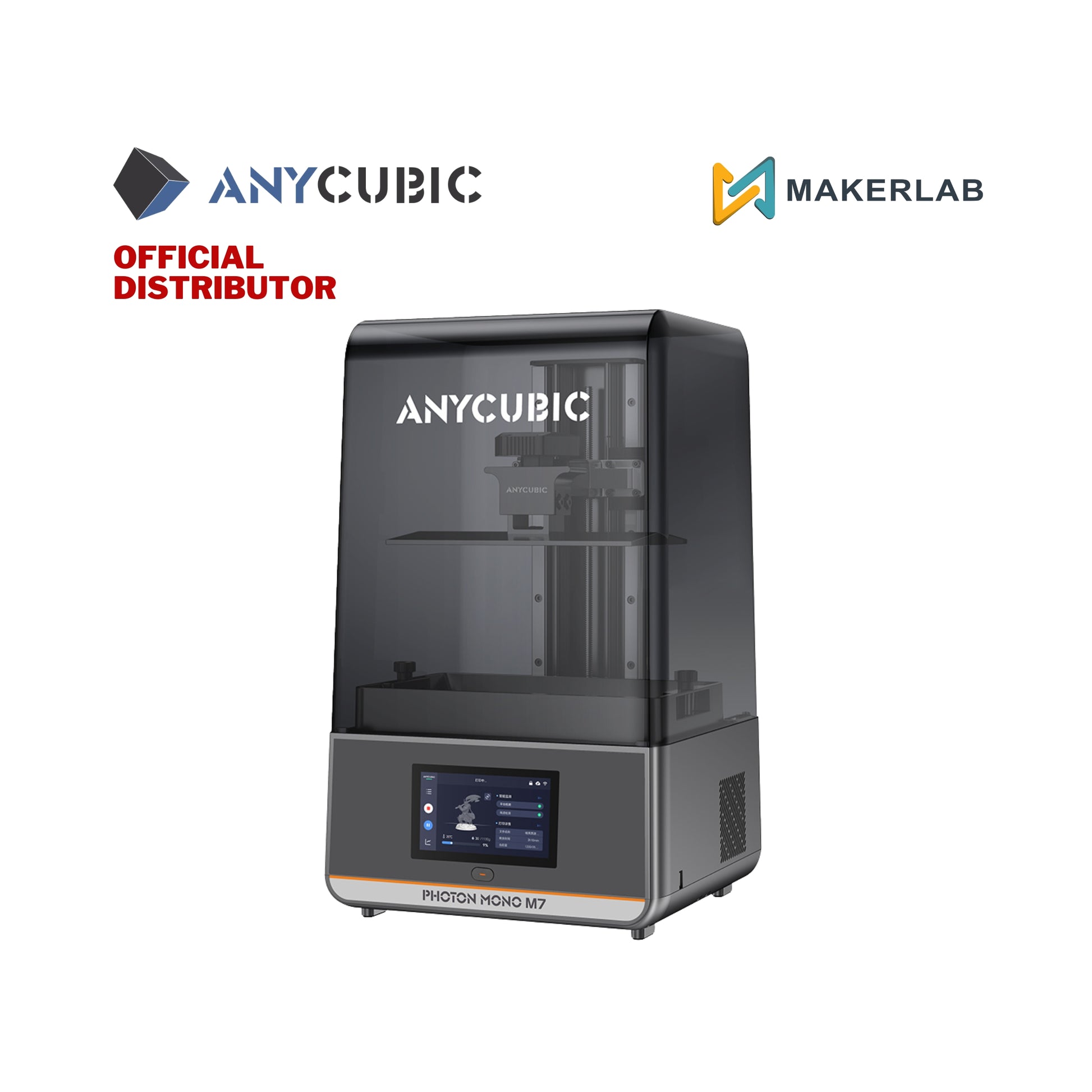

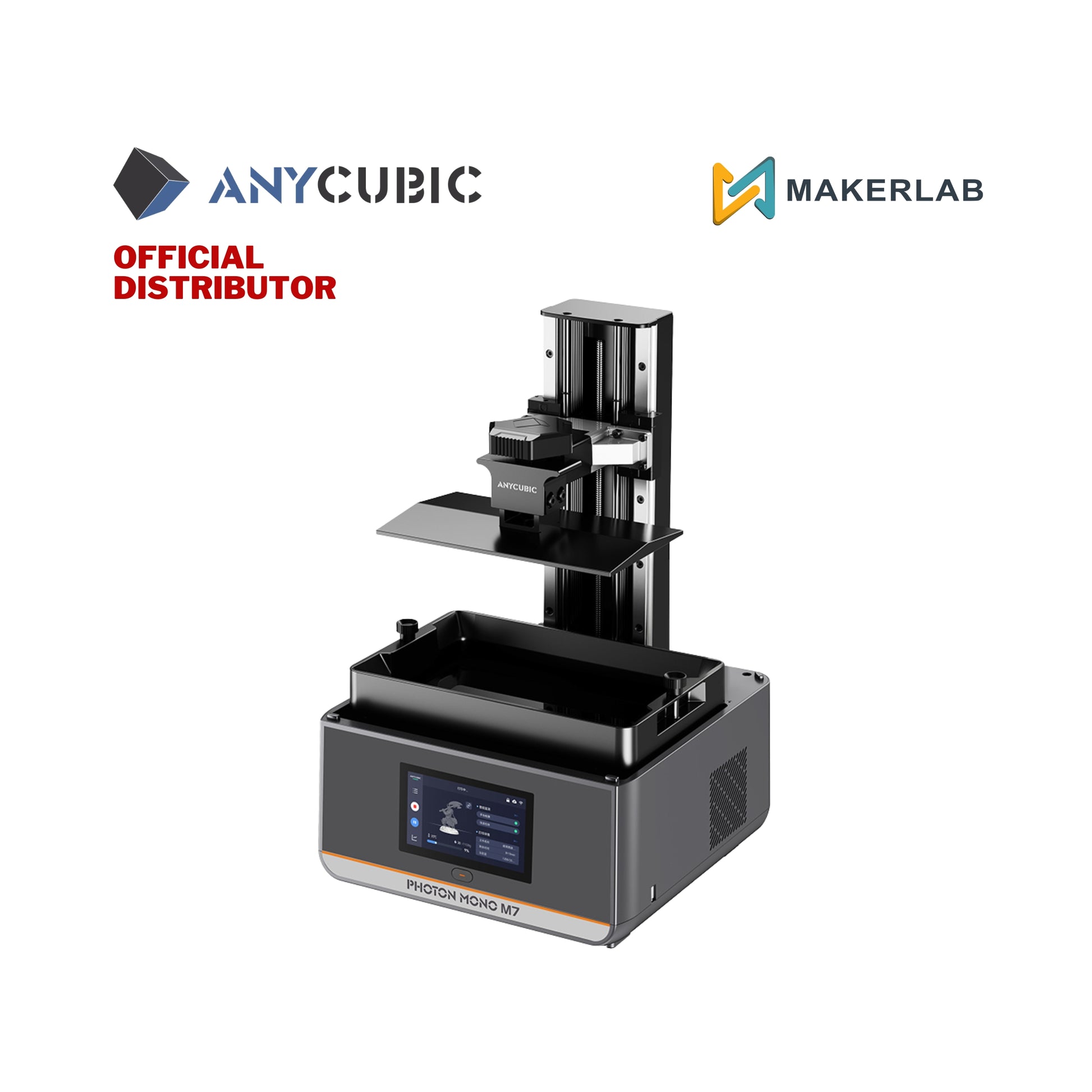

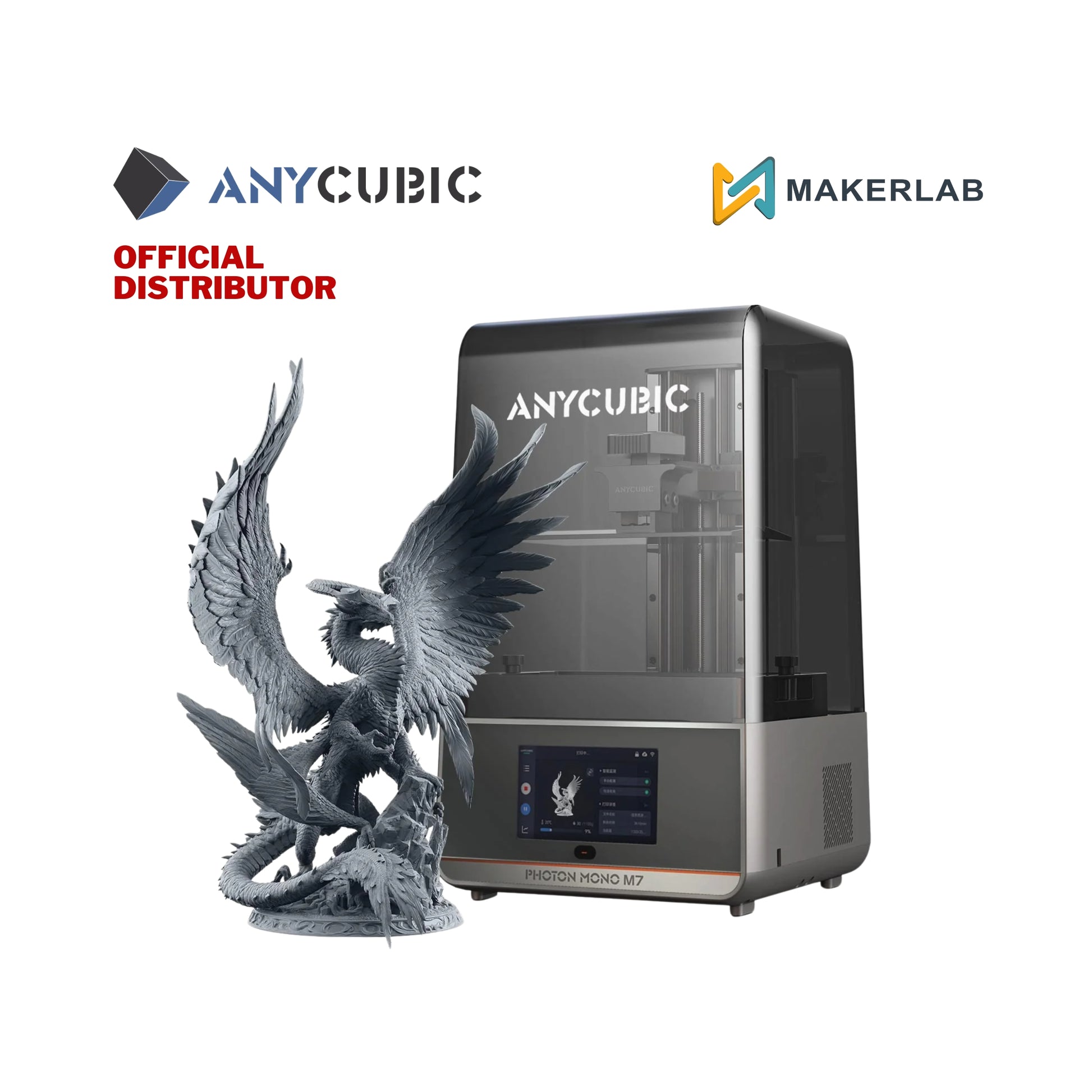

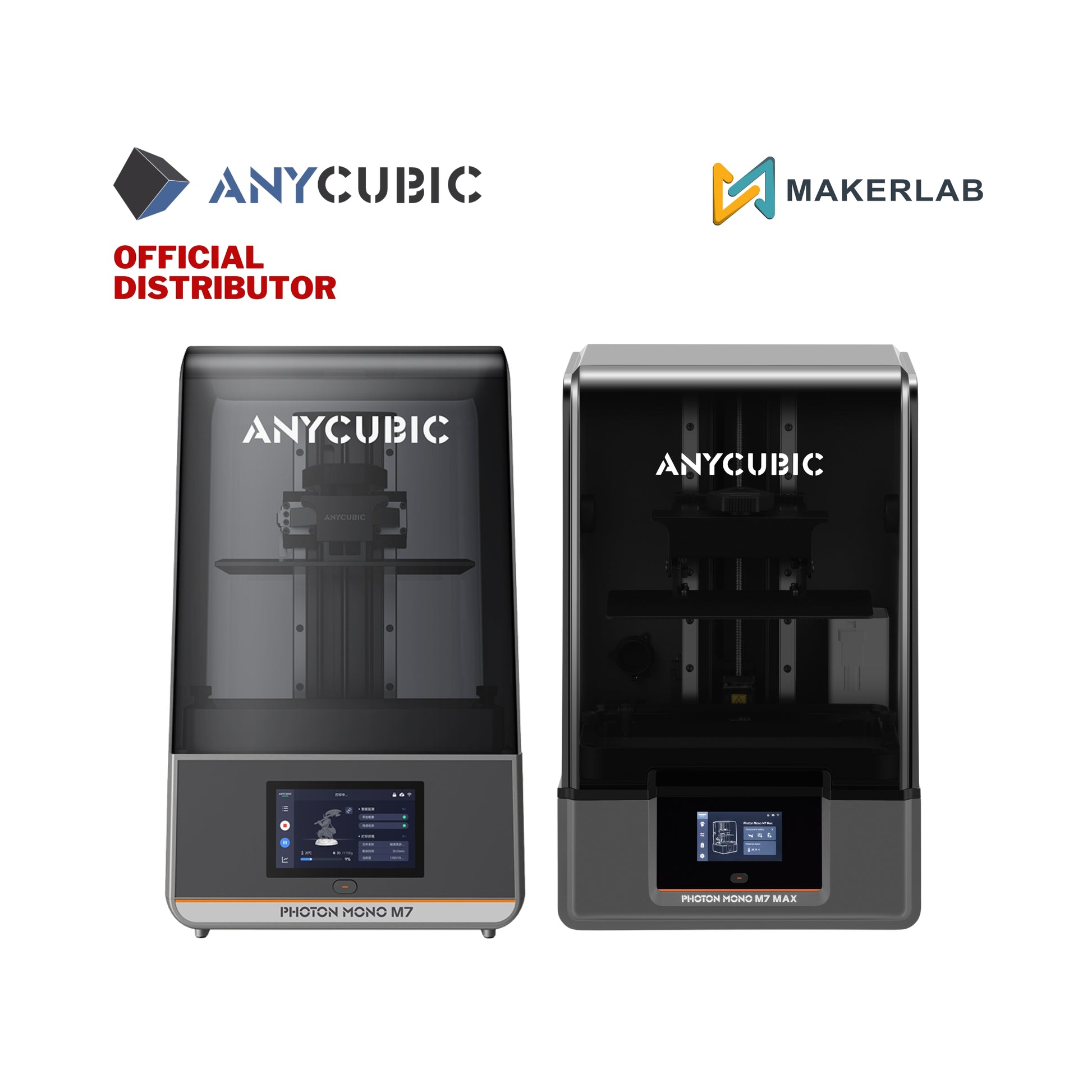

The Photon Mono M7 is a high-speed precision specialist. It features a 10.1-inch 14K monochrome screen, delivering microscopic detail. It is designed for creators who need rapid output without sacrificing surface quality, utilizing the LighTurbo 3.0 optical system to ensure 90% light uniformity.

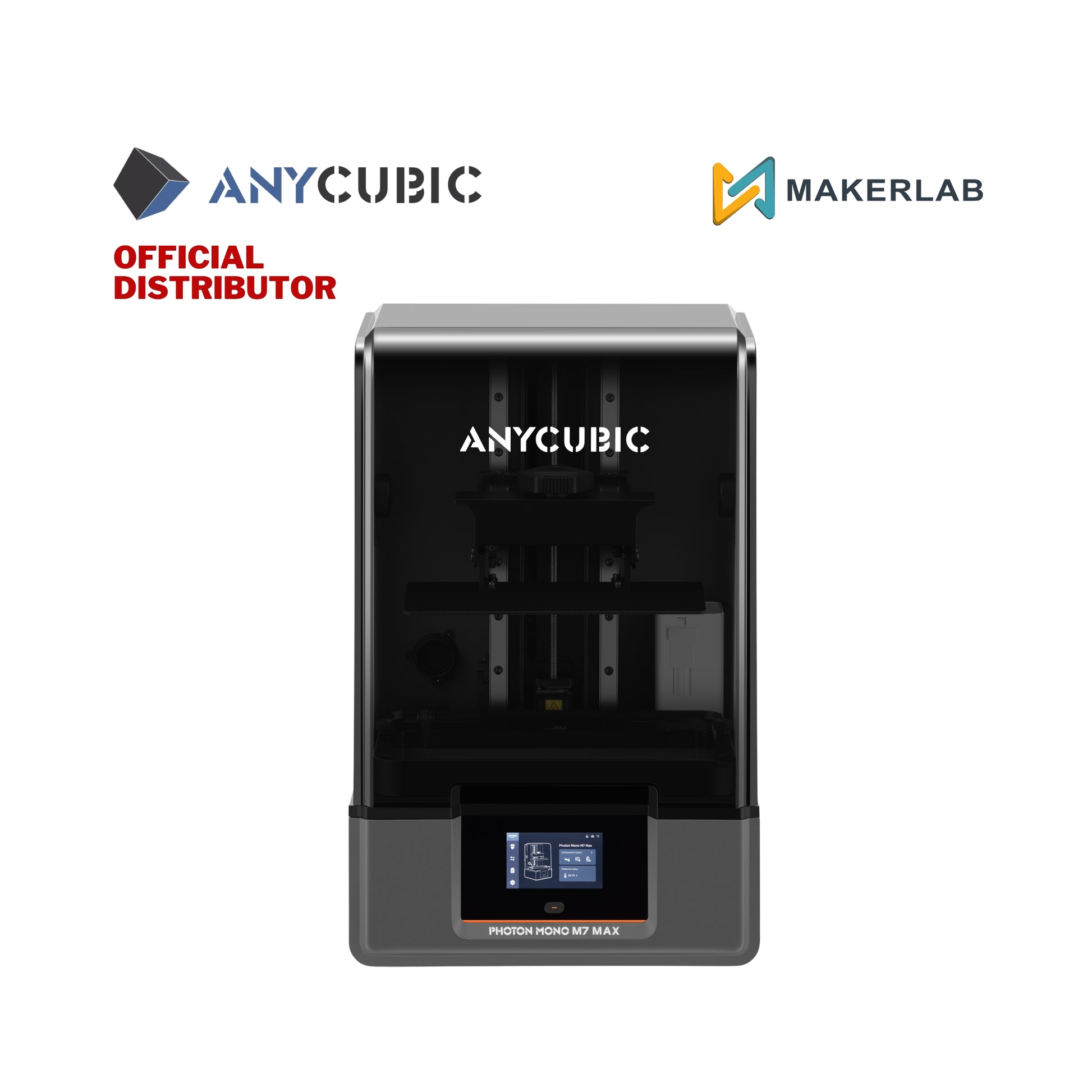

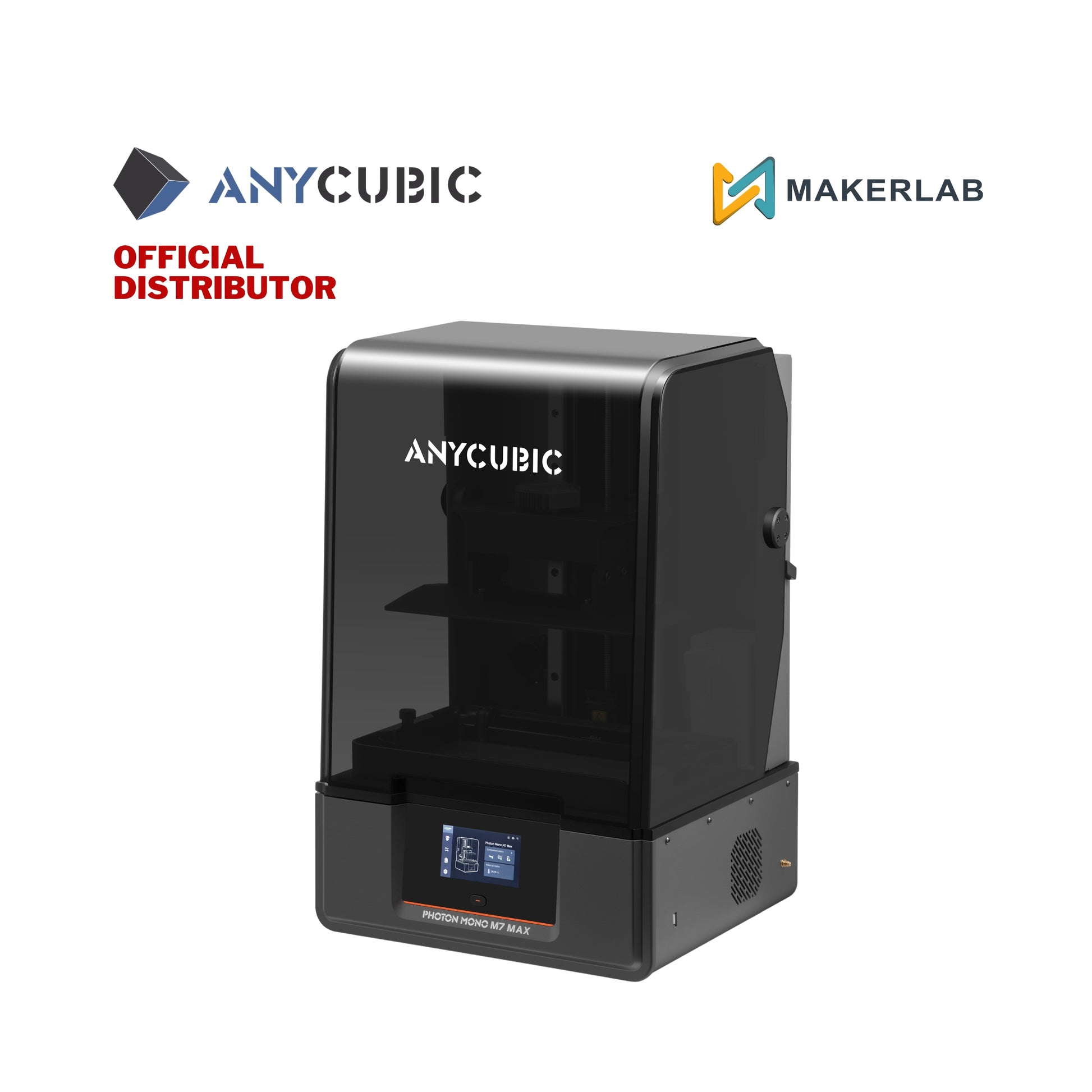

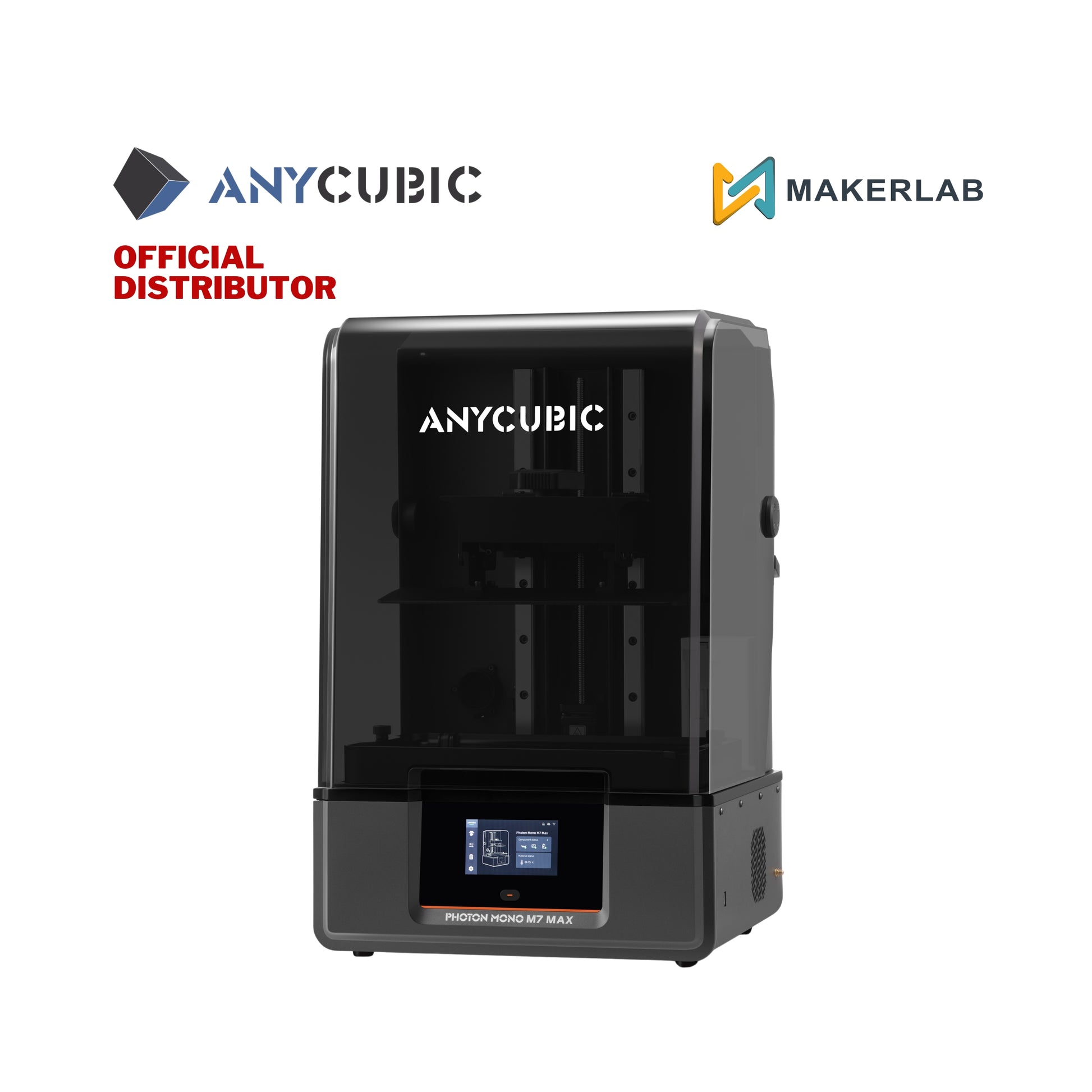

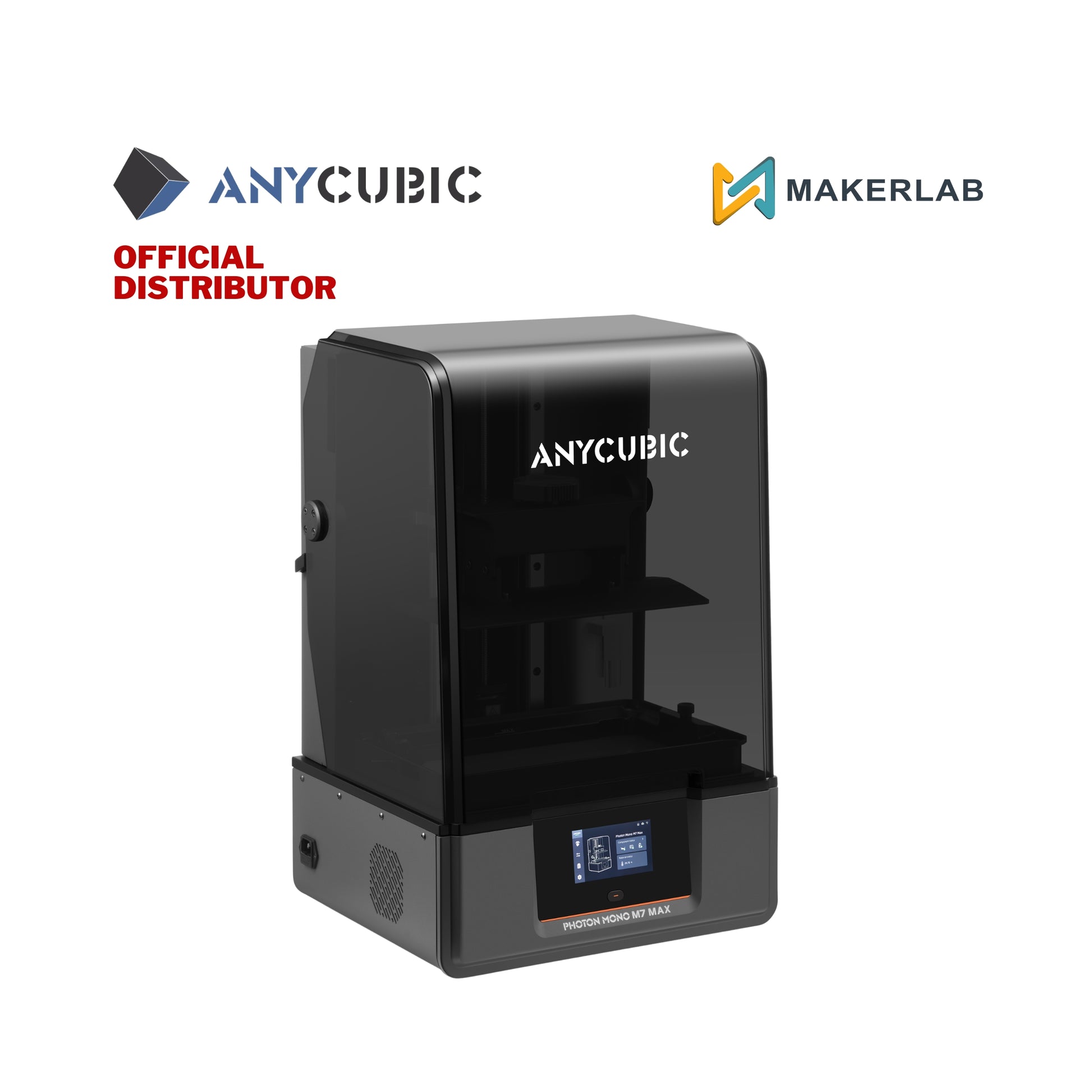

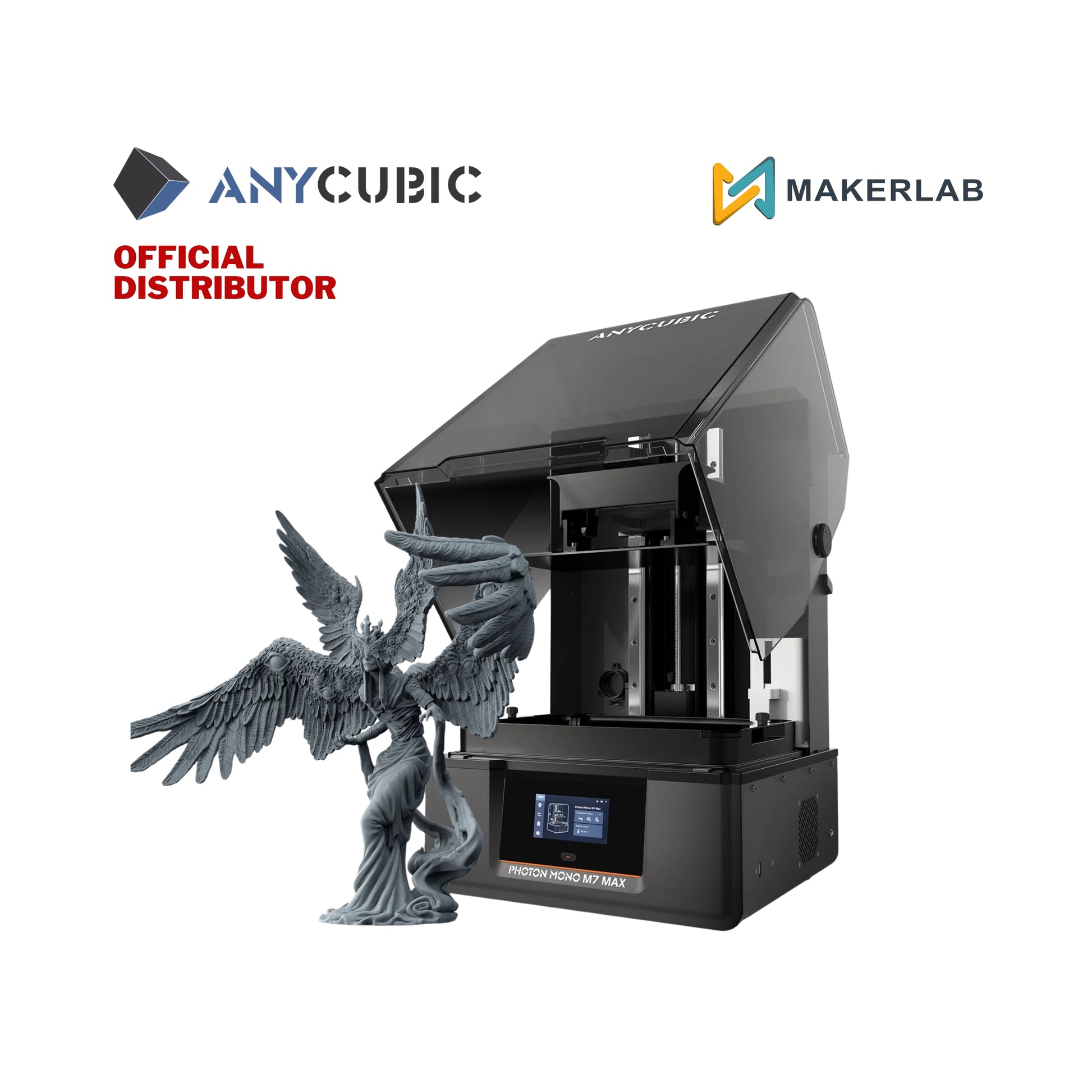

The Photon Mono M7 Max is the "beast" of a printer designed for large-scale projects like cosplay helmets or batch production. It trades the 14K resolution of the standard M7 for a massive 14.7L build volume and advanced automation, including a system that actively recycles excess resin.
Why Choose Photon Mono M7?
-
Print Speed up to 150mm/h
-
223*126*230mm Print Space
-
All-new Ligh Turbo 3.0
-
14K Precisely Crafted Details
-
Effortless 4-point Leveling
-
Intelligence Assisted Printing System
Why Choose Photon Mono M7 Max?
-
14.7L Extra-Large Build Volume
-
Outstanding Print Speed of 86mm/h
-
Ultra-precise Printing
-
Improved Lighturbo3.0 Light Source
-
Temperature-controlled Resin Vat
-
Resin Auto-recycling Management
Specifications
PHOTON MONO M7
Core Printing Performance
Printing volume: 223*126*230mm (6.5L)
Printing speed: Max Speed <90mm/h; Standard Resin (0.1mm): 90mm/h; High-Speed Resin (0.1mm): <150mm/h
Layer Height Range: 0.01 -0.15mm
Light Source: COB Light Source+ Fresnel Lens+Light Uniformity Algorithm
Light Intensity: 4500 +10% μW/cm2
Material Compatibility: High-speed, Water-washable, Standard, ABS- like, and Plant-based Resins, etc
X/Y Axis Resolution: 16.8 x 24.8μm
System & Mechanical Design
Build Platform: Laser-engraved Build Plate
Z-axis: Dual Linear Rails with 10 μm Precision
Release film: Improved ACF Film
Resin Vat: ≤1L
Machine Leveling: Leveling-free
Resin Auto-fill Unit: Not Supported
Power Loss Resume: Not Supported
Dynamic Temperature Control Resin Vat
Not Supported
Power Supply: 135W
Protection Film: Replaceable Scratch-resistant Film
Slicing Software: Photon Workshop, Chitubox, Lychee Slicer (Scheduled)
File Transfer: USB/WiFi/LAN (Scheduled)
User Experience & Features
Hinged Cover: -
Operating Screen: 4.3" Touch-Control
Air Purifier: Optional Accessory
LCD Screen: 10.1-inch Monochrome LCD, 14K Resolution
Anycubic App: Supported
Multilingual Support: EN / CN/DE/FR/IT/ES/RU/JP
Product Dimensions: 312 315 520mm
Packaging Dimensions 620*395*395mm3
Machine Weight:12kg
Package Weight: 13kg
PHOTON MONO M7 MAX
Core Printing Performance
Printing Volume: 298*164 300mm (14.7L)
Printing Speed: Max Speed <63mm/h; Standard Resin (0.05mm): 31mm/h; Standard Resin (0.1mm):
<63mm/h; High-Speed Resin (0.1mm): <86mm/h
Layer Height Range: 0.01 -0.15mm
X/Y Axis Resolution: 46 x 46μm
Light Source: COB Light Source+ Fresnel Lens+Light Uniformity Algorithm
Light Intensity: 4500 +10% W/cm2
Material Compatibility: High-speed, Water-washable, Standard, ABS-
like, and Plant-based Resins, etc
System & Mechanical Design
Build Platform: Laser-engraved Aluminum Build Plate
Z-axis: Dual Linear Rails with 10 μm Precision
Release film: Improved ACF Film
Resin Vat: <1.3L, Unibody Design with Scale Markings
Machine Leveling: 4-point Manual Leveling
Resin Auto-fill Unit: Supported
Power Loss Resume: Supported
Power Supply: 180W
Protection Film: Replaceable Scratch-resistant Film
Dynamic Temperature Control Resin Vat: Supported
Slicing Software: Photon Workshop, Chitubox, Lychee Slicer (Scheduled)
File Transfer: USB/WiFi/LAN (Scheduled)
User Experience & Features

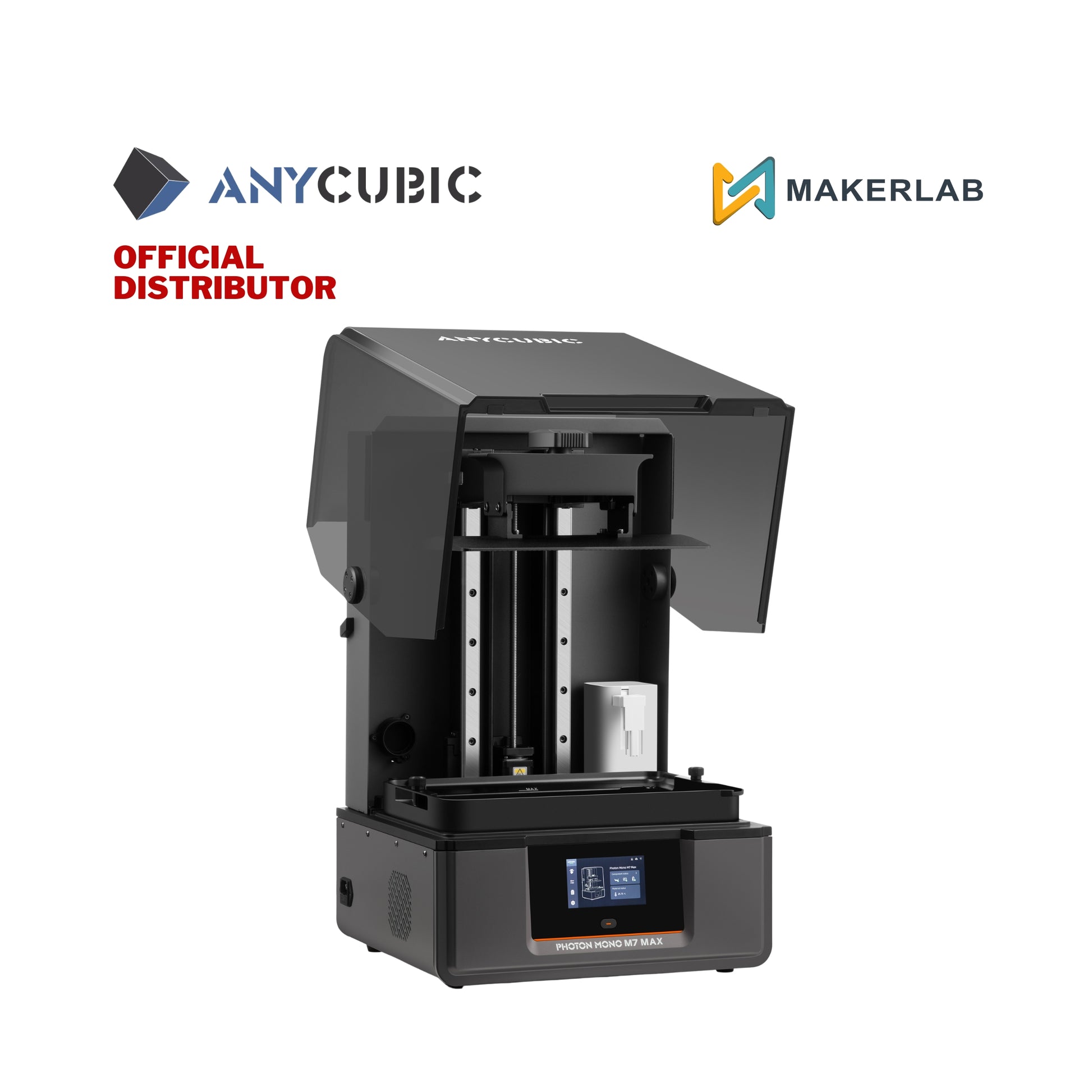

Hinged Cover: UV-blocking; Supports One-handed Operation and Hover at Angles > 45°
Operating Screen: 4.3" Touch-Control
Air Purifier: Optional Accessory
LCD Screen: 13.6-inch Monochrome LCD, 7K Resolution
Anycubic App: Supported
Multilingual Support: EN / CN/DE/FR/IT/ES/RU / JP
Machine Weight: 24kg
Package Weight: 28.5kg
Product Dimensions 425*362*652mm
Packaging Dimensions 785*520*490mm
