Description

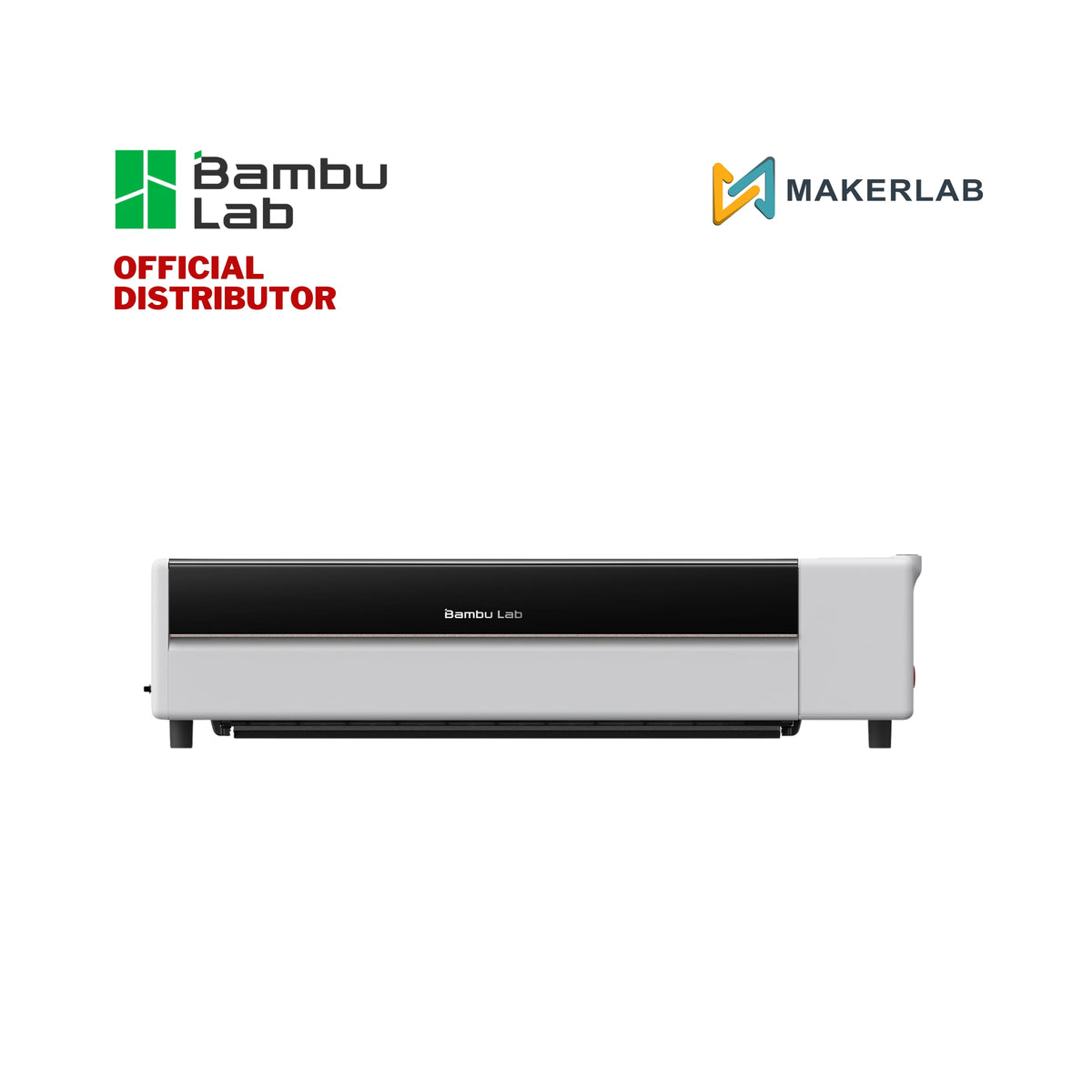

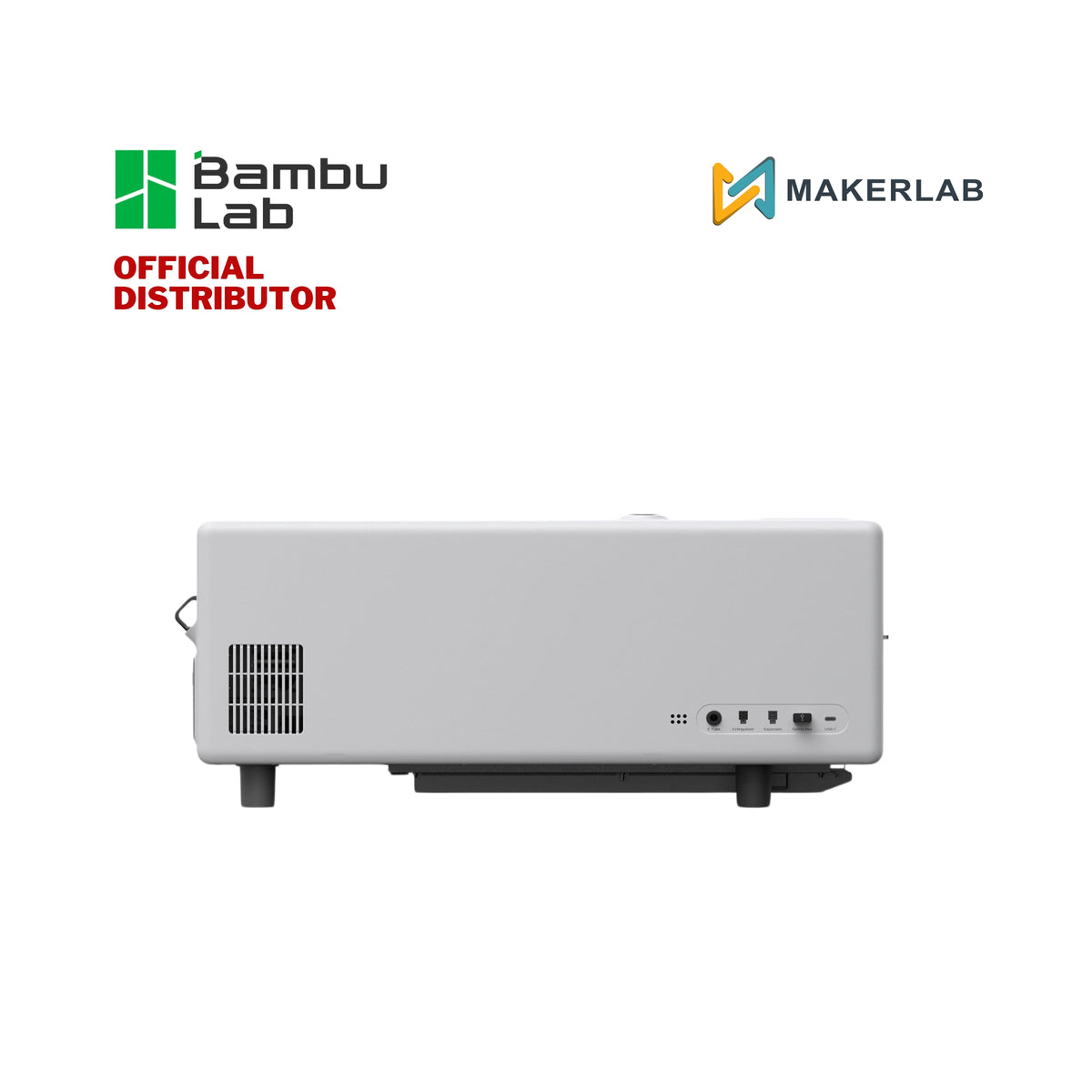

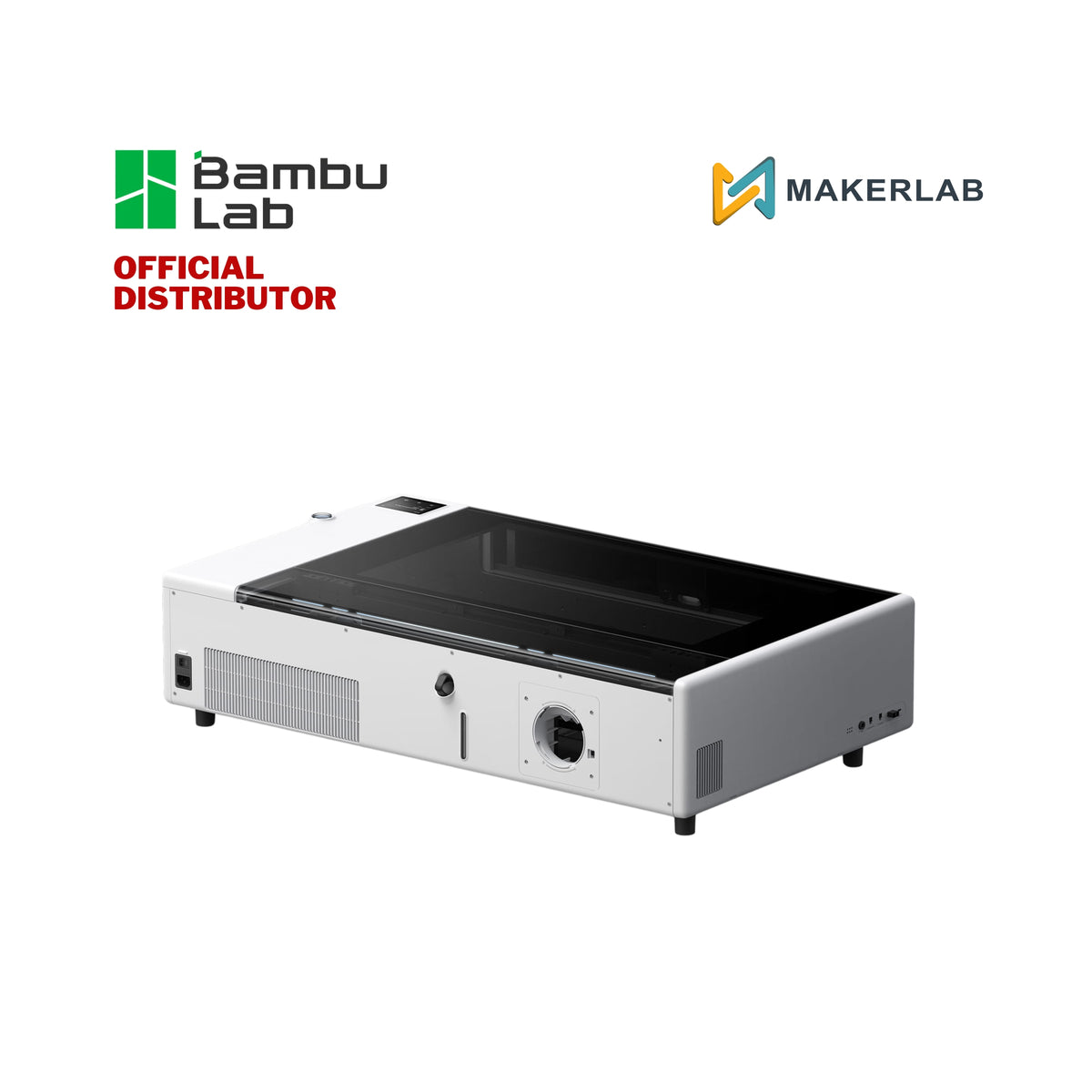

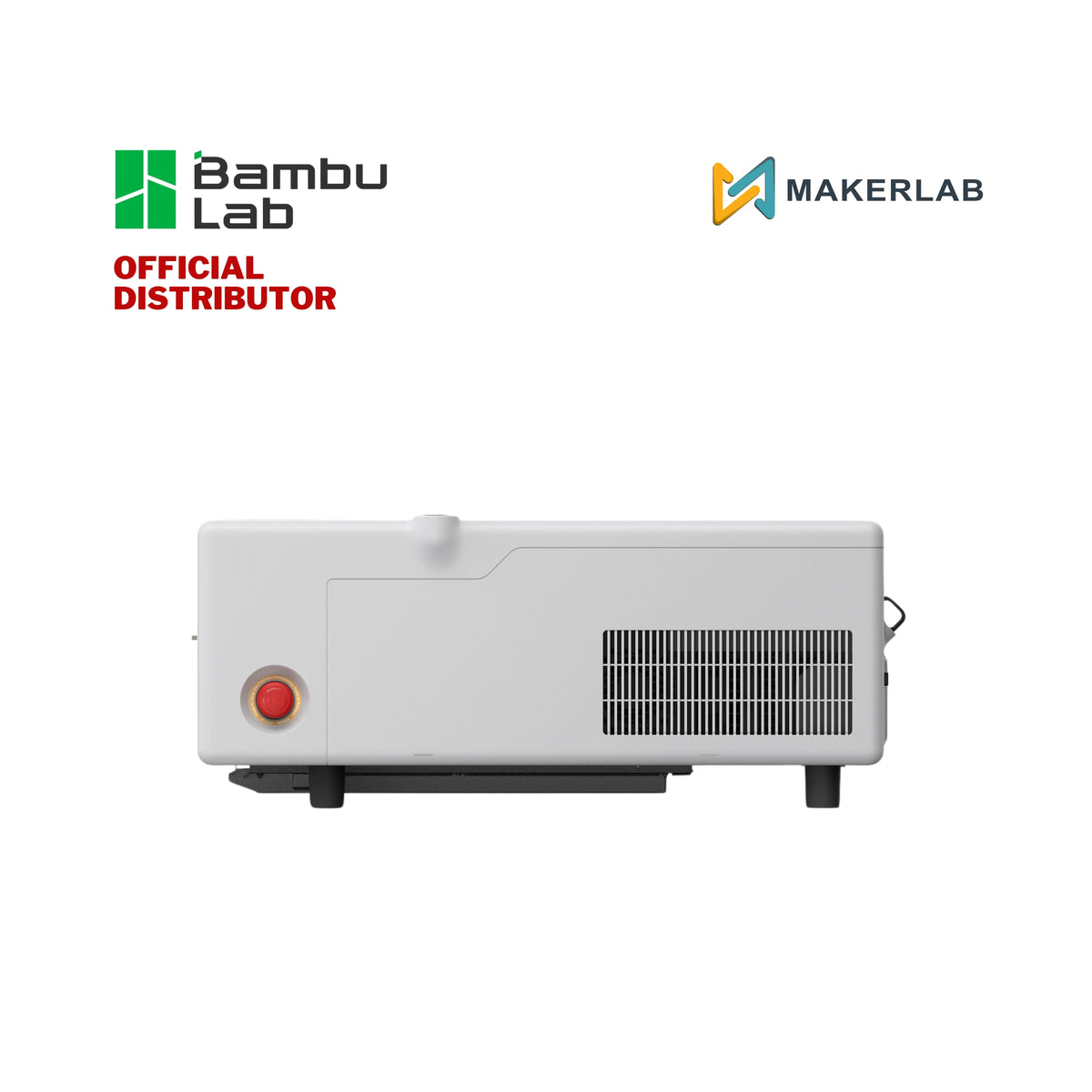

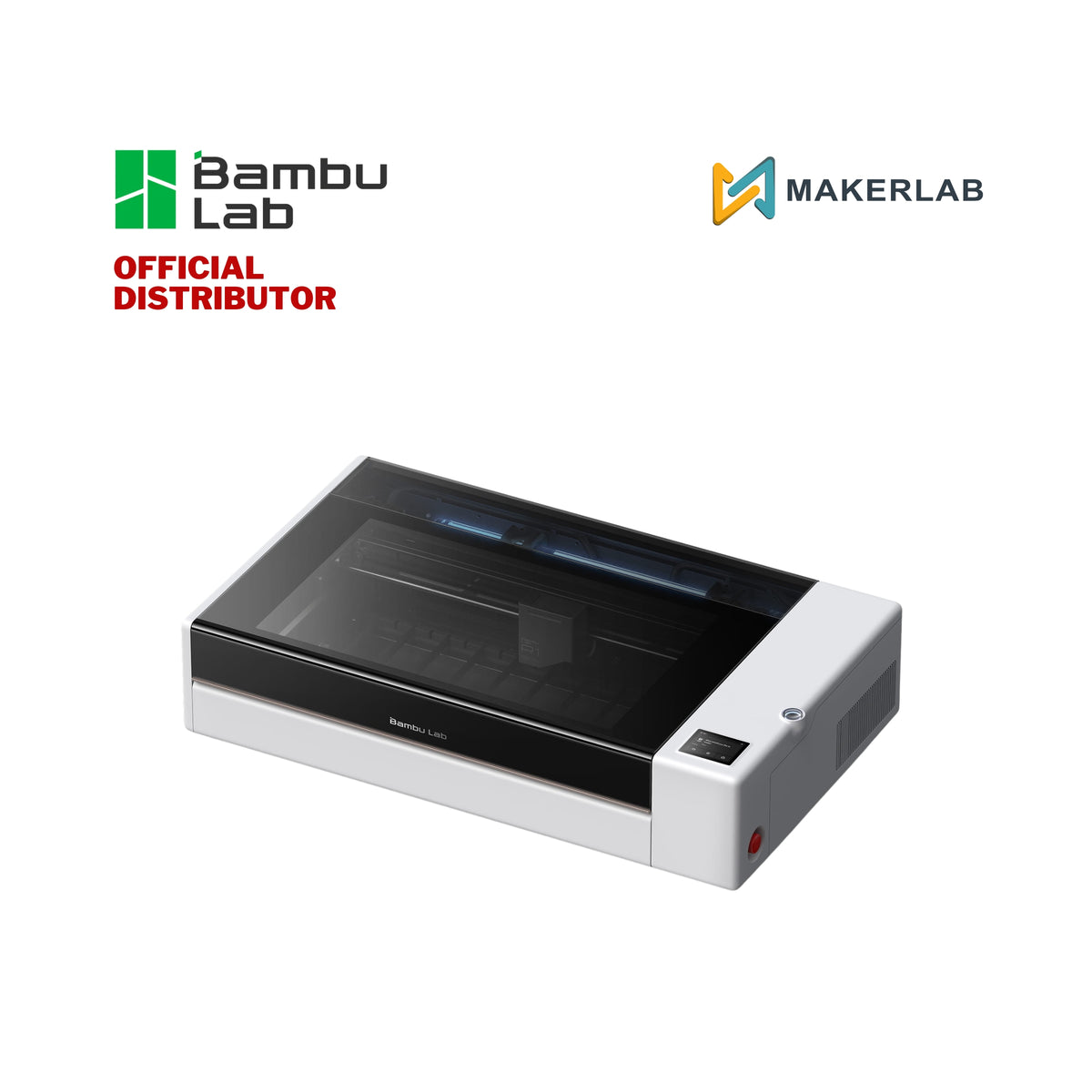

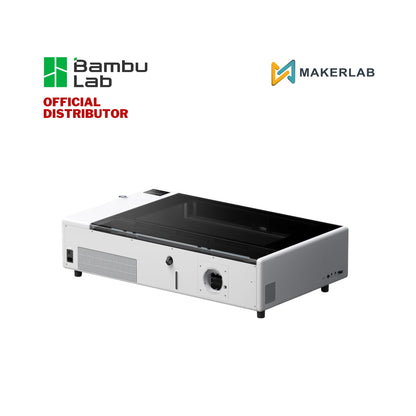

The Bambu Lab R1 is a high-performance desktop 55W CO2 laser cutter and engraver that applies Bambu Lab's signature automation and motion control to laser fabrication.
Equipped with a sealed 55W CO2 glass tube, the R1 easily processes materials impossible for diode lasers—including clear acrylics, glass, and dense organic woods up to 20mm thick in a single pass. It introduces a hands-free Auto Laser Alignment system that motorized-adjusts internal mirrors in under a minute without thermal paper or manual tuning. Coupled with the TriSense System (dual cameras, distance laser, and encoders), the R1 brings plug-and-play precision, active vibration compensation, and rapid 1,000mm/s processing to creative studios and production workshops.
Features
CO₂ laser. Wood to glass. Tabletop decor to furniture.
Makes laser work easy - A 55W Co2 laser with Bambu Lab's proven motion control, making laser work faster, finer, and easier.
Thick cuts with one pass - The 55W CO2 laser cuts up to 18mm and 20mm acrylic in a single pass - fast, clean, and without the extra passes that slow you down.
Go furniture-scale - With the auto-feed conveyor³, R1 handles material up to 3 meters long. Pass-through feeding and deep cutting turn full-length panels into tables, shelving and furniture.
Bring out the best in every material - Powered by a 55W CO₂ laser, R1 works across a wide range of materials — from wood and acrylic to glass, leather, fabric, and more — each bringing its own character to the piece.
Trisense System - Drop in your workspace - crooked, curved, or tiny. R1 locates it, reads the surface, and tracks every move as it works, so every line lands exactly where you set it. This is Trisense. What you mark is what you cut.
Follow the Curve - From curved cups and spheres to uneven surfaces. Height sensing follows every rise and fall to keep the engraving sharp and consistent across the entire surface.
Vibration Compensation - When the toolhead changes direction, a split-second shake can ripple the line that follows R1's vibration compensation cancels it out, keeping lines crisp right out of the turn - the same technology as in our 3D printers.
Same work area. Smaller footprint. - R1 delivers the same working area as a typical CO₂ laser while taking up about a third less space.⁸

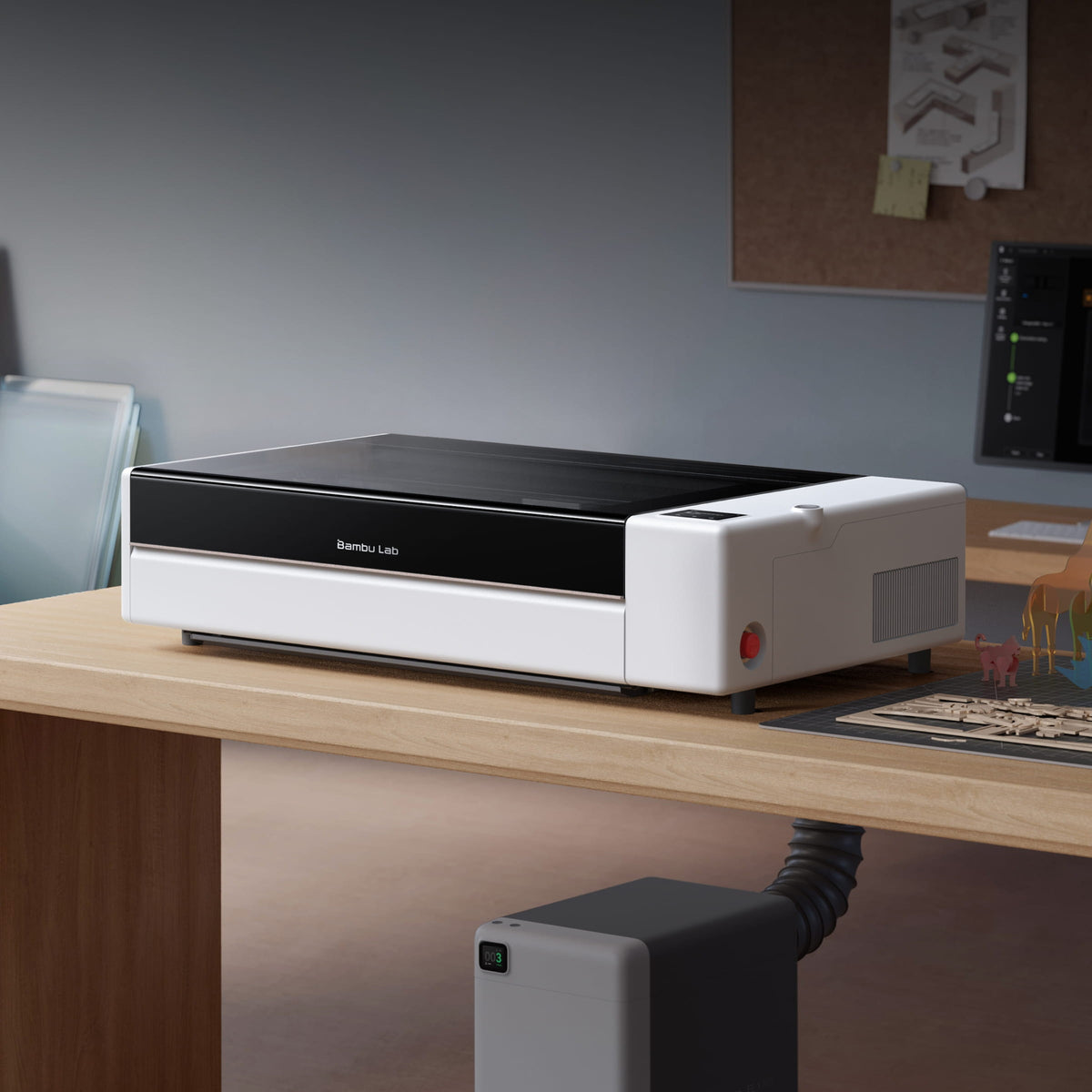

E1 Pro Air Purifier. Cleaner air, back in the room. - Built for R1, E1 Pro⁶ connects directly to R1's exhaust outlet and pulls smoke out at the source. Multiple filter layers, with activated carbon, catch smoke and fine particles and reduce odors.
Go taller. Rounder. Longer. Thicker. - Add the setup you need for taller objects, round pieces, thicker stock, and extra-long boards.
Specifications
Laser type: 55W CO2 laser
Supported materials
Cut & engrave: wood, acrylic (incl. clear acrylic), leather, fabric, paper, EVA foam, shell
Engrave only: coated metal (bare metal cannot be engraved), glass, ceramic
Max cutting capacity
Short-focus: 15mm black walnut / 20mm acrylic
Medium-focus: 18mm black walnut / 20mm acrylic
Long-focus: 18mm black walnut / 20mm acrylic (faster than medium at the same thickness)¹
Working area
Standalone: 600×300mm
With Conveyor: 600×3000mm
Max. material size the machine can accommodate
Standalone: 710 × 380 mm
With Conveyor: Up to 610 mm wide
Max speed: 1000mm/s
Max acceleration: 20000mm/s²
Spot size
Short-focus: Ø0.11mm
Medium-focus: Ø0.17mm
Long-focus: Ø0.19mm
Absolute motion accuracy (with Vision Encoder): <0.1mm @600mm
Air assist pump: 30L/min @30kPa
Positioning system: Dual-camera + dual-laser + dual-encoder system
Positioning accuracy: <0.2mm
Panoramic capture: Supported
Detail capture: Supported
Focusing: Fully automatic laser ranging
What's In The Box
R1
