Description

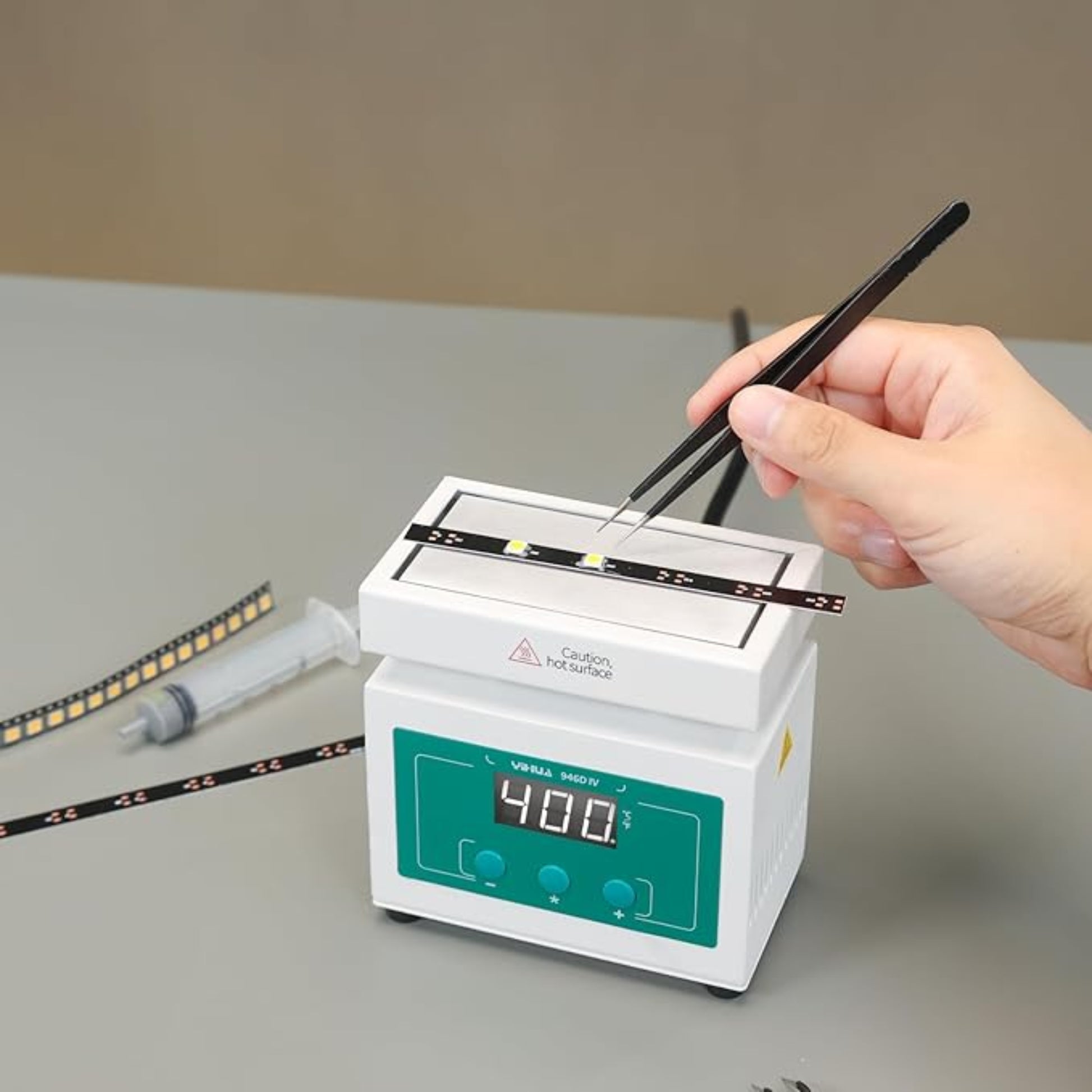

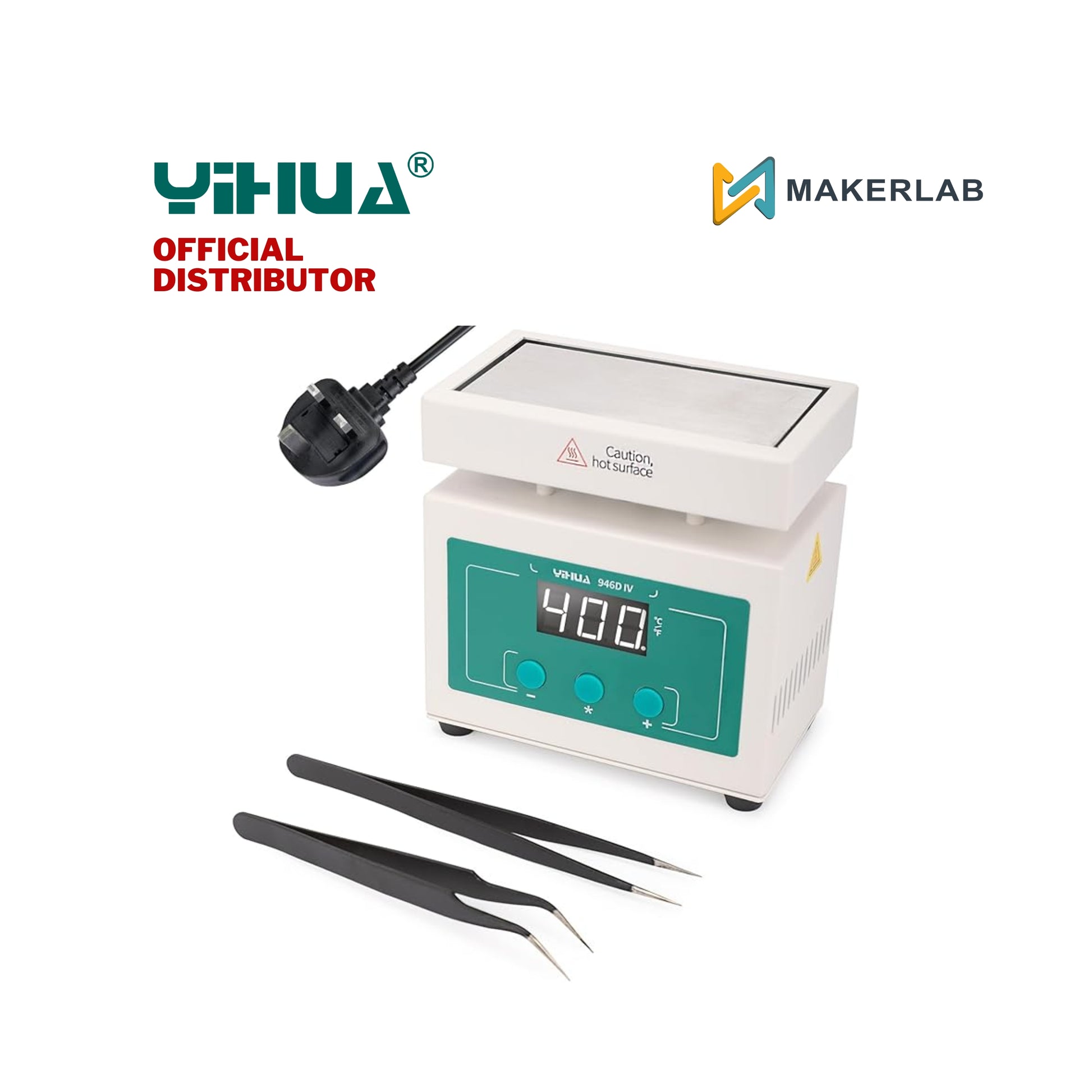

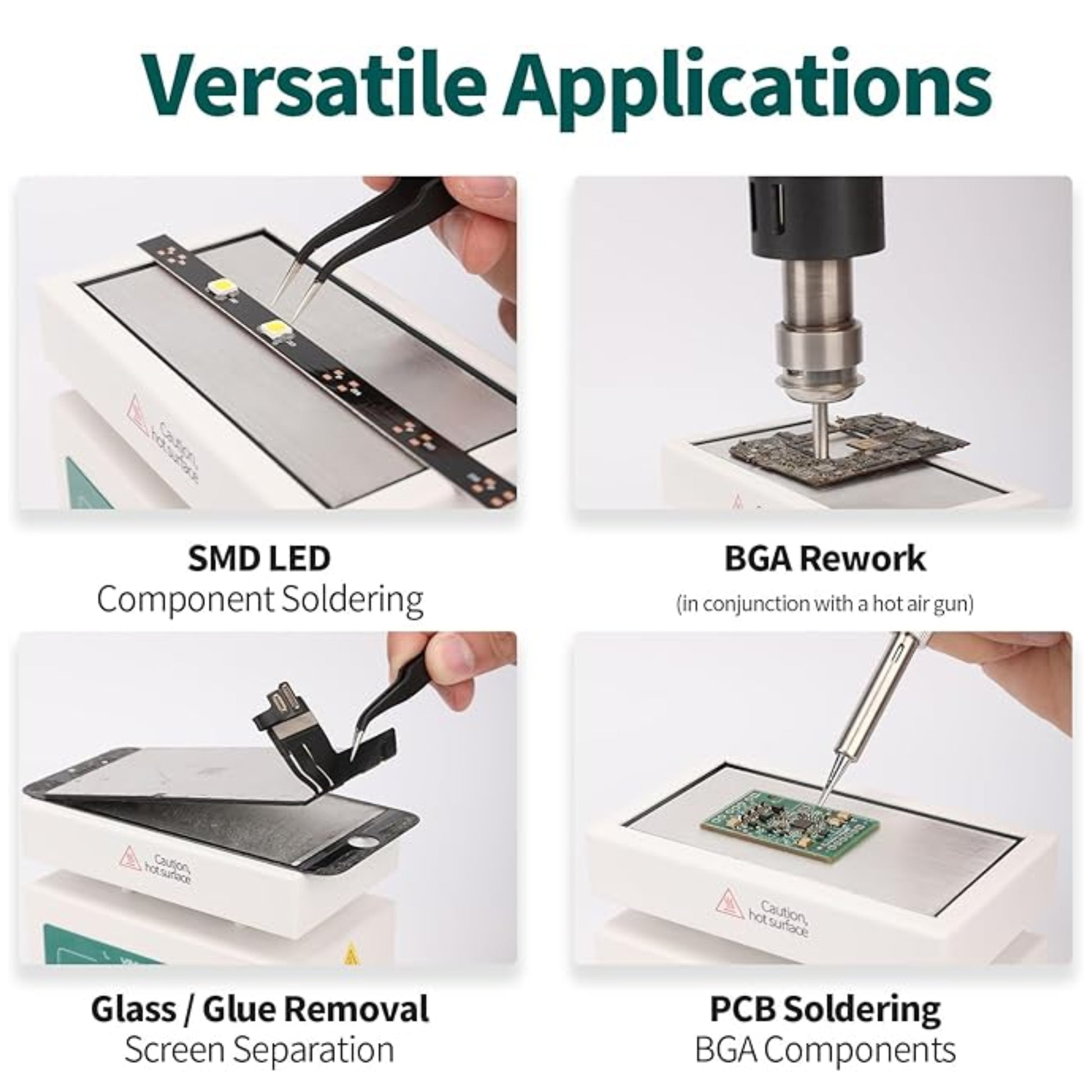

The YIHUA 946D-IV Mini Preheater is a specialized heating table that provides a stable, uniform thermal base for delicate electronics repair. Unlike larger screen separators (like the 946D-III), the IV-series is optimized for a "mini" footprint, making it ideal for mobile phone motherboard repair and hobbyist workstations where space is at a premium.
It utilizes an aluminum heating plate known for its excellent thermal conductivity and flatness. Controlled by a high-precision PID microcomputer, the station maintains a consistent surface temperature with minimal deviation, protecting sensitive components from thermal shock or overheating often caused by direct hot air gun use alone.
Features
PID Precision Control: Employs a Proportional-Integral-Derivative (PID) algorithm to monitor and stabilize the plate temperature in real-time.
Rapid Heating: The high-efficiency aluminum plate can reach working temperatures (e.g., 300°C) in under two minutes.
Safety Housing: Features a full-metal protective surround to prevent accidental contact with the heating element during operation.

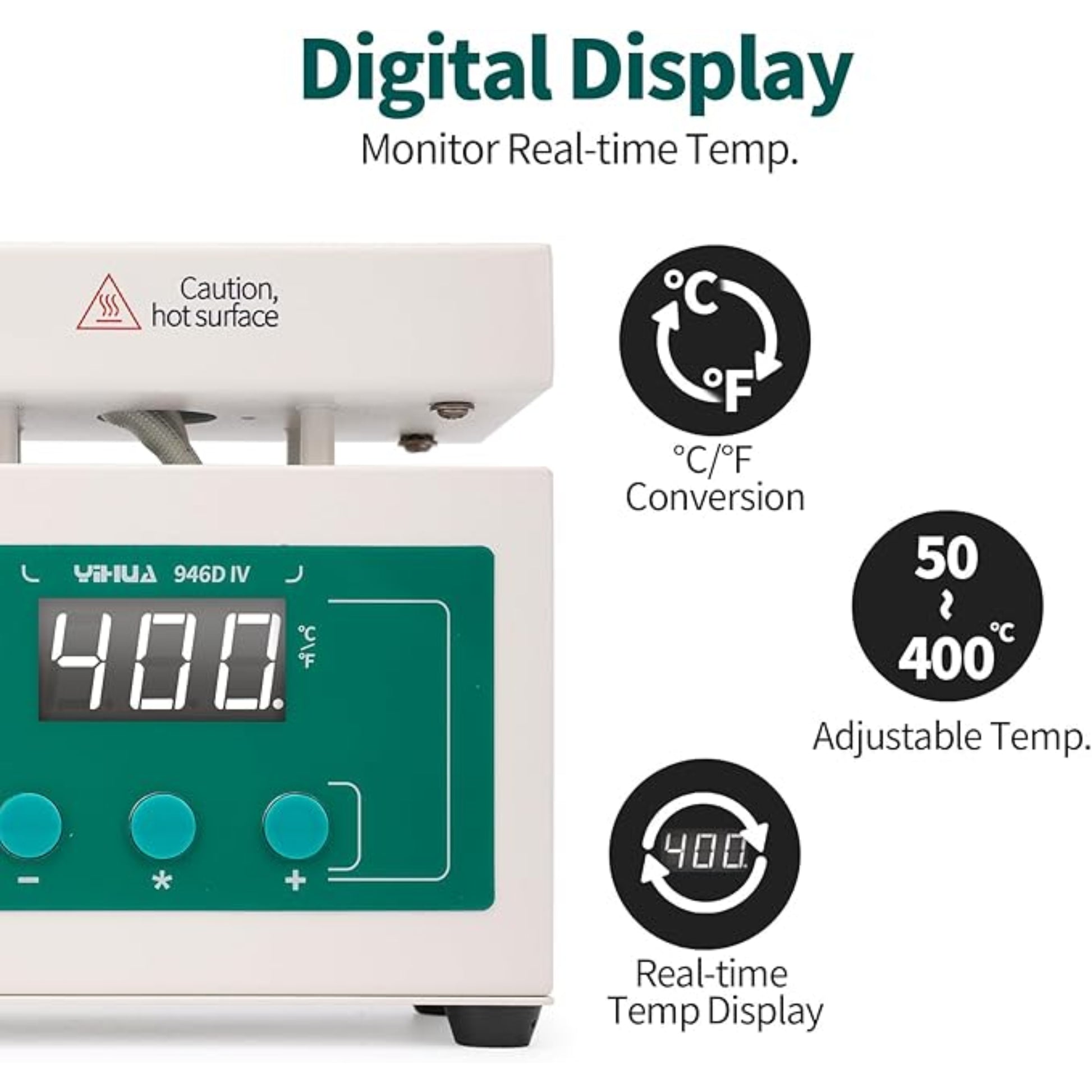

Digital Calibration: Includes a digital LED display for accurate temperature monitoring and a °C/°F toggle for international unit compatibility.
ESD-Safe Design: Engineered with a panel-to-ground resistance of less than 2 to prevent static discharge from damaging sensitive ICs.
Specifications
Model: 946D Ⅳ
Rated Voltage: 220V～240V
Rated Frequency: 50Hz
Rated Power: 180W

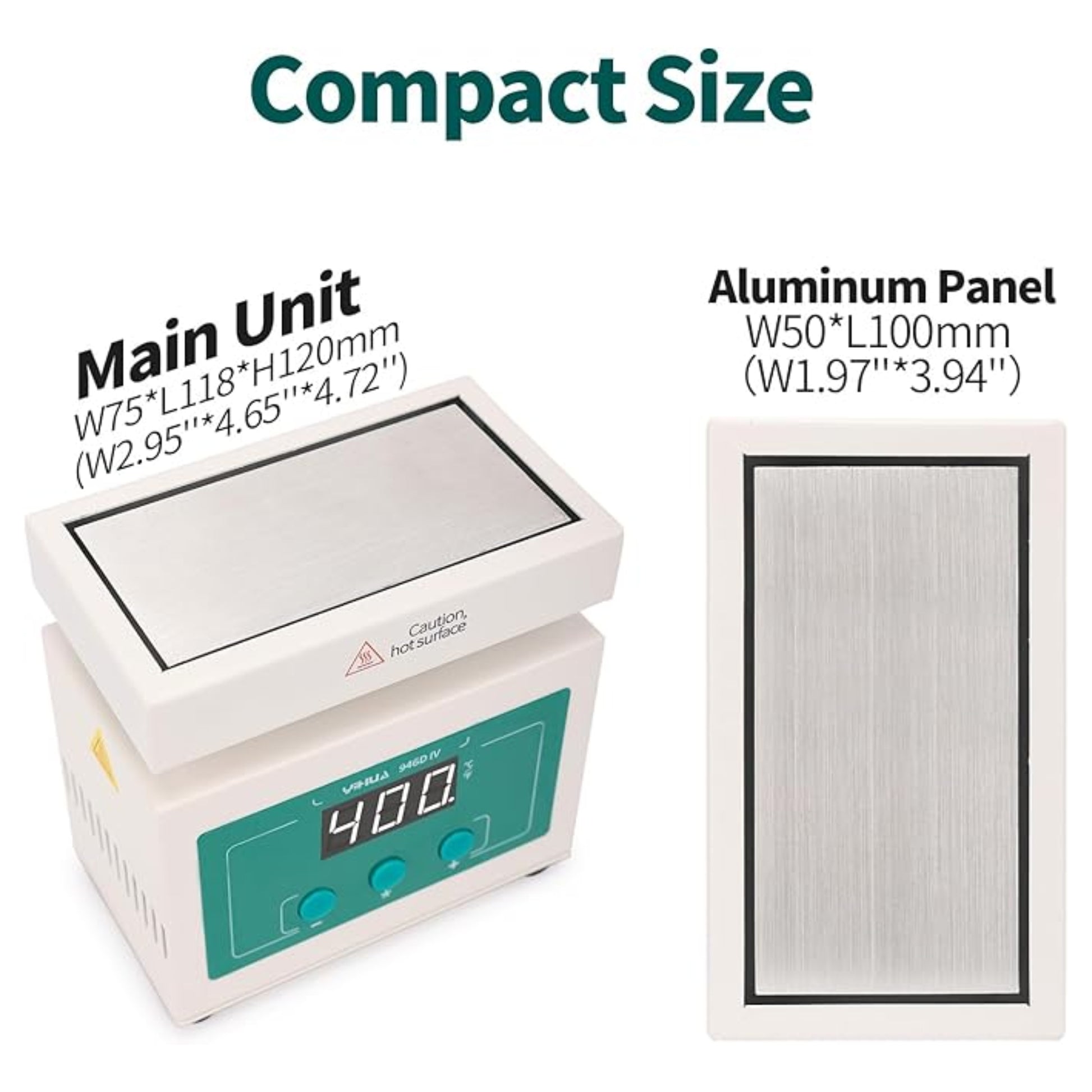

Main Unit Dimensions: L75xW118xH120mm ±5mm
Dimensions (Aluminum Panel): L100xW50mm ±3mm
Temperature Range: 50℃～400℃/122℉～752℉
Display: LED Nixie Tube
Panel to Ground Resistance: <2 Ohms
Temperature Control: PID Temperature Control & Stabilization Program
