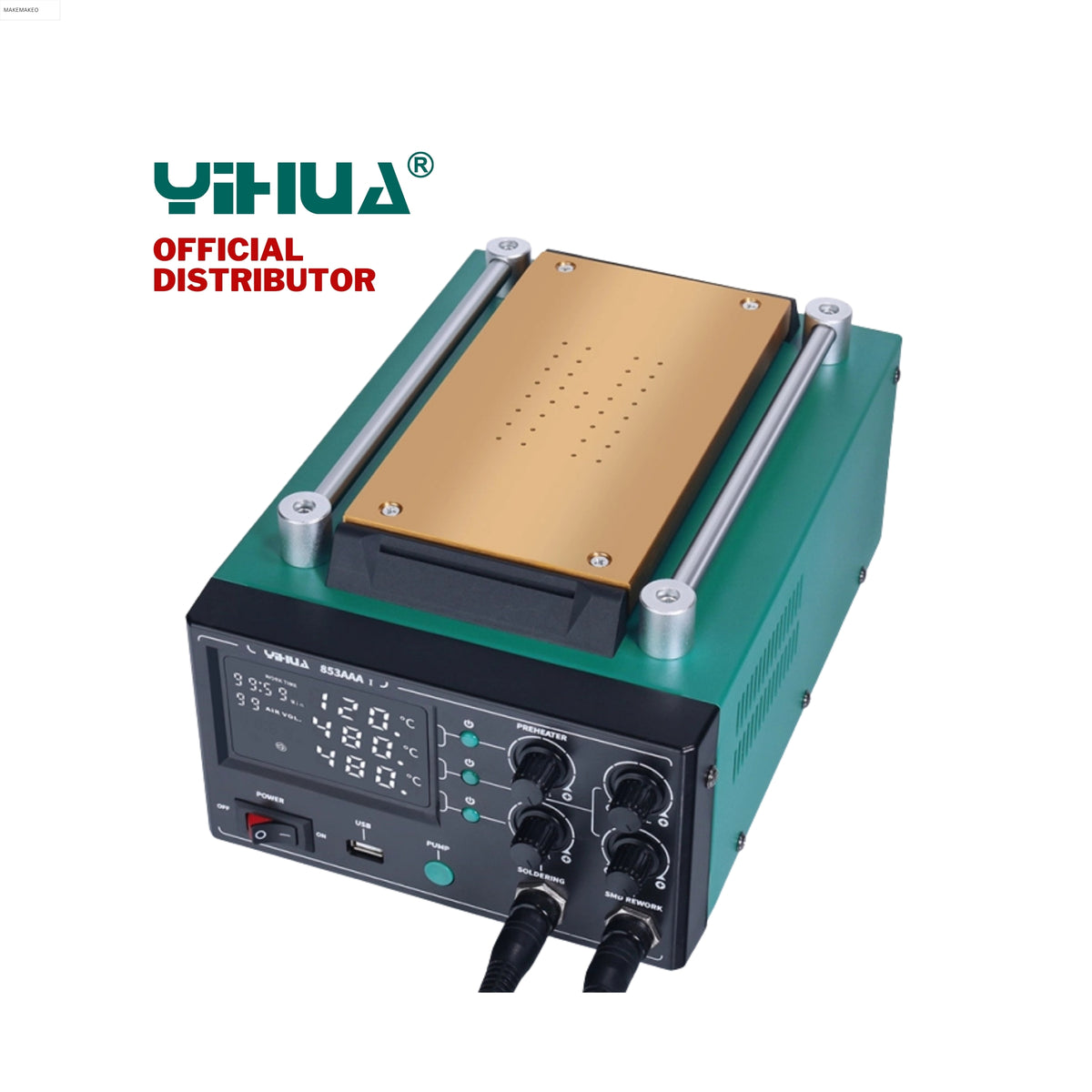

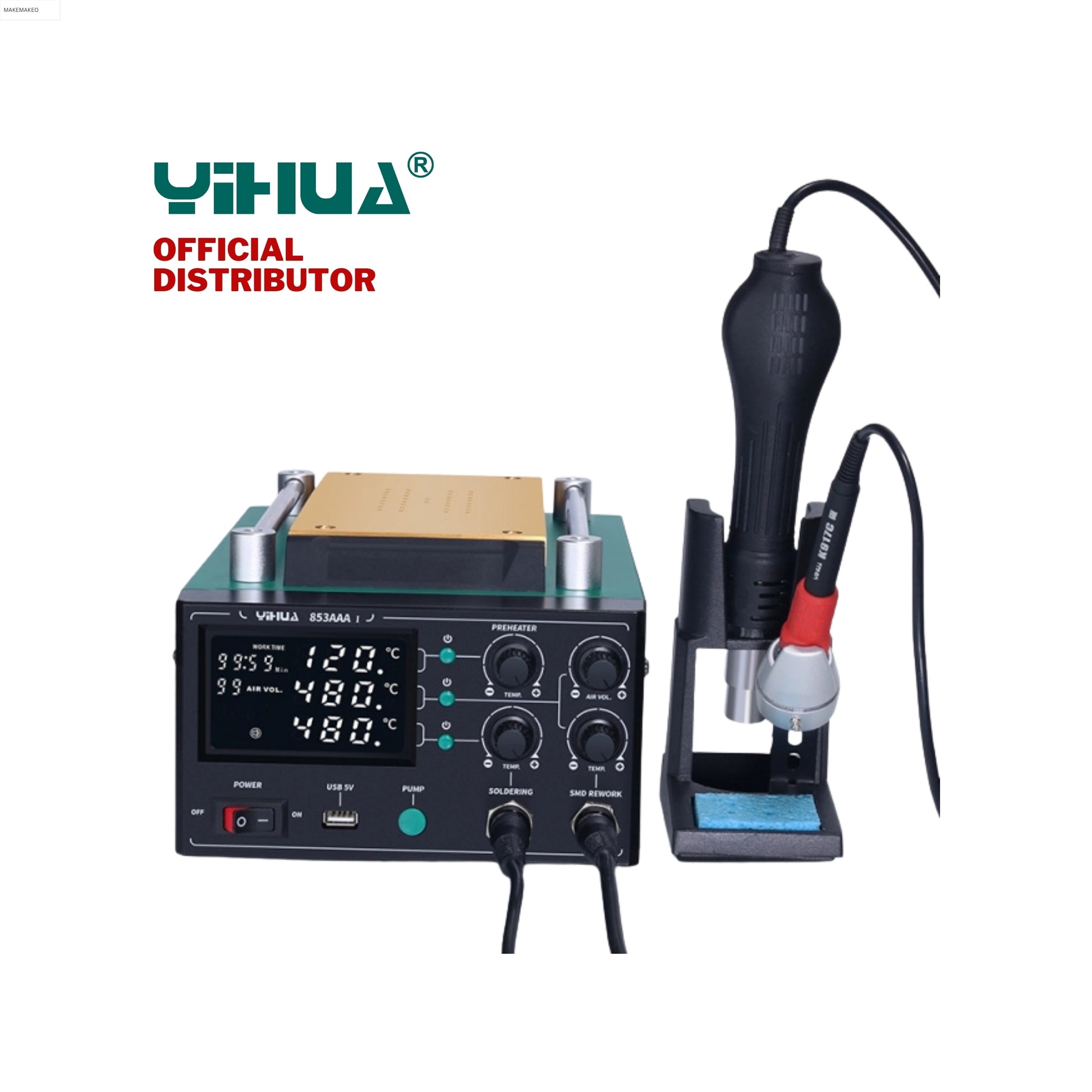

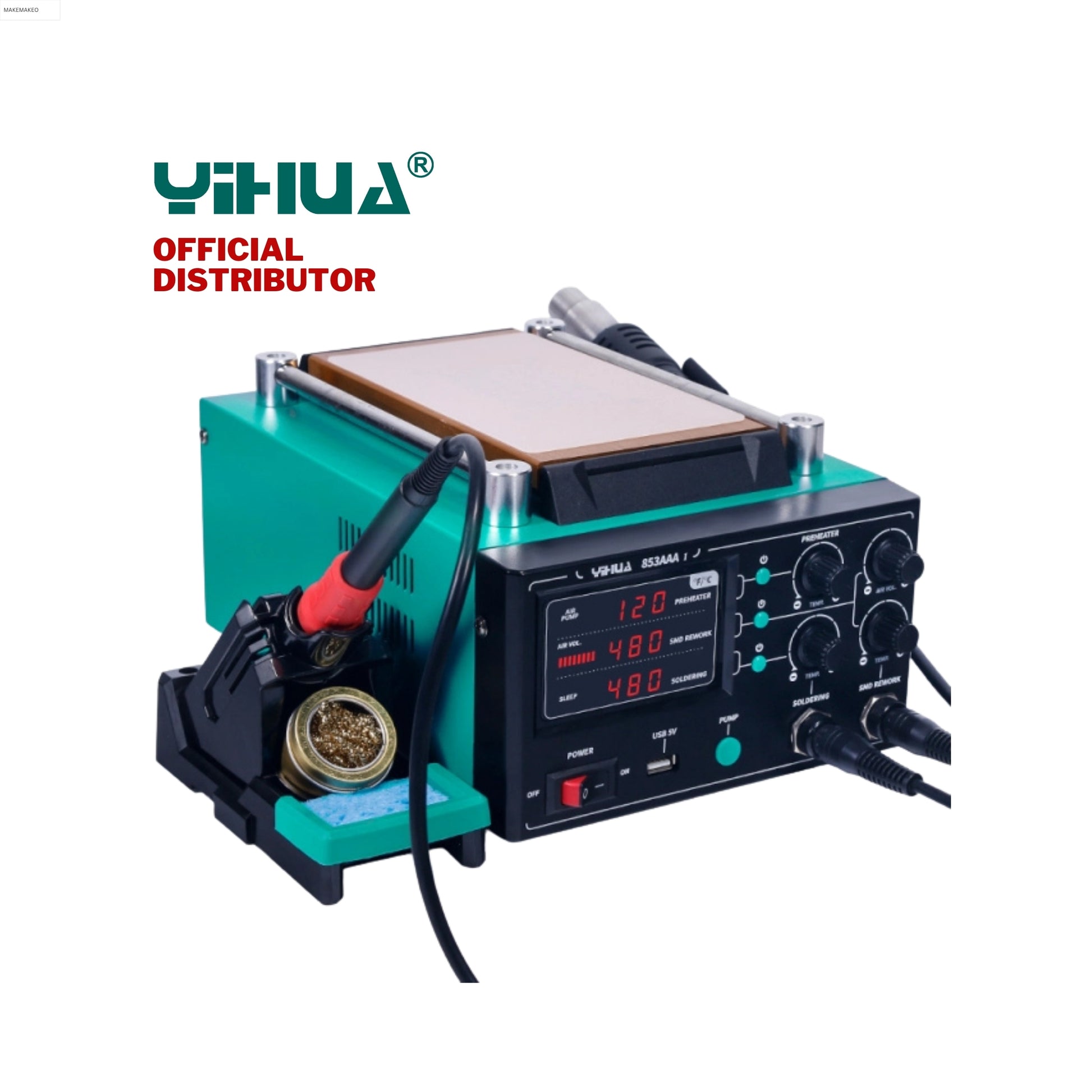

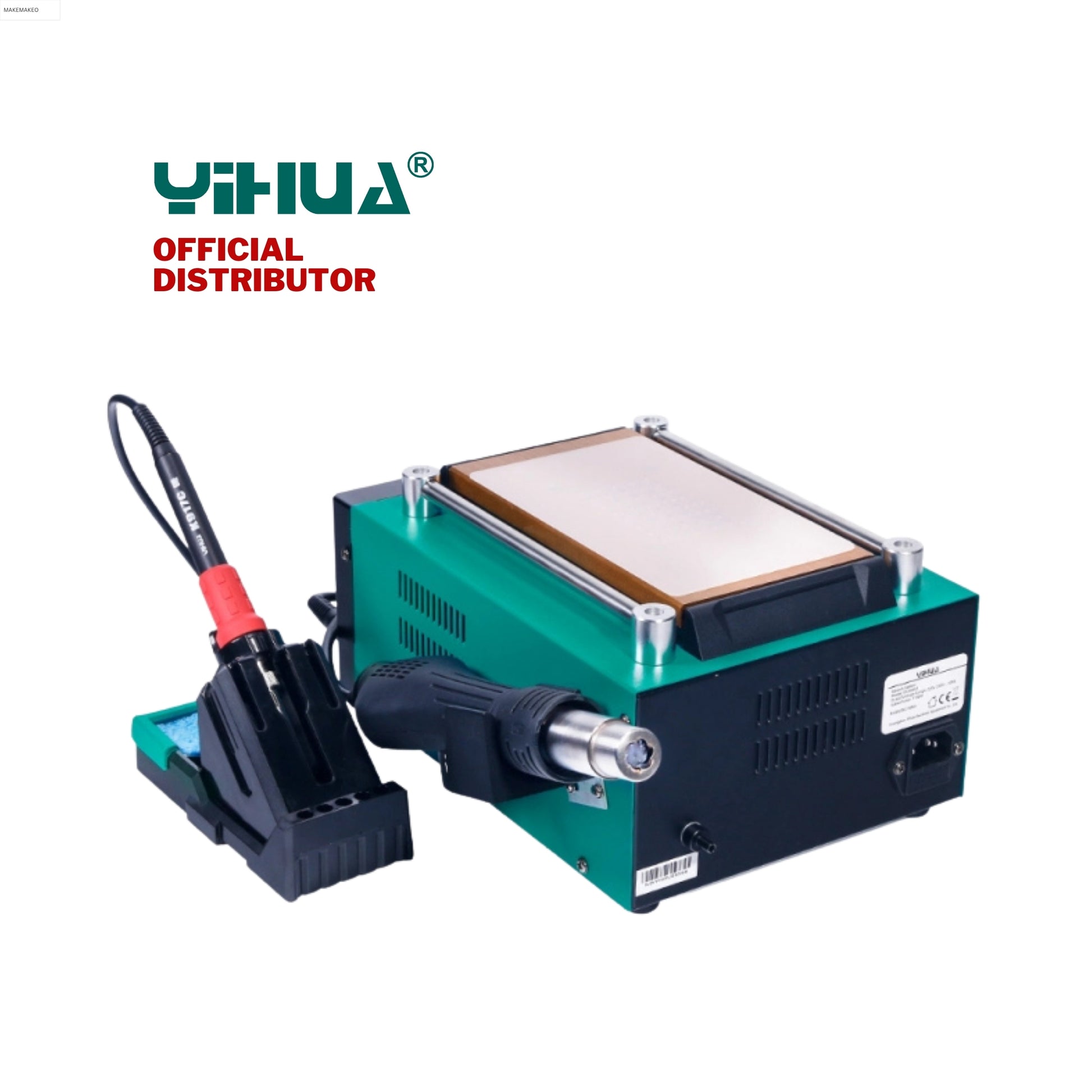

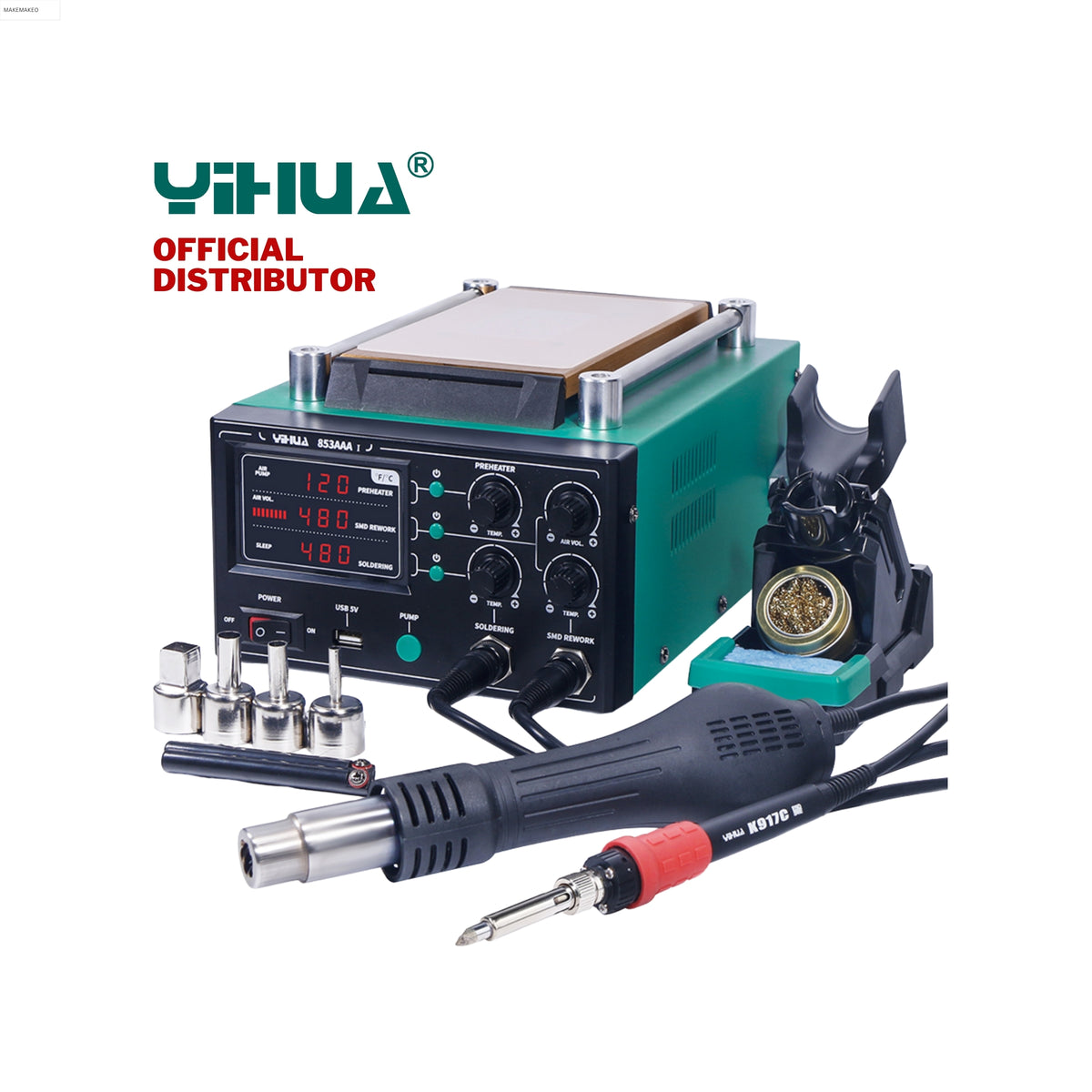

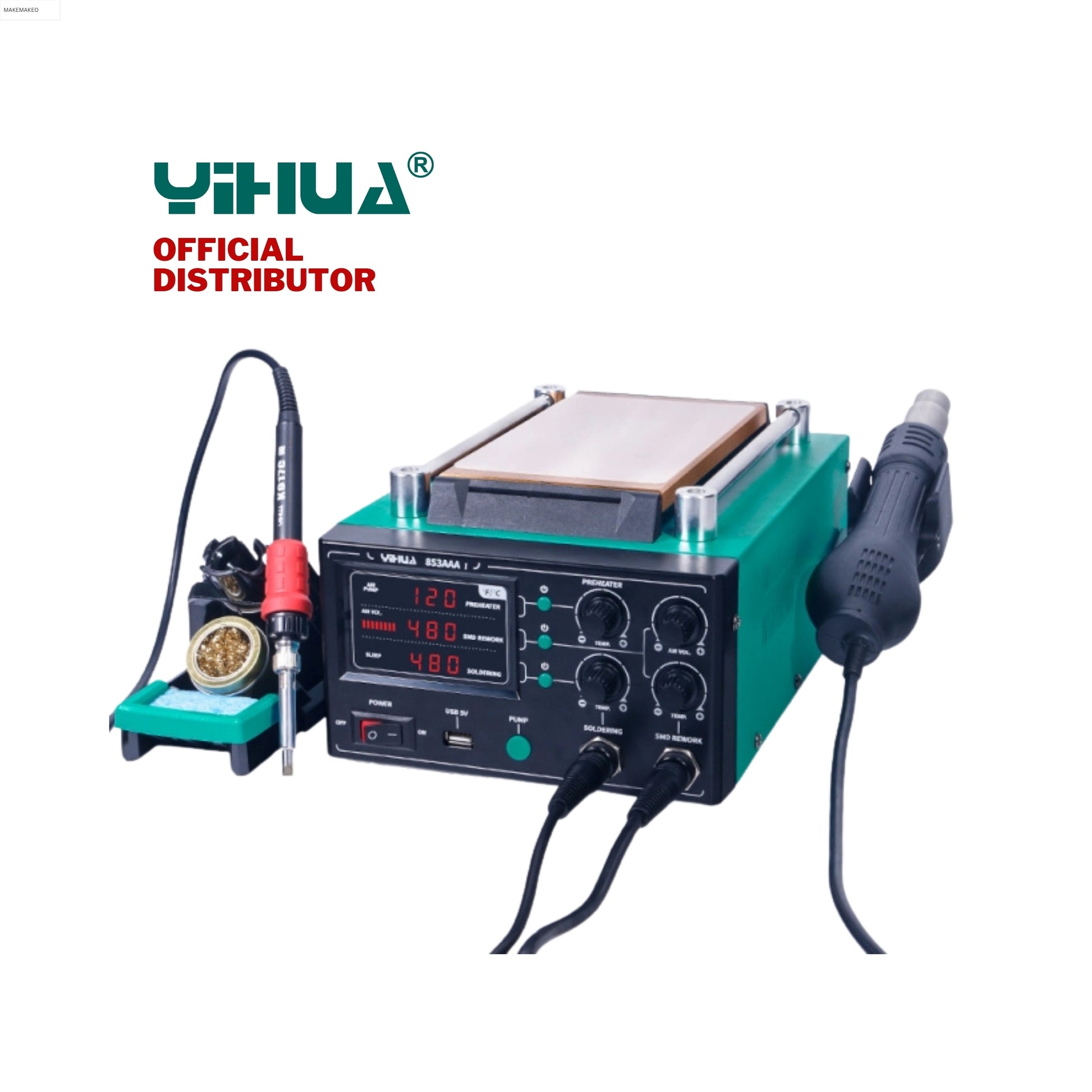

An all‑in‑one rework solution combining an LCD screen separator, hot‑air rework gun, and soldering iron on a single PID‑controlled base unit. Designed specifically for mobile phone/laptop repairs, BGA/SMD tasks, and fine electronics work.
This rework station features a PID programmable temperature control system and real-time temperature tracking for each component, as well as an automatic temperature correction with a rapid compensation speed and minimum tolerance.
Features:
- Using microcomputer processor PID programmable temperature control technology.
- Air Gun heater uses ceramic heater. Heating elements firmly wrapped around the model ceramic, rapid and uniform heating. Use the upgraded version fan, the airflow larger than the ordinary fan, spiral out of the wind, long life.
- Soldering iron part using Imported heater. Heating up rapidly, temperature stability, long service life; antistatic design to prevent electrostatic damage to delicate SMD components.
- The machine has a self-test function. Full intelligent over-temperature, short-circuit, open circuit, overload and fault display and protection functions.
- Temperature correction function. Adapt to the environmental impact, or replace the heating elements, soldering iron tips etc. spare parts caused by temperature deviation, can use this function calibration temperature. The correction temperature range is -50 °C ~ +50 °C.
- Celsius / Fahrenheit temperature display function. Meet different market needs to design the temperature display mode, you can choose under customary interest.
- Hot air gun part has added to auto. /manual function.
- Soldering iron sleep standby function, to save energy and protect heating core and soldering iron tips, and also prolong their service life, safer.
Specifications:
- Main Unit Dimensions: L275xW195xH130mm ±5mm
- Operating Ambient Temperature: 0 ~ 40°C/32°F ~ 104°F
- Rated voltage: 220-240V/AC 50HZ
- Rated power: 1180W
Screen Separator
- Temperature Range: 50°C ~ 120°C/122°F ~ 248°F
- Heater Surface Area: 200 x 110mm ±5mm
- Display: Nixie LED
Hot Air Rework Station
- Air Delivery: Brushless blower with smooth air delivery
- Output Air Volume: ≤120L/min/
- Temperature Range:100°C ~ 480°C/212°F ~ 896°F
- Display: Nixie LED
Soldering Station
- Temperature Range: 200°C ~ 480°C/392°F ~ 896°F
- Display: Nixie LED
- Soldering tip to ground resistance: <2 Ohms
