SKU:MLE03525

W5500 SPI Interface Ethernet Module

₱279.00
₱279.00
Sold out
Tax included. Shipping calculated at checkout.

Module:
Product Description

Description

This W5500 is an Ethernet module based on the W5500 chip. The W5500 is a Hardwired TCP/IP embedded Ethernet controller that enables easier internet connection for embedded systems using SPI (Serial Peripheral Interface). It suits users in need of stable internet connectivity best, using a single chip to implement the TCP/IP stack, 10/100 Ethernet MAC, and PHY. The hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, and the W5500 uses a 32K byte internal buffer as its data communication memory.

By using the W5500, users can implement the Ethernet application they need with a simple socket program instead of handling a complex Ethernet controller. It is possible to use 8 independent hardware sockets simultaneously. SPI is provided for easy integration with the external MCU, supporting 80MHz speed and the efficient SPI protocol, so users can implement high speed network communication. To reduce power consumption of the system, the W5500 provides WOL (Wake on LAN) and a power down mode.

Available in two board versions Blue and Green (USR-ES1). Both use the same W5500 chip, but they differ in size, pinout, and power requirements.

Specification:

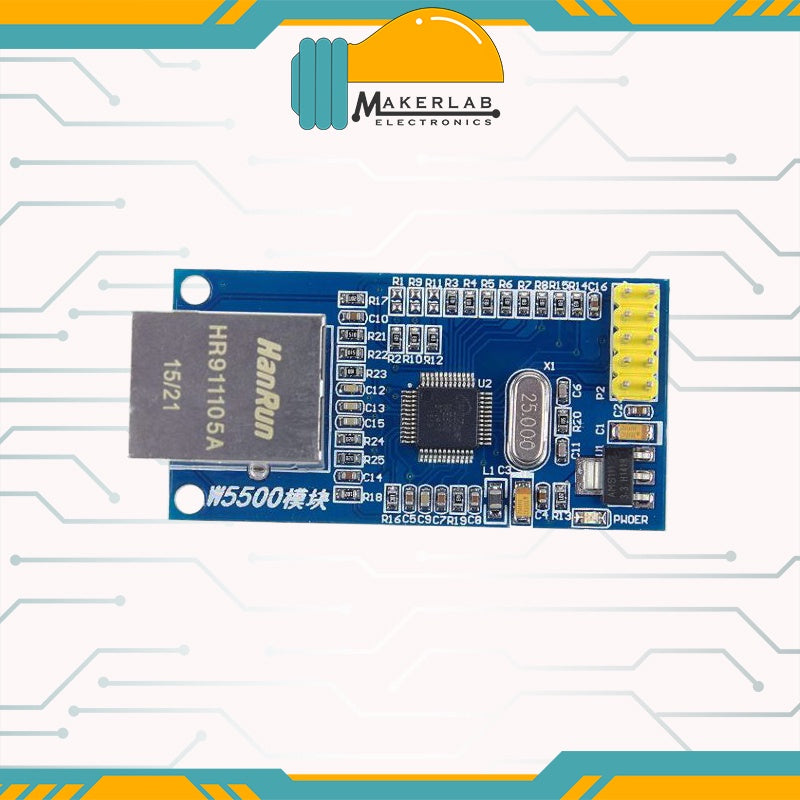

Blue
  • Supports 8 independent sockets simultaneously
  • Supports the following hardwired TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports Wake on LAN over UDP
  • Supports power down mode
  • Supports high speed Serial Peripheral Interface (SPI mode 0, 3)
  • Internal 32K bytes memory for Tx/Rx buffers
  • 10BaseT / 100BaseTX Ethernet PHY embedded
  • Supports auto negotiation (full and half duplex, 10 and 100-based)
  • Does not support IP fragmentation
  • 3.3V operation with 5V I/O signal tolerance
  • LED outputs (full/half duplex, link, speed, active)
  • Module size: 55 × 28 mm
  • Power supply: 3.3V / 5V
  • SPI clock frequency (max): 80MHz
  • Work current (typical): 128mA

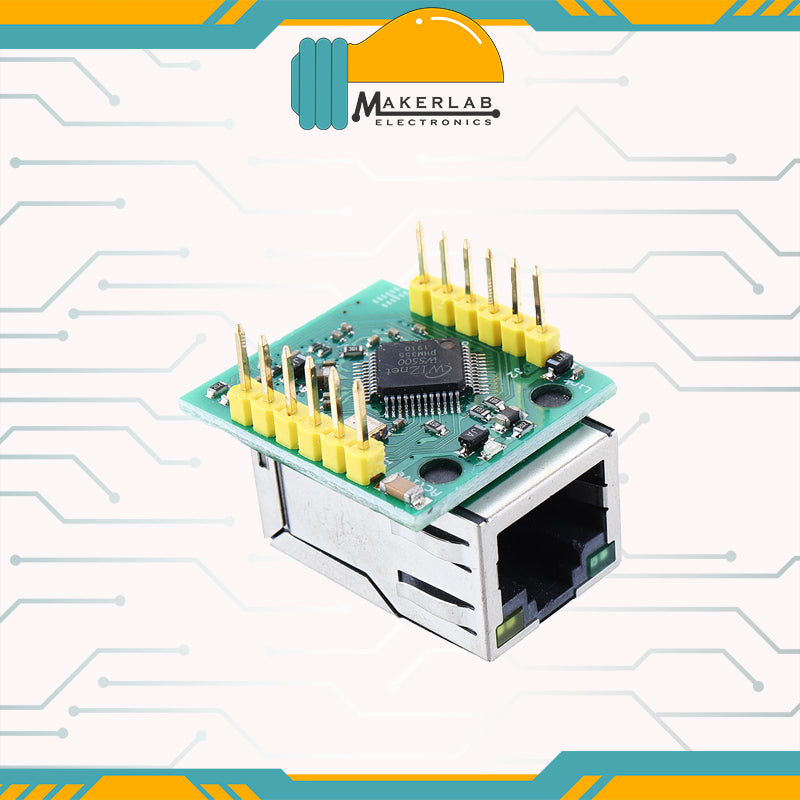

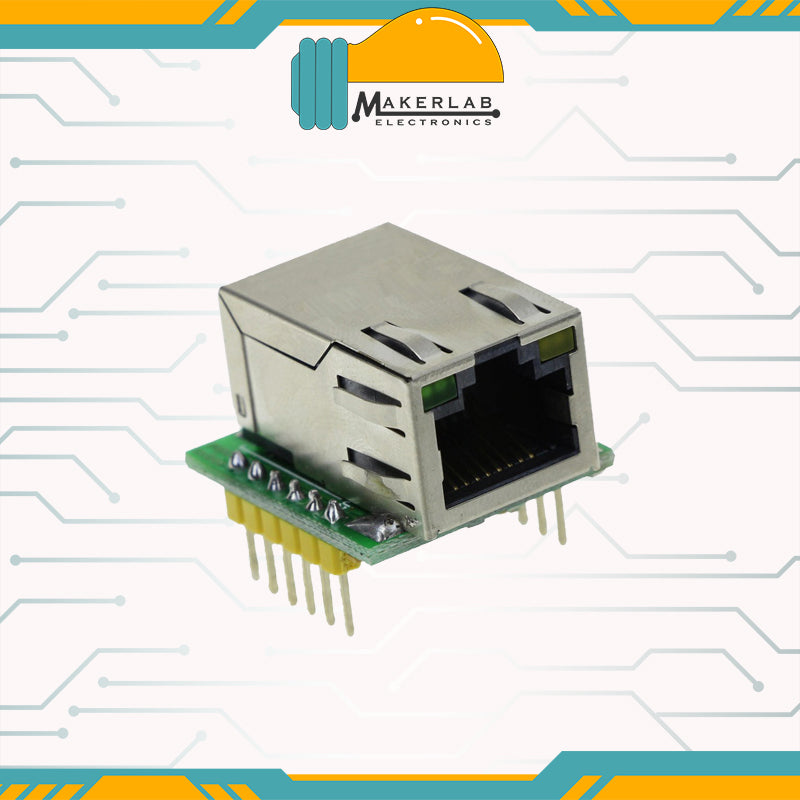

Green (USR-ES1)
  • Same W5500 chip and full hardware TCP/IP stack as the Blue module
  • Pin-compatible with the WIZnet WIZ820io module
  • Power supply: 3.3V external supply only, current must be greater than 200mA
  • Control interface: 3.3V TTL level, SPI interface
  • PCB size: 23 × 25 mm
  • Ultra-small pin-type package, convenient for embedded applications
