Description

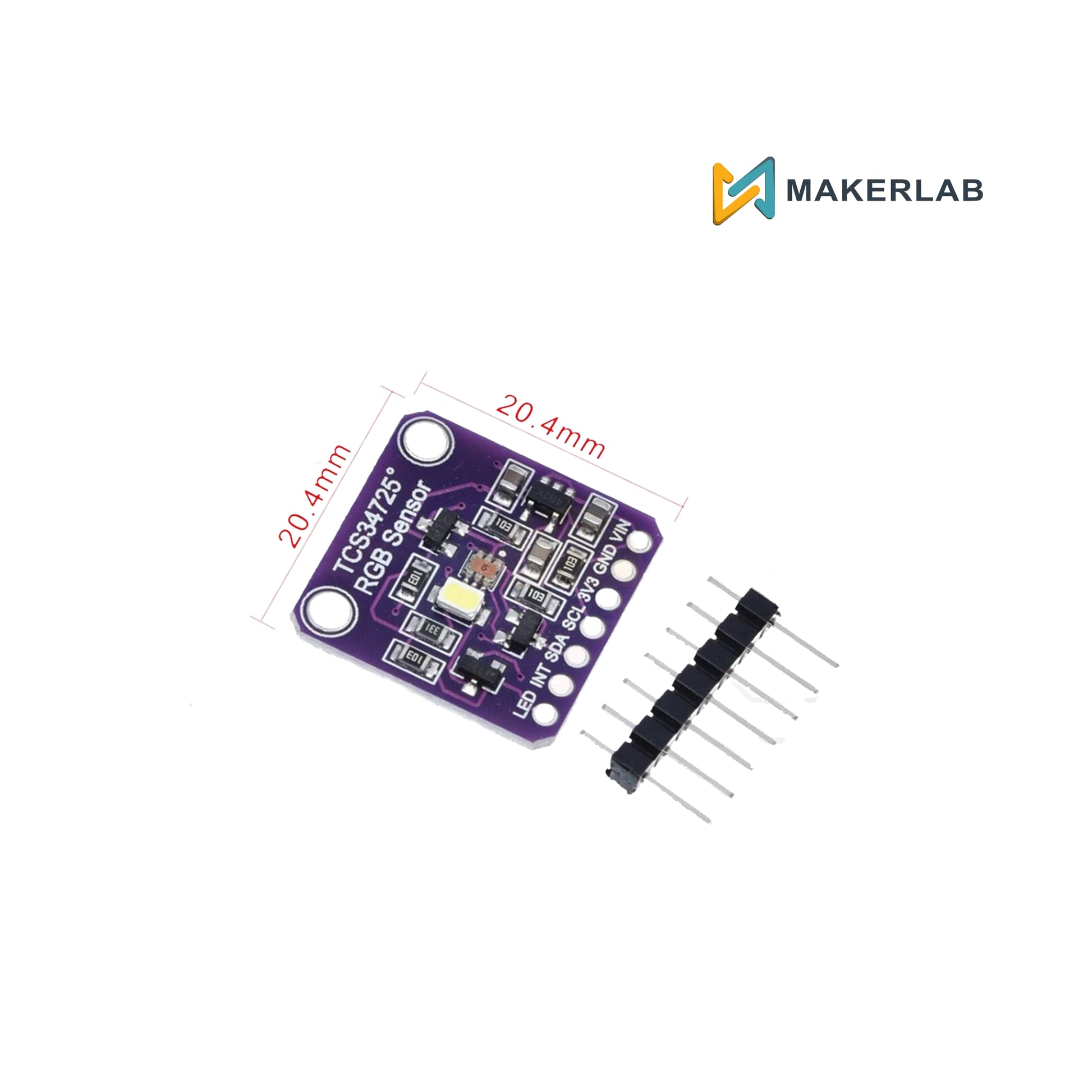

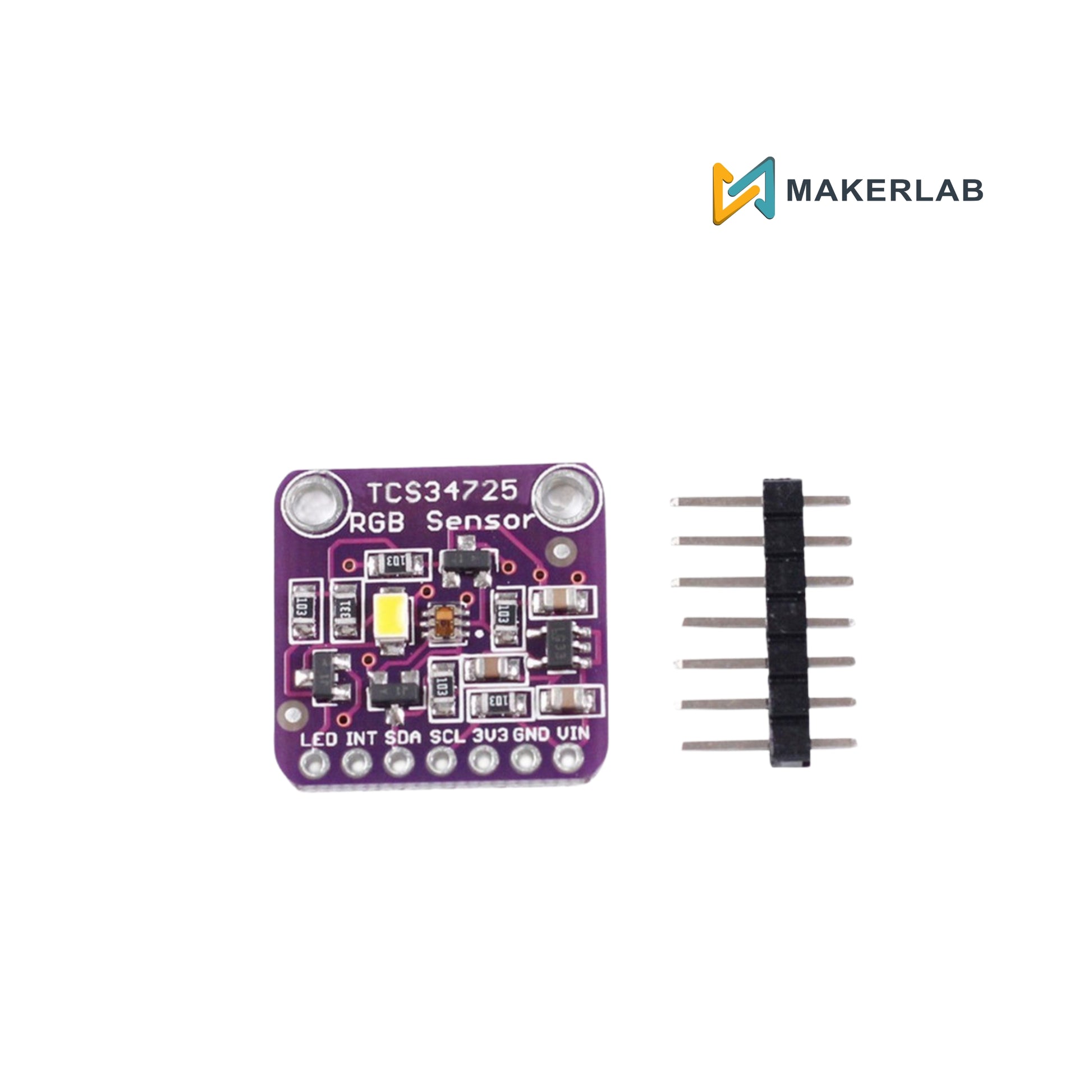

The TCS34725, which has RGB and Clear light sensing elements. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimizes the IR spectral component of the incoming light and allows color measurements to be made accurately. The filter means you'll get a much truer color than most sensors, since humans don't see IR. The sensor also has an incredible 3,800,000:1 dynamic range with adjustable integration time and gain, so it is suited for use behind darkened glass.
Features
IR Blocking Filter: Minimizes the IR spectral component of incoming light for accurate color sensing.
High Dynamic Range: 3,800,000:1 dynamic range with adjustable integration time and gain.
Onboard Illumination: Features a neutral 4150K white LED to illuminate objects for consistent readings.
I2C Interface: Simple digital communication compatible with Arduino, Raspberry Pi, and ESP32.
Voltage Regulation: Onboard 3.3V regulator allows for safe operation with 3V-5V logic.
Specifications
Working current: 3.3-5V
Interface: IIC
Detection Channels: Red, Green, Blue, and Clear (RGBC)
PCB Color: Purple
IIC 7-bit address 0x29
