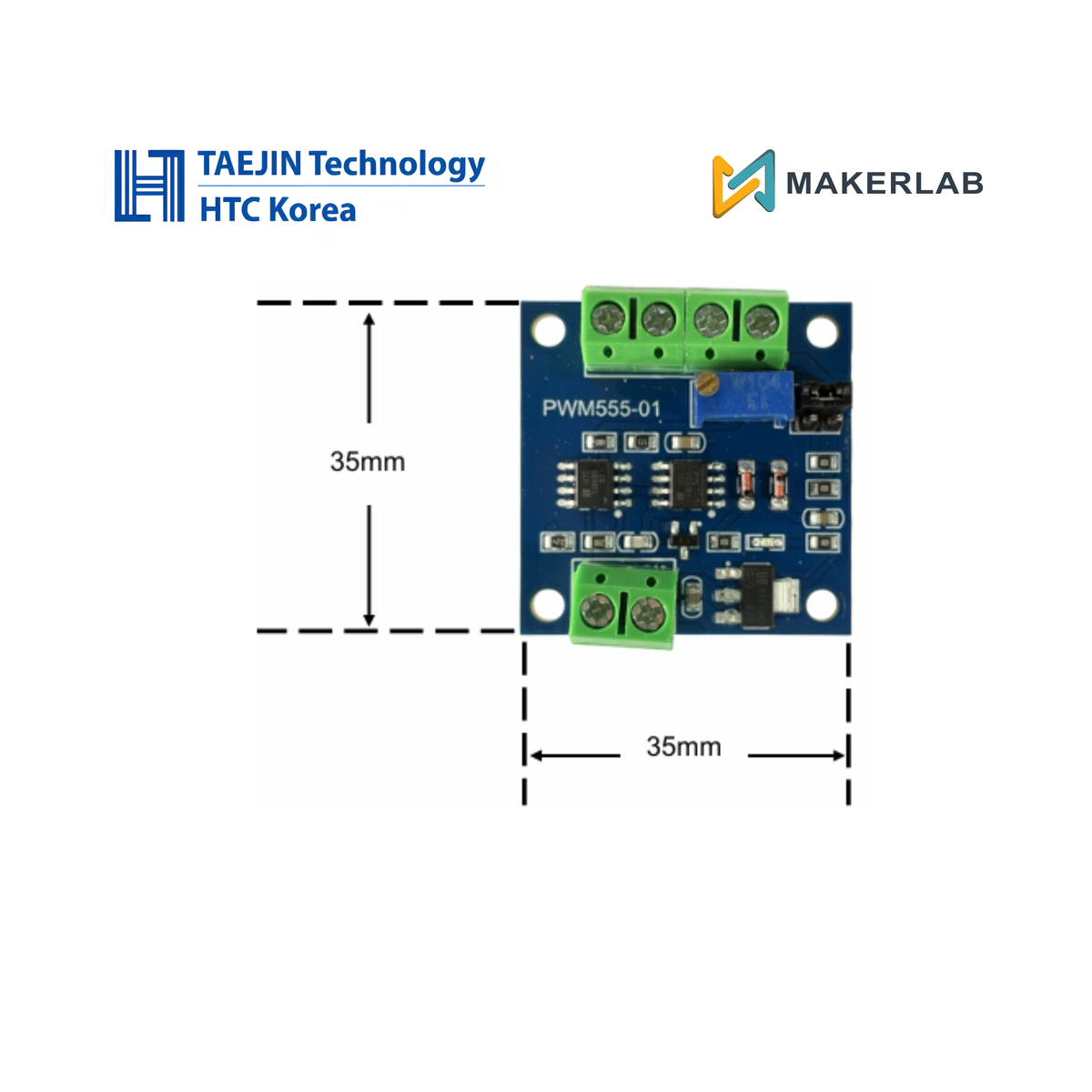

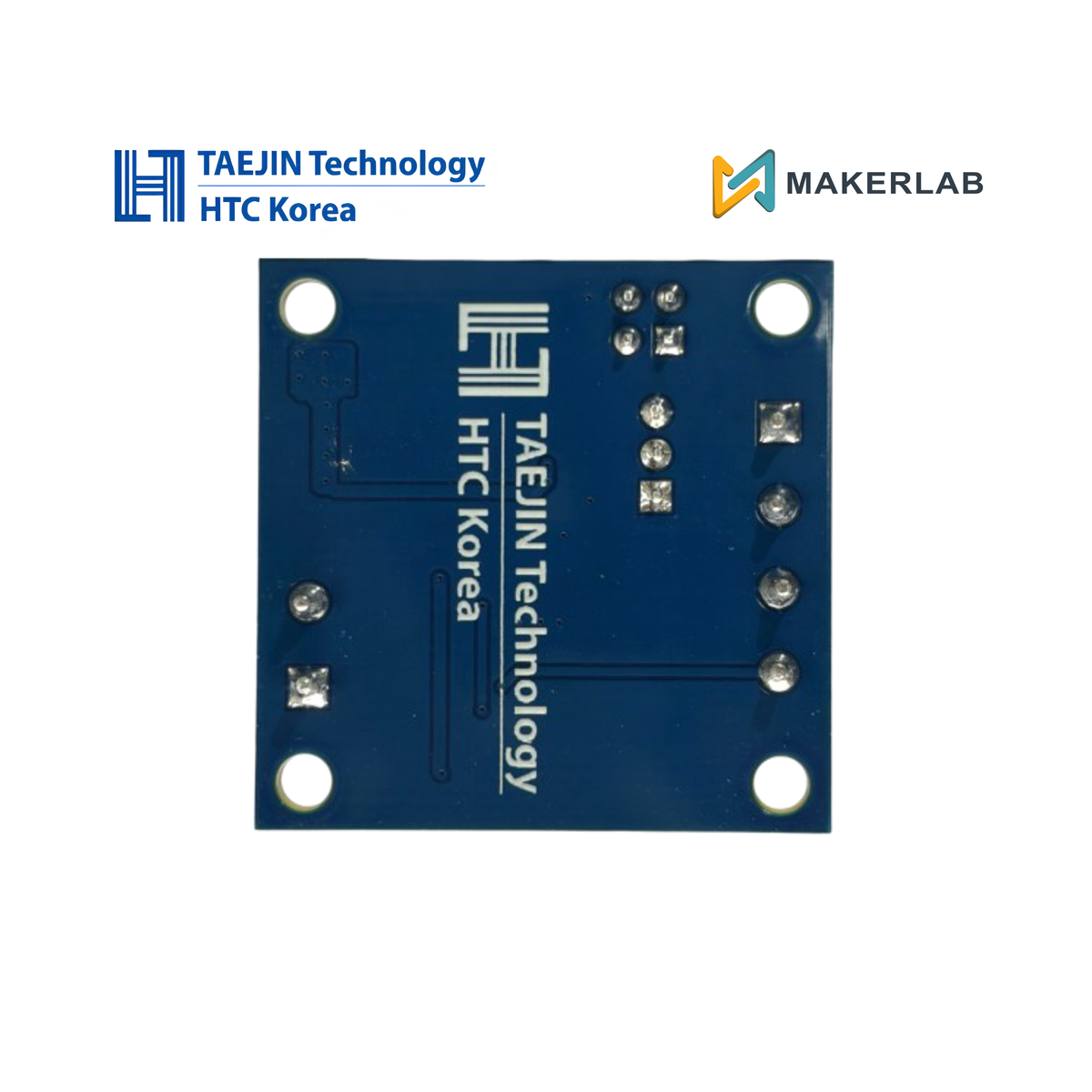

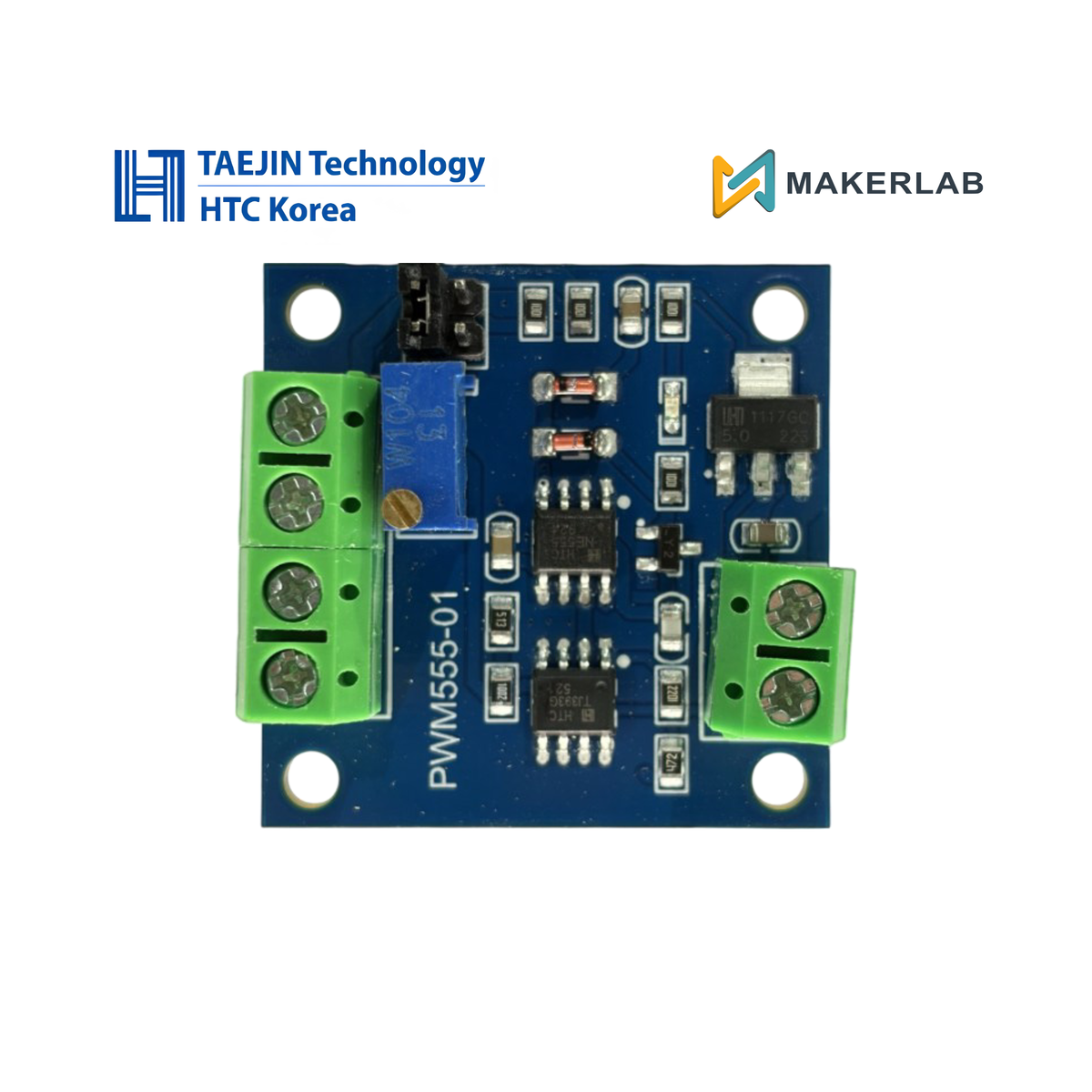

Taejin Voltage to PWM Converter Module

Name: Taejin Voltage to PWM Converter Module
Brand: Taejin
SKU: MLE10169
Price: 749.0 PHP
Availability: OutOfStock

₱749.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Product Description

Description

The Voltage to PWM Converter Module converts an analog voltage signal into a proportional PWM signal.

Features

Voltage to PWM Converter Module
Supply Voltage: 7V to 12V
Conversion Range: 0-5V/0-10V voltage conversion to 0%-100% PWM
Accuracy: 1% to 3%
Output PWM Amplitude: 5V
Output PWM Frequency: About 50kHz

Applications

DC Motor Speed Control
LED Brightness Control (PWM Dimming)
Analog Signal to PWM Interface for Microcontrollers

Application Guide

The Voltage to PWM Converter Module converts an analog voltage signal (0–5V or 0–10V) into a proportional PWM signal (0–100% duty cycle).

It uses an embedded microcontroller for accurate signal conversion and allows fine adjustment through an onboard potentiometer. The input voltage range can be selected via a jumper cap, making the module suitable for various analog control applications such as motor speed control, LED dimming, and signal interfacing.
