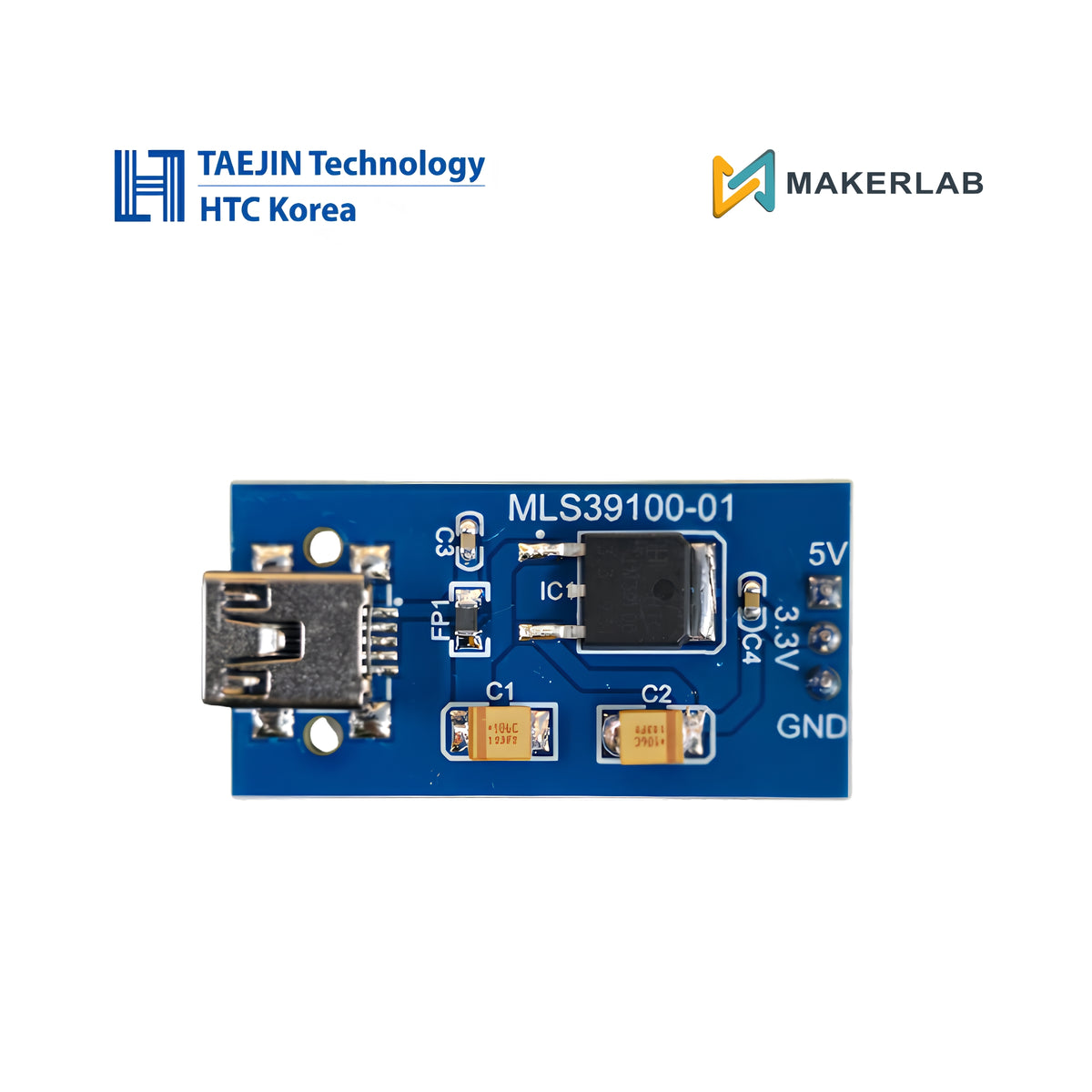

Description
The LM39100 Power Supply Module is a simple and compact solution for powering your prototype device directly from USB. Board provides 5V directly from USB connector, but also features LM39100S-3.3 power regulator for creating 3.3V reference.
Features
• LM39100 Power Supply Module
• Input Voltage Source: 5.0V USB Powered
• Output Voltage: 3.3V / 5.0V
• Output Current: Max. 500mA
• Easy to Use External Leads
Applications
• Simple 3.3V / 5.0V Output
• Breadboard mounted Power Supply
• Power Supply for prototype device
Application Guide
The LM39100 Power Supply Module is a very small and can be easily integrated in your prototype as well as in your final product
I/O Port Configuration and Description
Schematics
Layout
Other Information
Part Number: MLS39100-01
Device: LM39100 Power Supply Module

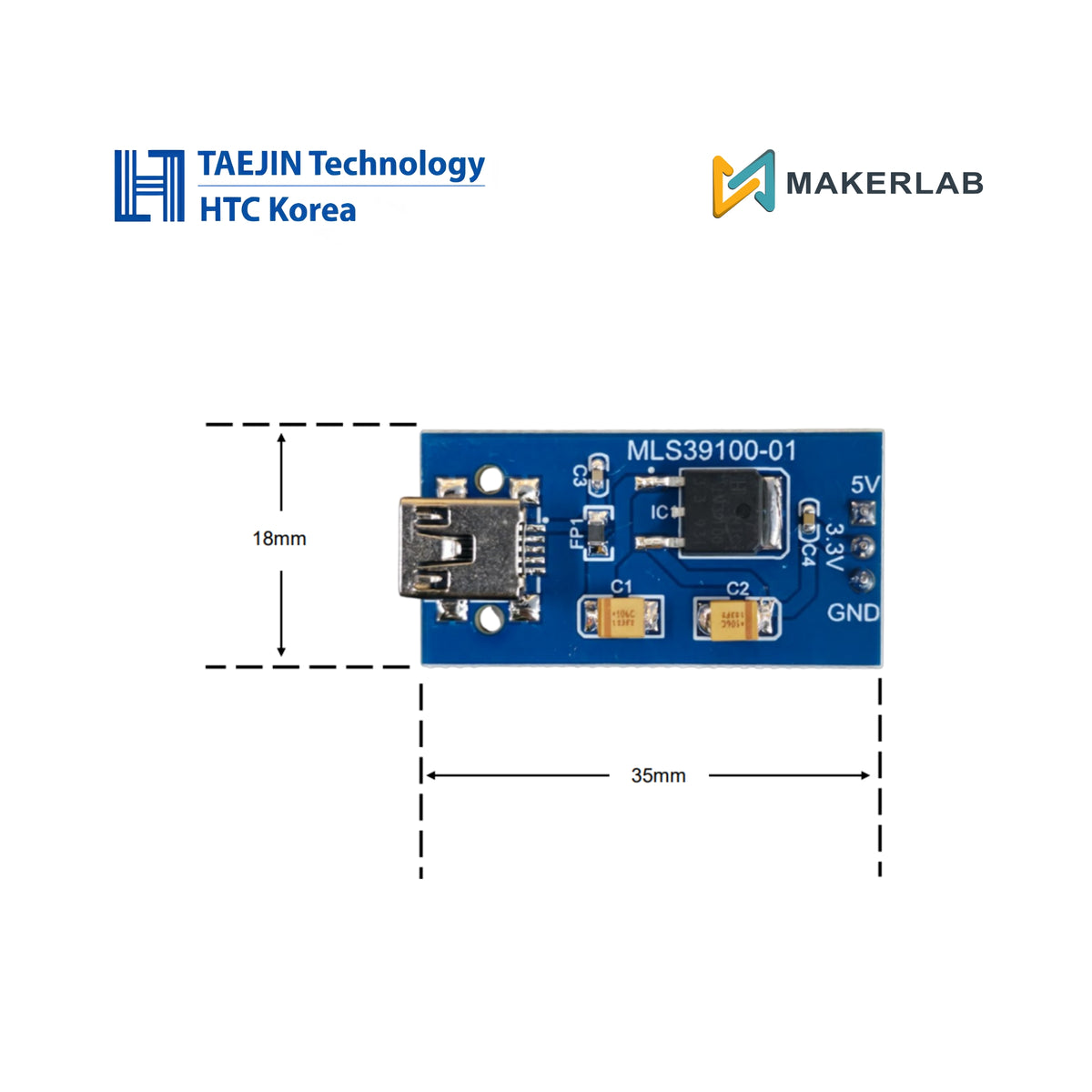

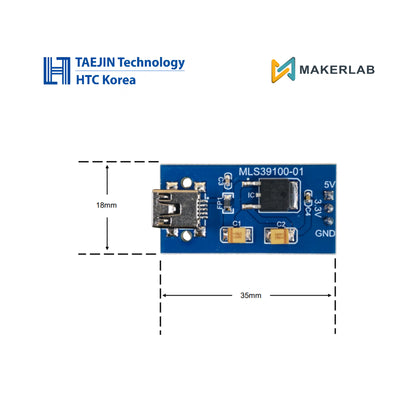

Package: Assembled Module (35mm X 18mm)
