Description

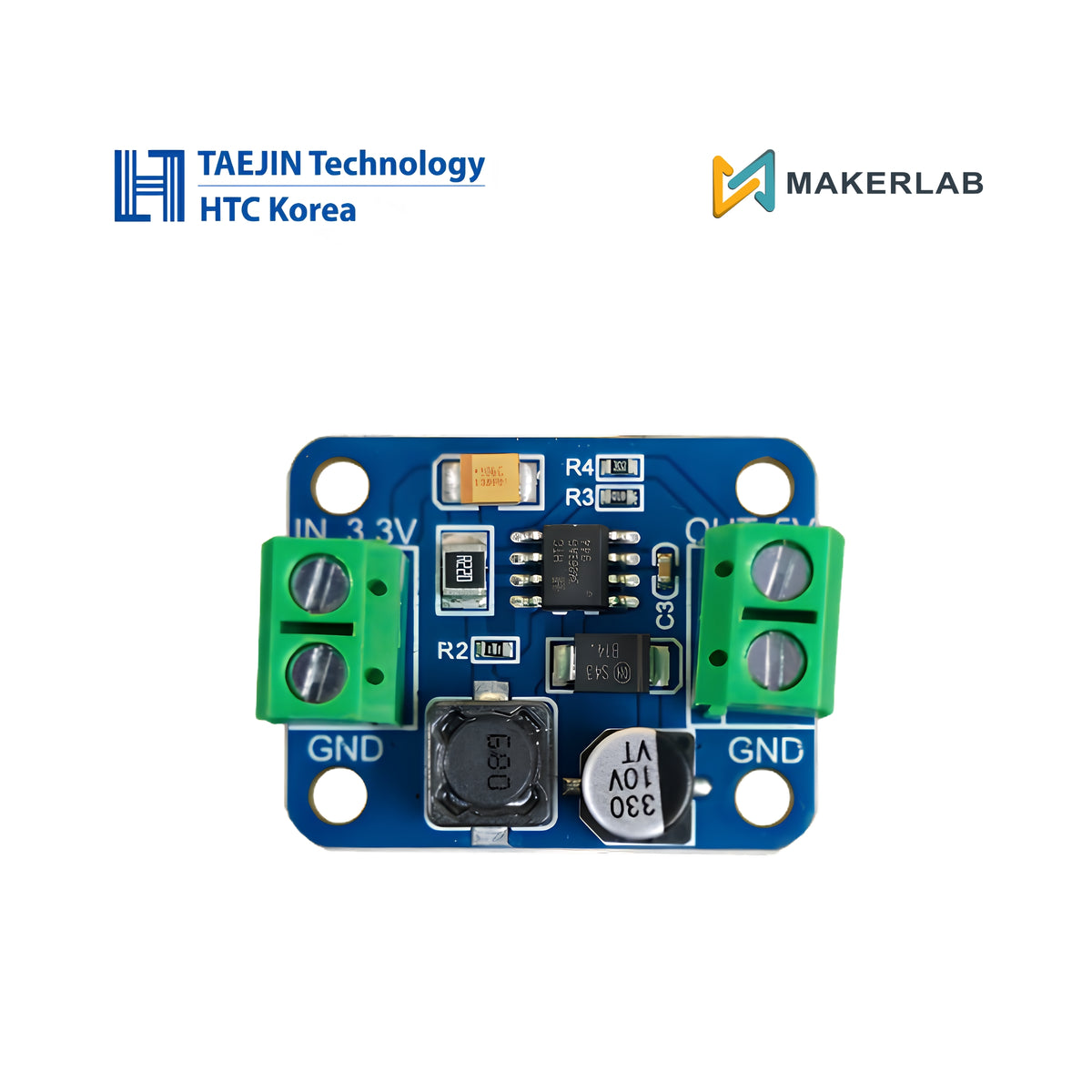

The MC34063A Boost Converter Module receives 3.3V input voltage and converts it into a stable 5V DC output voltage.
Features
• MC34063A Boost Converter Module
• Input Voltage: 3.3V
• Output Voltage: 5.0V
• Output Current: Max. 175mA
• Compact Size Step-Up Converter
Applications
• Simple Converter from 3.3V to 5V with 175mA
Application Guide
The MC34063A Boost Converter Module is capable of delivering around 175mA maximum output current, which is suitable for most small electronic projects. Compact and inexpensive, this board is perfect for use when a 3.3V to 5V power source conversion is needed.
I/O Port Configuration and Description
Schematics
Layout
Other Information

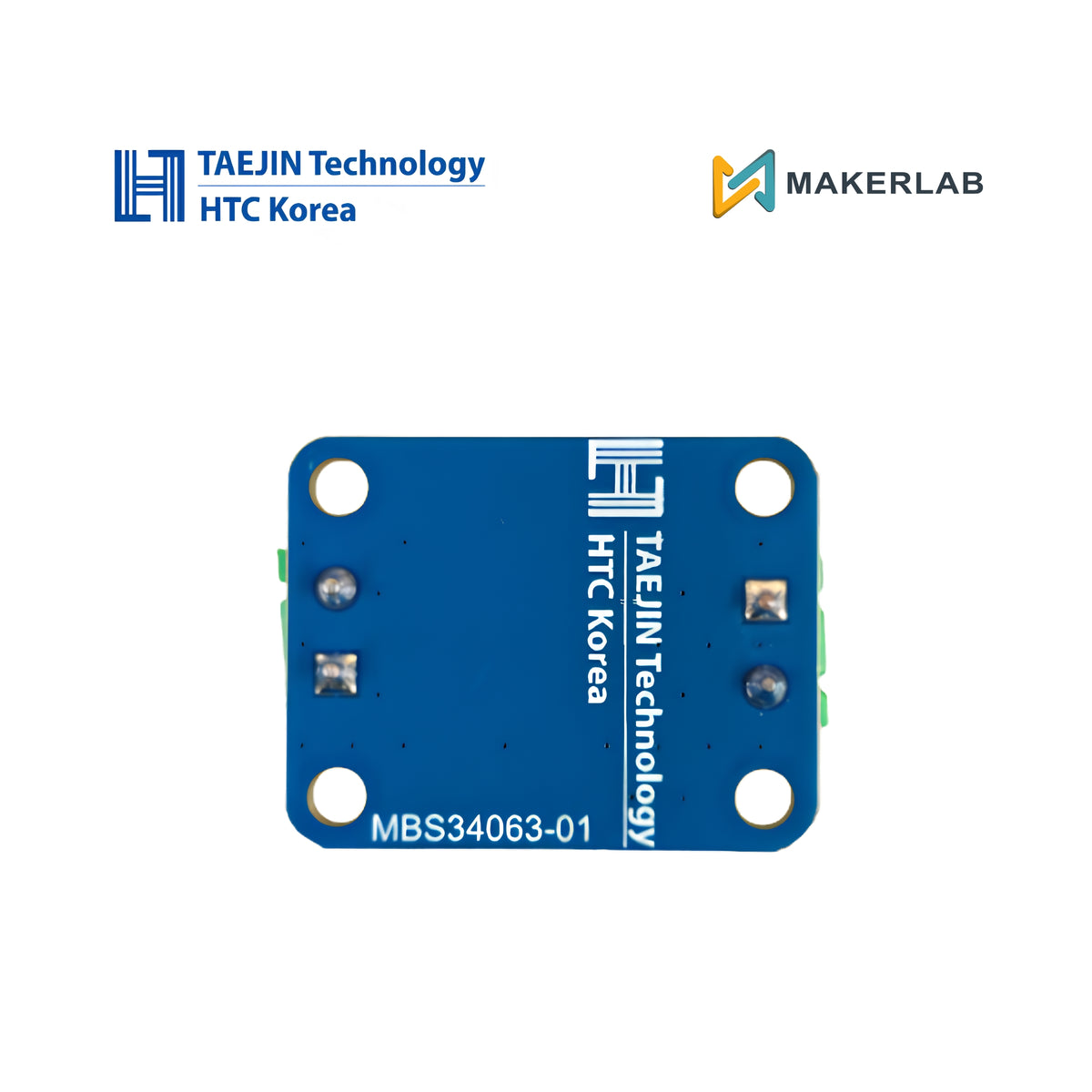

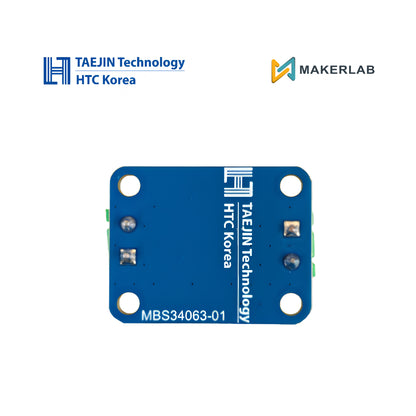

Part Number: MBS34063-01
Device: MC34063A Boost Converter Module

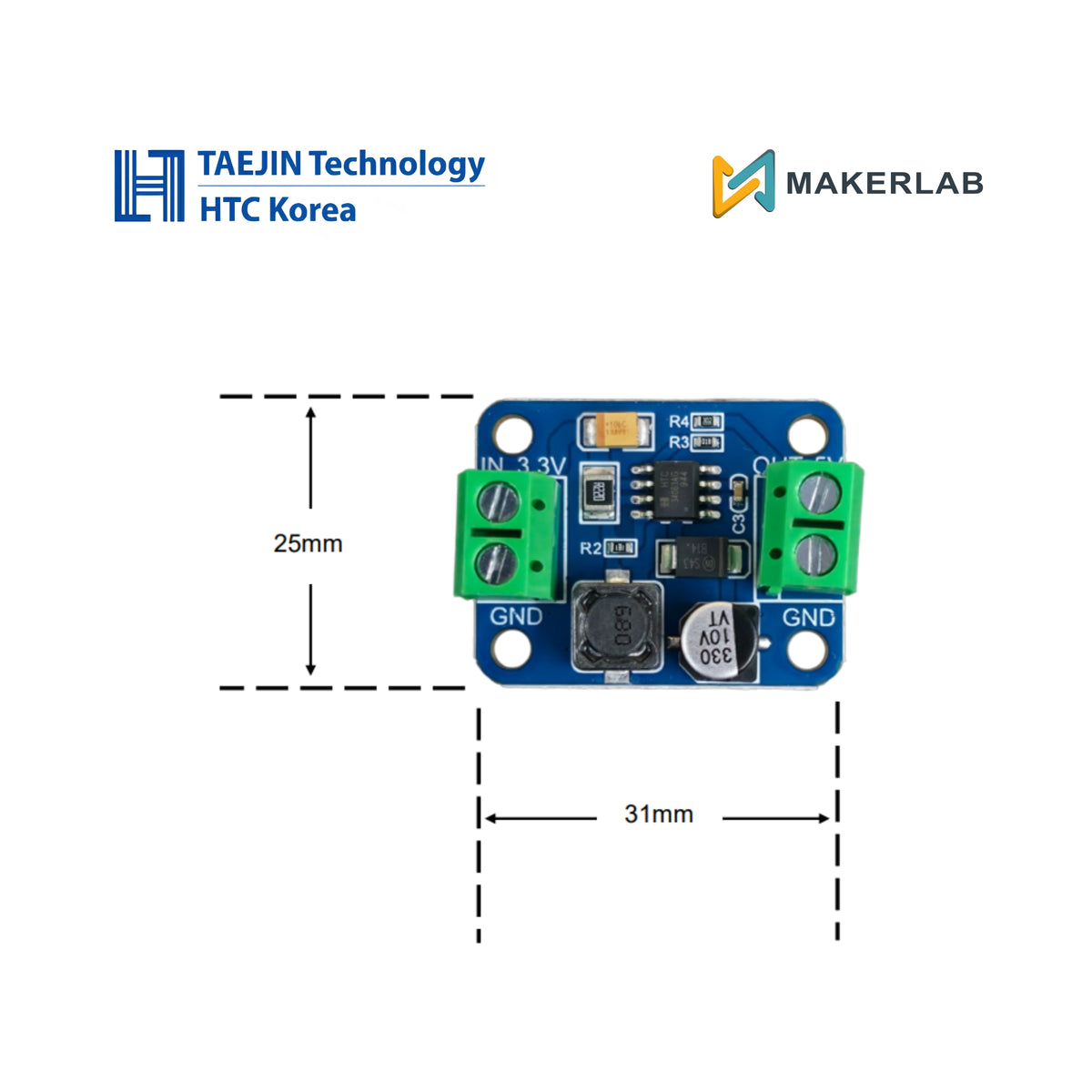

Package: Assembled Module (31mm X 25mm)
