Description

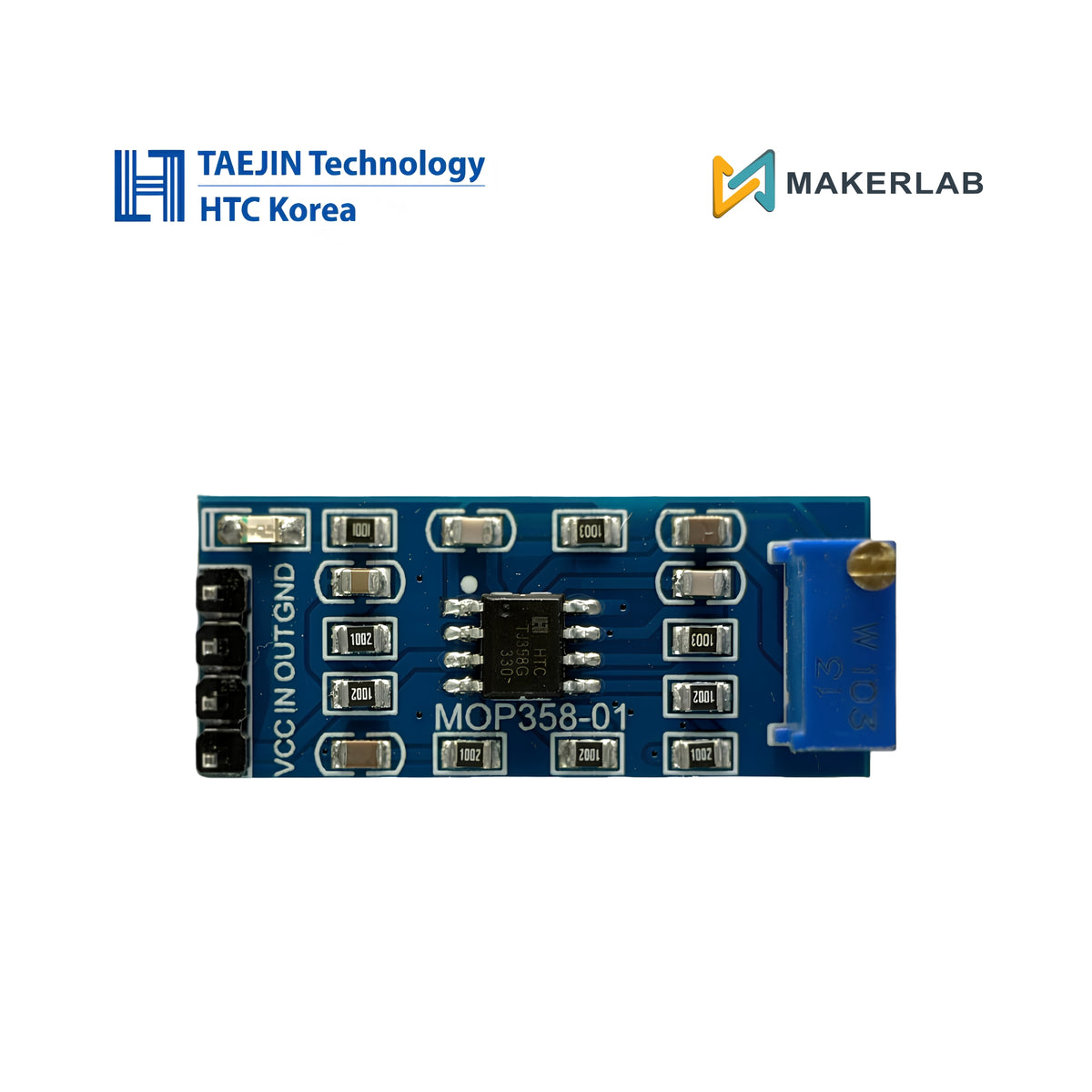

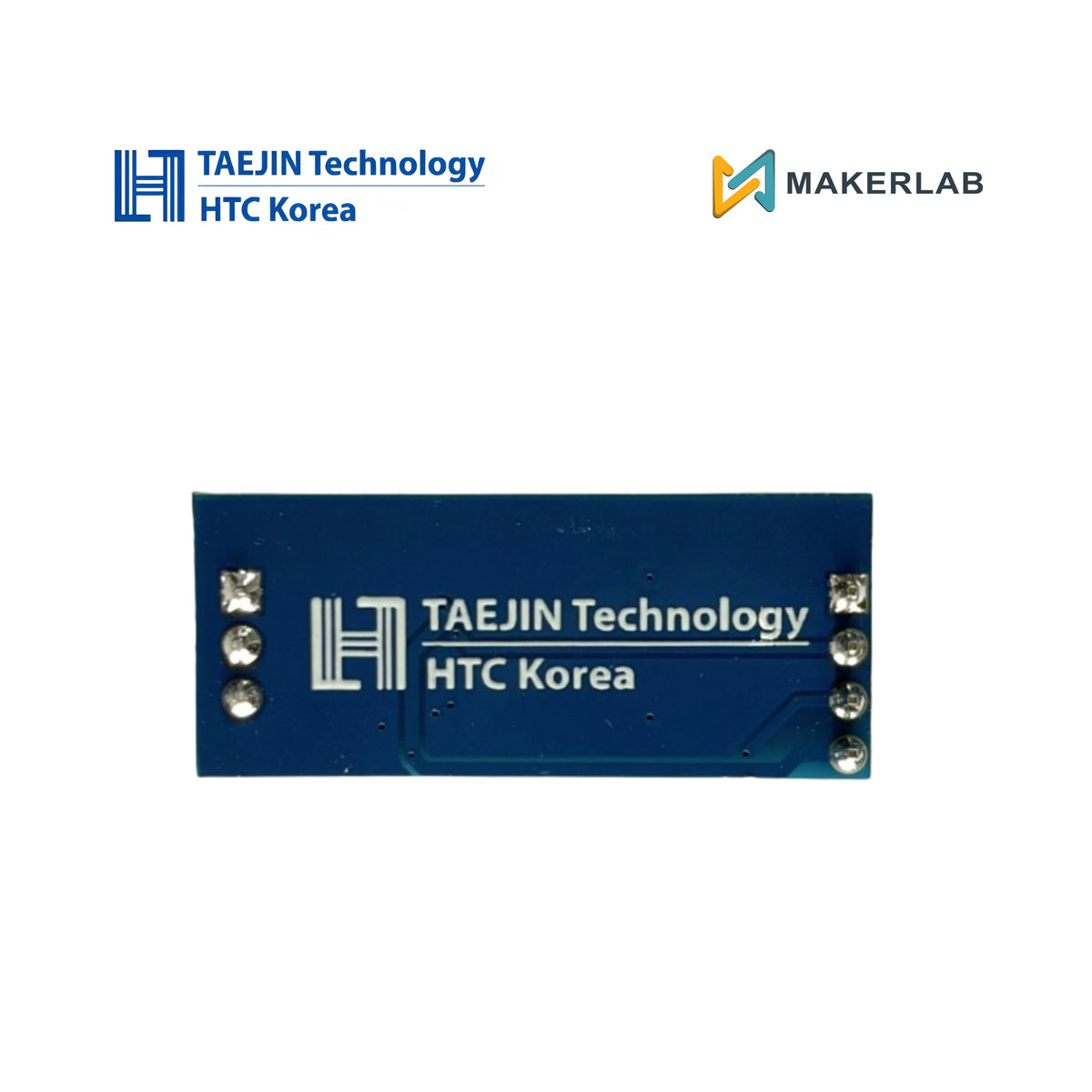

The LM358 Operational Amplifier Module consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.
Features
• LM358 Operational Amplifier Module
• Input Voltage: 5V to 12V
• Onboard potentiometer for adjustable gain
• Power indicator LED
Applications
• Signal Conditioning
• Voltage Monitoring and Protection
• Preamplifier and Active Filter
Application Guide
The LM358 Operational Amplifier Module integrates one channel of the LM358 operational amplifier and allows user-adjustable gain up to 100x via an on-board potentiometer. It operates over a 3V to 32V supply range.
I/O Port Configuration and Description
Schematics
Layout
Other Information
Part Number: MOP358-01
Device: LM358 Operational Amplifier Module

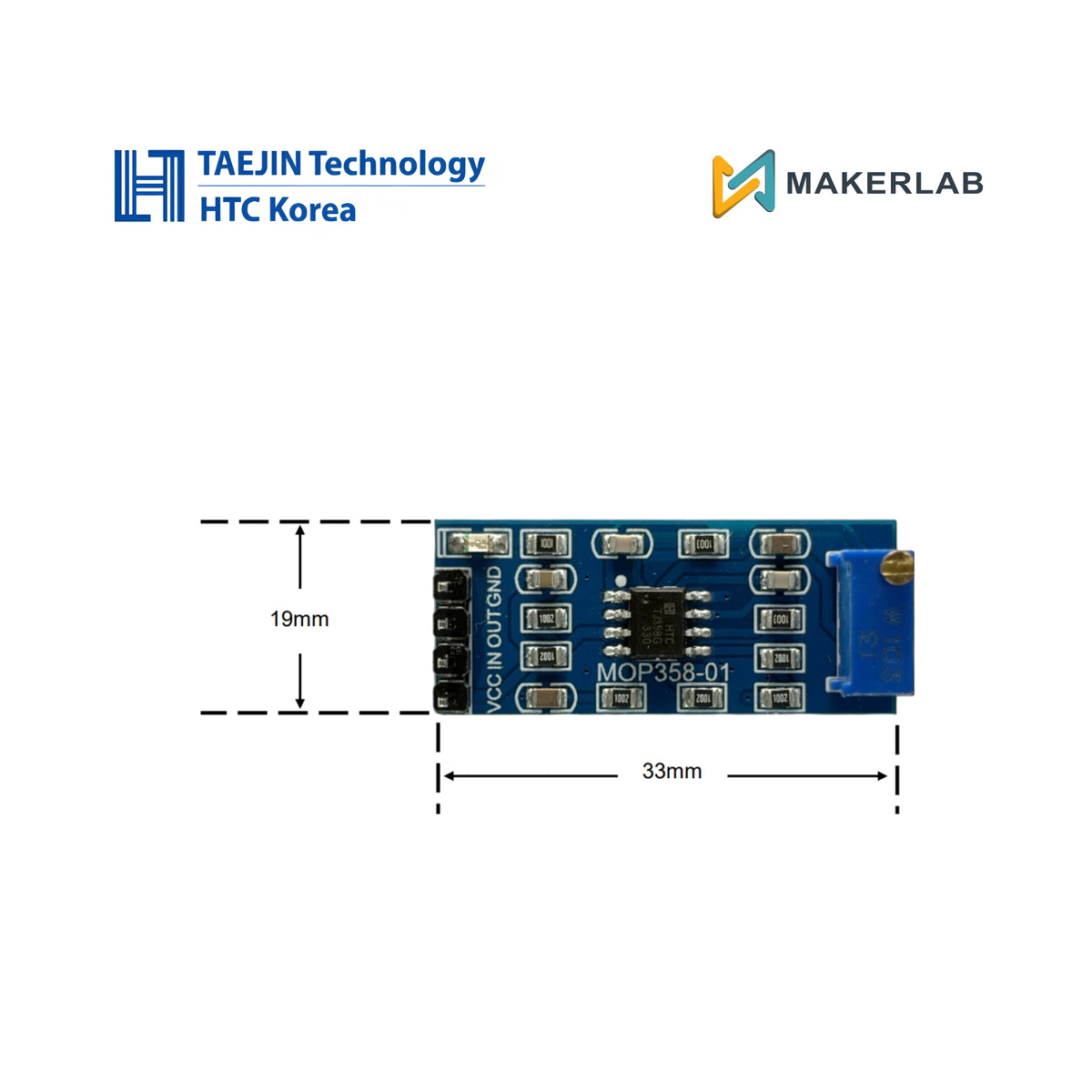

Package: Assembled Module (33mm X 19mm)
