SKU:MLE10162

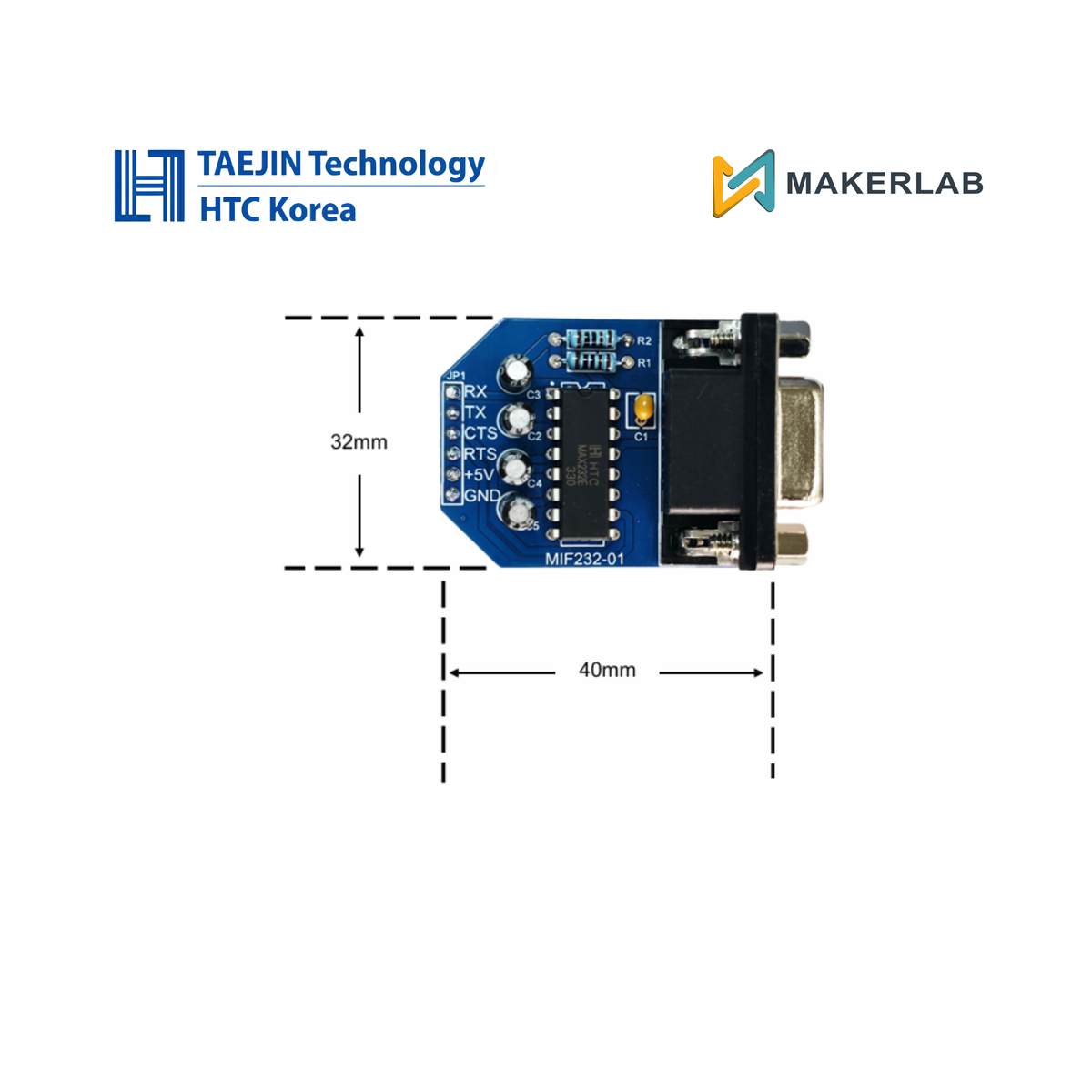

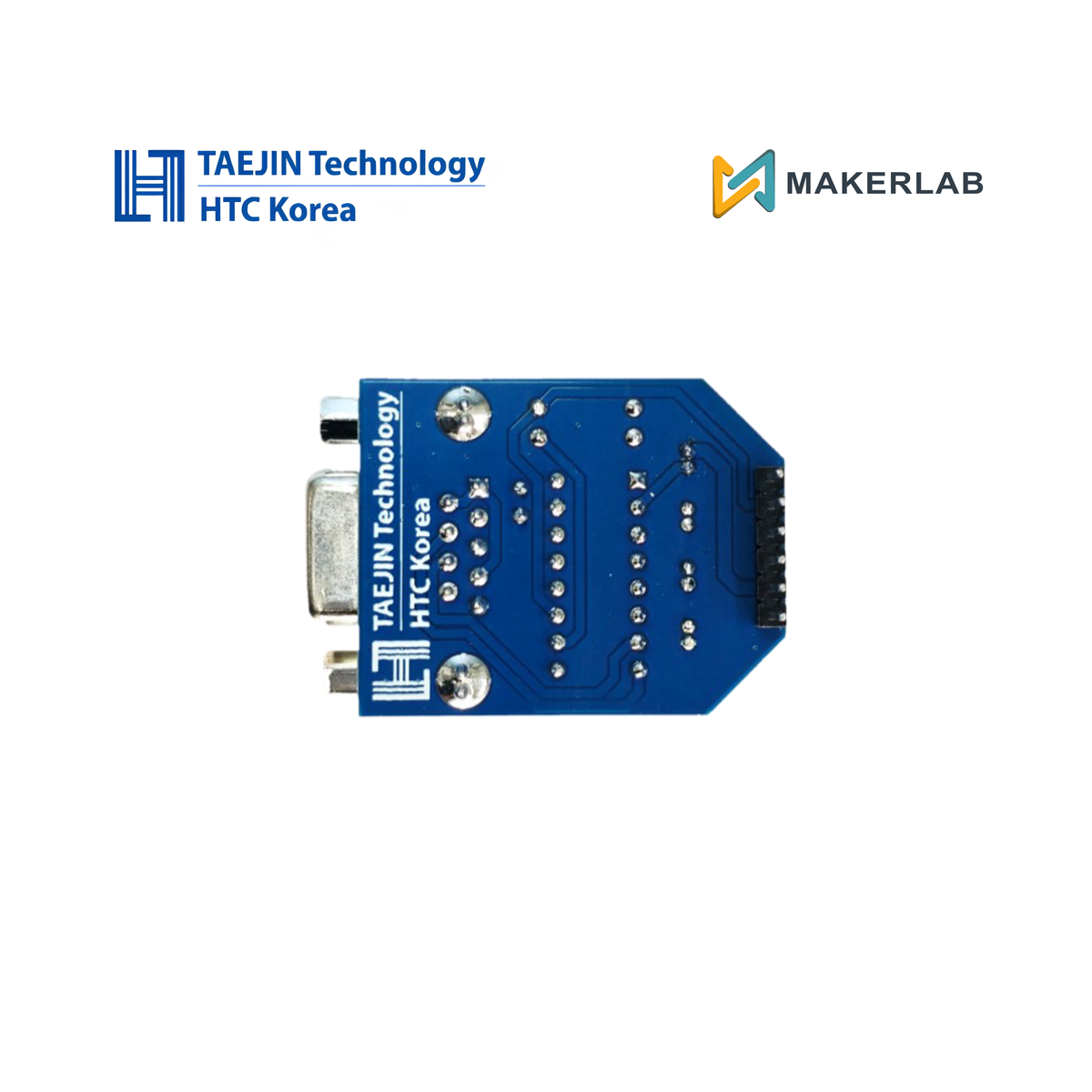

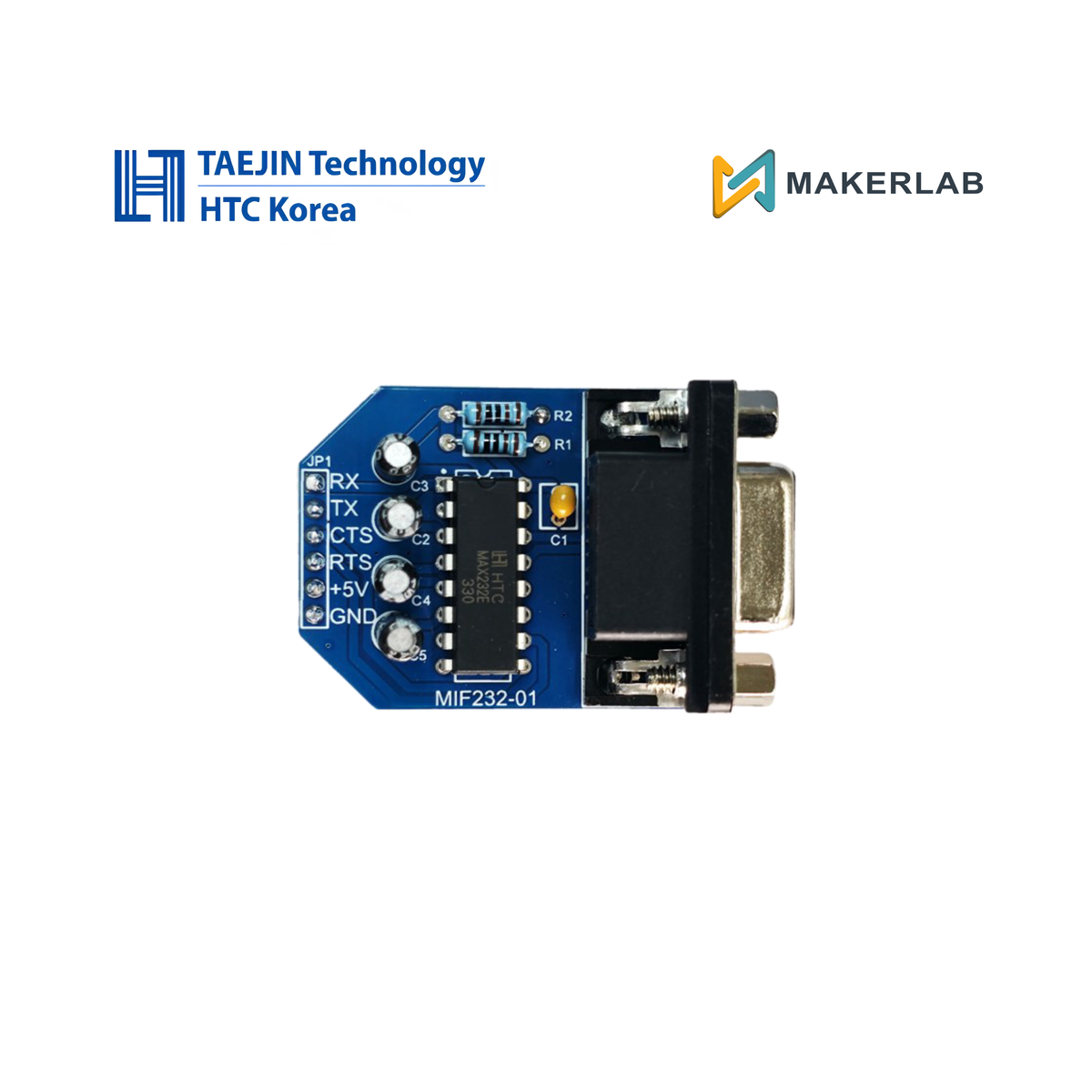

Taejin RS232 Interface Module

Name: Taejin RS232 Interface Module
Brand: Taejin
SKU: MLE10162
Price: 349.0 PHP
Availability: InStock

₱349.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Product Description

Description

The RS-232 Module is half-duplex transceiver that meets all EIA/TIA-232E and V.28/V.24 Specifications.

Features

RS-232 Transceiver Module
TTL to RS-232C Standard Conversion Transceiver
Recommended Vcc Voltage: DC 5.0V
Easy to Use External Leads

Applications

Portable Computers
Battery-Powered RS-232 Systems
Interface Translation

Application Guide

The RS-232 module features a built-in circuit MAX232EN used to perform necessary adjustment. This circuit is powered with a single 5V voltage. It is used to convert a serial signal from TTL to RS232C standard and vice versa by means of a built-in voltage generator.
