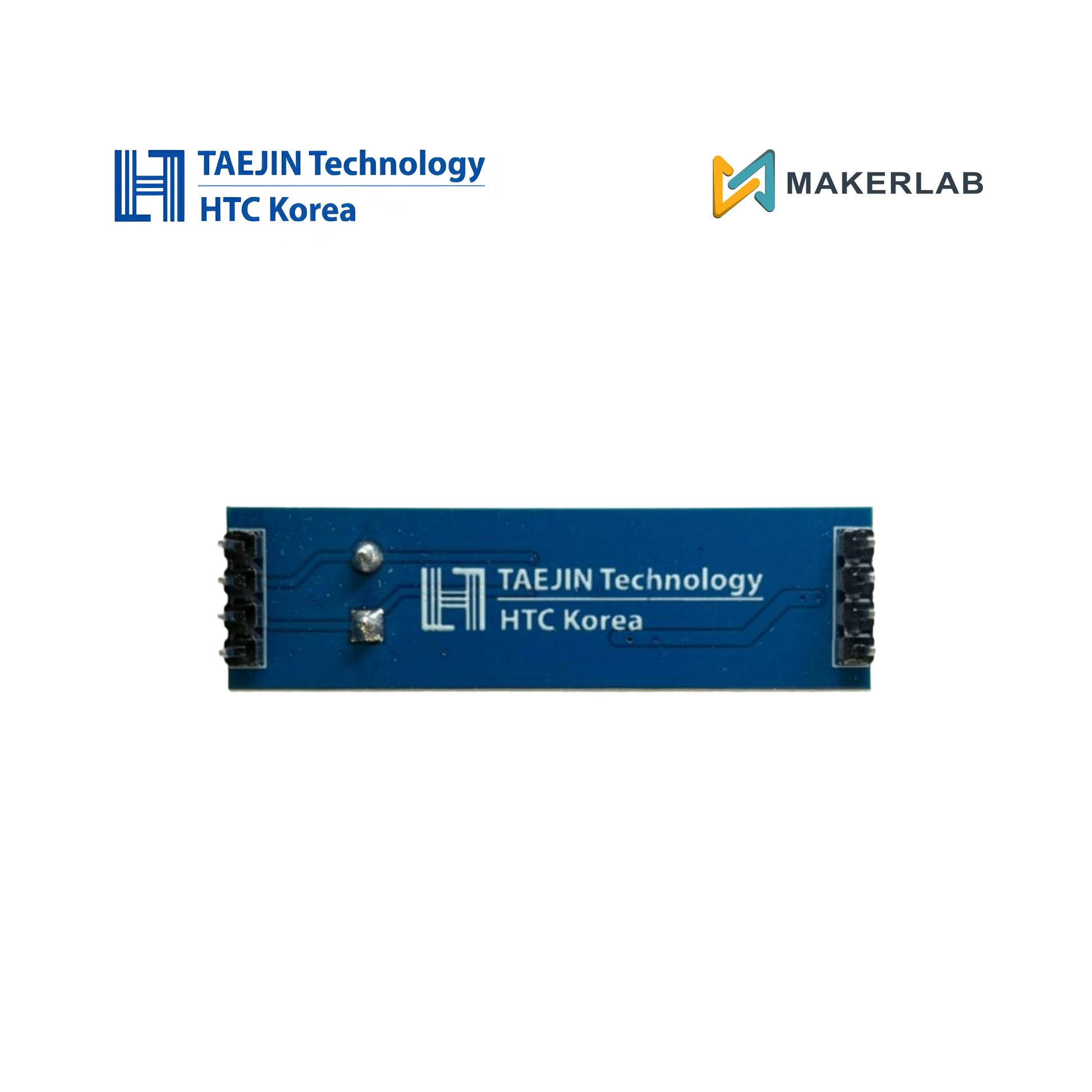

Description
The MAX485 Module is half-duplex transceiver that meets the specifications of RS-485 and RS-422.
Features
• RS-485 Transceiver Module
• Data Rate: 5Mbps
• TTL to RS-485 Level Conversion Transceiver
• Recommended Vcc Voltage: DC 5.0V
• Easy to Use External Leads
Applications
• Low Power RS-485 Systems
• Packet Switching
• Local Area Networks
• Data Concentration
• Data Multiplexers
Application Guide
The MAX485 module operates from a standard 5V power supply and use 5V logic levels allowing them to be interfaced to the hardware serial ports of microcontrollers such as Arduino/PIC etc. Direction of communication can be controlled with just one digital pin. It is also possible to connect multiple modules together for communication between 2 or more devices. For even greater distances two modules can be configured as a repeater. Each module contains one driver and one receiver. Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.

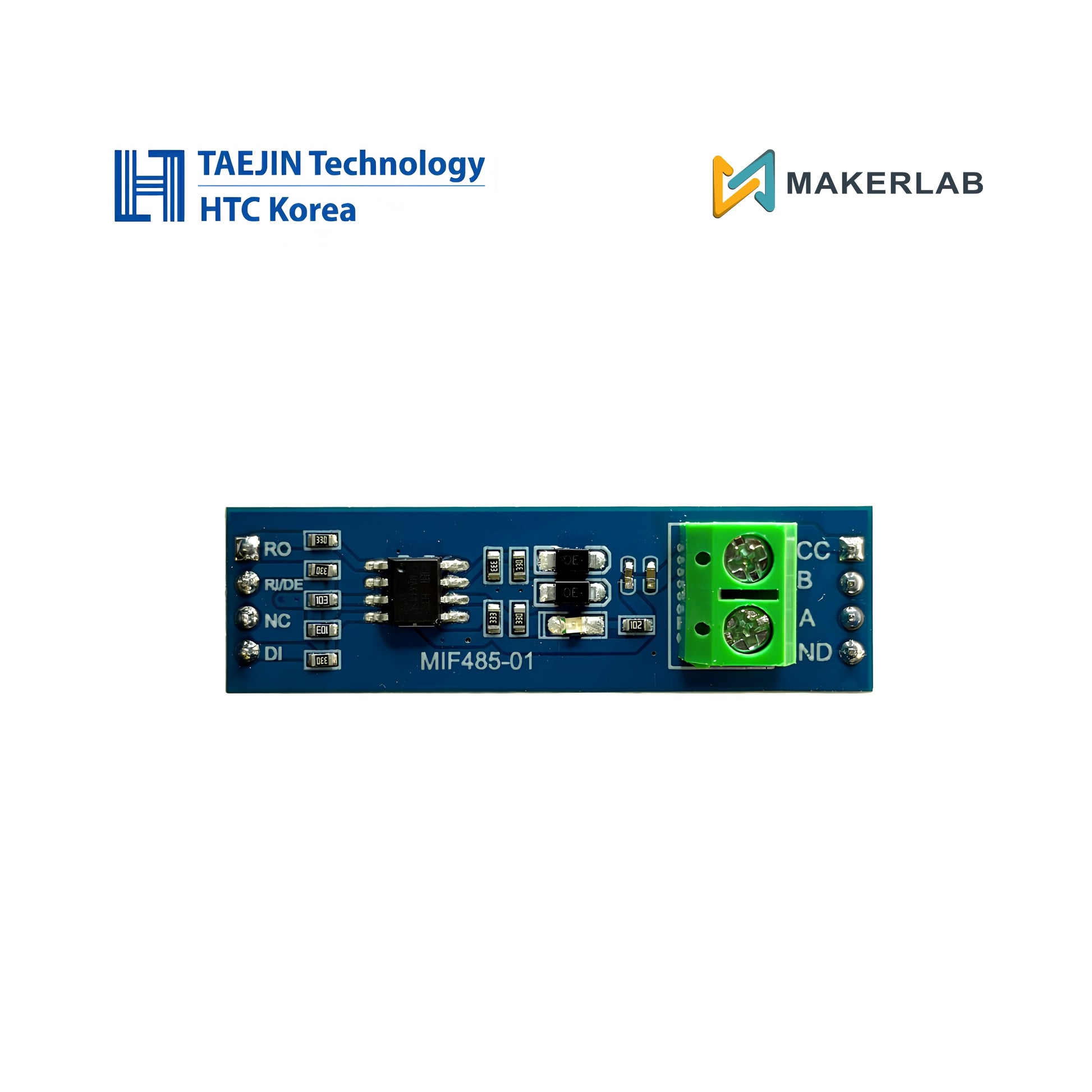

Layout
I/O Port Configuration and Description
Other Information
Part Number: MIF485-01
Device: RS-485 Transceiver Module

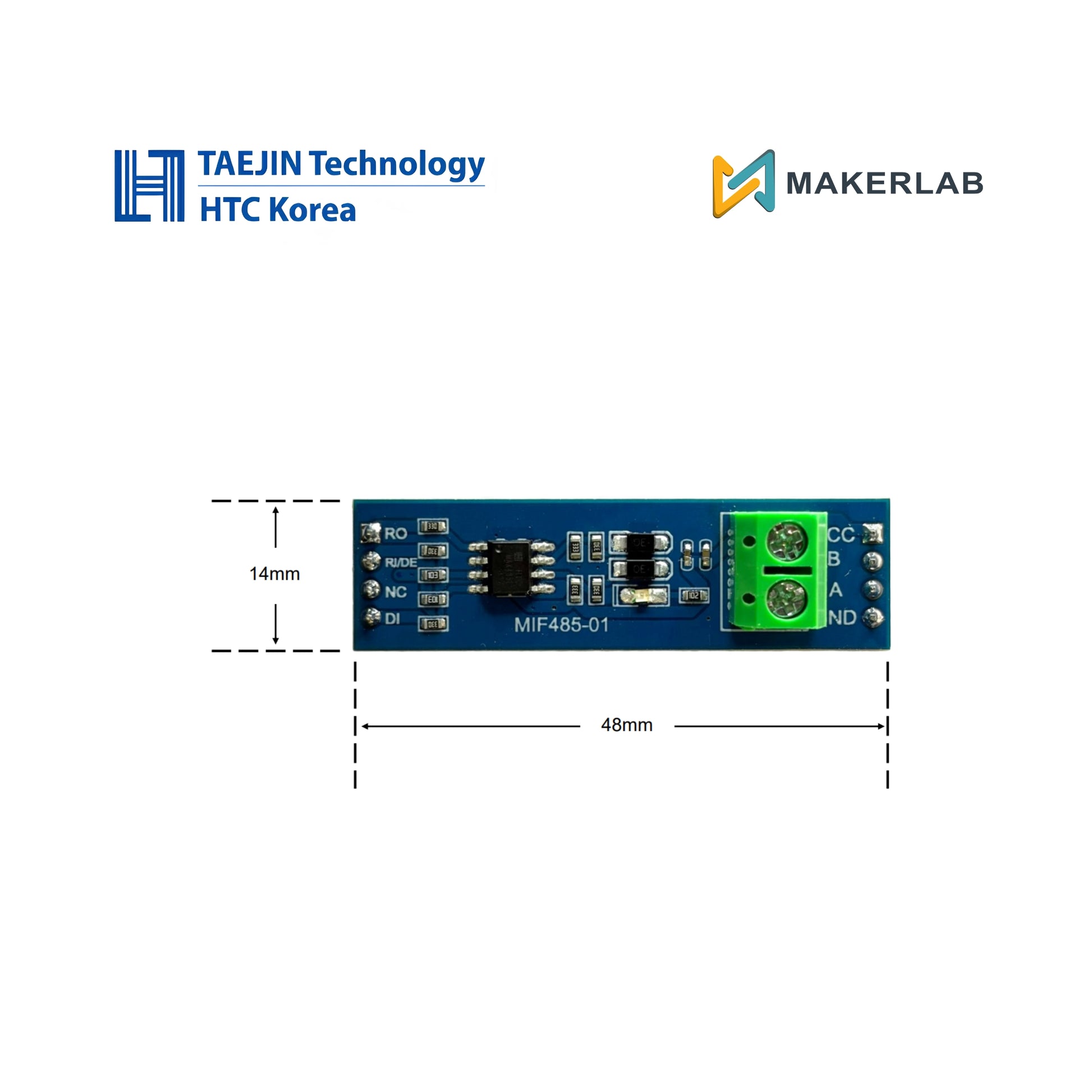

Package: Assembled Module (48mm X 14mm)
In-House R&D & Manufacturing: 100% designed, fabricated, and manufactured in-house by Taejin Technology Co., Ltd. (HTC Korea)
True-to-Spec Performance: Guaranteed to match the datasheet performance.
