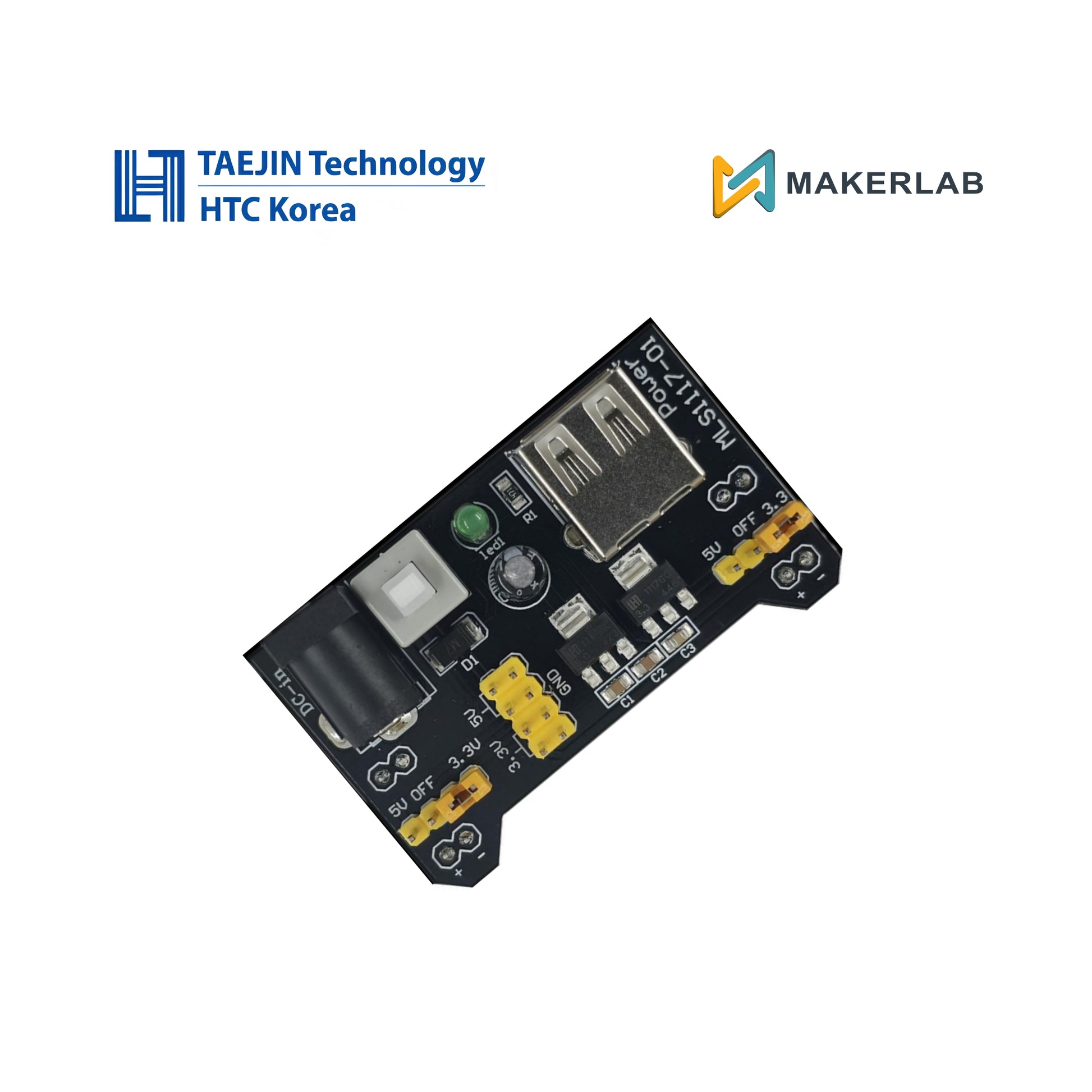

Description
The LM1117 Power Supply Module is a simple board that takes a 7-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage
Features
• LM1117 3.3V / 5.0V Power Supply Module
• Input Voltage Source: DC 7V to 12V (DC Jack) or 5.0V USB Powered
• Output Voltage: Switchable 0V / 3.3V / 5.0V • Output Current: Max. 700mA
• Power Indicator LED
• Easy to Use External Leads
Applications
• Simple 3.3V / 5.0V Output Linear Regulator
• Breadboard mounted Power Supply
• Power Supply for Arduino
Application Guide
The power dissipation of the LM1117 Power Supply Module is internally limited. Small sized PCB and thermal resistance of IC package have limited the power dissipation of the module.
Depending on the output current condition, 700mA full loading is not might possible due to the internally limited power dissipation.

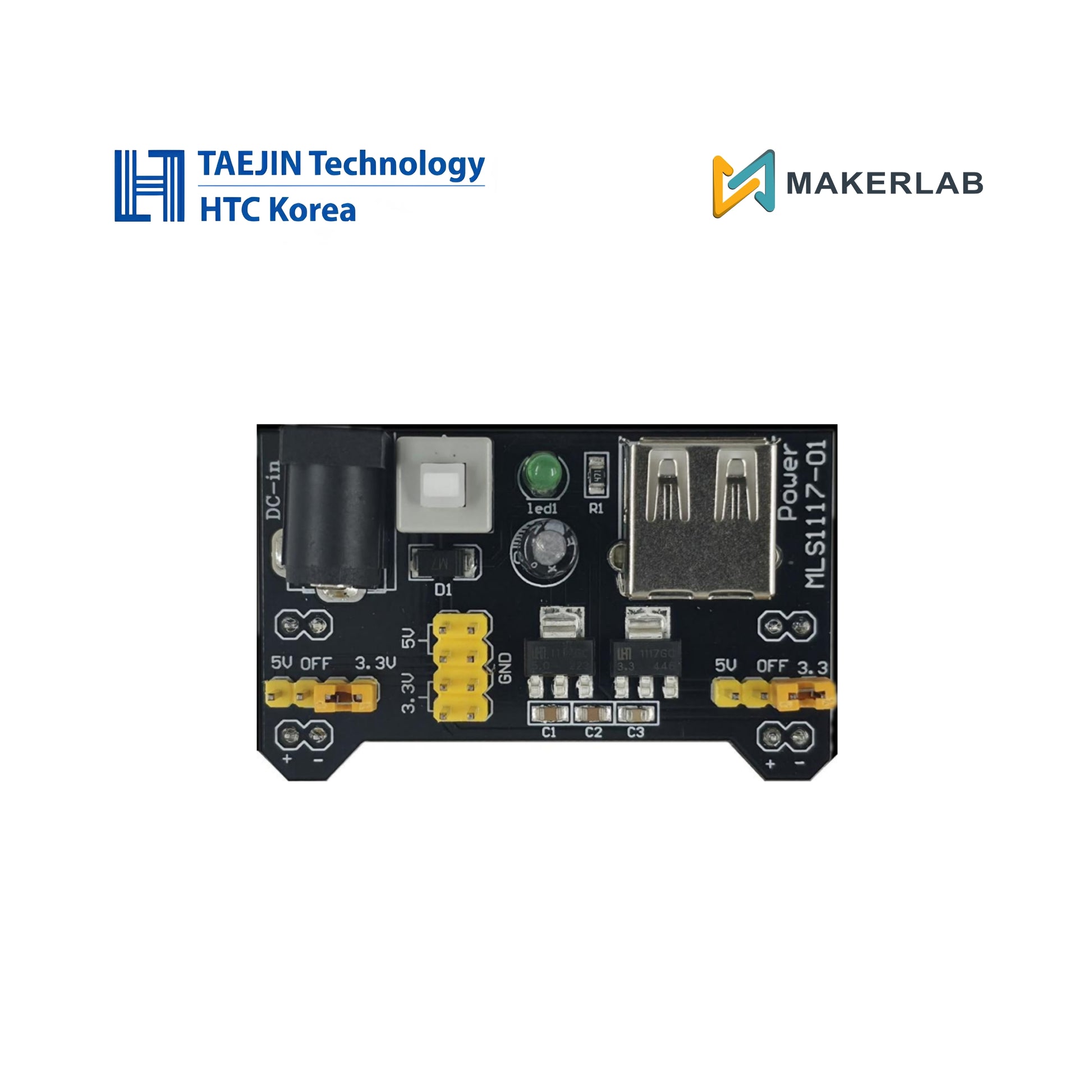

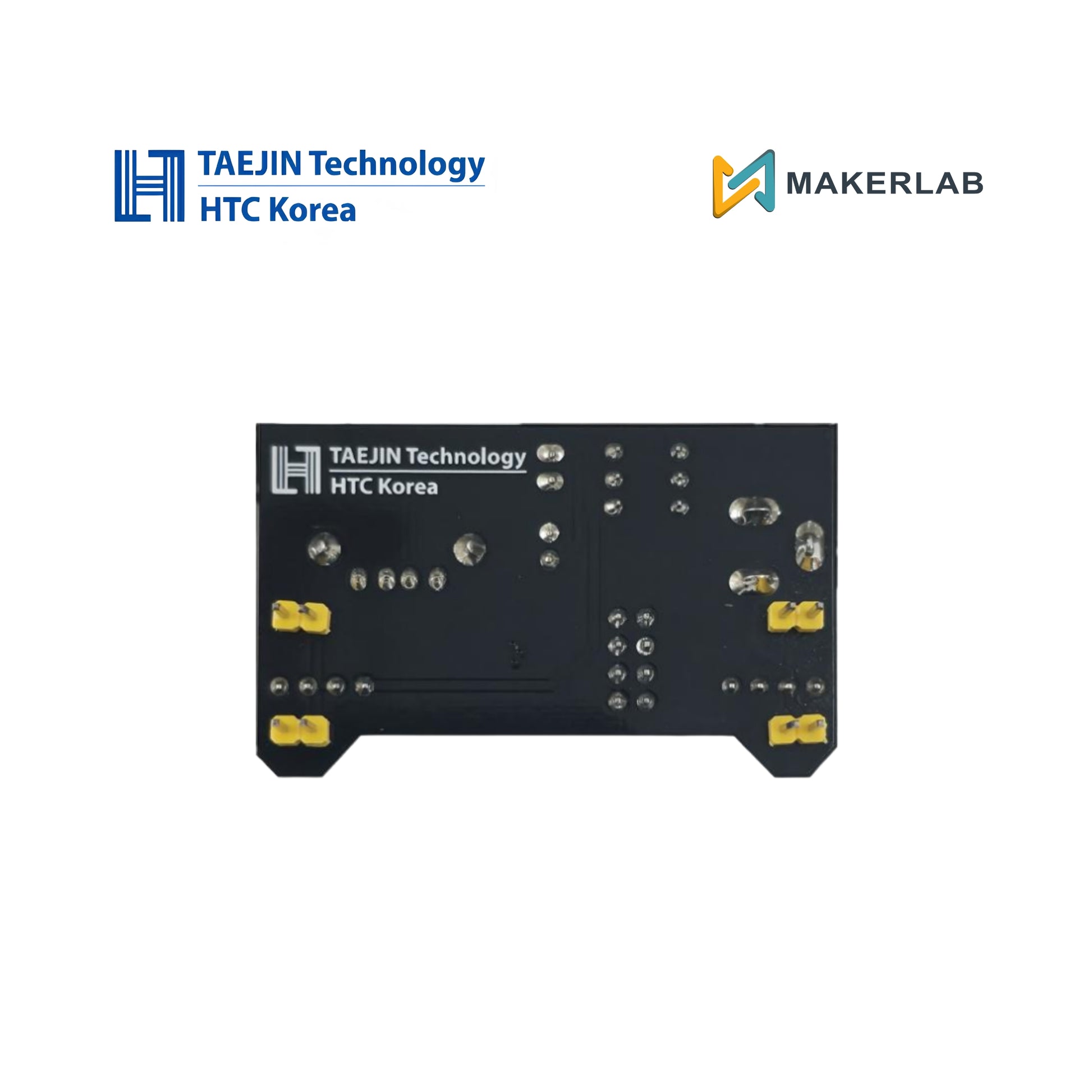

Layout
I/O Port Configuration and Description
Other Information
Part Number: MLS1117-01
Device: LM1117 Power Supply Module

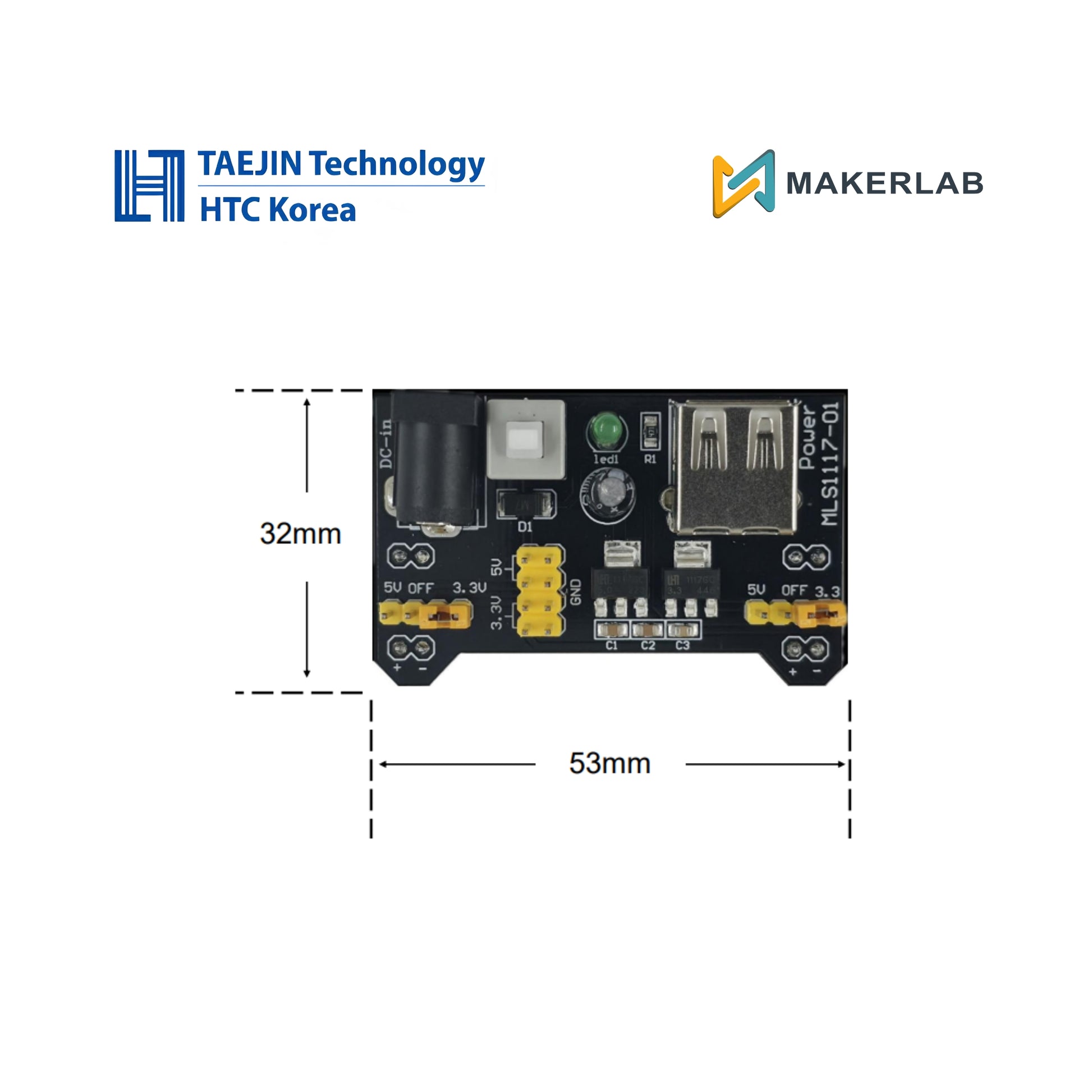

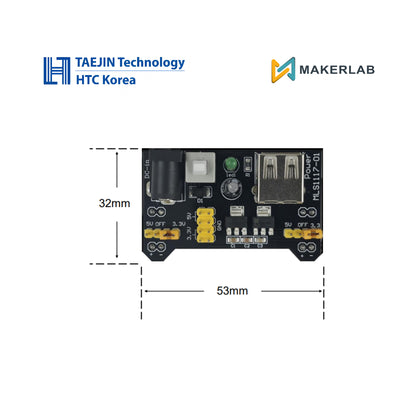

Package: Assembled Module (53mm X 32mm)
In-House R&D & Manufacturing: 100% designed, fabricated, and manufactured in-house by Taejin Technology Co., Ltd. (HTC Korea)
True-to-Spec Performance: Guaranteed to match the datasheet performance.
