Description
The NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator is 5V square wave signal generator.
Features
• NE555 Pulse Generator Module
• Input Voltage Range: 5V to15V
• Output Voltage: 4.2V to 11.4V
• Max. Output Current: 15mA to 35mA
• Output with LED indication
• Selectable Output Frequency Range
Applications
• Adjustable pulse for MCU.
• Adjustable pulse to control circuitry associated.
• Used to drive a stepper motor for generating a square wave drive signal.
Application Guide
It generates a square wave signal used for experimental development. Also, use to drive a stepper motor for generating a square wave drive signal. The output duty cycle can fine-tune. The duty cycle and frequency are not separately adjustable, adjusting the duty cycle will change the frequency.

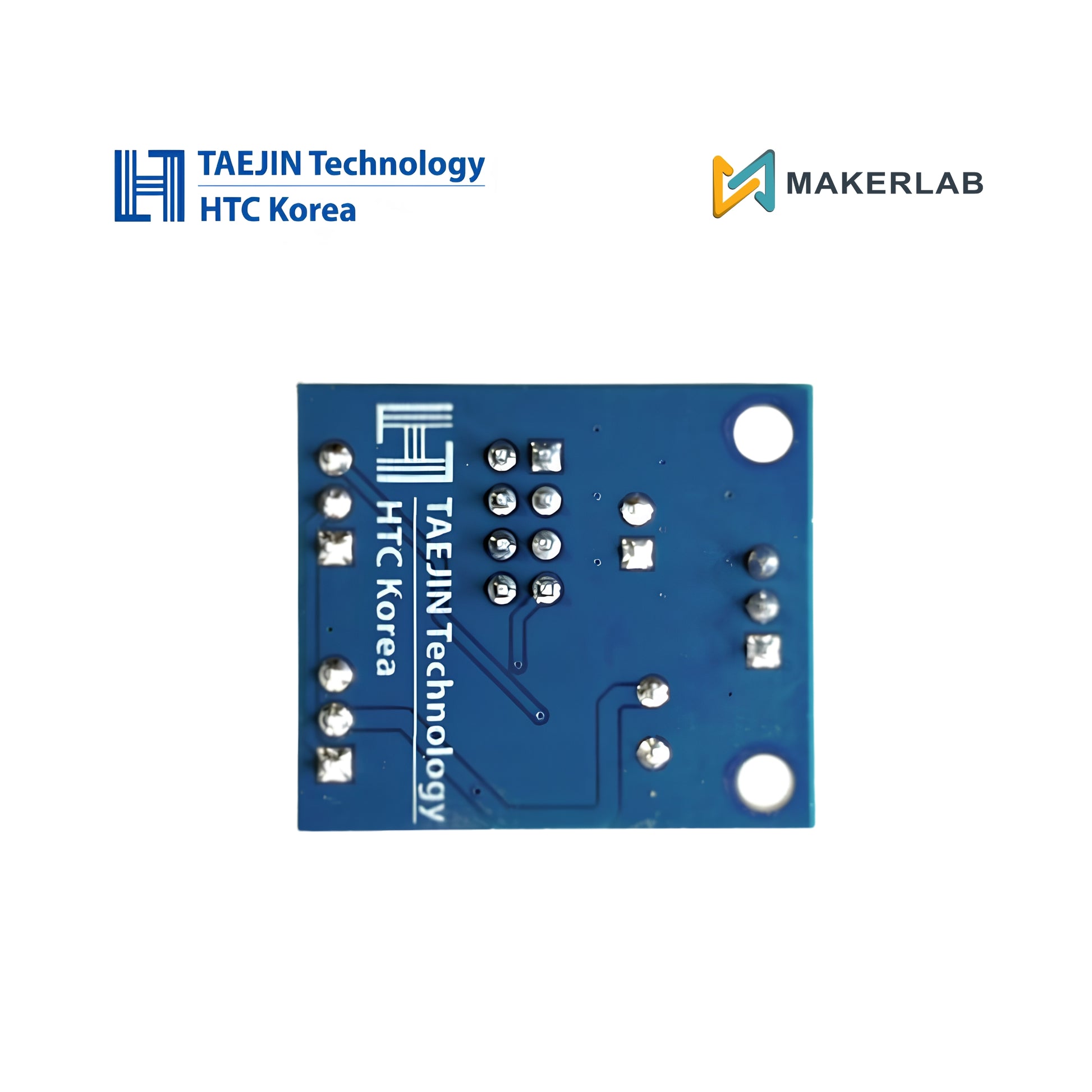

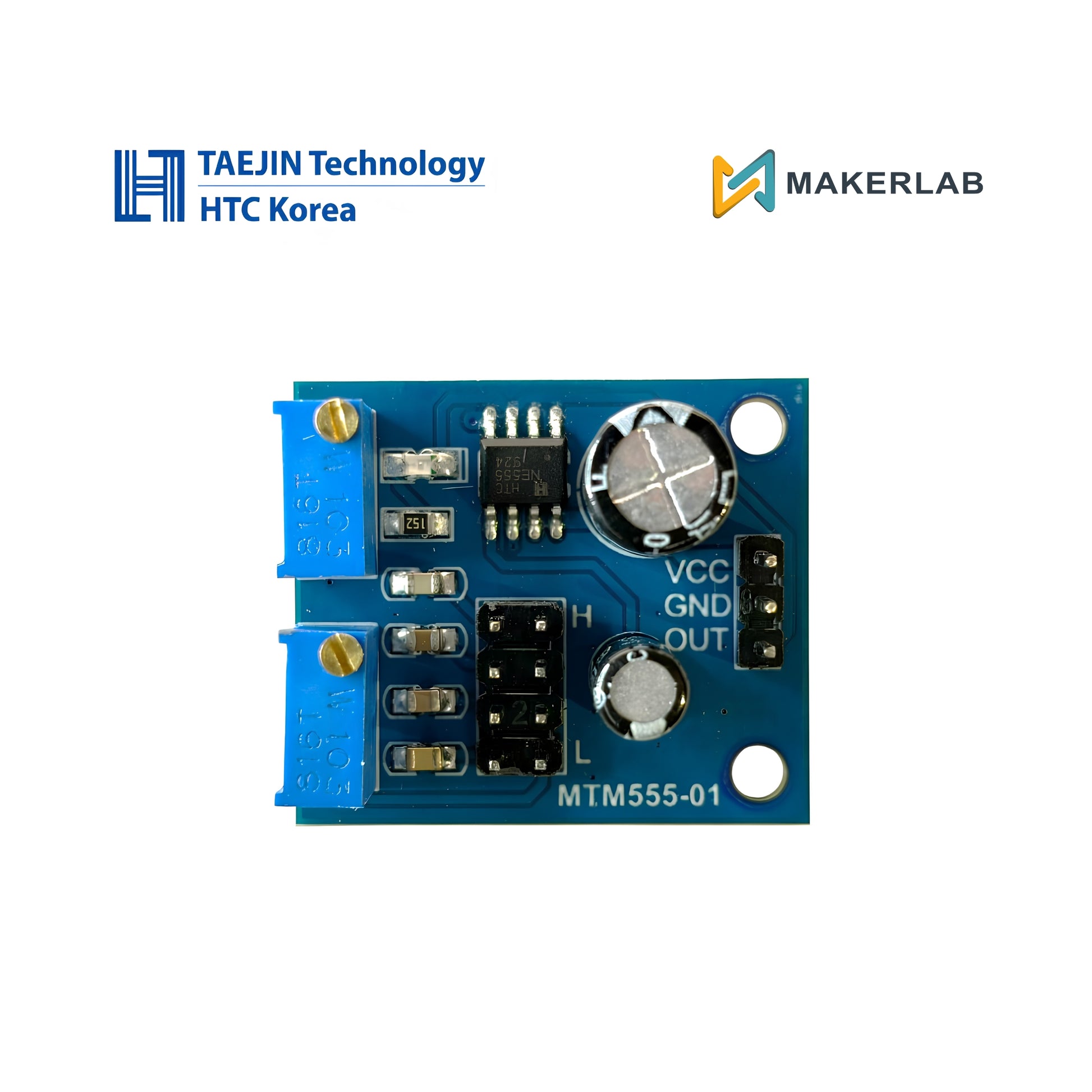

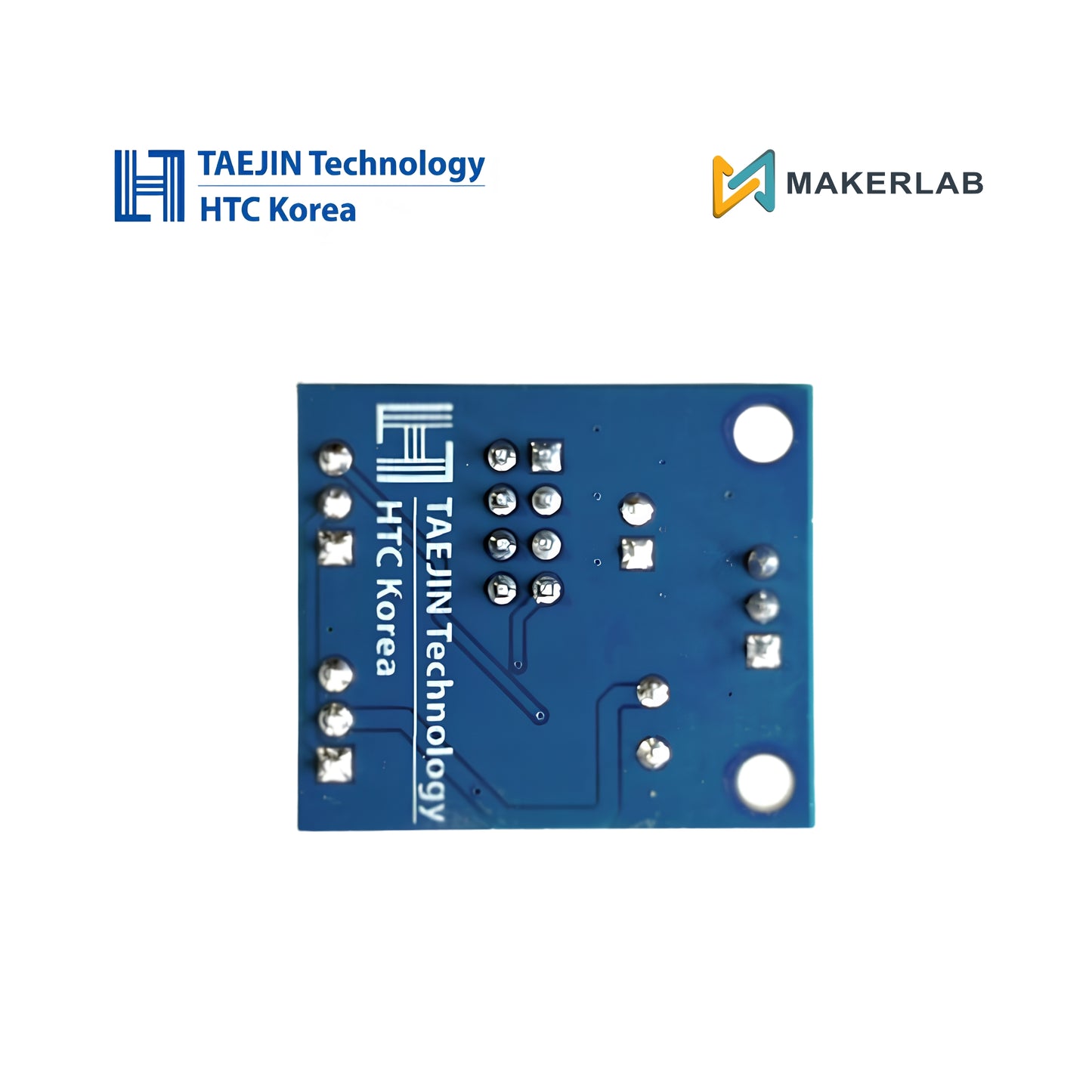

Layout
I/O Port Configuration and Description
Other Information
Part Number: MTM555-01
Device: NE555 Pulse Generator Module

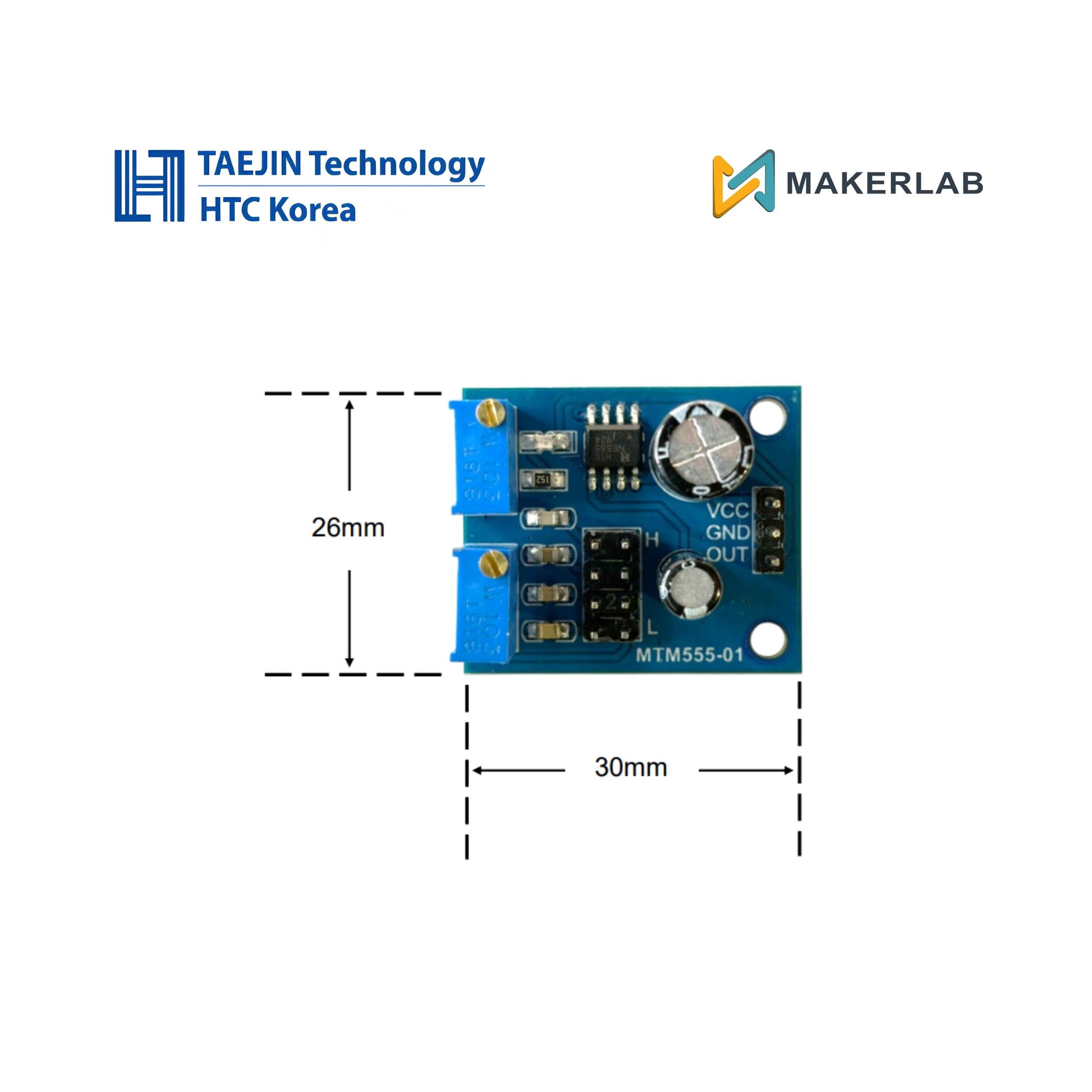

Package: Assembled Module (30mm X 26mm)
In-House R&D & Manufacturing: 100% designed, fabricated, and manufactured in-house by Taejin Technology Co., Ltd. (HTC Korea)
True-to-Spec Performance: Guaranteed to match the datasheet performance.
