MLE10161

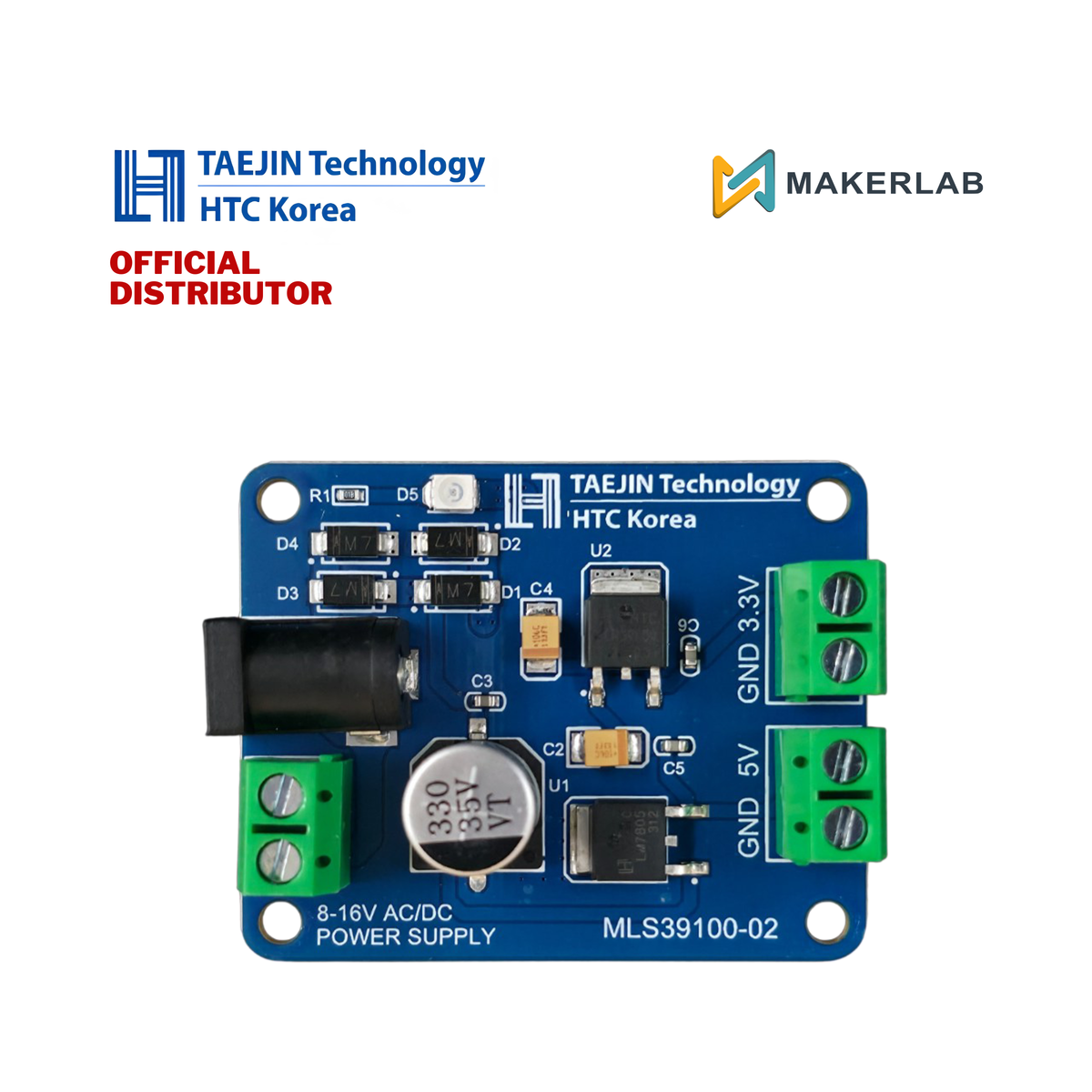

Taejin 5V/3.3V Regulator Module

₱449.00
₱449.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Description

The LM39100 Power Supply Module is an accessory board that includes an on-board regulator. This regulator is used to provide local on-card regulation.


Features

  • LM39100 Power Supply Module
  • Input Voltage Range: AC/DC 8V to 16V
  • Input Options 1: Screw Terminal Connector
  • Input Options 2: AC/DC Adapter Connector
  • Output Voltage: 3.3V / 5.0V
  • Output Current: Max. 500mA
  • Power Indicator LED


Applications

  • Simple 3.3V / 5.0V Output Linear Regulator
  • Provide local on-card regulation.


Application Guide

The LM39100 Power Supply Module includes LM7805RS voltage regulator and LM39100S-3.3, low dropout voltage regulator, providing fixed supply voltages.


Layout

I/O Port Configuration and Description


Other Information

Part Number: LM39100-02
Device: LM39100 Power Supply Module

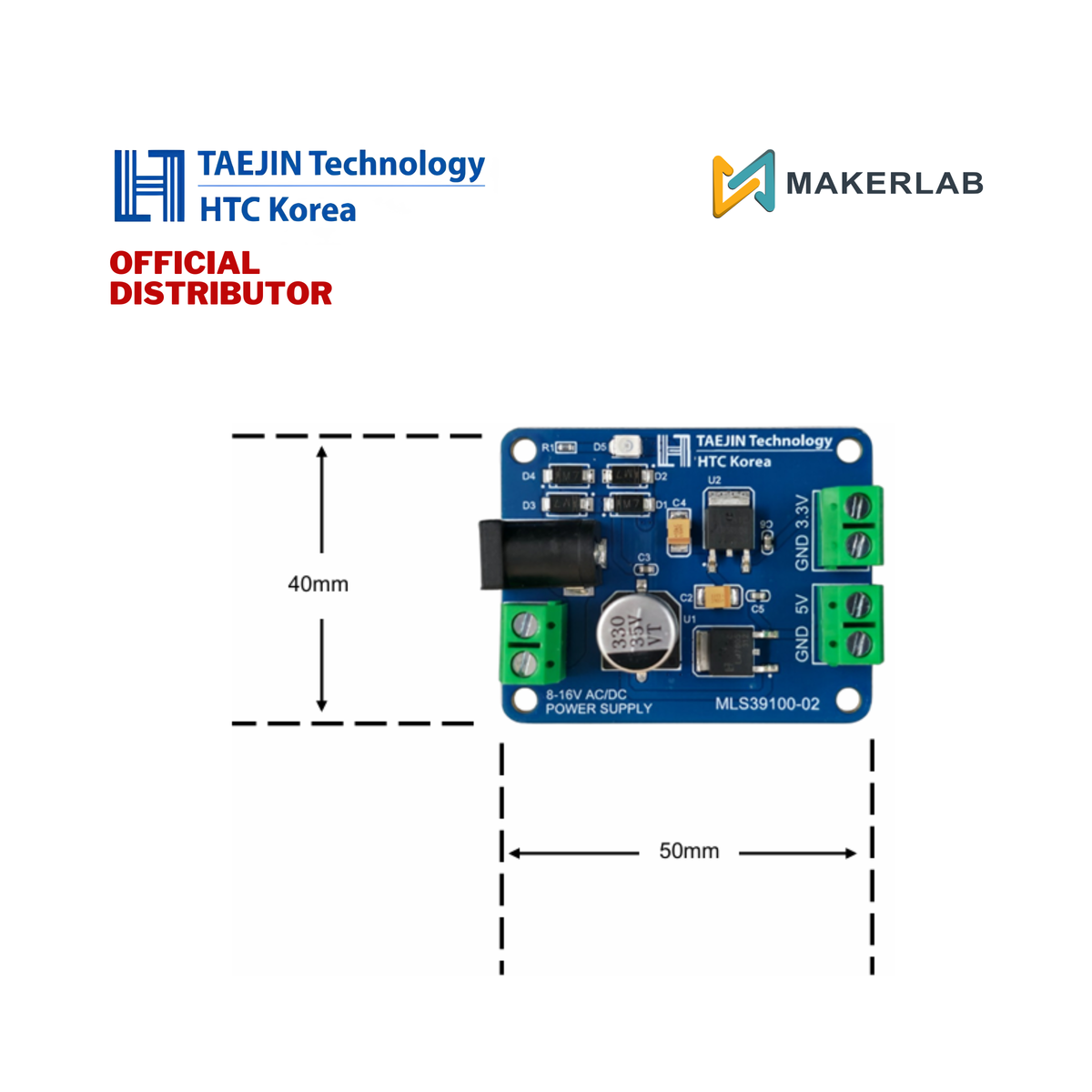

Package: Assembled Module (50mm X 40mm)
In-House R&D & Manufacturing: 100% designed, fabricated, and manufactured in-house by Taejin Technology Co., Ltd. (HTC Korea)
True-to-Spec Performance: Guaranteed to match the datasheet performance.
