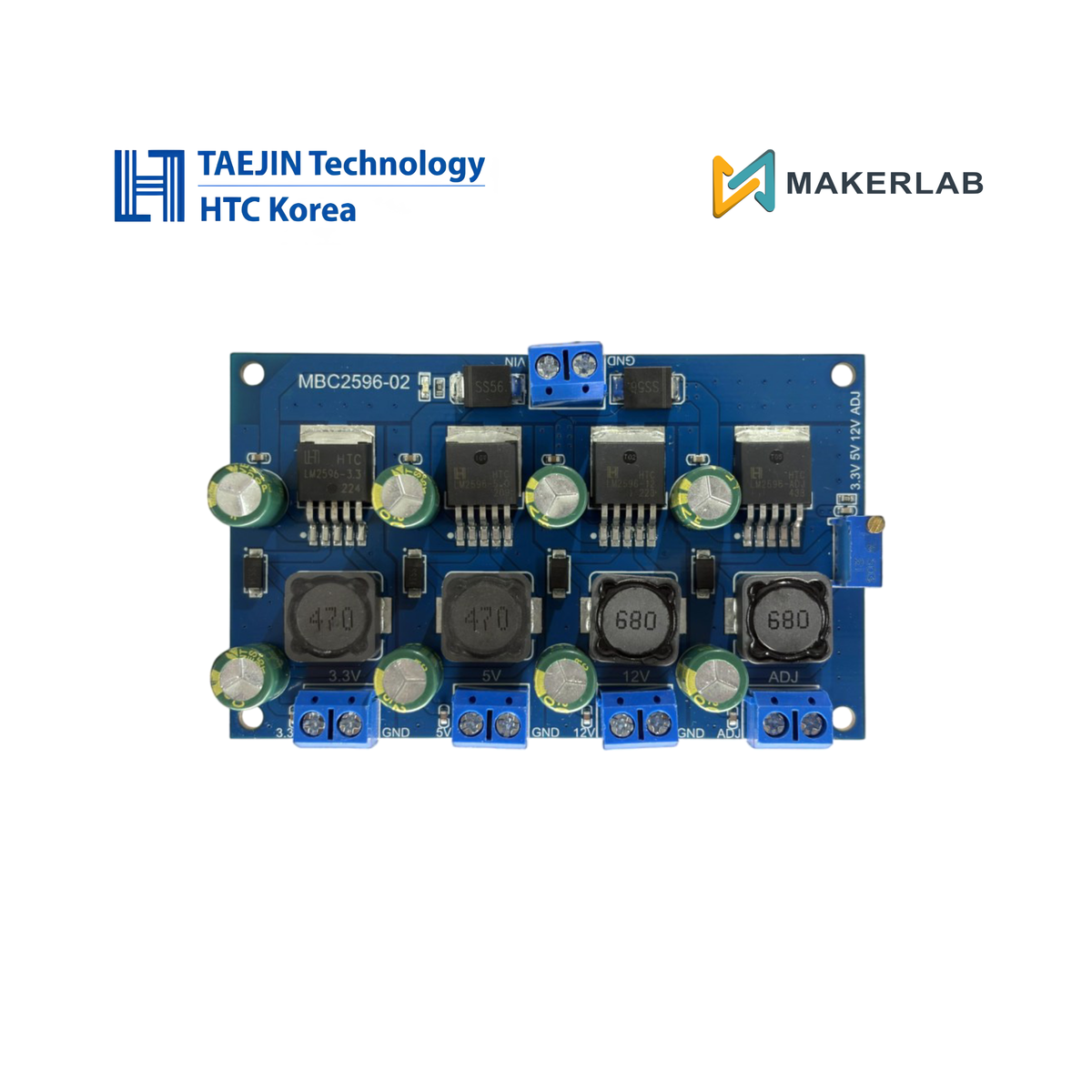

Taejin 4 Channel Step-Down Converter Module

₱1,349.00
₱1,349.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Description

The LM2596 Buck Converter Module is a non-isolated step-down DC-DC converter with non-synchronous rectification.


Features

  • LM2596 DC-DC Buck Converter Step Down Module
  • Input Voltage Range: 13.5V to 30V
  • Output Voltage: 3.3V, 5.0V, 12V, ADJ (2V to 28V)
  • Output Current: Rated current 2A, maximum 3A (Heat sink required.)
  • Switching Frequency: 150kHz
  • Power Indicator LED


Applications

  • Simple high efficiency step-down regulator
  • On-card switching regulator
  • Efficient Pre-Regulator for Linear Regulators


Application Guide

The power dissipation of the LM2596 Buck Converter Module is internally limited. Small sized PCB and thermal resistance of IC package have limited the power dissipation of the module.
Depending on the conversion condition, 3A full loading is not might possible due to the internally limited power dissipation.


Layout


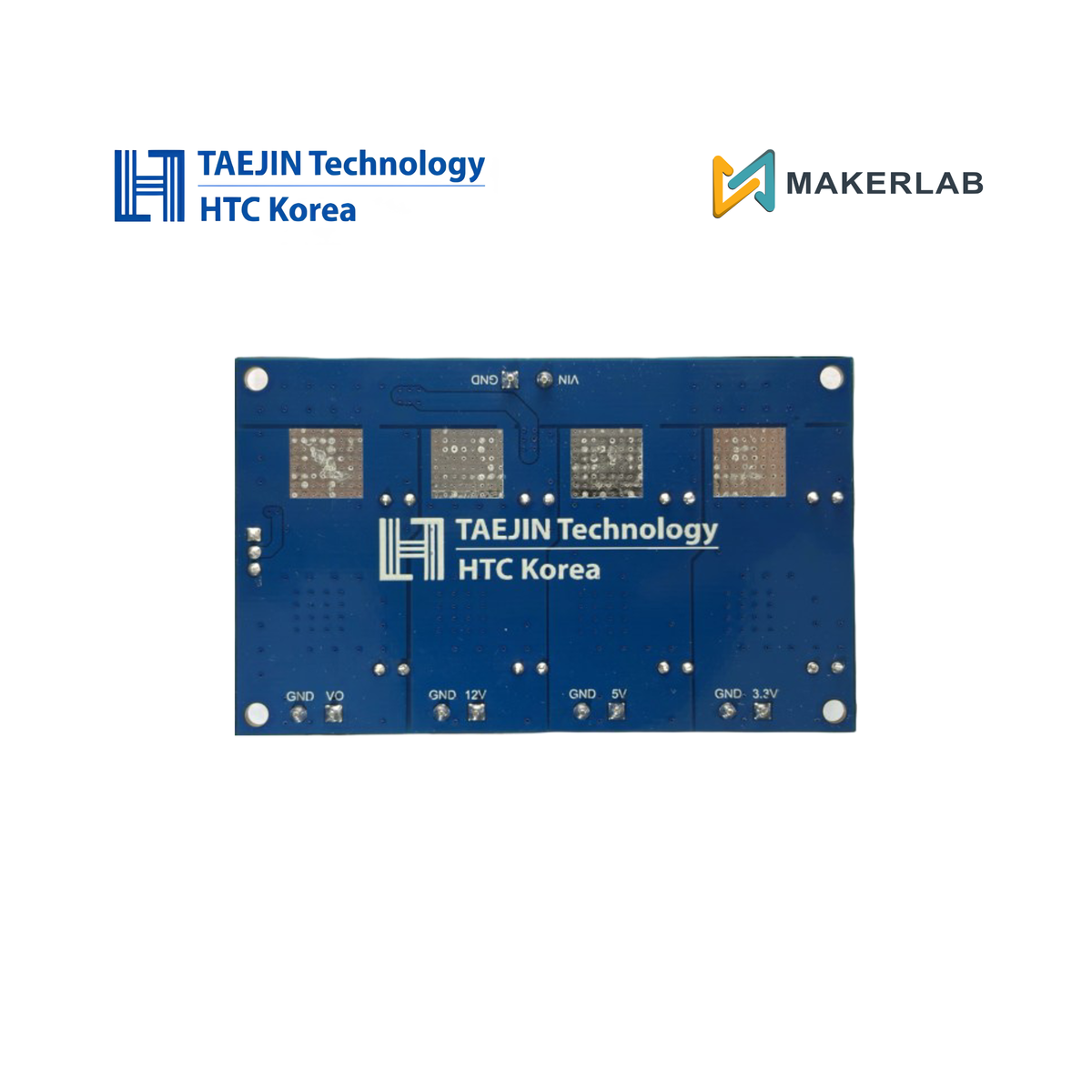

I/O Port Configuration and Description

Other Information

Part Number: MBC2596-02
Device: LM2596 Buck Converter Module

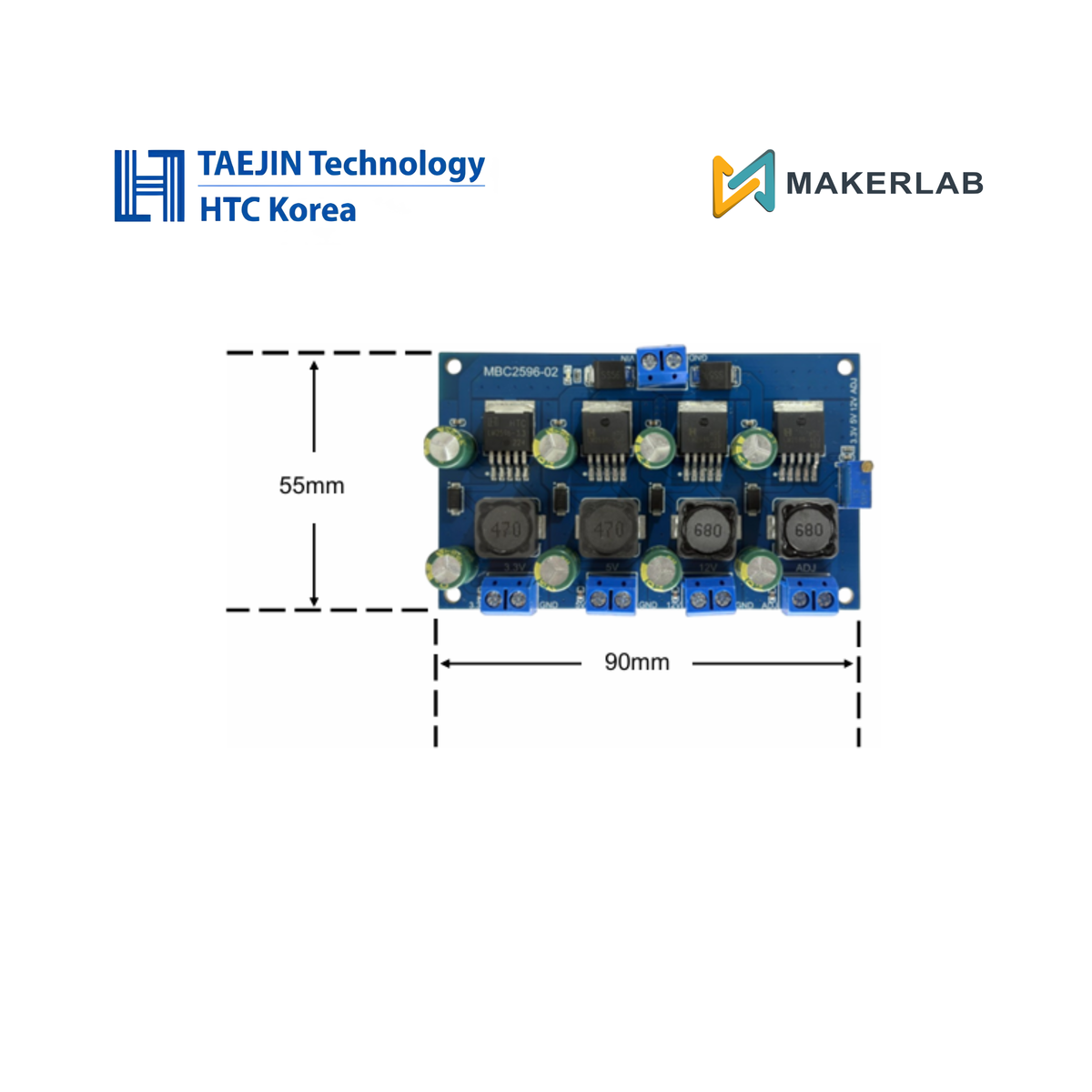

Package: Assembled Module (55mm X 90mm)
In-House R&D & Manufacturing: 100% designed, fabricated, and manufactured in-house by Taejin Technology Co., Ltd. (HTC Korea)
True-to-Spec Performance: Guaranteed to match the datasheet performance.
