Description

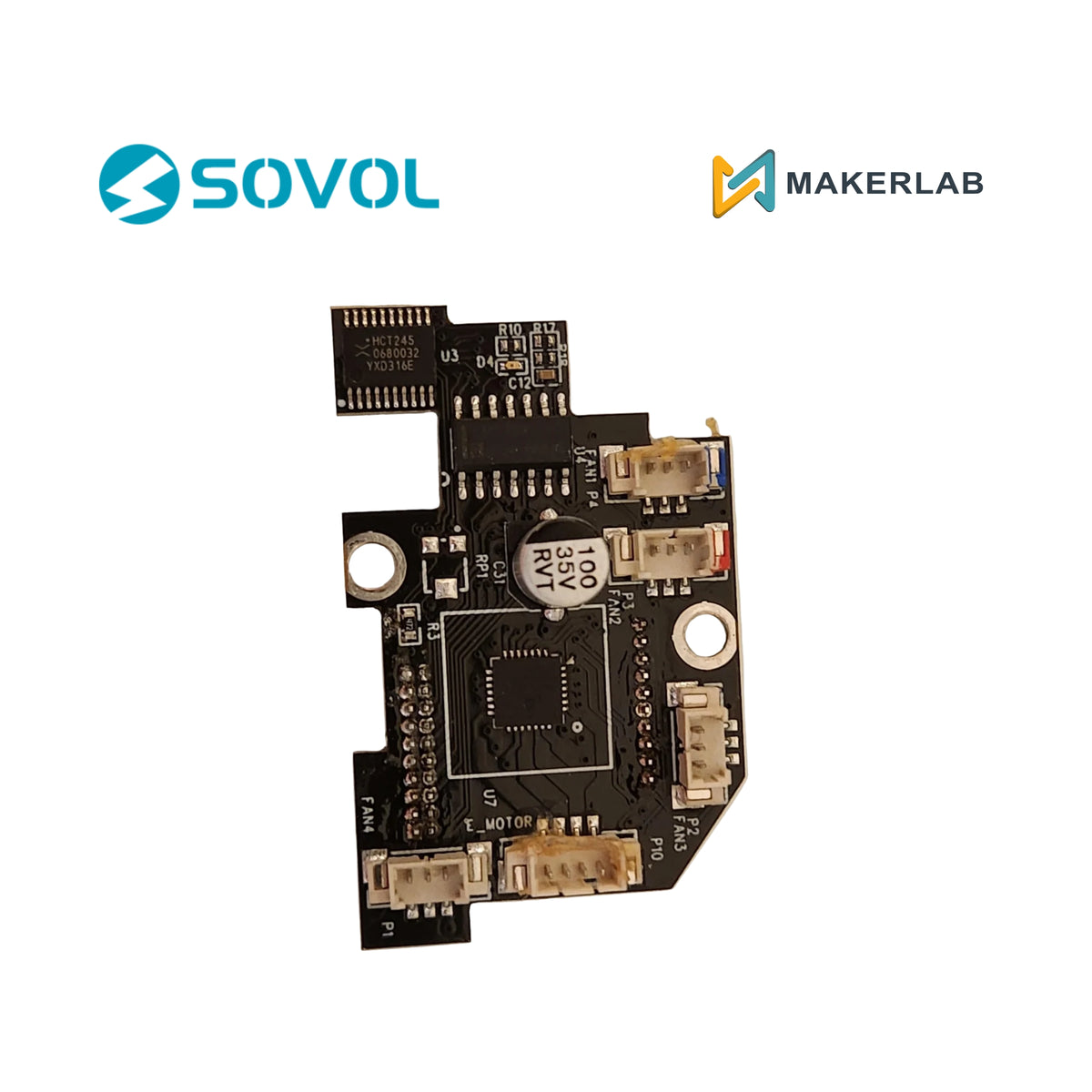

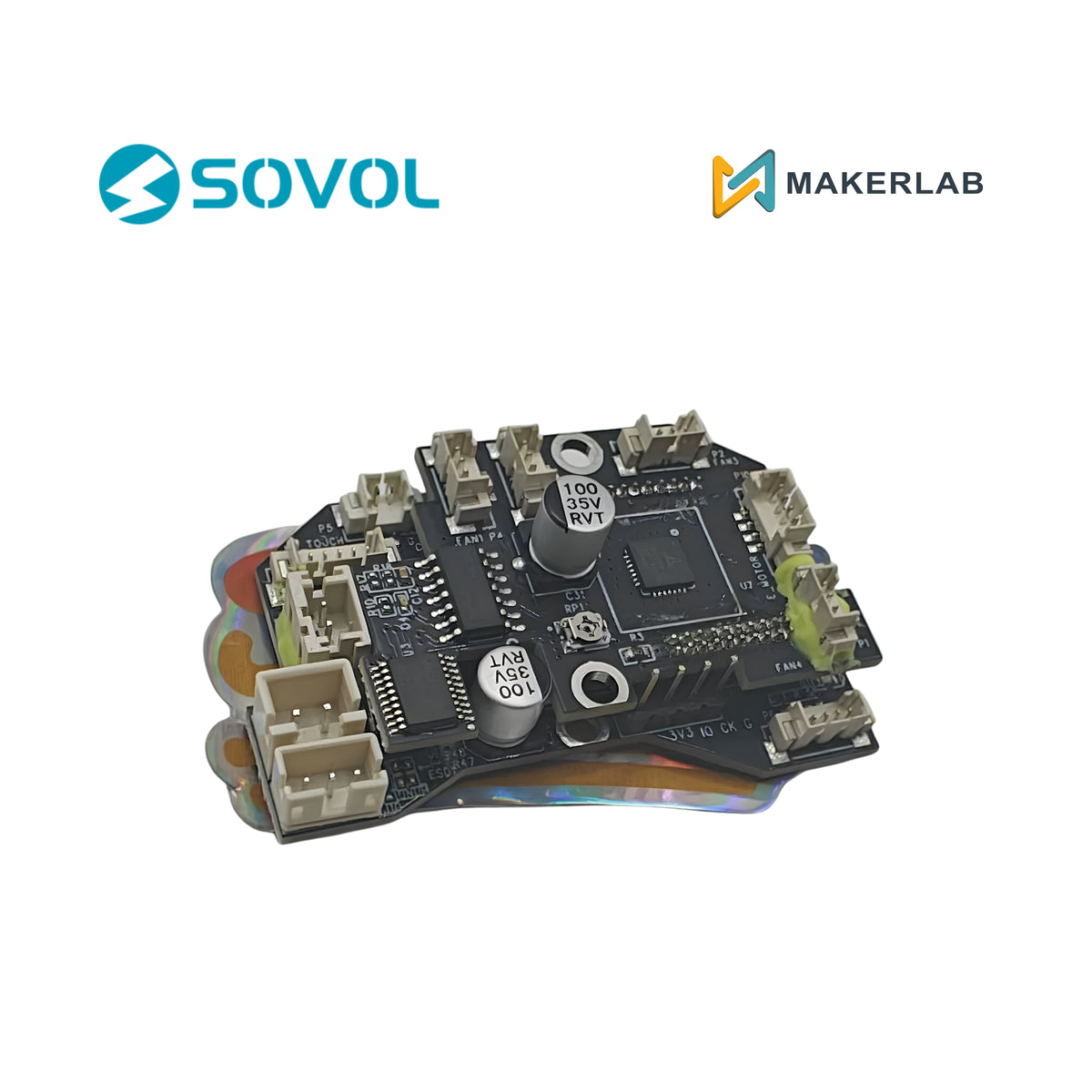

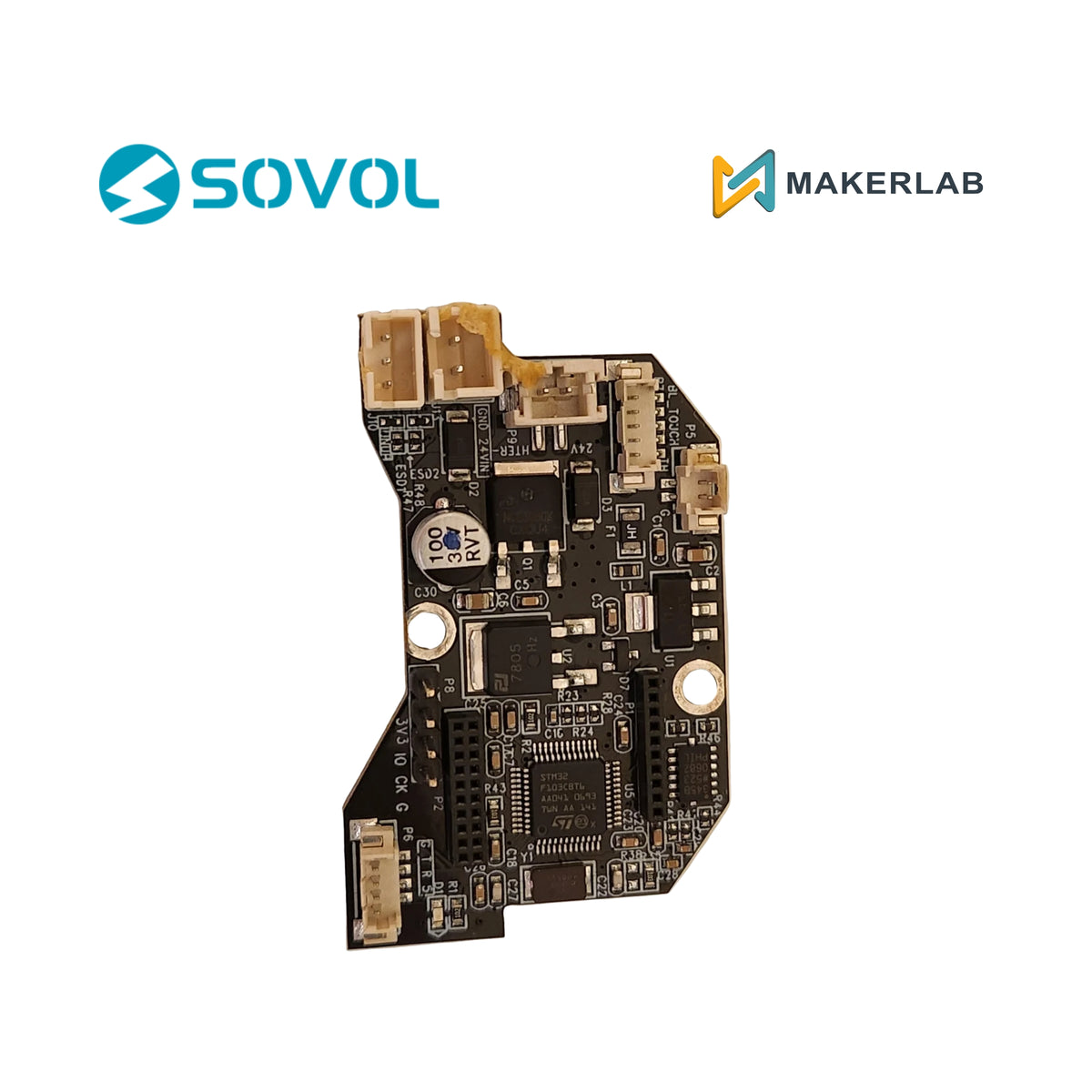

The Sovol SV08 Toolhead Adapter PCB is an official OEM breakout interface board designed specifically for the printhead assembly of the Sovol SV08 CoreXY 3D printer.
Serving as the central connection hub mounted on the toolhead carriage, this adapter board consolidates all printhead wiring—including the hotend heater block, thermistor, part cooling fans, hotend heatsink fan, inductive/probe levelling sensors, and planetary direct drive stepper motor—into a unified umbilical harness. By routing power and data lines through labeled JST connectors and trace pathways, it enables clean cable management, eliminates wire fatigue, and simplifies hotend or sensor replacement without needing to route wires back to the main MCU board.
Features
Direct OEM SV08 Fit: Form-factor and mounting hole patterns match the Sovol SV08 carriage chassis, offering a drop-in replacement for damaged or worn toolhead PCBs.
Consolidated Breakout Routing: Groups hotend heating, temperature sensing, fan PWM control, auto bed-leveling probe, and extruder stepper motor wires into an organized PCB layout.
Quick-Disconnect Toolhead Maintenance: Modular JST terminal headers allow rapid swapping of individual components (like nozzles, fans, or thermistors) without opening the main electronics enclosure.
High-Current Copper Traces: Heavy-duty PCB trace design safely handles high-wattage hotend heater loads while maintaining stable voltage supply to sensitive sensors.
Clean Umbilical Management: Minimizes wire strain and drag chain clutter across high-speed CoreXY print movements.
Specifications
Brand: Sovol
Part Number: 500105009416
Component Type: Toolhead Breakout Adapter Board / Extruder PCB Kit
Printer Compatibility: Sovol SV08 CoreXY
Operating Voltage: 24V DC
Interface Connections: Hotend Heater, NTC Thermistor, PWM Fan Outlets, Auto-Level Sensor, Extruder Motor Header
