Description

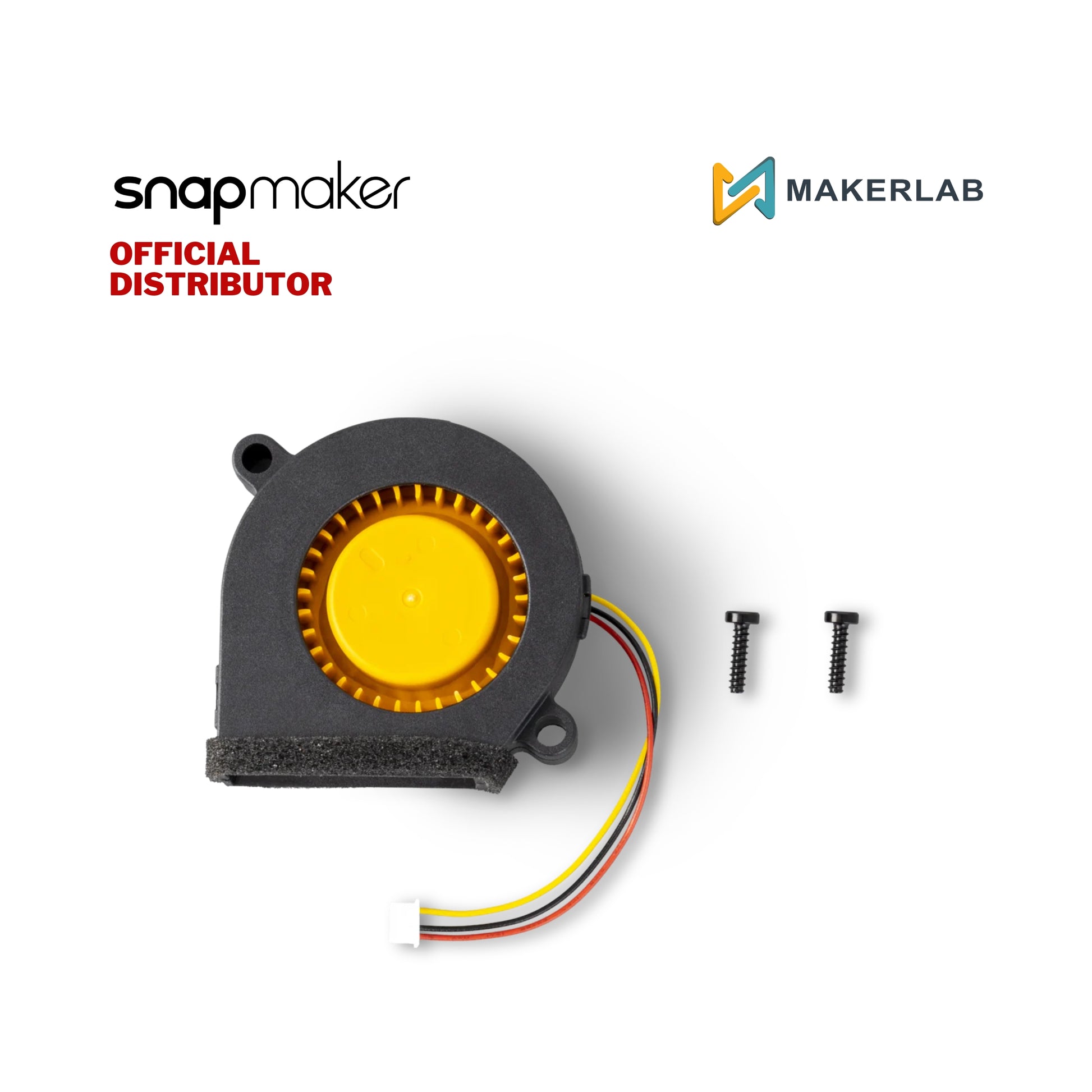

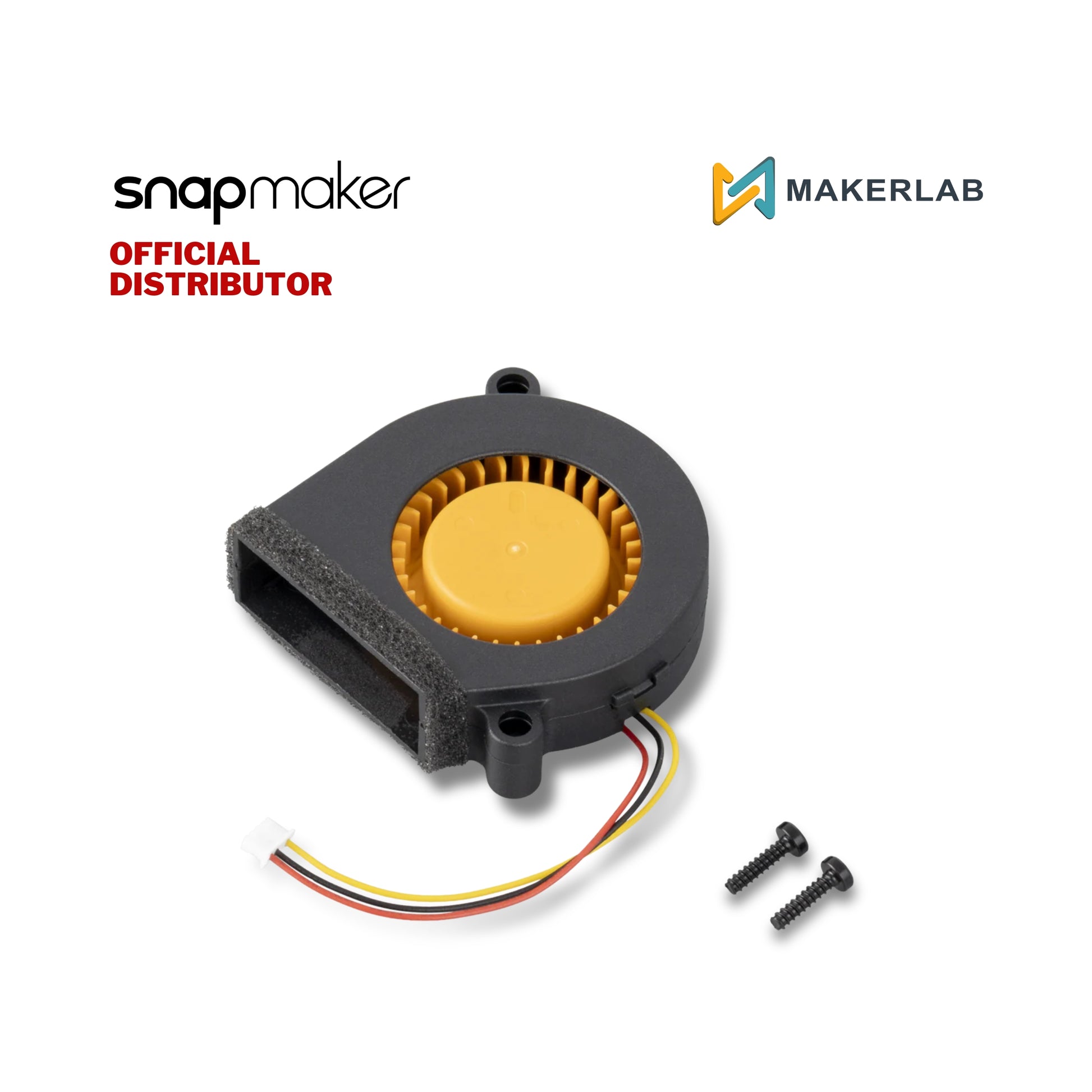

The Part Cooling Fan is a high-performance mechanical cooling component integrated into the Snapmaker U1's toolhead gantry layout. Unlike the hotend cooling fan (which protects the interior heat sink from heat creep), this specialized cooling fan is strictly responsible for directing high-velocity air onto the freshly extruded layer of molten plastic as it leaves the nozzle tip.
Features
Genuine Snapmaker OEM Build: Pre-calibrated to integrate flawlessly with the native electrical rails, pulse-width modulation (PWM) control speeds, and toolhead layout of the U1 ecosystem.
High-Pressure 5015 Blower Profile: Engineered with a specialized centrifugal wheel setup that packs and forces high-pressure air through narrow ductways rather than dispersing it outward.
Rapid Filament Solidification: Reaches structural spinning speeds up to 7,200 RPM, facilitating high-efficiency cooling during rapid macro-layer acceleration loops.
Industrial Long-Life Bearings: Built to withstand the constant vibrations and temperature swings of an FDM build area, offering a massive 30,000-hour operational lifespan.
Pre-Crimped Harness Plugin: Outfitted with factory-soldered leads and the correct low-profile connector plug for clean, direct attachment to the toolhead swapper PCB breakout grid.
Specifications
Type: 5015 Fan
Rated Speed: 7200 rpm
Operating Voltage: 24V
Expected Lifespan: 30000 hours at 40℃
Product Weight: 30g
In the Box
Fan * 1
Screw * 2
