Description:

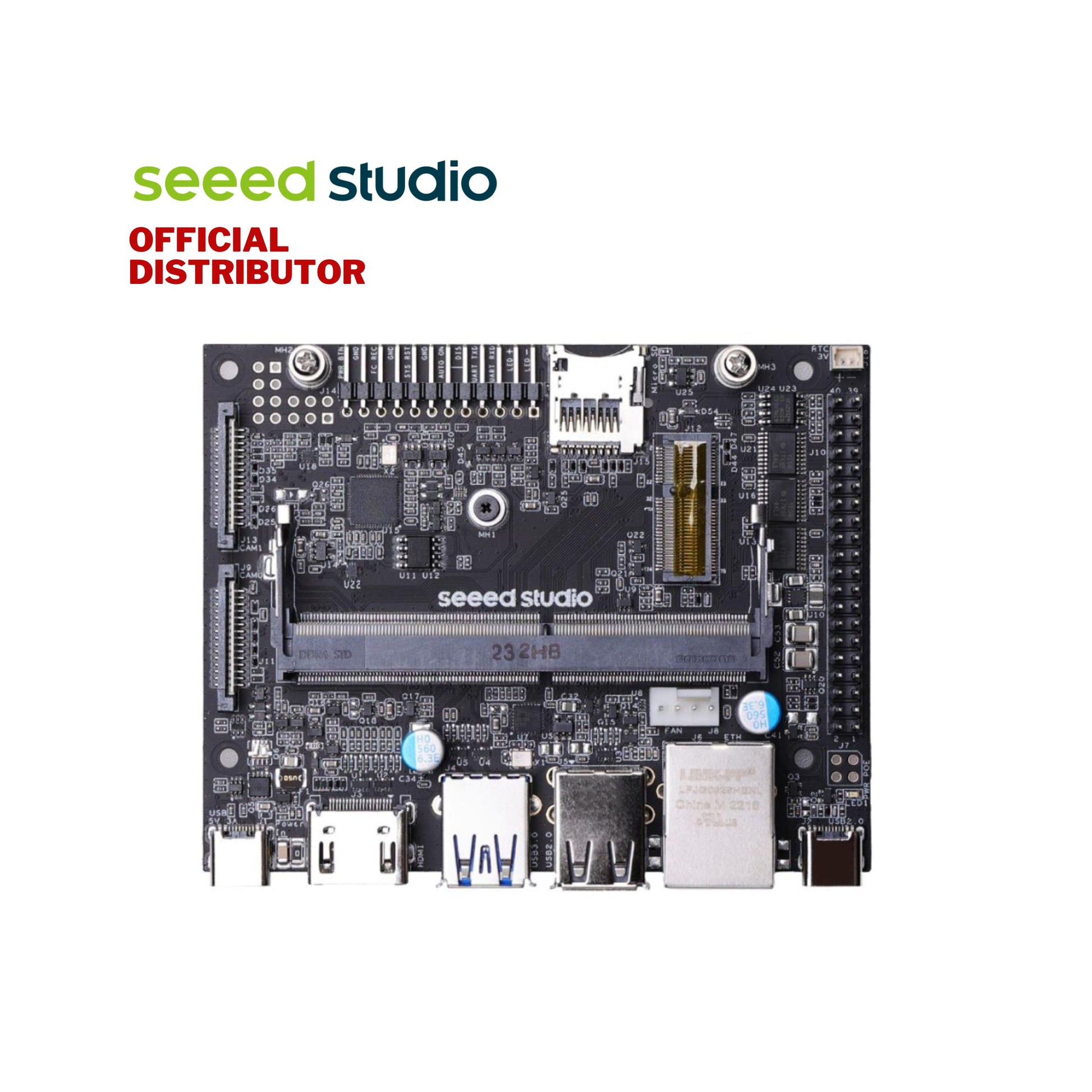

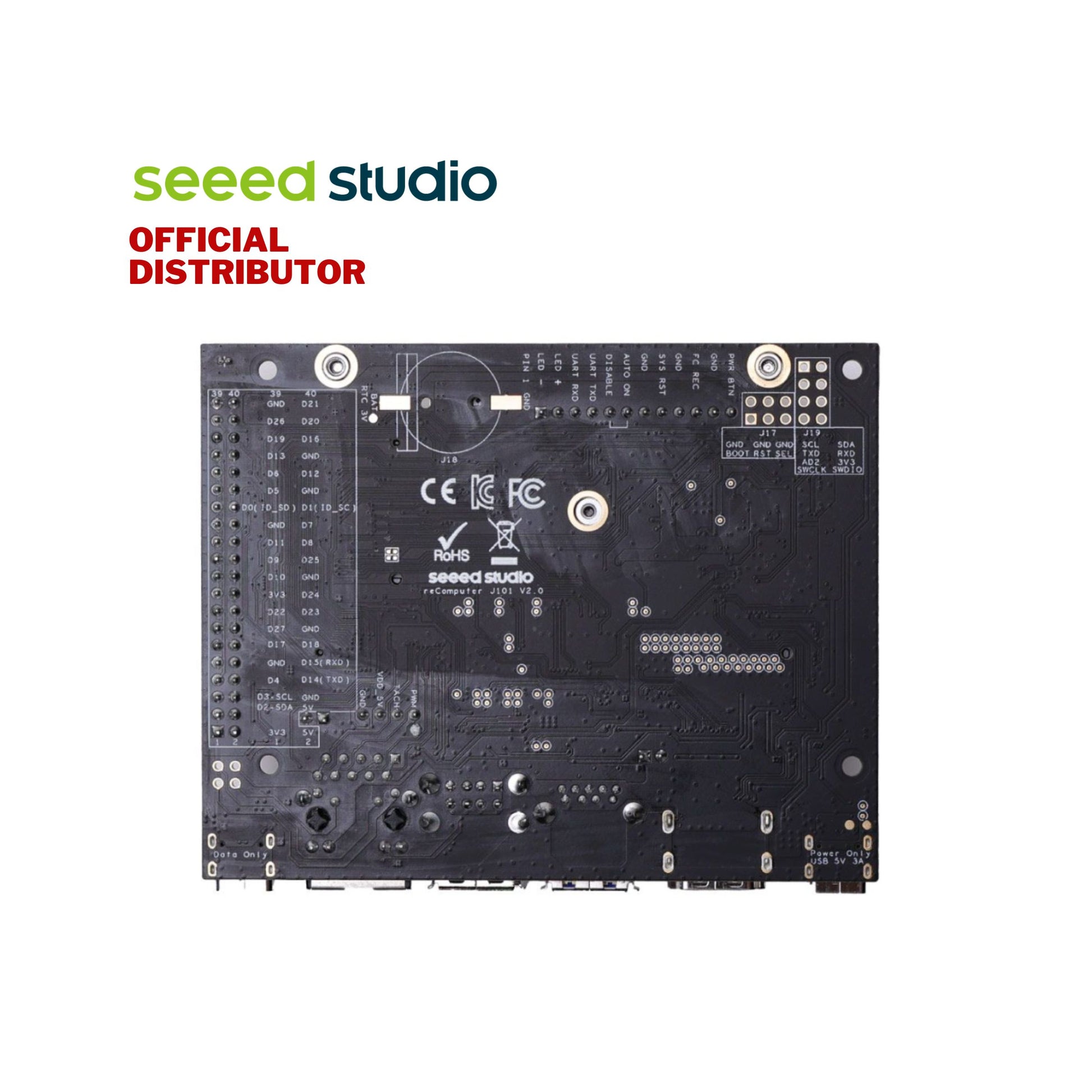

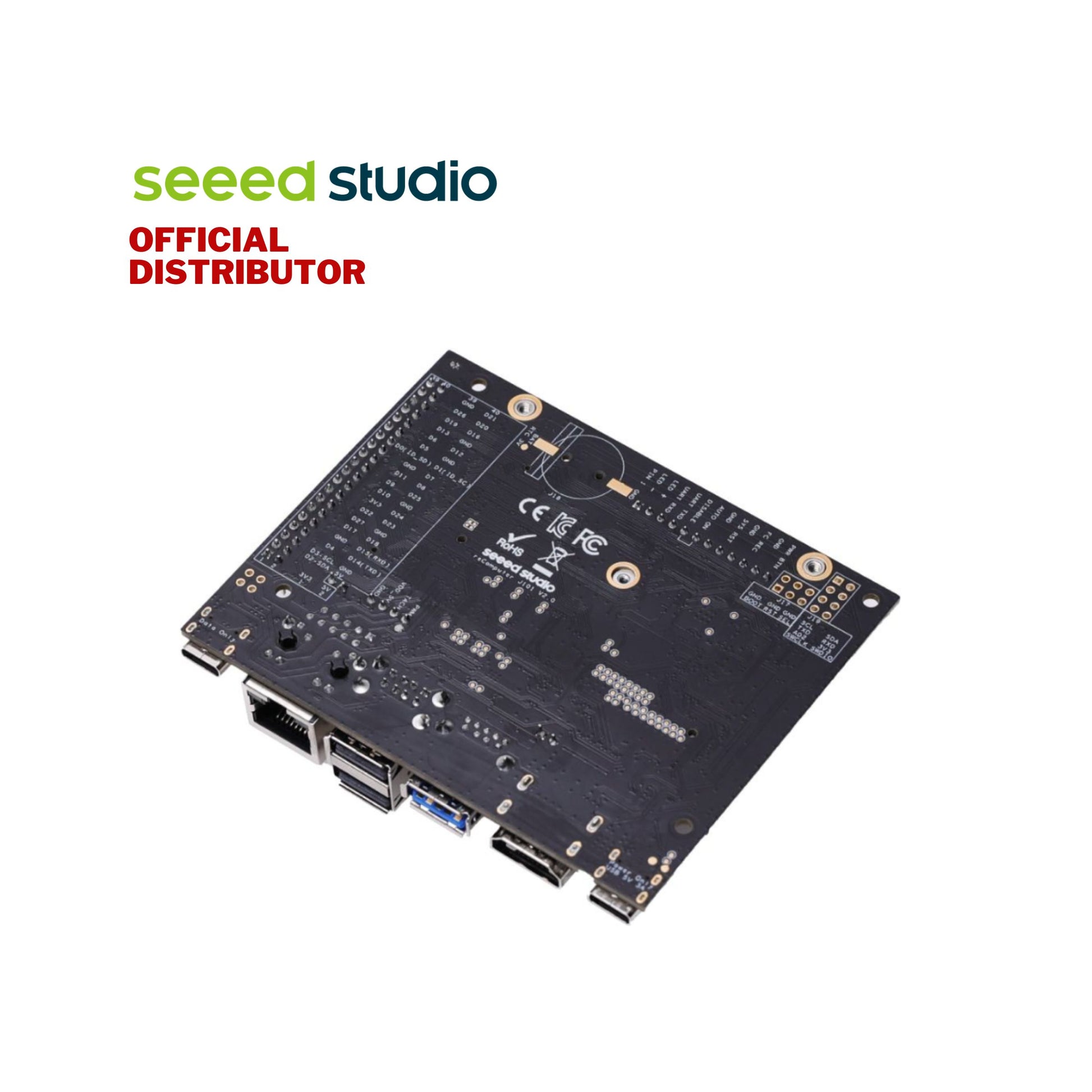

The Seeed reComputer J101 is a highly compatible and cost-effective carrier board for the NVIDIA Jetson Nano production module. Designed as a direct, 1:1 match in size and nearly identical in functional design to the official Jetson Nano Developer Kit carrier board, the J101 provides a rich array of peripheral interfaces for a wide range of Edge AI and embedded projects. A key feature is the inclusion of a micro SD card slot, which is essential for expanding the storage of Jetson Nano modules that use eMMC (production version). The J101 is an ideal, certified, and stable platform for quick evaluation and deployment of AI applications like image classification, object detection, and video processing.
Features:
Perfect Compatibility: Specifically designed for the NVIDIA Jetson Nano Module (260-pin SODIMM connector).
Developer Kit Alternative: Matches the physical size (100mm x 80mm) and nearly the functional design of the official NVIDIA Jetson Nano Developer Kit carrier board.
Expandable Storage: Features a Micro SD card slot to allow storage expansion, especially useful for the eMMC-based production version of the Jetson Nano module.
Rich Connectivity: Includes a comprehensive set of ports for all necessary peripherals.
AI Development Ready: Supports the full NVIDIA JetPack SDK, including CUDA, cuDNN, and TensorRT, enabling applications like image recognition, object detection, and pose estimation.
Cost-Effective Solution: A super cost-effective option suitable for getting started and quick prototyping of AI applications.
Comprehensive Certificates: Comes with FCC, CE, and RoHS certifications.
Specifications:
Storage: 1x Micro SD card slot (48MHz CLK Frequency)
Ethernet: 1x Gigabit Ethernet (10/100/1000M)
M.2 KEY E: 1x M.2 Key E PCle 2230
USB:
1x USB Type-C (Power In)
1x USB 3.0 Type-A (5Gbps)
2x USB 2.0 Type-A
1x USB Type-C (Device mode)
Camera: 2x CSI
Audio:
1x 3.5 Audio Jack
2x MIC
2x SPEAKER
1x SPEAKER FEEDBACK
Display: 1x HDMI
Fan: 1x Fan Connector (5V PWM)
Multifunctional Port:
1x 40-Pin
1x 12-Pin
RTC:
1x RTC 2-pin
1x RTC socket (reserved)
Power: 5V/3A (USB Type C)
Mechanical (W x D x H): 100mm x 80mm
Operating Temperature: -25°C~65°C
Application:
Application Fields:
Autonomous Mobile Robot (AMR)
AI Video Analytics
Machine Vision
Generative AI
Documents:
reComputer J101 v2 datasheet
reComputer J101 PCBA 2D & 3D
NVIDIA Jetson Devices and Carrier Boards Comparisons
Seeed NVIDIA Jetson Hardware Catalog
