Description:
The Creality Rotary Kit Pro is a versatile and high-precision rotary chuck attachment that significantly expands the capabilities of your laser engraver. Ready for use straight out of the box with no assembly required, this kit is designed for effortlessly engraving cylindrical, conical, spherical, and ring-shaped items. It features multifunctional, adjustable jaws and a hex stud support system that securely clamps a wide range of object geometries and sizes. With precision control down to 0.225, the Rotary Kit Pro ensures highly accurate positioning and repeatable engraving results on challenging items like tumblers, wine bottles, rings, mugs, and crystal balls. It is highly compatible with Creality Falcon series engravers and various popular engraving software.
Features:
Versatile Clamping System: One set of adjustable jaws offers external clamping (for cylinders), internal support (for hollow cylinders/cones), and hex stud support (for spheres and rings).

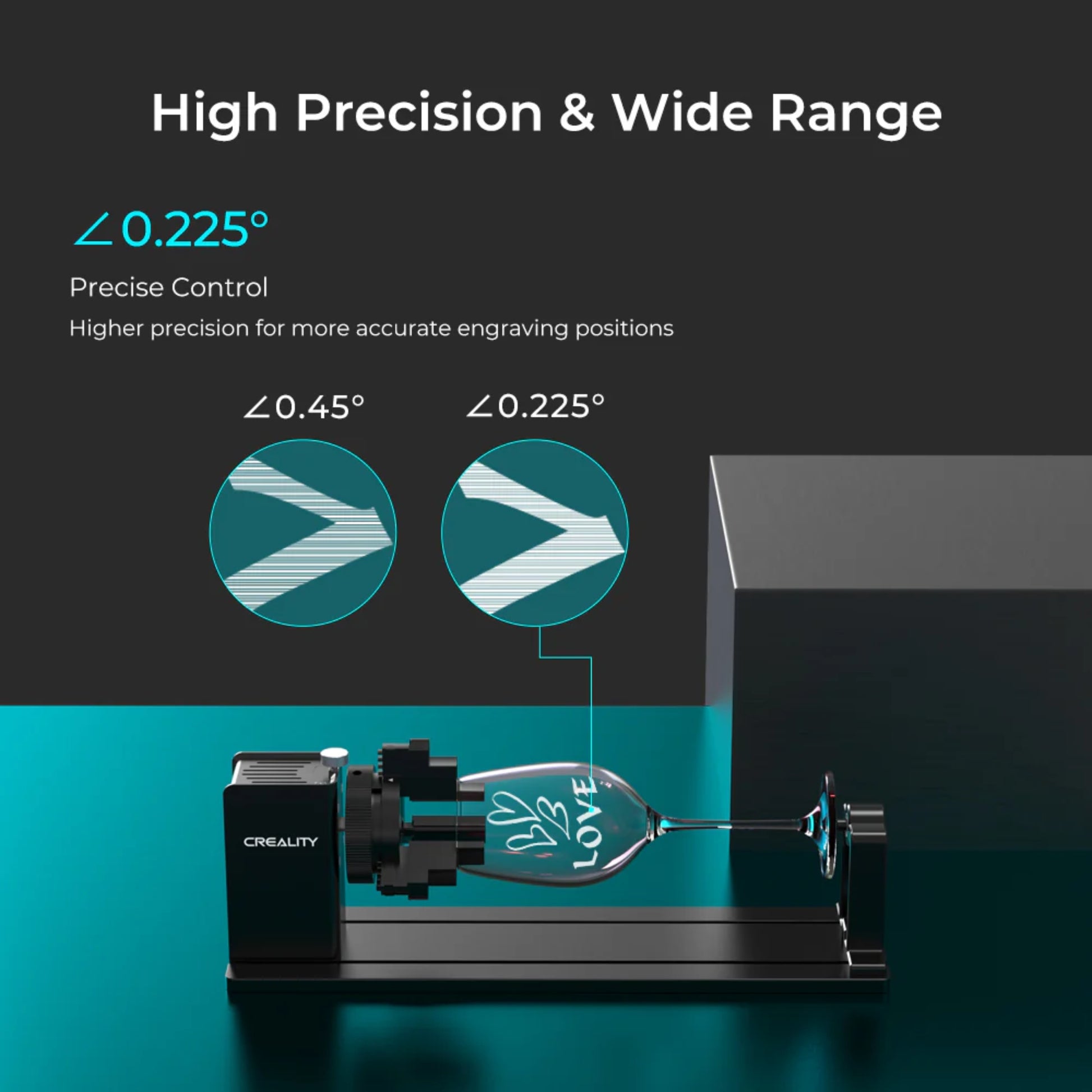

High Precision: Offers 0.225 control accuracy, ensuring detailed and accurate placement of engravings around the object's surface.
Ready to Use: Comes fully assembled and requires no complicated setup—simply connect it to the laser engraver.

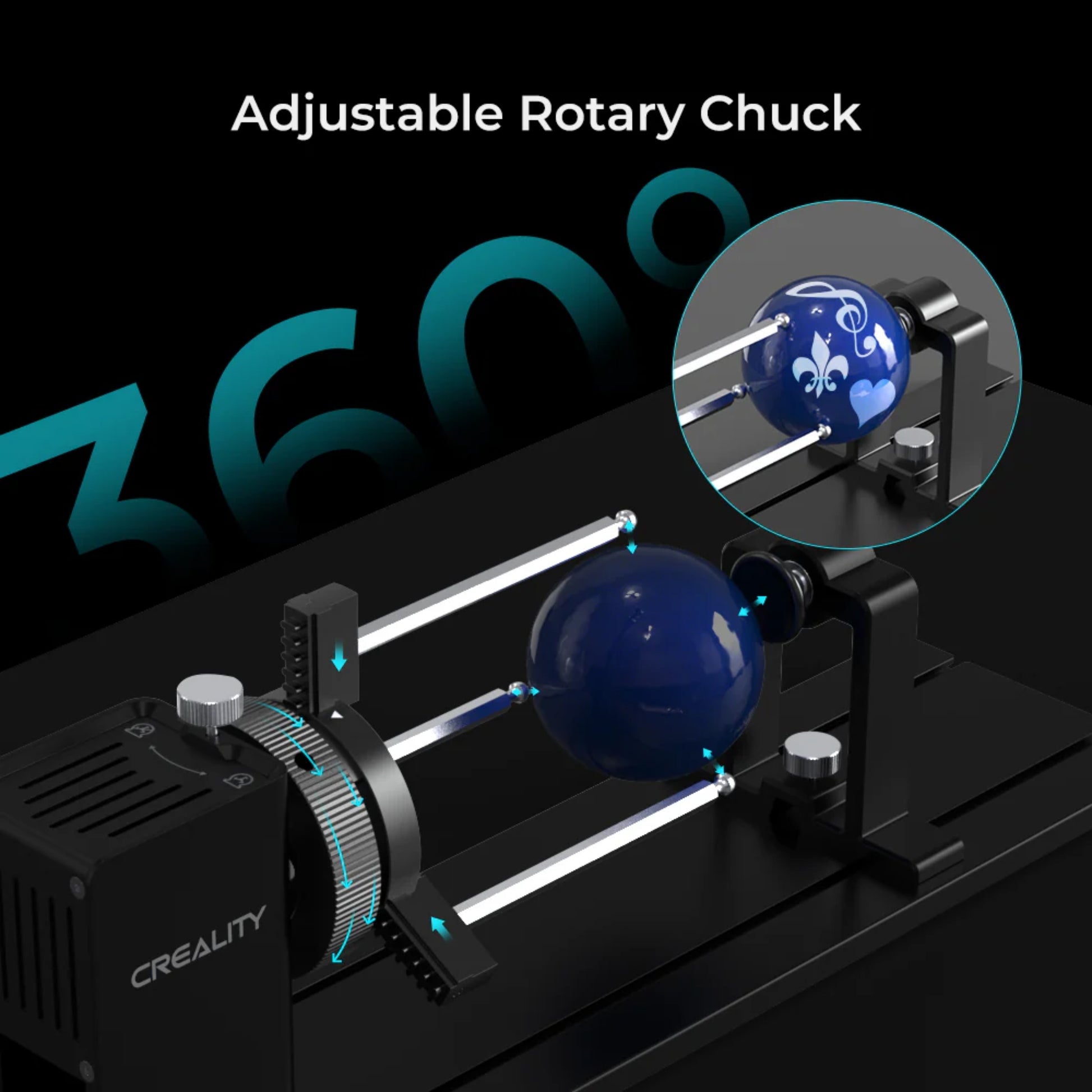

One-Handed Clamping: Features integrated set screws and an adjustable rotary chuck for quick, one-handed clamping and stabilization of the workpiece.
Wide Compatibility: Supports popular engraving software like LightBurn and LaserGRBL, and is compatible with Creality Falcon laser engravers as well as other major brands.

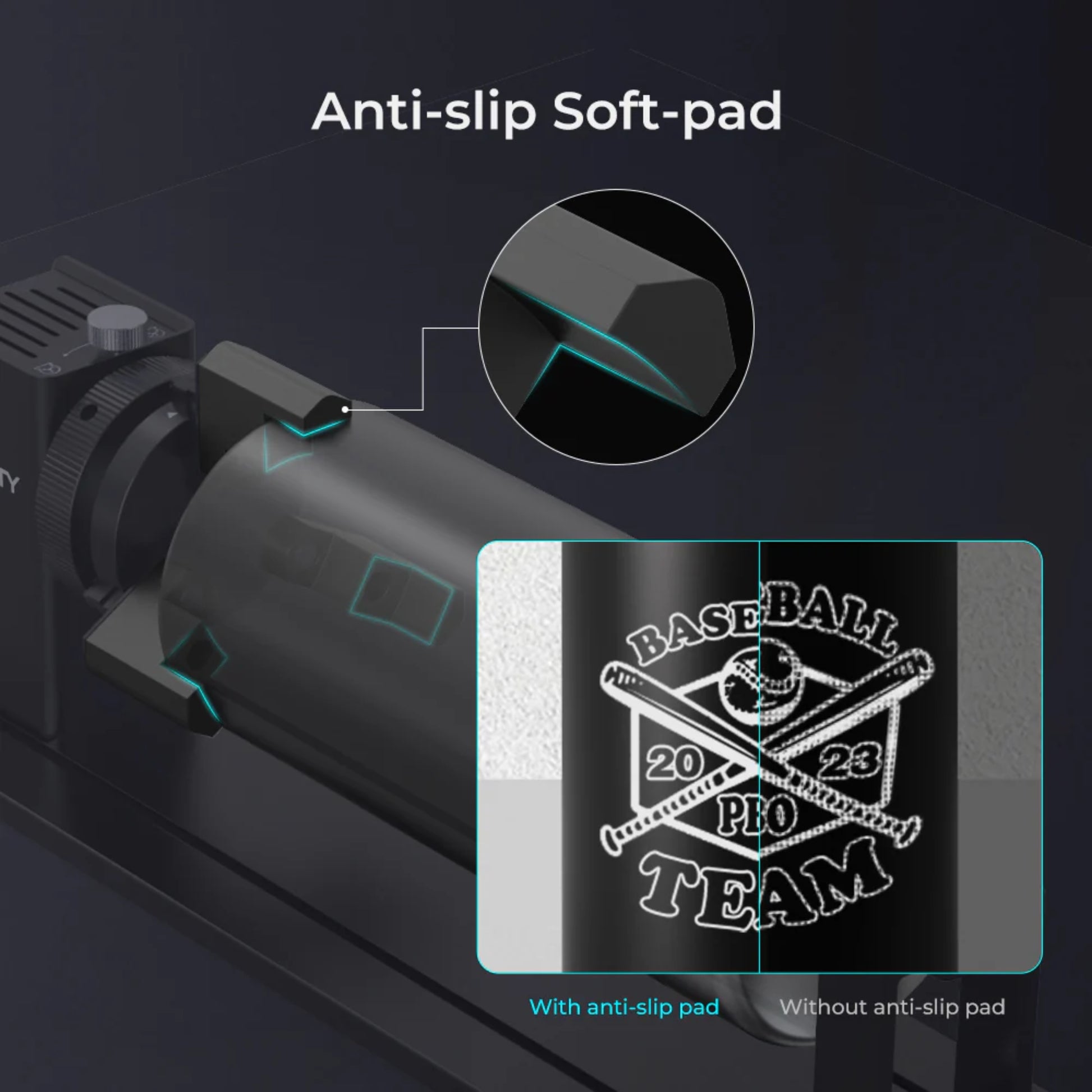

Anti-Slip Protection: Includes an anti-slip soft-pad to enhance friction and protect fragile or delicate items (like glass or crystal) from damage during the engraving process.
Specifications:
Dimensions: 360*122*100mm

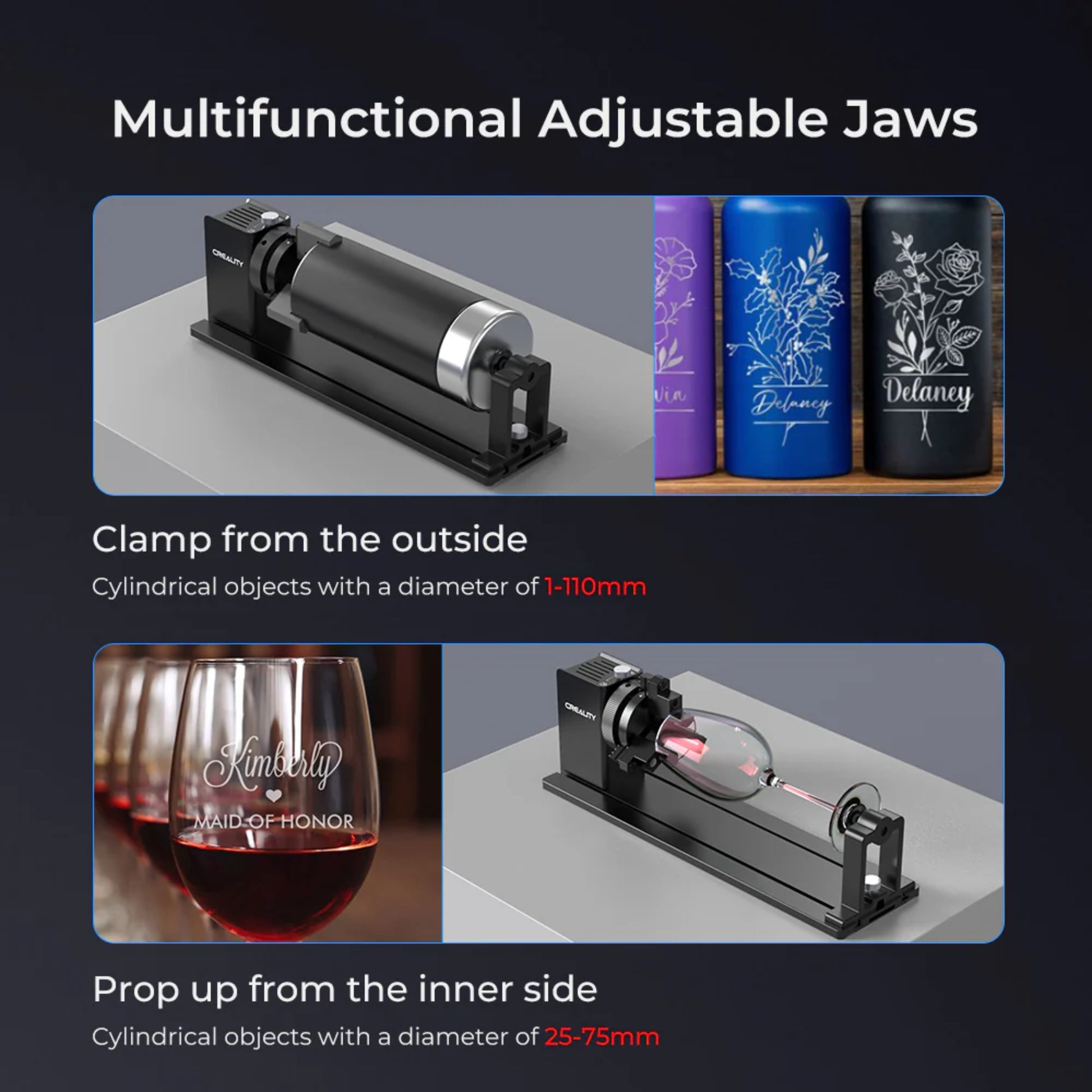

Diameter Range:
Clamp from the outside
Cylindrical objects with a diameter of 1-110mm
Prop up from the inner side
Cylindrical objects with a diameter of 25-75mm

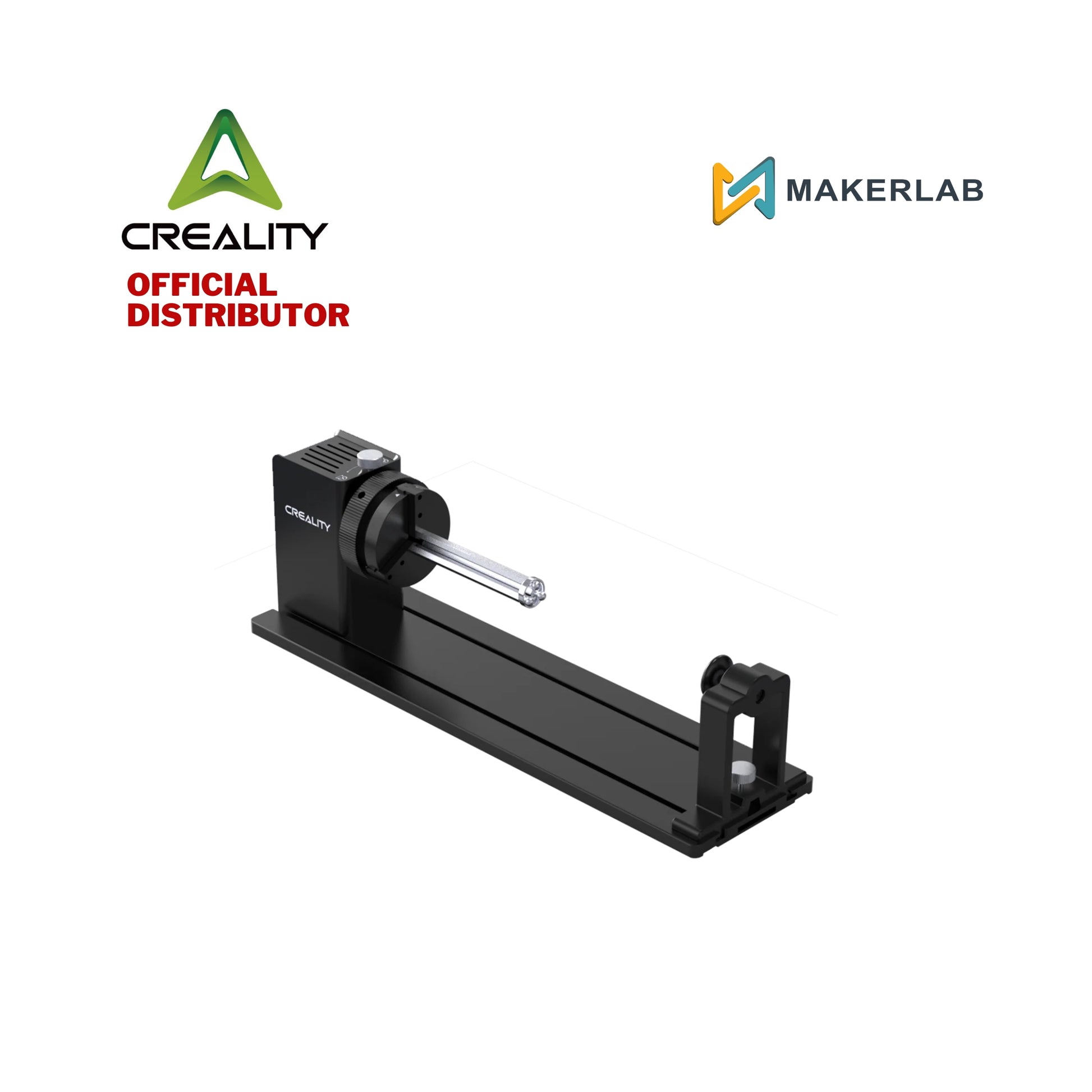

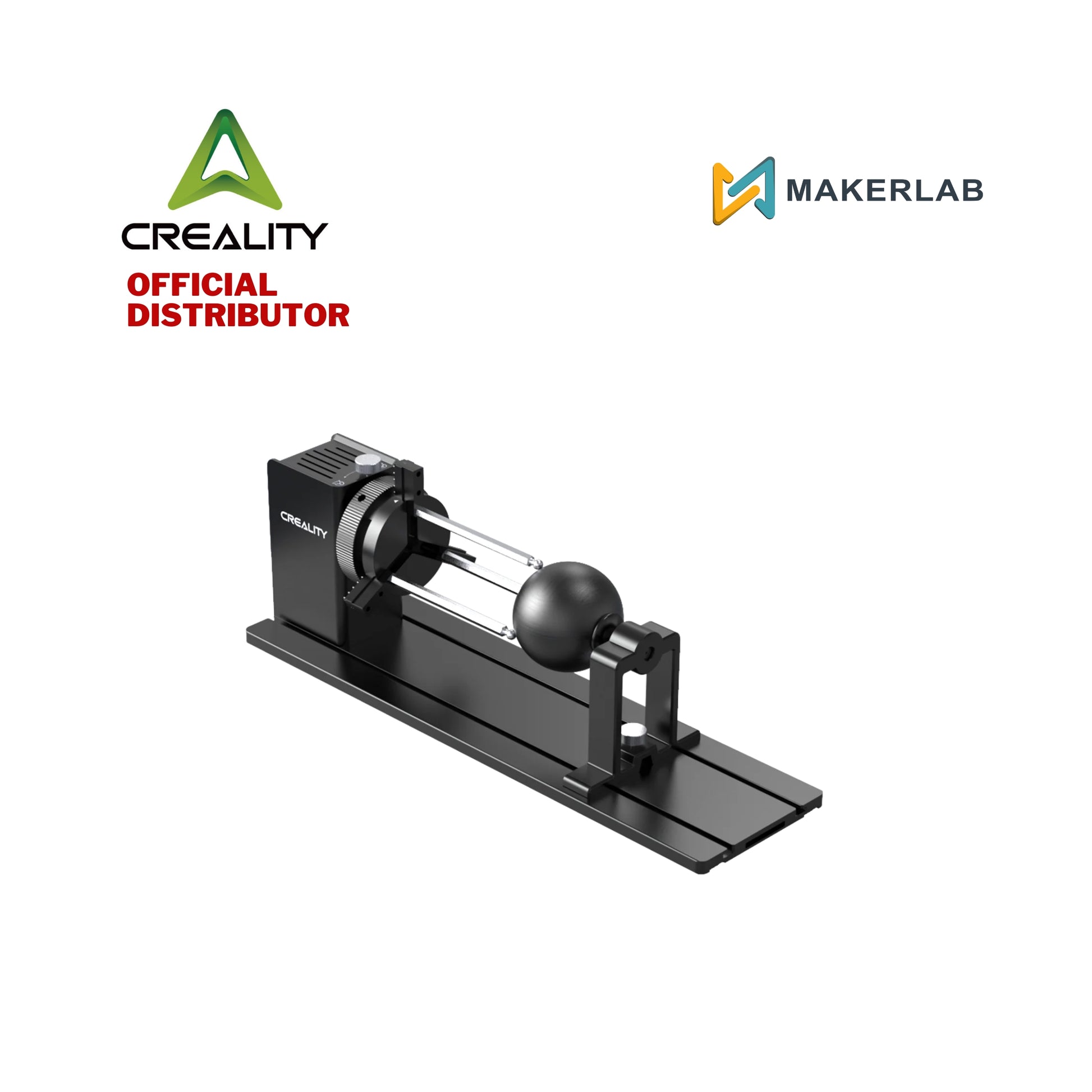

Hex stud
Sphere with a diameter of 10-130mm or rings, bracelets and other ring-shaped objects with a diameter of 15-100mm
Applicable Works:
-
Cylinders: such as thermos cups, mugs
-
Cone: such as goblets, conical bottles
-
Hemispheres: bowls
-
Spheres: such as crystal balls, oranges
-
Ring body: such as rings, bracelets
