Description

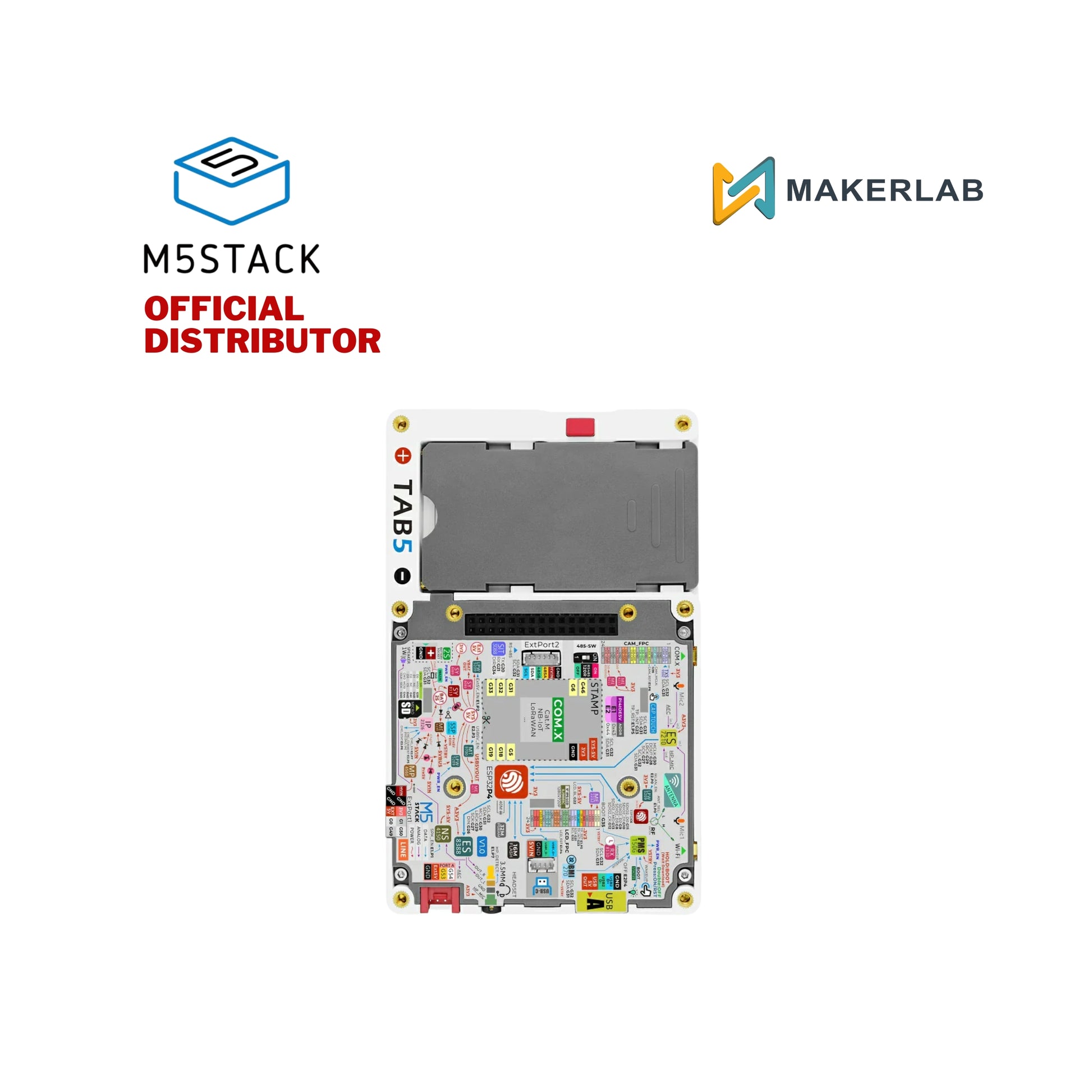

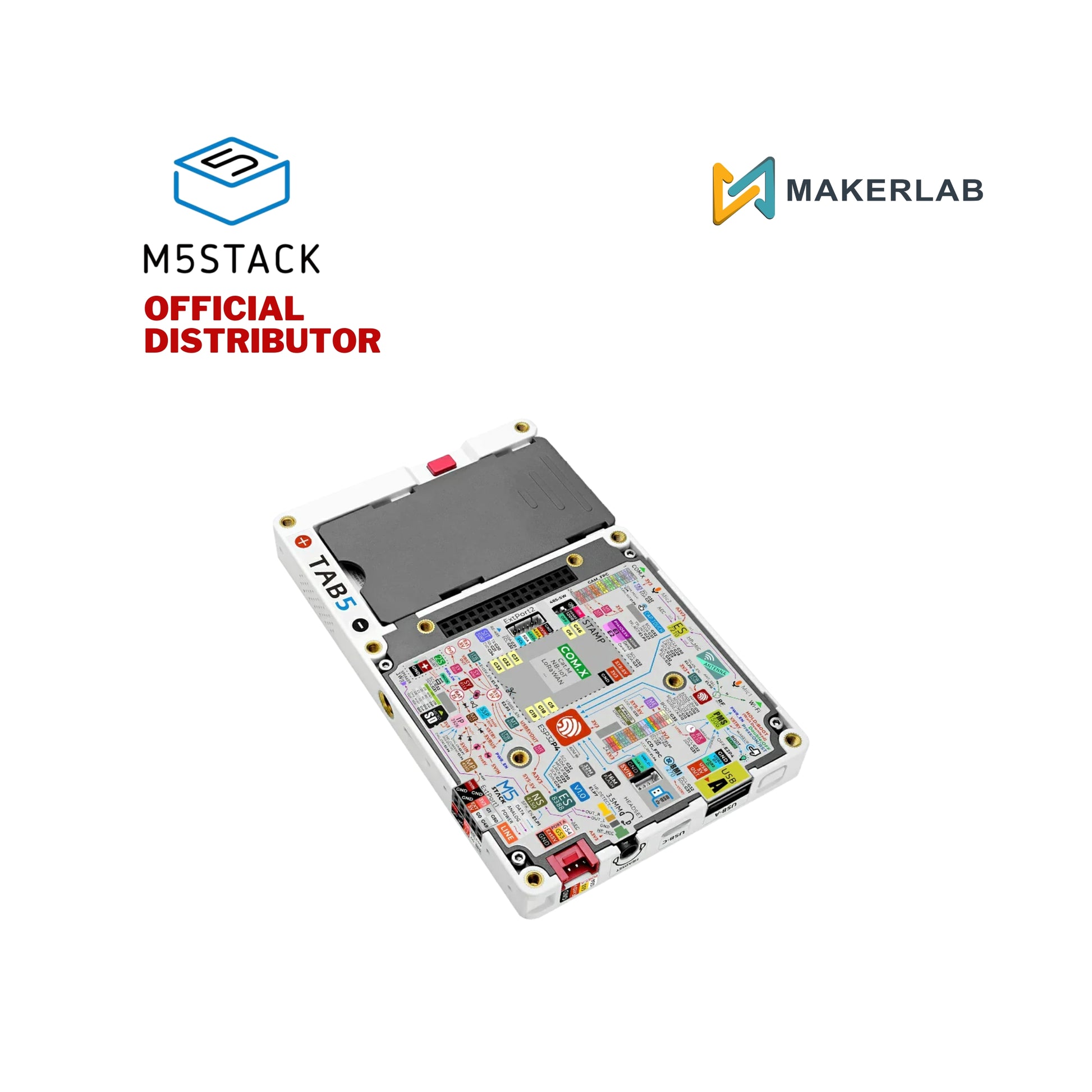

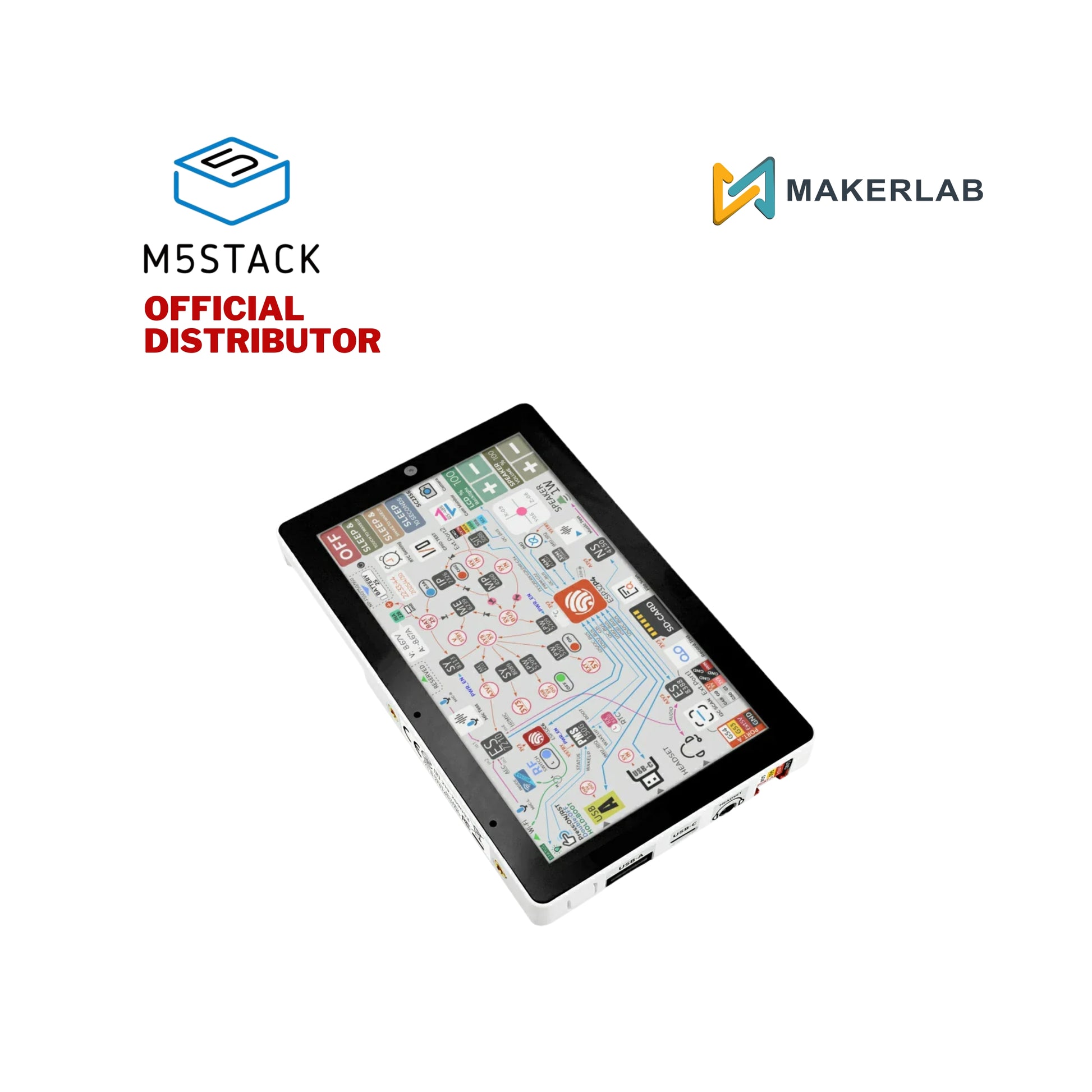

The Tab5 is a highly expandable, portable smart IoT terminal designed for developers, integrating a dual-core architecture and rich hardware resources. It is built around the ESP32-P4 SoC based on the RISC-V architecture, featuring 16MB Flash and 32MB PSRAM for high-performance application development.

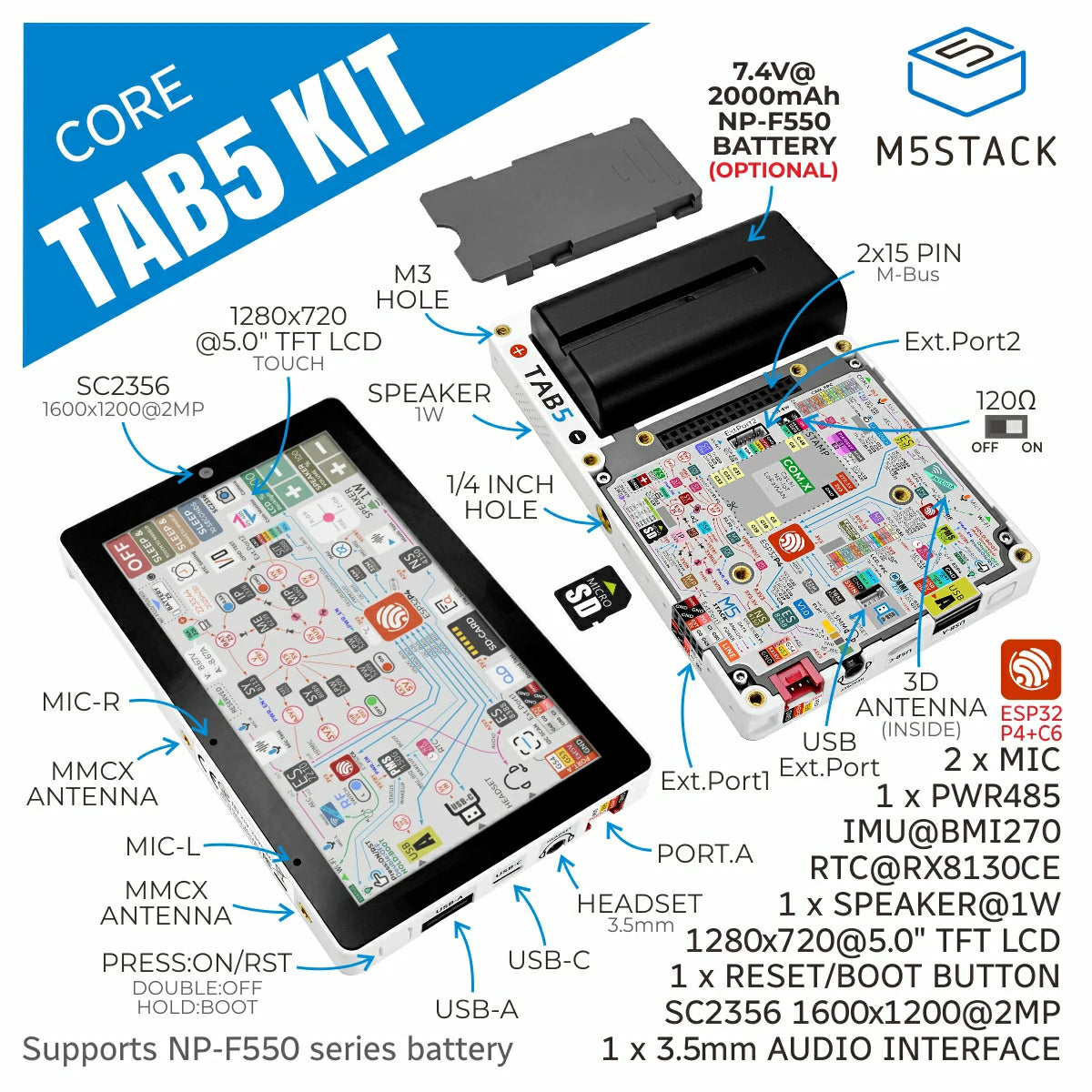

Features
-
ESP32-P4 dual-core MCU
-
ESP32-C6 wireless module
-
2.4 GHz Wi‑Fi 6
-
Built‑in 3D antenna & MMCX external antenna port
-

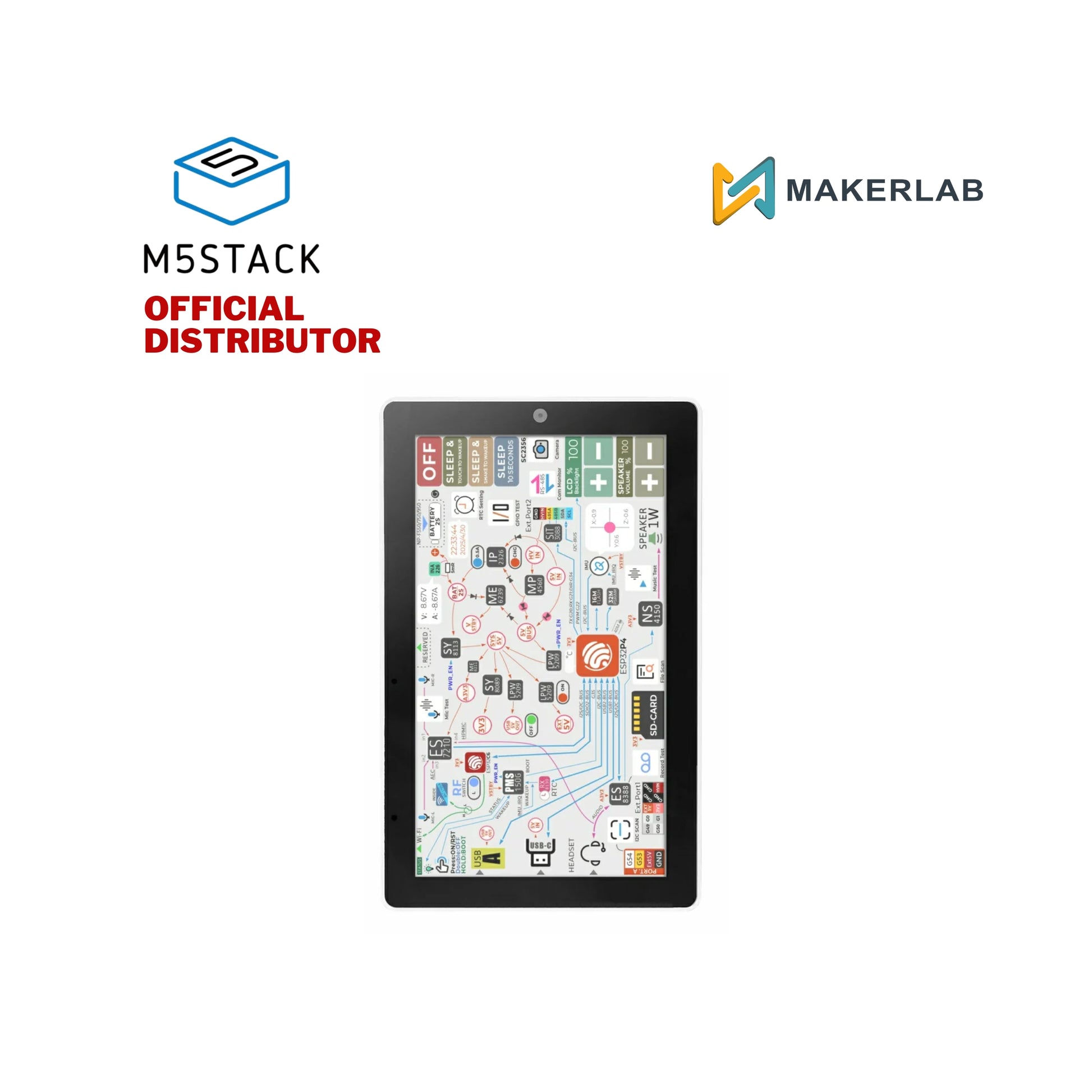

5‑inch IPS TFT display, resolution 1280×720 (720P)
-
SC2356 2MP camera
-

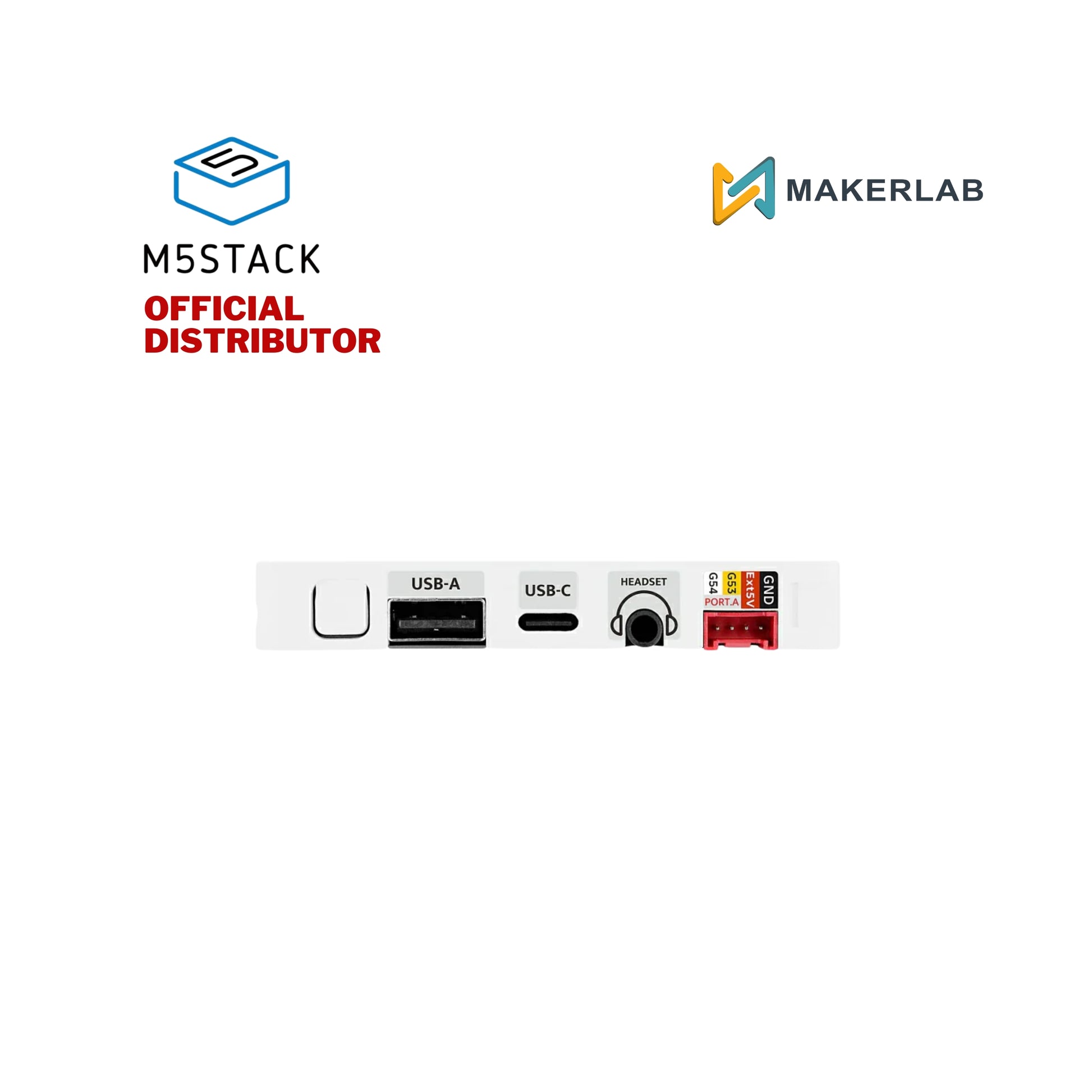

USB Type-A Host + USB Type-C OTG
-
RS485 industrial interface
-
HY2.0-4P & M5-Bus expansion
-
microSD card slot
-
Stamp expansion pads
-
ES8388 audio codec
-
ES7210 AEC dual microphones
-
1W speaker + 3.5mm headphone jack
-
BMI270 6-axis sensor
-
RX8130CE real-time clock
-
Reset/Boot & Power keys
-
Removable NP-F550 battery
-
Standard 1/4″-20 tripod-mount nut
-
Development Platform
-
UiFlow2
-
Arduino IDE
-
ESP-IDF
-
PlatformIO
Specifications
Main Controller SoC: ESP32-P4NRW32@RISC-V 32-bit Dual-core 400MHz + LP Single-core 40MHz
Wireless Module SoC: ESP32-C6-MINI-1U
Flash: 16MB
PSRAM: 32MB
Wi-Fi: 2.4 GHz Wi-Fi 6, Thread, ZigBee
Antenna: Built-in 3D antenna & 2 x MMCX external antenna ports
Display: Uses a 5‑inch IPS TFT display with a resolution of 1280×720 (720P), equipped with an integrated display and touch driver IC: ST7123 / ST7121
Camera: SC2356 @ 2MP (1600×1200), via MIPI‑CSI interface
Audio Chip: ES8388 codec, ES7210 AEC front end
Microphone: Dual microphone system (AEC echo cancellation)
Speaker: 1W@8Ω NS4150B
Headphone Jack: 3.5mm
USB Ports: USB Type-A (Host), USB Type-C (USB 2.0 OTG)
RS485 Port
SIT3088 (120Ω switchable terminal resistor)
Power supply range: 6 ~ 24V
Expansion Interface: 1× HY2.0-4P, 1× M5-Bus, GPIO_EXT expansion bus
Storage Expansion: microSD card slot
Extensible Stamp Interface: Stamp pads (support Cat.M / NB‑IoT / LoRaWAN and other modules)
Motion Sensor: BMI270 six-axis (accelerometer + gyroscope, support interrupt wake-up)
RTC: RTC Chip: RX8130CE (supports timed interrupt wake-up), RTC supercapacitor specification: 70000μF/3.3V, size Φ4.8×1.4mm
Reset/Boot Button: 1x Button, for power on/off and entering download mode
Charging Management: IP2326 charging management chip
Real-time Power Monitoring: INA226 (bus current / voltage monitoring)
Battery: NP-F550 removable lithium battery, 7.4V@2000mAh (14.8 Wh)
Battery Life: Under standard usage environment (screen brightness 50%, Wi‑Fi always on, background tasks running), Tab5 built-in battery discharges from full (8.23 V) to shutdown threshold (6.0 V), lasting about 6 hours.
Operating Temperature: 0 ~ 40°C
Product Size
Tab5: 128.0 x 80.0 x 12.0mm
Tab5 Kit: 128.0 x 80.0 x 26.7mm
Product Weight
Tab5: 124.5g
Tab5 Kit: 277.4g
Battery: 97.9g
Package Size
Tab5: 148.0 x 103.0 x 21mm
Tab5 Kit: 191.0 x 103.0 x 25.0mm
Gross Weight
Tab5: 162.5g
Tab5 Kit: 277.4g
Applications
The Tab5 is ideal for smart home control, remote monitoring, industrial automation, IoT prototyping, and education. It provides a full-featured, high-performance, and easily expandable platform for modern IoT and edge computing solutions.
