Description
Two u-blox GPS modules for flight controllers, robotics, and tracking projects the NEO-6M and the NEO-M8N. Both come with a ceramic antenna and a standard UART TTL interface.

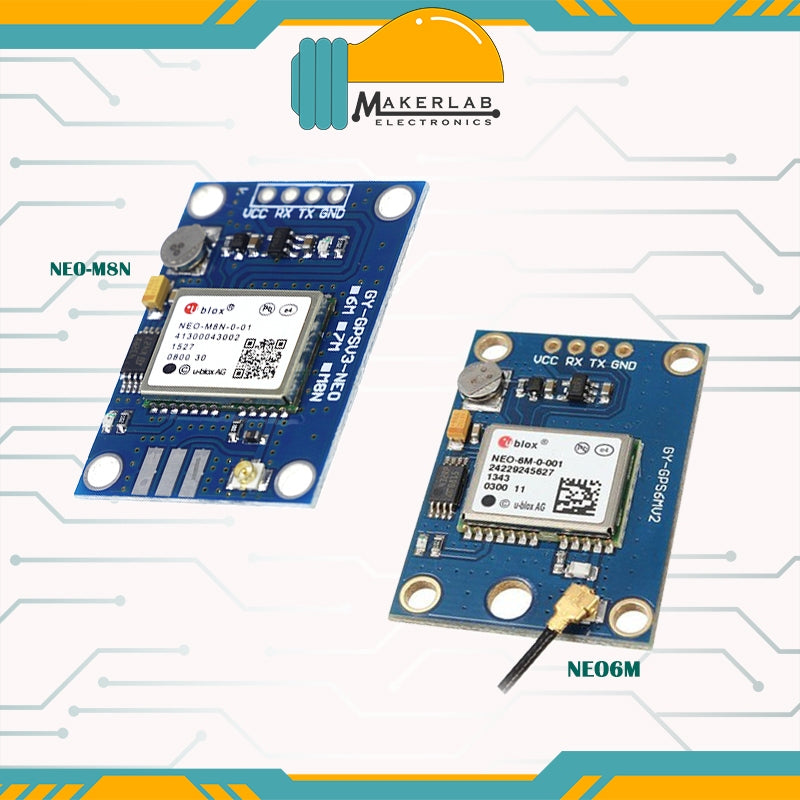

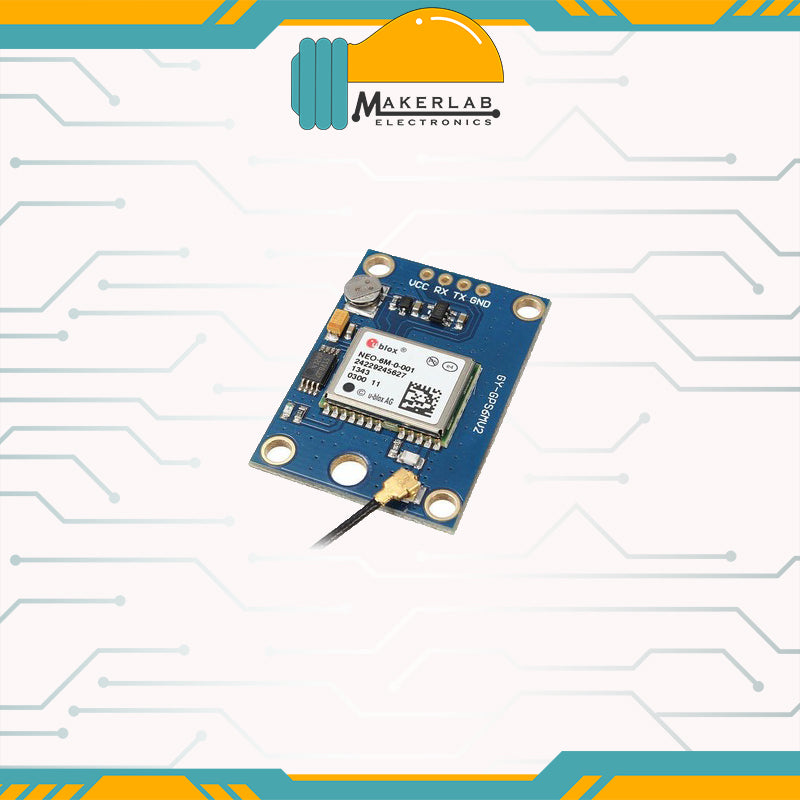

GY-NEO6MV2 NEO-6M Ublox Flight Controller GPS Module

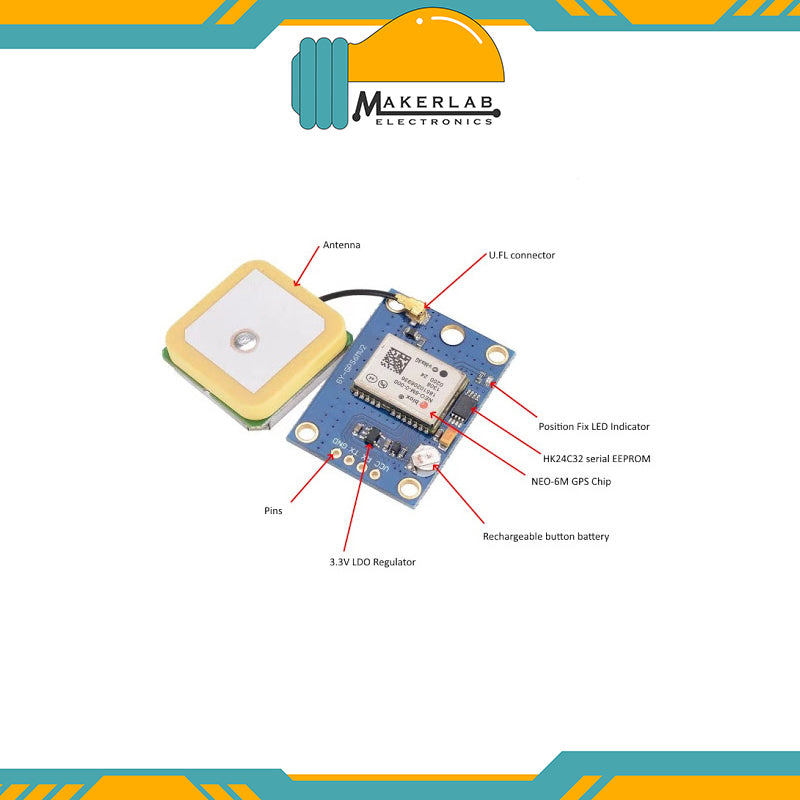

The GY-NEO6MV2 board features the u-blox NEO-6M GPS module with antenna and built-in EEPROM. This is compatible with various flight controller boards designed to work with a GPS module.
Features
-
GPS module NEO-6M, 3V–5V power supply universal
-
Module with ceramic antenna, super signal
-
EEPROM power down to save the configuration parameters data
-
LED signal indicator
-
With data backup battery
-
The default baud rate: 9600
-
Applicable for Raspberry Pi and Arduino
Dimensions:
-
Mounting Hole: 3 mm
-
Module size: 23 mm × 30 mm
-
Antenna size: 25 mm × 25 mm
-
Cable Length: 50 mm

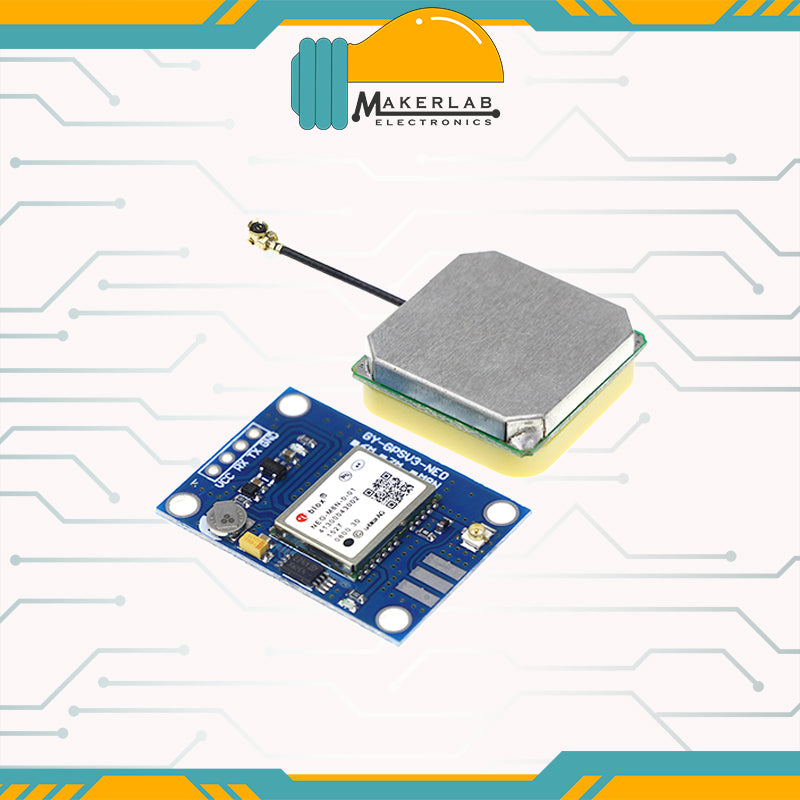

Ublox NEO-M8N GPS Module
The APM2.5 UBlox NEO-M8N GPS Module GYGPSV1-8M is optimized for cost sensitive applications, while the NEO-M8N/M8Q provides best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal flash that allows future firmware updates. This makes the item perfectly suited to industrial and automotive applications.
The NEO-M8 series of concurrent GNSS modules is built on the high performing u-blox M8 GNSS engine in the industry proven NEO form factor.
Specifications:
-
Accuracy: Velocity accuracy 0.05 m/s
-
Communication: Communication Protocol; NMEA (default) / UBX Binary
-
Current: 35 mA
-
Interfaces: TTL level compatible with 3.3V/5V systems
-
Dimensions: Antenna Size — approx. 25 mm × 25 mm, Module Size — approx. 25 mm × 36 mm × 6 mm
-
Sensitivity: Tracking & Navigation −167 dBm
-
Temperature Range: −40°C to +85°C
