Description:

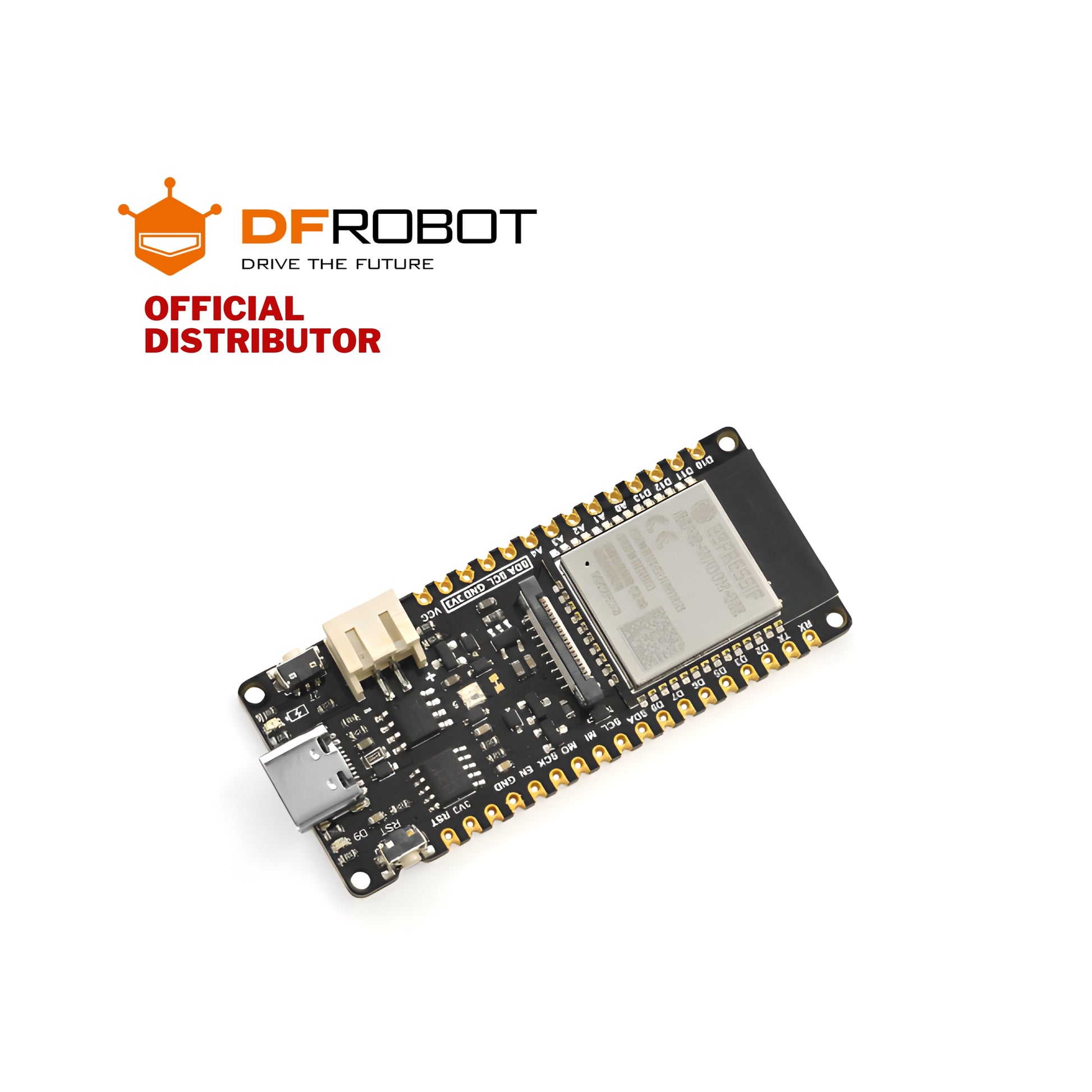

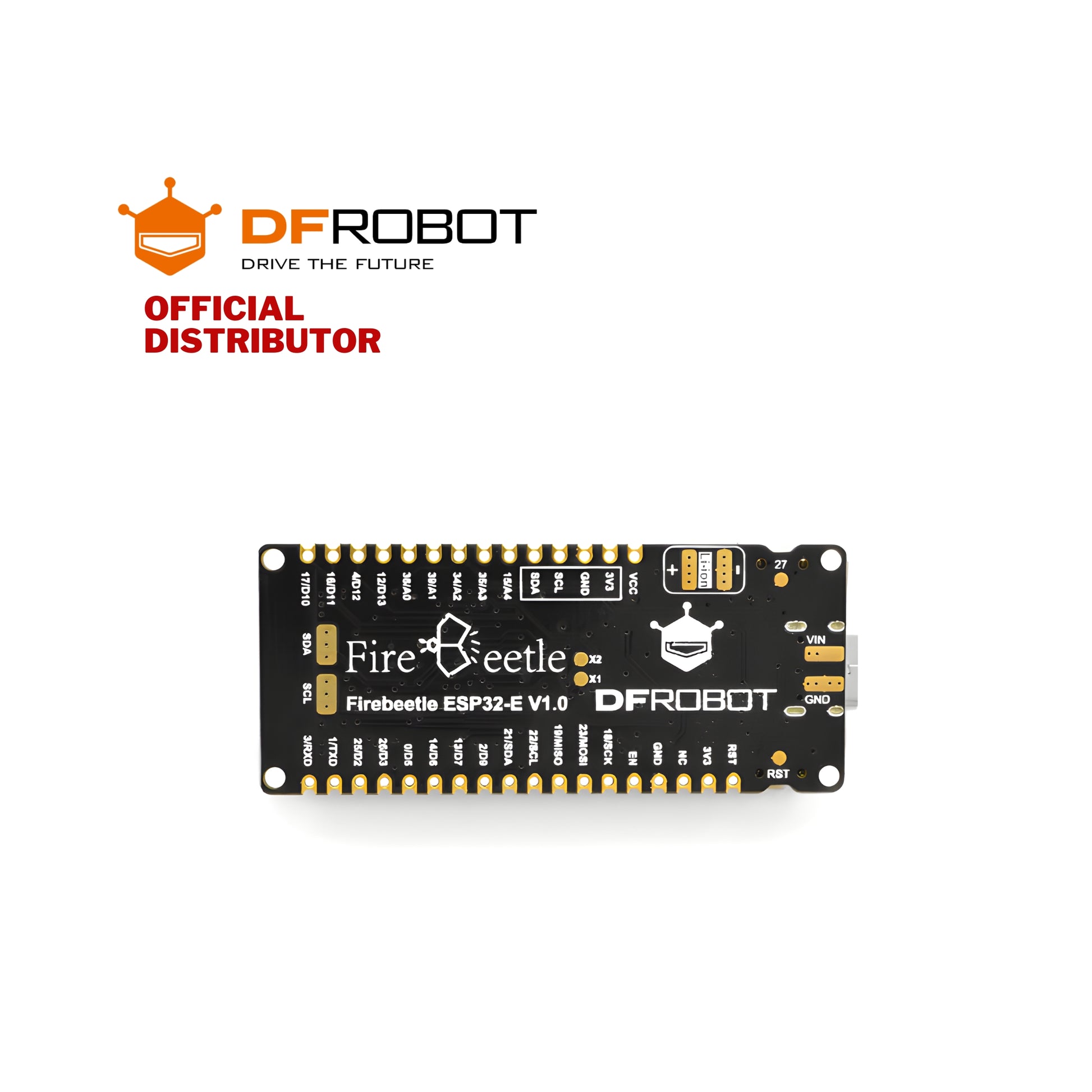

FireBeetle 2 ESP32-E, specially designed for
IoT, is an ESP-WROOM-32E-based main controller board with dual-core chips.
It supports WiFi and Bluetooth dual-mode communication and features a small size, ultra-low power consumption, on-board charging circuit, and easy-to-use interface, which can be conveniently used for smart home IoT, industrial IoT applications, and wearable devices, and so on. You can easily create your own IoT smart home system when connecting it with an IoT platform like IFTTT. FireBeetle 2 ESP32-E supports
Arduino programming and will support Scratch graphical programming and MicroPython programming very soon.
Note: FireBeetle 2 and FireBeetle pins and sizes are not compatible, and neither are the expansion boards.
Features:
-
ESP32 dual-core low-power main controller with power consumption as low as 2mA
-
WiFi+Bluetooth 4.0 Dual-mode Module
-
GDI Display Port, easy to connect
-
Onboard Charging Circuit and PH2.0 lithium Battery Interface
Pinout Diagram:
Specifications:
Power Parameters - Input Voltage
USB-C Port: 5V DC
PH2.0 Connector: 3.7~4.2V Li-ion
VCC Pin: 5V DC
MCU Parameters
Processor: Xtensa Dual-Core 32-bit LX6 Microprocessor
Clock Speed: 240 MHz
SRAM: 520 KB
ROM: 448 KB
Flash Memory: 4 MB
Wireless Parameters—Wi-Fi Protocol:
IEEE 802.11 b/g/n (Data rate up to 150 Mbps in 802.11n mode)
Supports A-MPDU and A-MSDU aggregation
Supports 0.4 μs guard interval
Operating Channel Center Frequency Range: 2412~2484 MHz
Wireless Parameters—Bluetooth Protocol:
Bluetooth V4.2 BR/EDR and Bluetooth LE standards
Bluetooth CVSD and SBC audio
Bluetooth Frequency Range: 2402~2480 MHz
Peripheral Parameters
Digital Pins × 18: IO0, IO1, IO2, IO3, IO4, IO12, IO13, IO14, IO15, IO16, IO17, IO18, IO19, IO21, IO22, IO23, IO25, IO26
Analog Pins × 11: IO0, IO2, IO4, IO12, IO13, IO14, IO15, IO25, IO26, I34, I35
UART Interfaces: × 2
SPI Interface: × 1
I2C Interface: × 1
I2S Interface: × 1
DAC Interfaces: × 2
Touch Interfaces: × 7
LED PWM Channels: × 16
RGB_LED: WS2812
Display Interface: GDI
Other Parameters

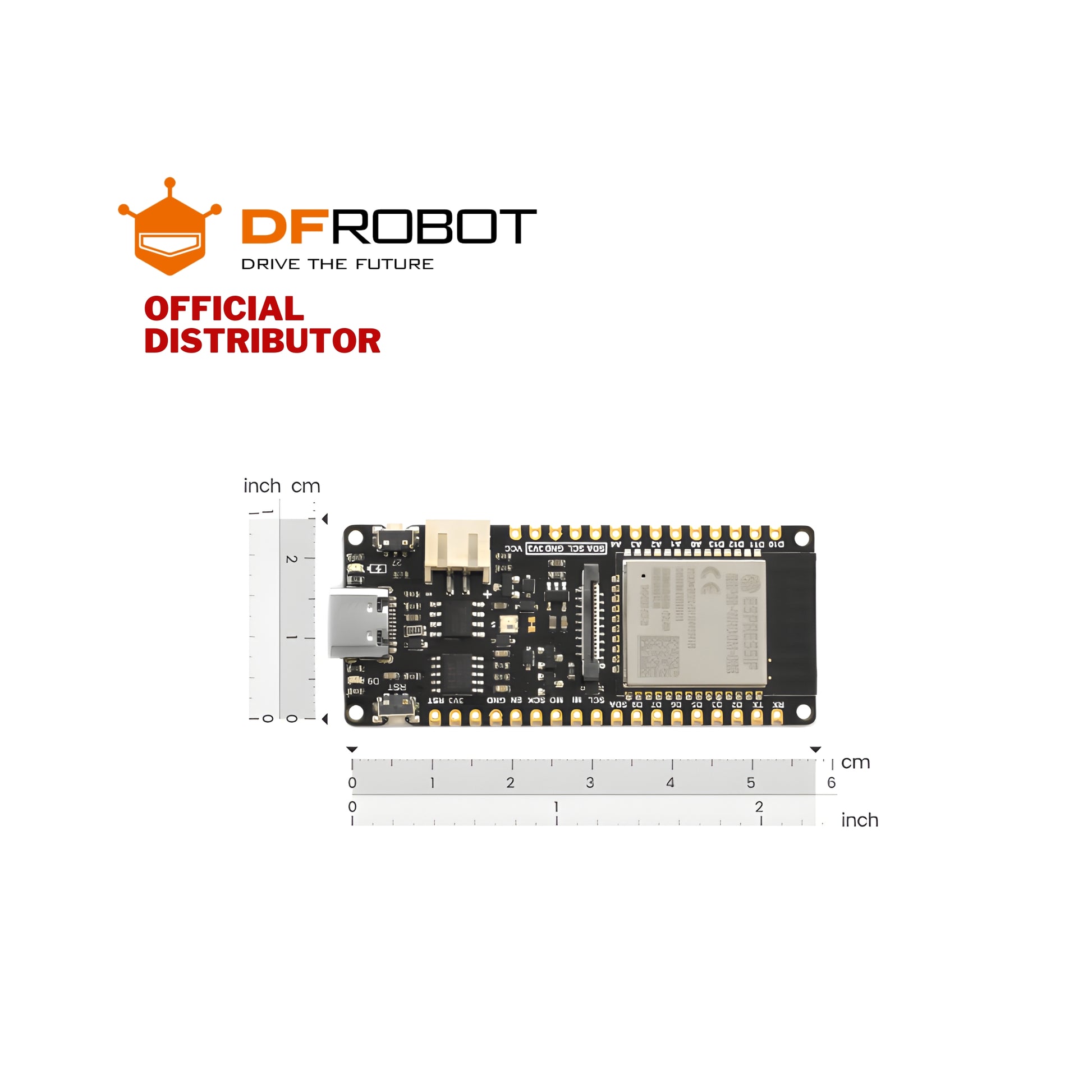

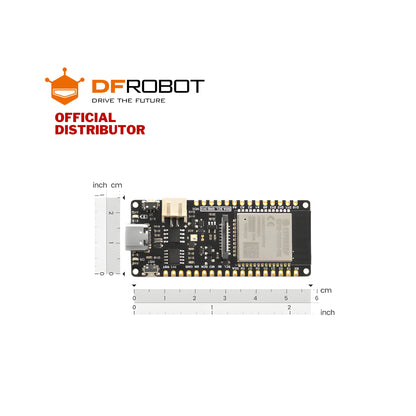

Module Size: 25.4mm × 60mm
Mounting hole size: hole diameter 2.0mm
Weight: 23g
Documents:

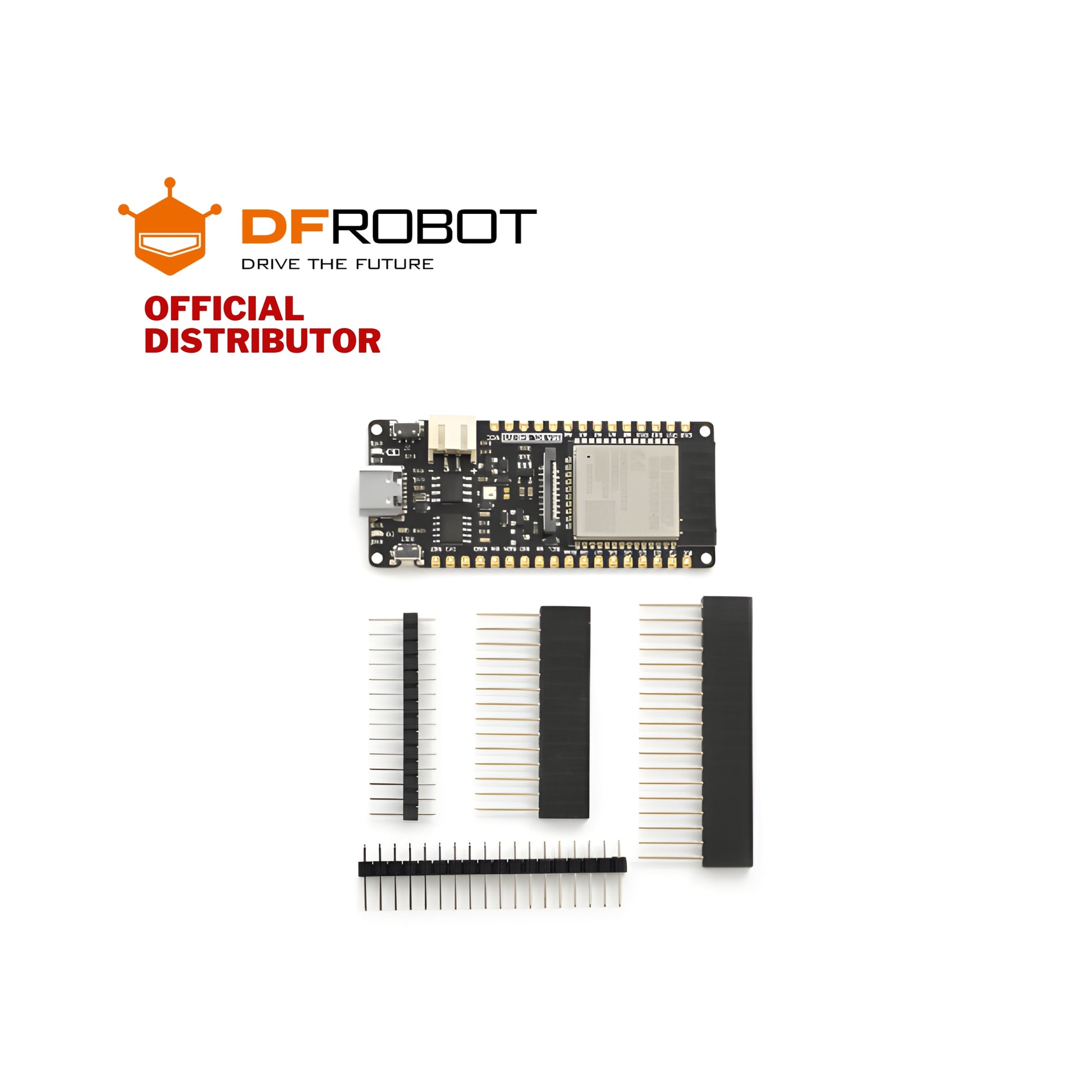

Shipping List:
-
FireBeetle 2 Board ESP32-E x1
-
18pin-2.54mm Pitch Pin x1
-
18pin-2.54mm Pitch Pin Female x1
-
14pin-2.54mm Pitch Pin x1
-
14pin-2.54mm Pitch Pin Female x1
