Description

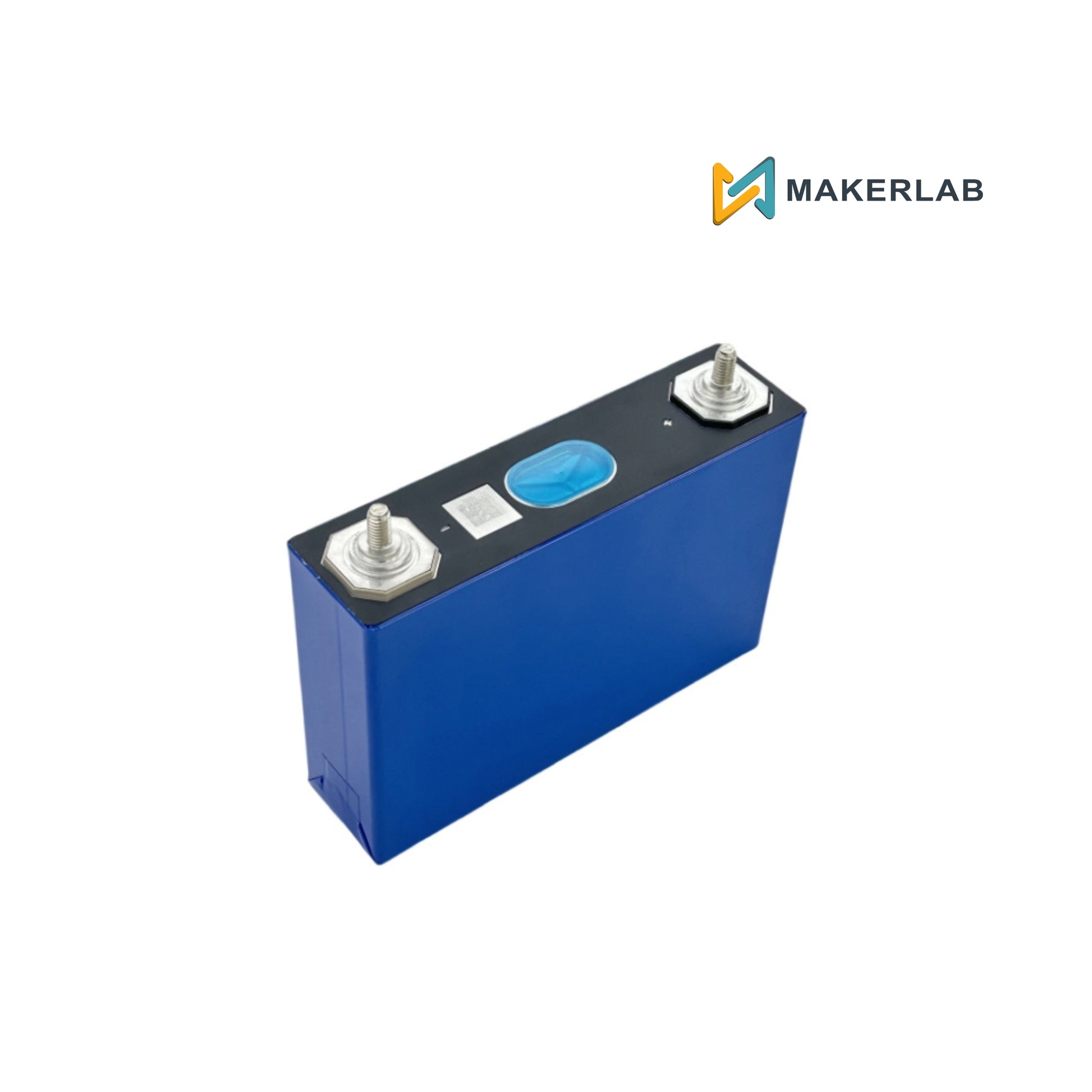

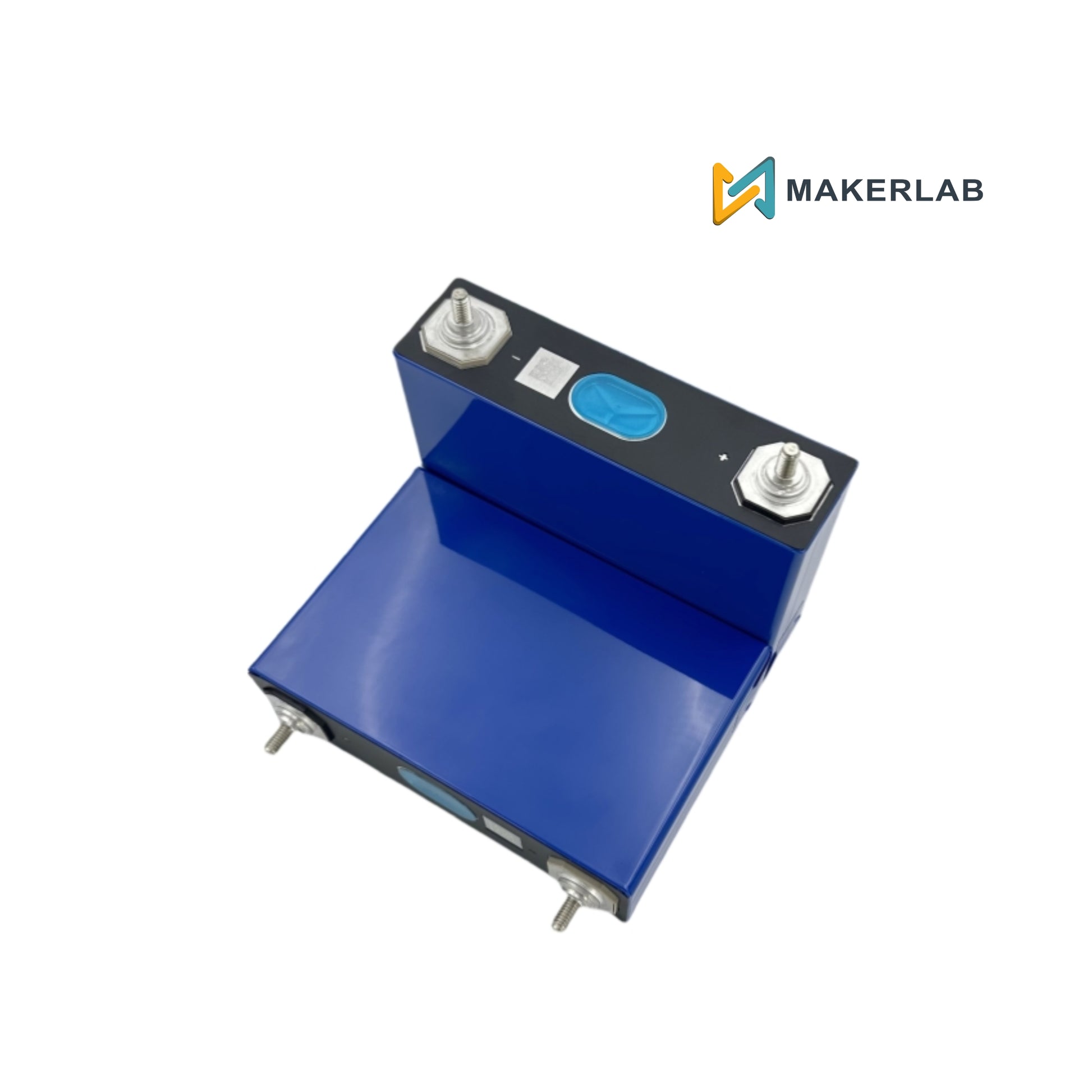

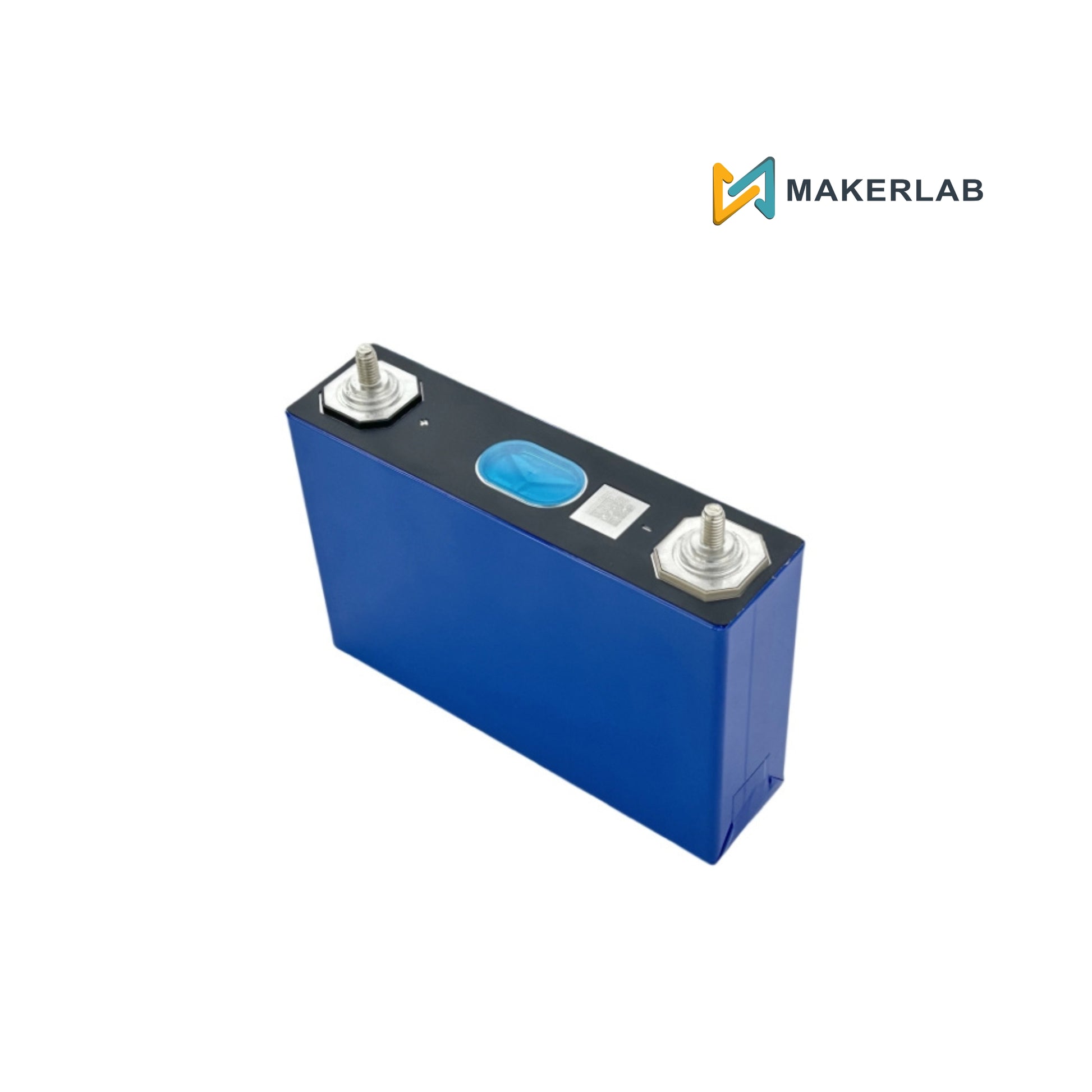

The EVE 50Ah prismatic cell utilizes advanced Lithium Iron Phosphate chemistry, widely recognized as the safest and longest-lasting lithium-ion technology currently available. Housed in a rugged, lightweight aluminum casing, this cell offers an exceptional balance of deep-cycle durability, high thermal stability, and an extended service lifespan exceeding 3,500 to 4,000 complete charge/discharge cycles.
Features
Inherent Safety Profile: Lithium Iron Phosphate chemistry is chemically inert against thermal runaway, significantly reducing the risks of fire or explosion even under puncture, crushing, or high-temperature conditions.
Integrated Explosion-Proof Safety Vent: Features a built-in structural pressure-release valve on the top cap that safely degasses the cell in extreme overcharge or thermal stress situations.
Laser-Welded M6 Terminal Posts: Equipped with robust, flat aluminum terminal faces with M6 threaded holes, enabling low-resistance, high-torque busbar links.
High Energy Density Blueprint: Prismatic geometry maximizes structural space efficiency inside a custom enclosure box compared to traditional cylindrical form factors.
Specifications
Battery Type: LFP
Rated Capacity: 50Ah; 0.5C 25℃±2℃ 2.5-3.65V
Rated Energy: 160Wh; 0.5C 25℃±2℃ 2.5-3.65V
Nominal Voltage: 3.2V; 0.5C 25℃±2℃ 2.5-3.65V
ACR: ≤0.5mΩ; AC 1kHz 25%SOC
Weight: 1060±50 g
Charging Cut-off Voltage: 3.65V
Discharging Cut-off Voltage:
2.5 (0℃<T≤65℃)
2.0 (-20℃<T≤0℃)
Standard Charging/Discharging Current: 0.5C/0.5C; 25℃±2℃
Maximum continuous charging/discharging current: 1C; 25℃±2℃
Cycling Performance:
5000 Cycles 0.5C/0.5C; 25℃ Standard Cycle
2000 Cycles 0.5C/0.5C; 45℃ Standard Cycle
Operation Temperature:
0~65℃; charge
-20~65℃; discharge
Energy Efficiency: 25℃, Energy Efficiency

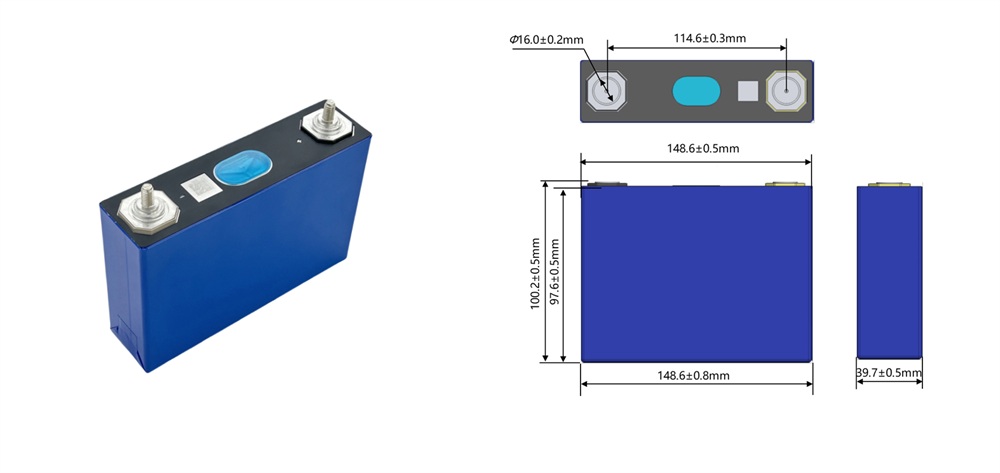

Dimension:
Terminal Height(H): 100.2±0.5mm
Shoulder Height(h): 97.6±0.5mm
Width (L): 148.6±0.8mm
Thickness(T): 39.7±0.5mm (200kgf; Delivery SOC)
