Description

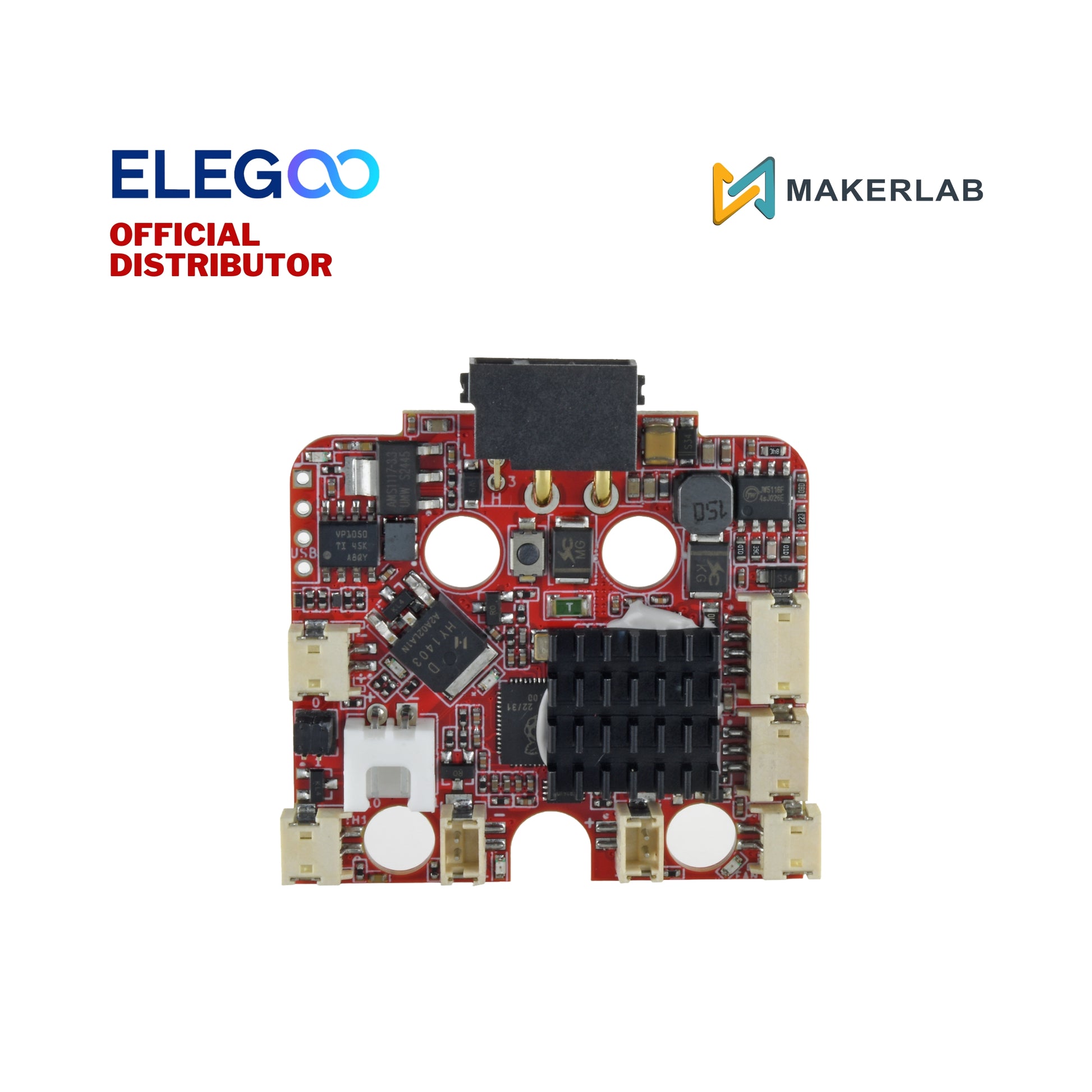

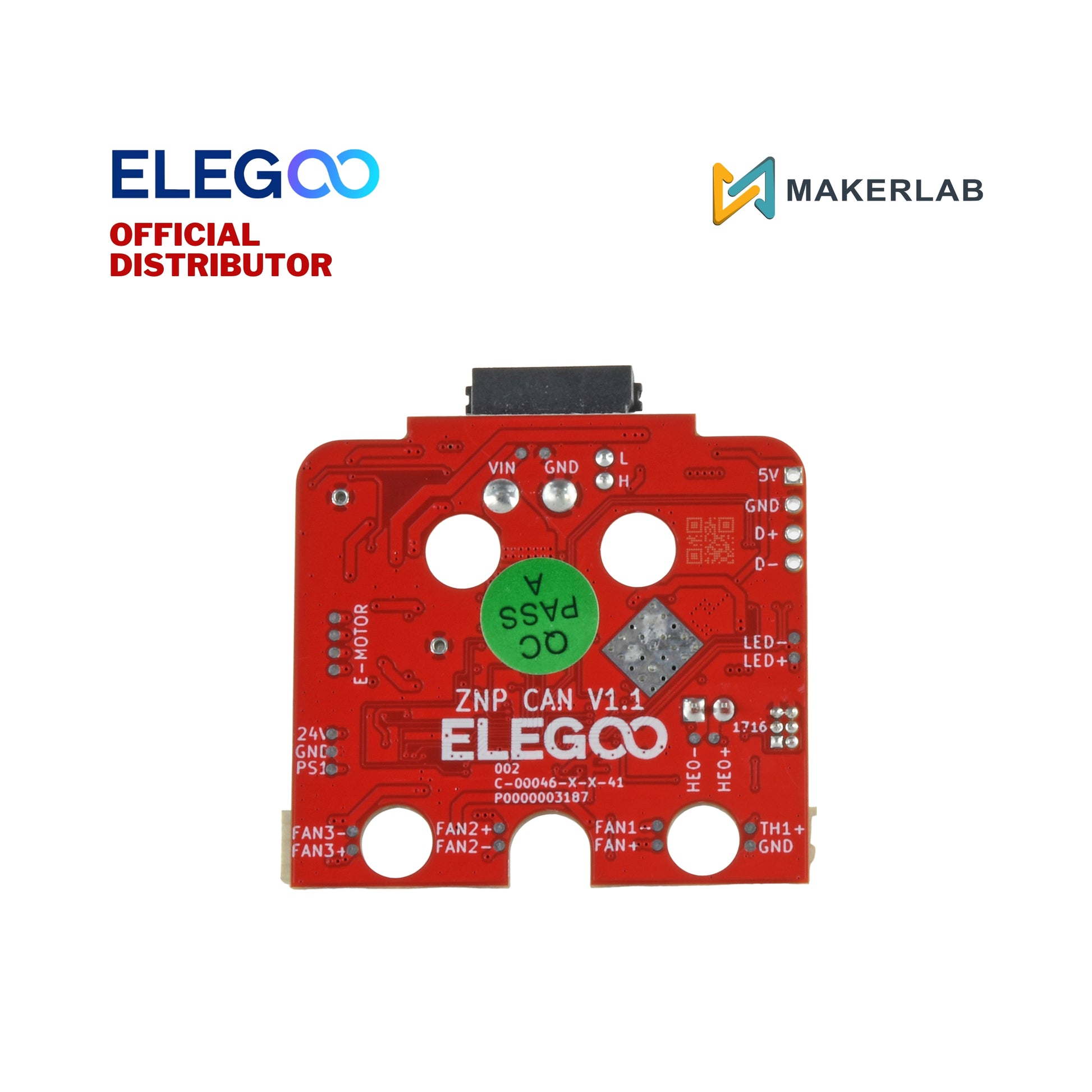

The Nozzle Adapter Plate serves as the primary mounting bridge between the X-axis carriage and the hotend assembly on the OrangeStorm Giga. It is not just a mechanical bracket; it also functions as a specialized PCB junction.
Given the Giga's ability to support up to four independent print heads, this adapter plate ensures that power and data signals—for the heating element, thermistor, and cooling fans—are distributed accurately to the nozzle unit. It is designed to withstand the high vibrations of 300mm/s printing while maintaining the strict vertical alignment required for large-format synchronization.
Features
Integrated Signal Routing: Features high-current traces designed to deliver stable power to the hotend while shielding sensitive thermistor signals from electrical noise.
Precision Mechanical Alignment: CNC-machined mounting points ensure the nozzle sits perfectly perpendicular to the 800 x 800mm build plate.
Heat-Resistant Substrate: Constructed from high-TG (Glass Transition Temperature) FR4 material to prevent warping or circuit failure near the high-temperature hotend environment.
Plug-and-Play Connectors: Equipped with standardized multi-pin headers that allow for the "Quick-Swap" of the nozzle assembly without rerouting wires to the mainboard.
Rigid Structural Support: Acting as a backbone, it prevents "hotend tilt" during high-acceleration direction changes.
Specifications
Model Number: 01.201.0042
Compatible Printer: Elegoo OrangeStorm Giga
Component Type: Electromechanical Adapter PCB
Interface Ports: Multi-pin Hotend, Fan, and Sensor Headers
Material: Reinforced FR4 Fiberboard / Copper / Aluminum
Mounting Type: Screw-down Carriage Mount
