Description

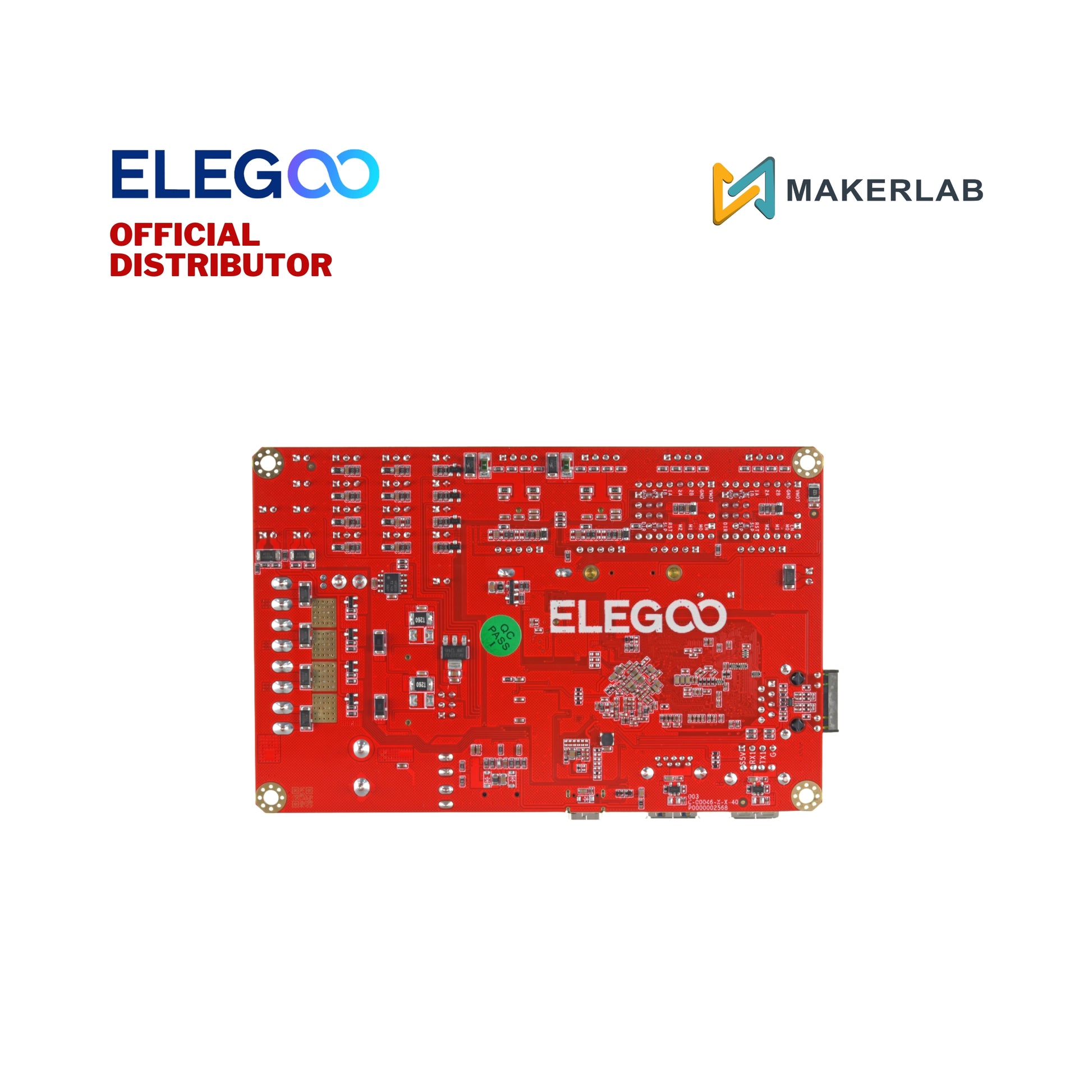

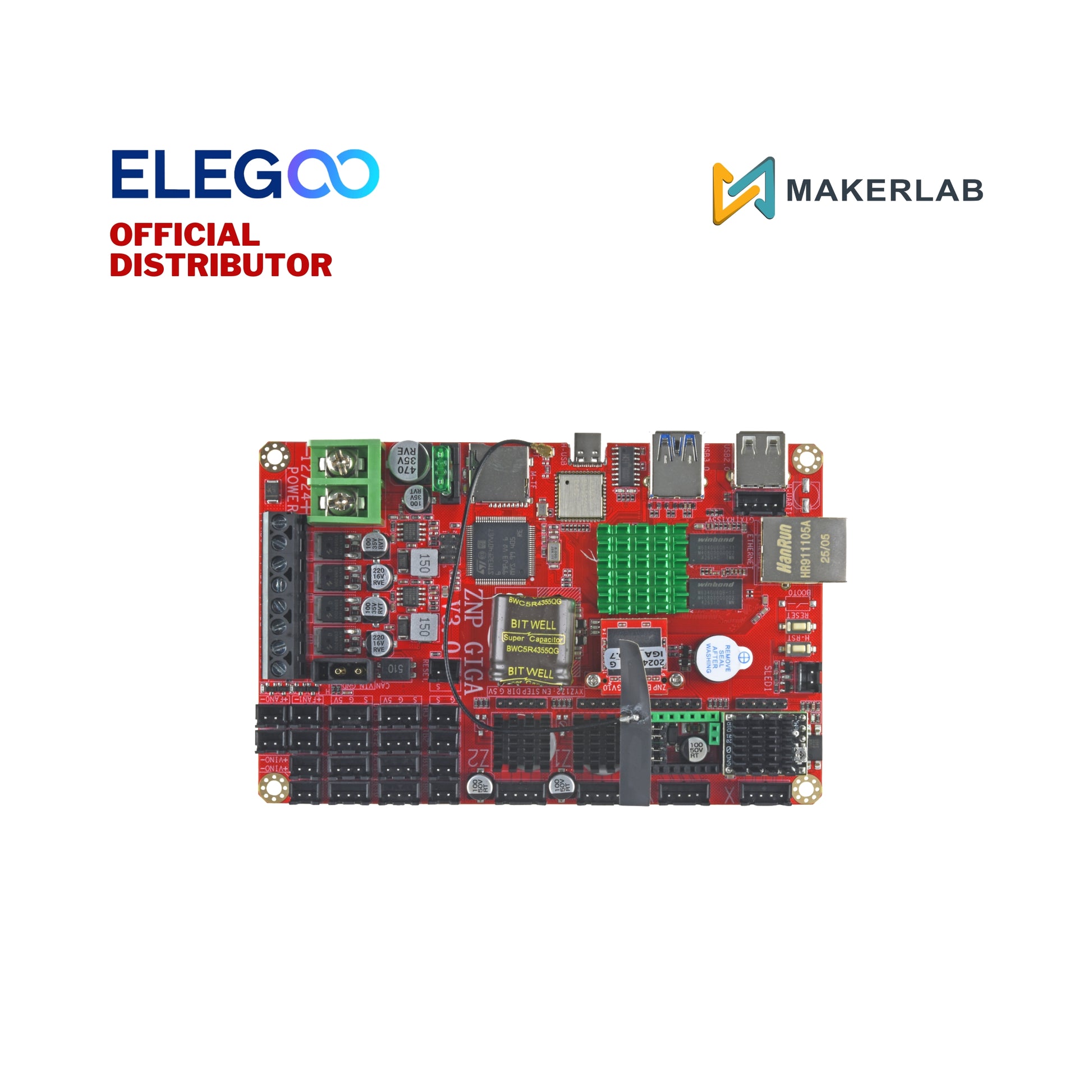

The Motherboard is a sophisticated Klipper-based mainboard that serves as the "brain" for the OrangeStorm Giga. It is engineered to handle the unique challenges of large-format printing, such as coordinating movement across an $$800 \times 800 \times 1000\text{ mm$$ volume and managing the high-current demands of the 1,530W power system.
Unlike standard hobbyist boards, this industrial-grade PCB supports multi-nozzle expansion and complex multi-zone heating for the Giga's independent bed sections. It features a high-speed quad-core processor that allows for native Klipper features like Input Shaping and Pressure Advance, ensuring that even at massive scales, the printer maintains crisp corners and smooth surfaces.
Features
Klipper-Native Architecture: Pre-installed with Klipper firmware, utilizing a 64-bit 1.5GHz quad-core processor (RK3328 SoC) for lightning-fast G-code processing and precise motion control.
Quad-Extruder Support: Features dedicated expansion ports and driver slots to support up to four independent toolheads for simultaneous batch production.
Multi-Zone Heatbed Management: Intelligently controls the four independent 410 x 410mm heated platforms, enabling energy-saving heating only where the model is located.
Industrial Connectivity: Equipped with a full suite of communication options, including Wi-Fi, LAN (Ethernet), and USB, for remote monitoring and management.
Silent High-Current Drivers: Integrated with professional-grade silent stepper drivers capable of driving the powerful NEMA 23 (57-series) motors required for the Giga’s heavy gantry.
Smart Fault Detection: Built-in protection for thermal runaway, power loss recovery, and filament runout detection across all active printheads.
Specifications
Model Number: 01.201.0052
Compatible Printer: Elegoo OrangeStorm Giga
Main Processor: SOC RK3328 (64-bit Quad-Core, 1.5GHz)
Firmware: Klipper
Input Voltage: 24V DC
Expansion Support: Up to 4 Toolheads / Independent Extruders
Interfaces: USB, LAN, Wi-Fi, MicroSD, 10.1" Touchscreen Port
Cooling: Active heatsinks for high-current mosfets and SOC
