Description

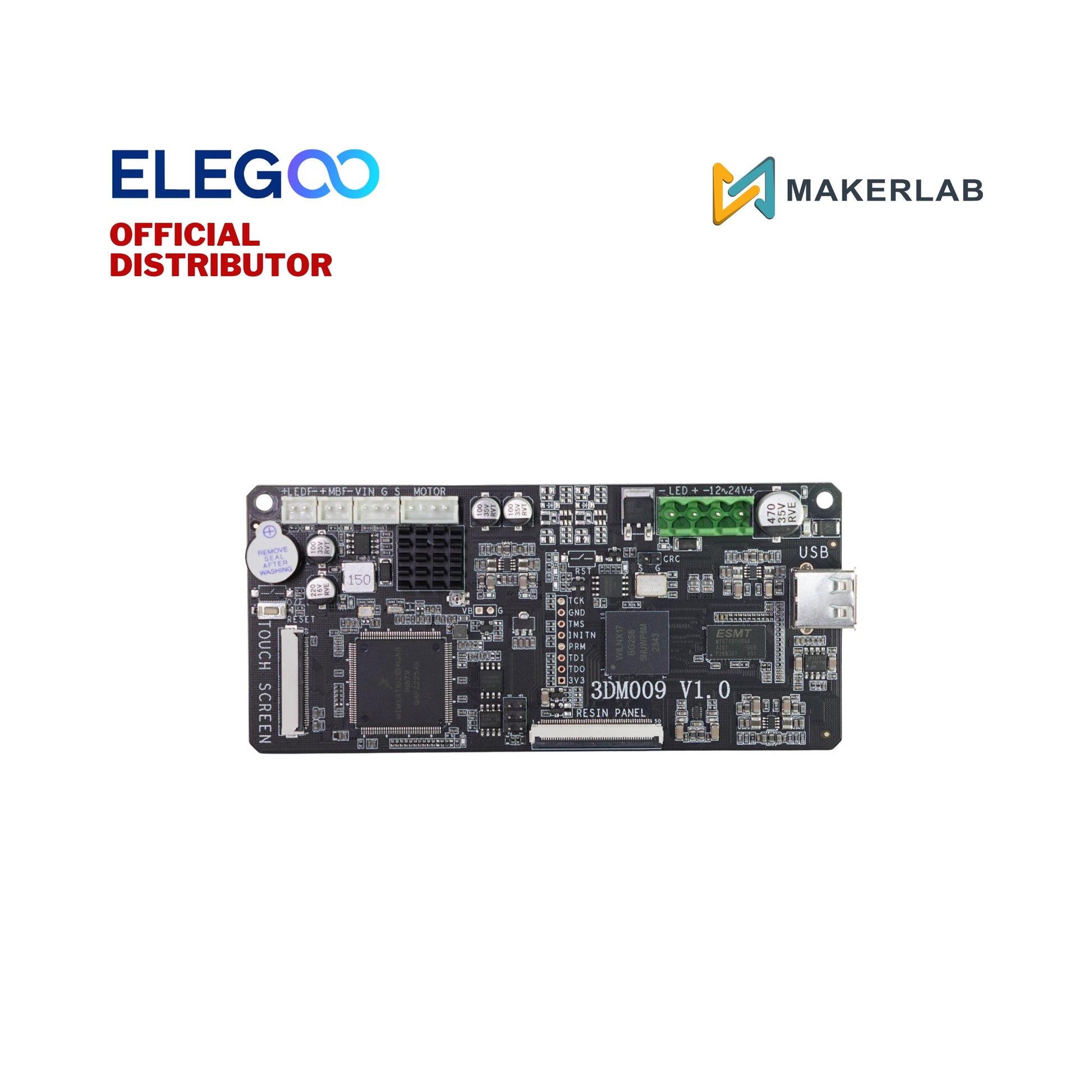

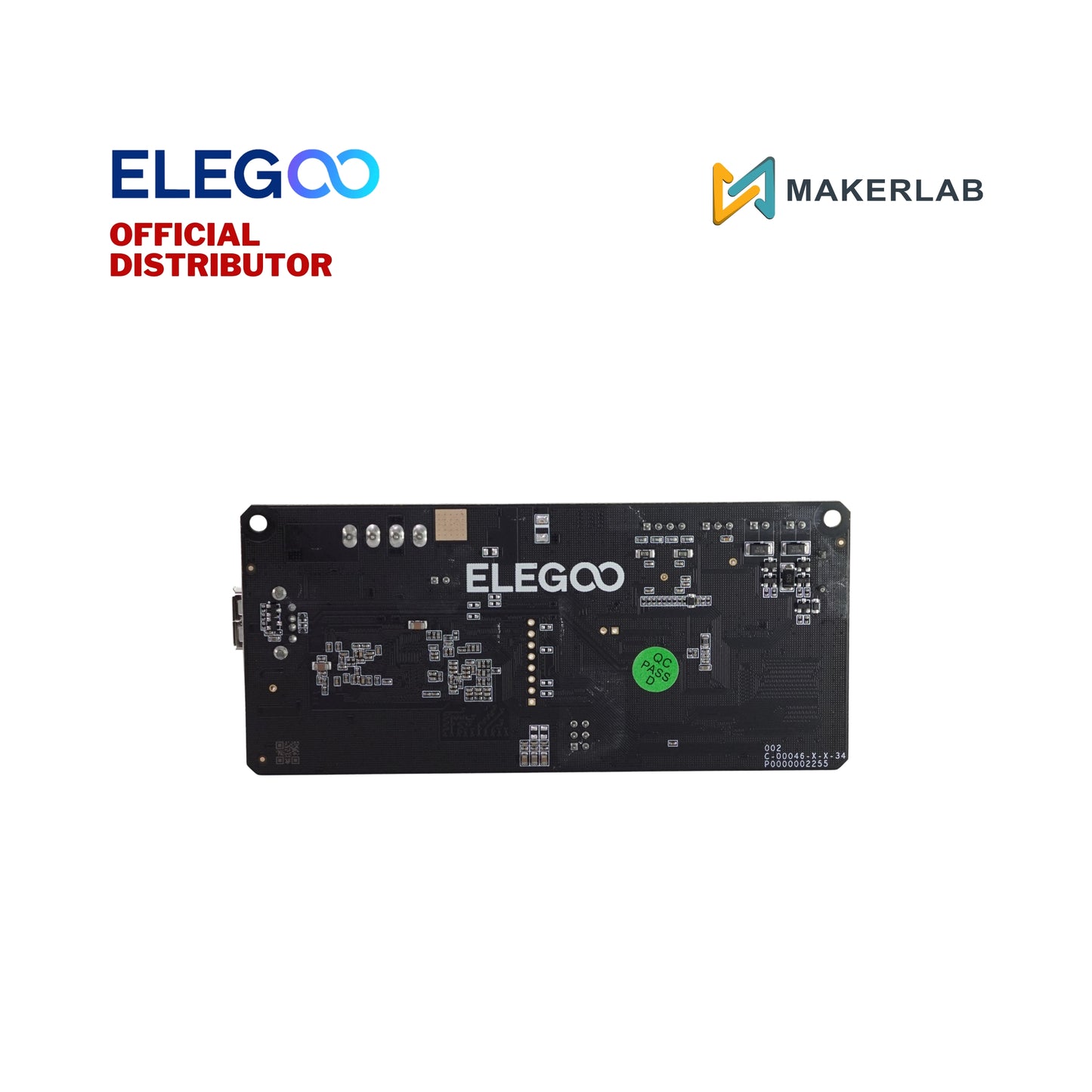

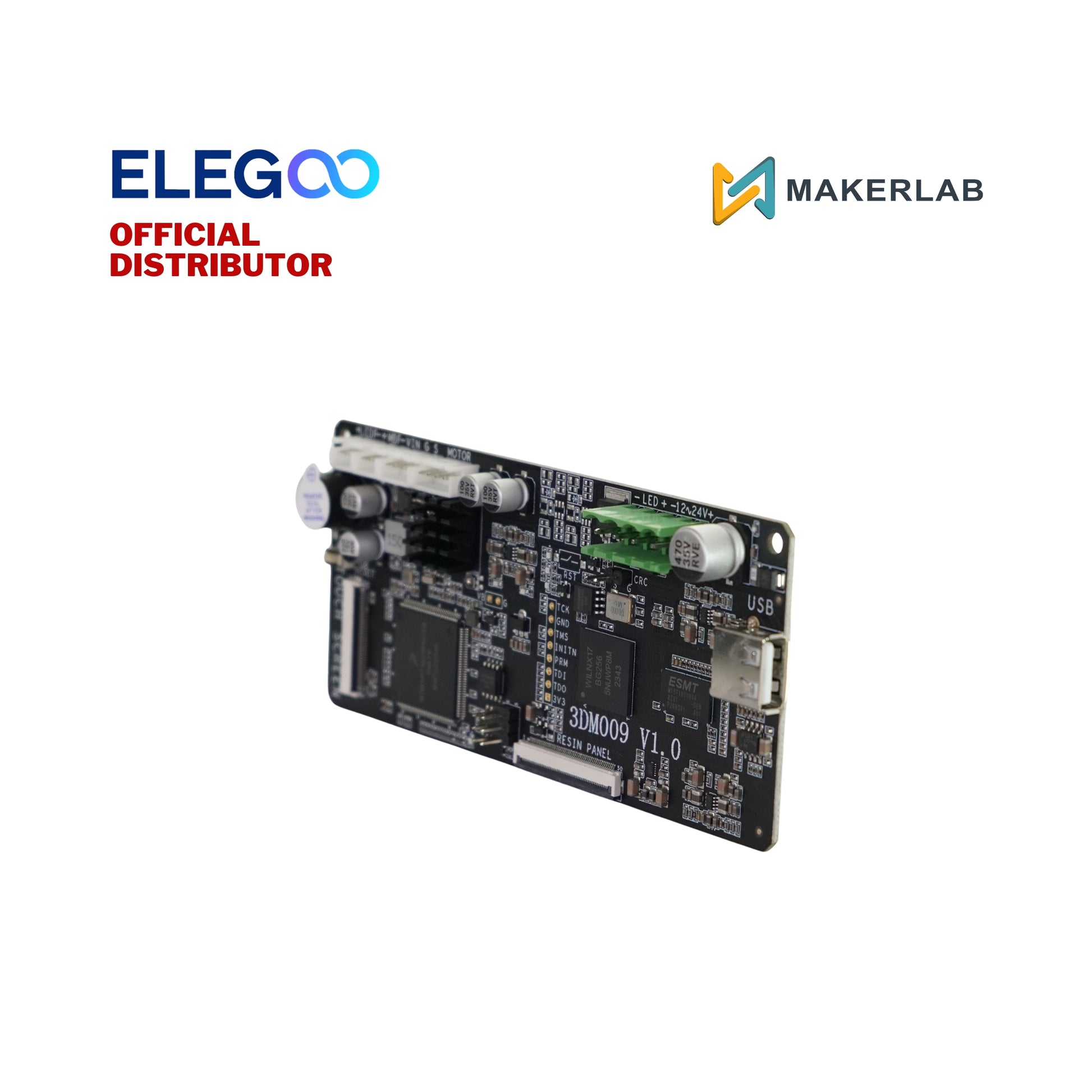

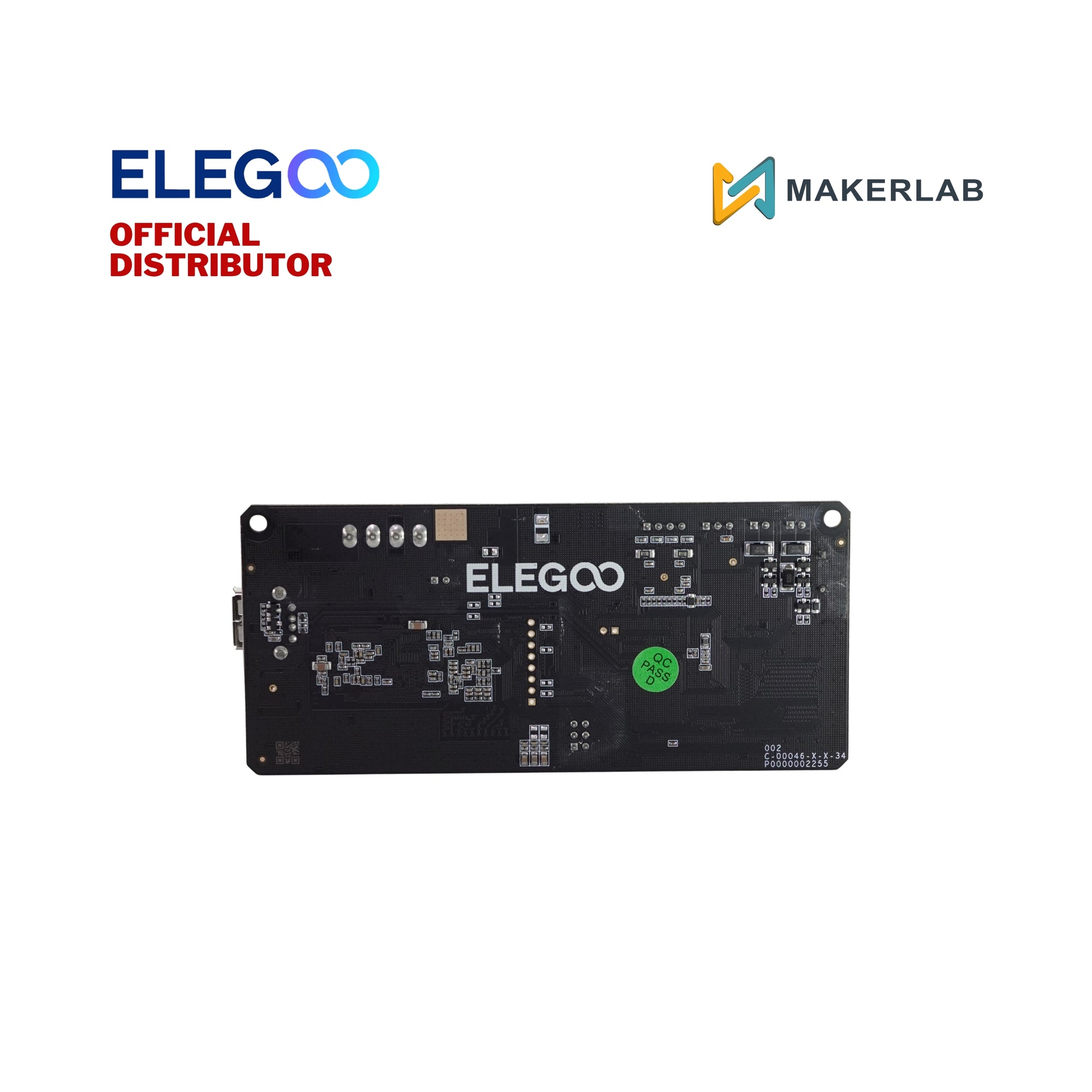

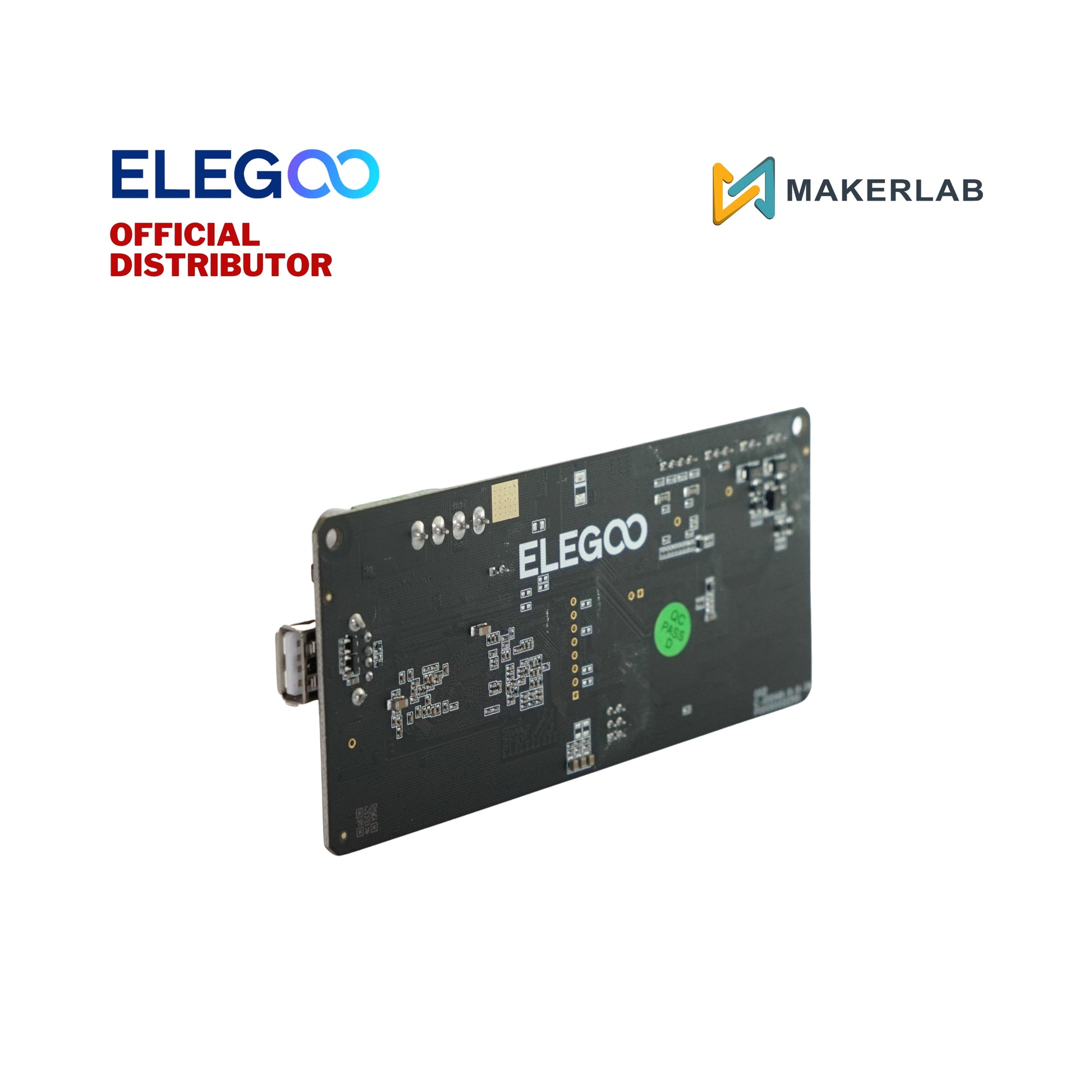

The Mars 4 Motherboard is a high-stability controller board pre-installed with the EL3D-3.0.1 system firmware. It is specifically engineered to handle the data-heavy 9K resolution (8520 x 4320) processing required for the 7-inch monochrome LCD.
This board manages the synchronized operation of the 36-LED COB light source and the heat dissipation system. It features integrated stepper drivers for silent Z-axis movement and supports the advanced "Dynamic Mode" printing found in Voxeldance Tango, which adjusts lifting speeds in real-time based on the model's cross-sectional area to maximize efficiency and success rates.
Features
Silent Stepper Driving: Features built-in silent drivers to minimize mechanical noise during the Z-axis lift and retract cycles.
Optimized Thermal Logic: Manages the copper heat-pipe cooling system and large fan speeds to ensure the COB light source remains within optimal temperature ranges.
Multi-Format Compatibility: Supports the self-developed .goo open-source slicing format alongside standard formats from CHITUBOX and Lychee.
Integrated Ports: Includes dedicated headers for the USB air purifier, 3.5-inch resistive touchscreen, Z-axis limit switch, and the UV COB light module.
Specifications
Model Number: 01.101.0069
Compatible Printer: Elegoo Mars 4 (9K Version)
System Firmware: EL3D-3.0.1
Input Power: 24V DC / 3A
Connectivity: USB 2.0 Interface
Slicer Support: Voxeldance Tango, CHITUBOX, Lychee
OS Compatibility: Windows 7+, Mac, Linux
