Description

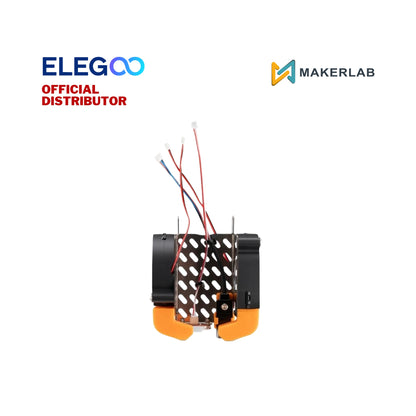

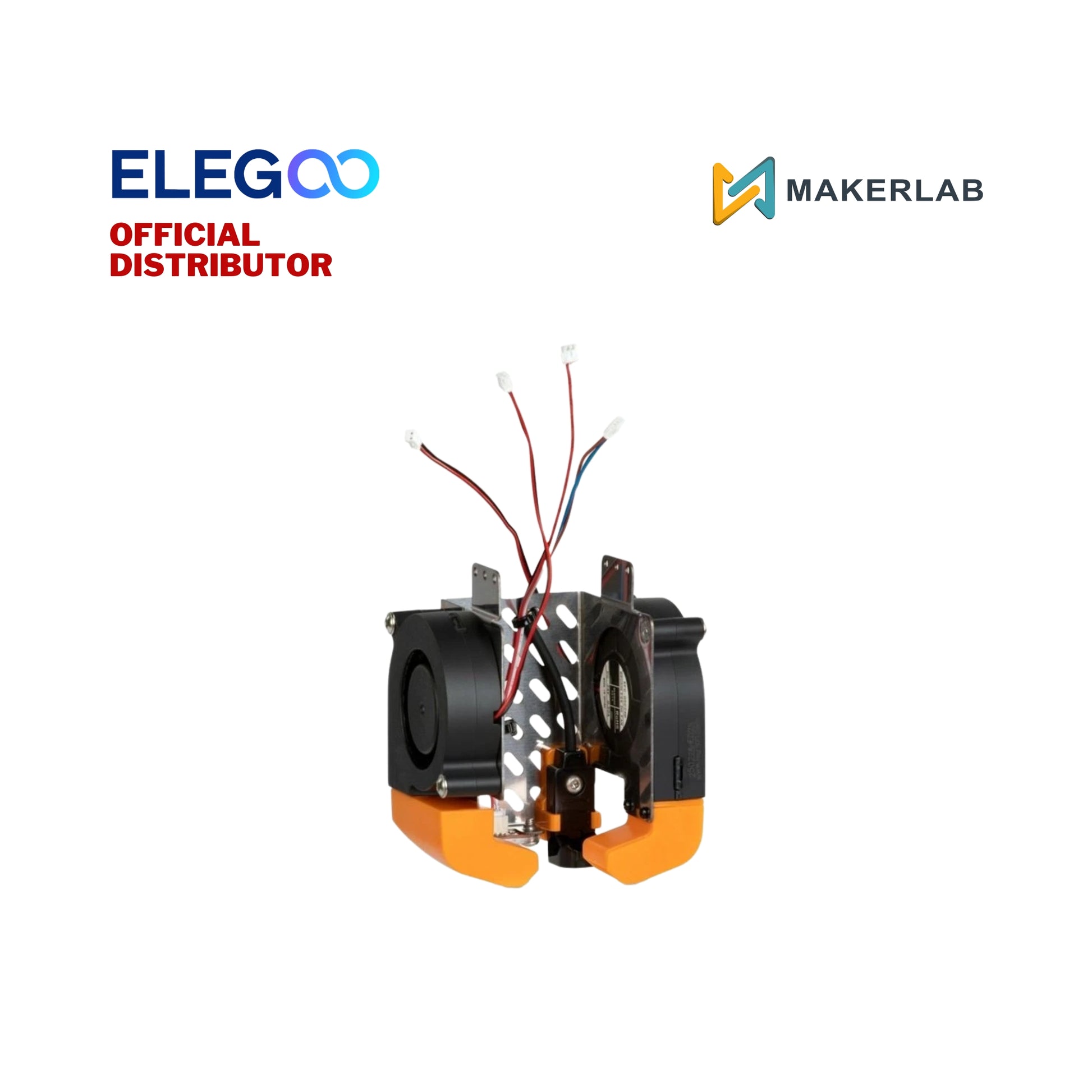

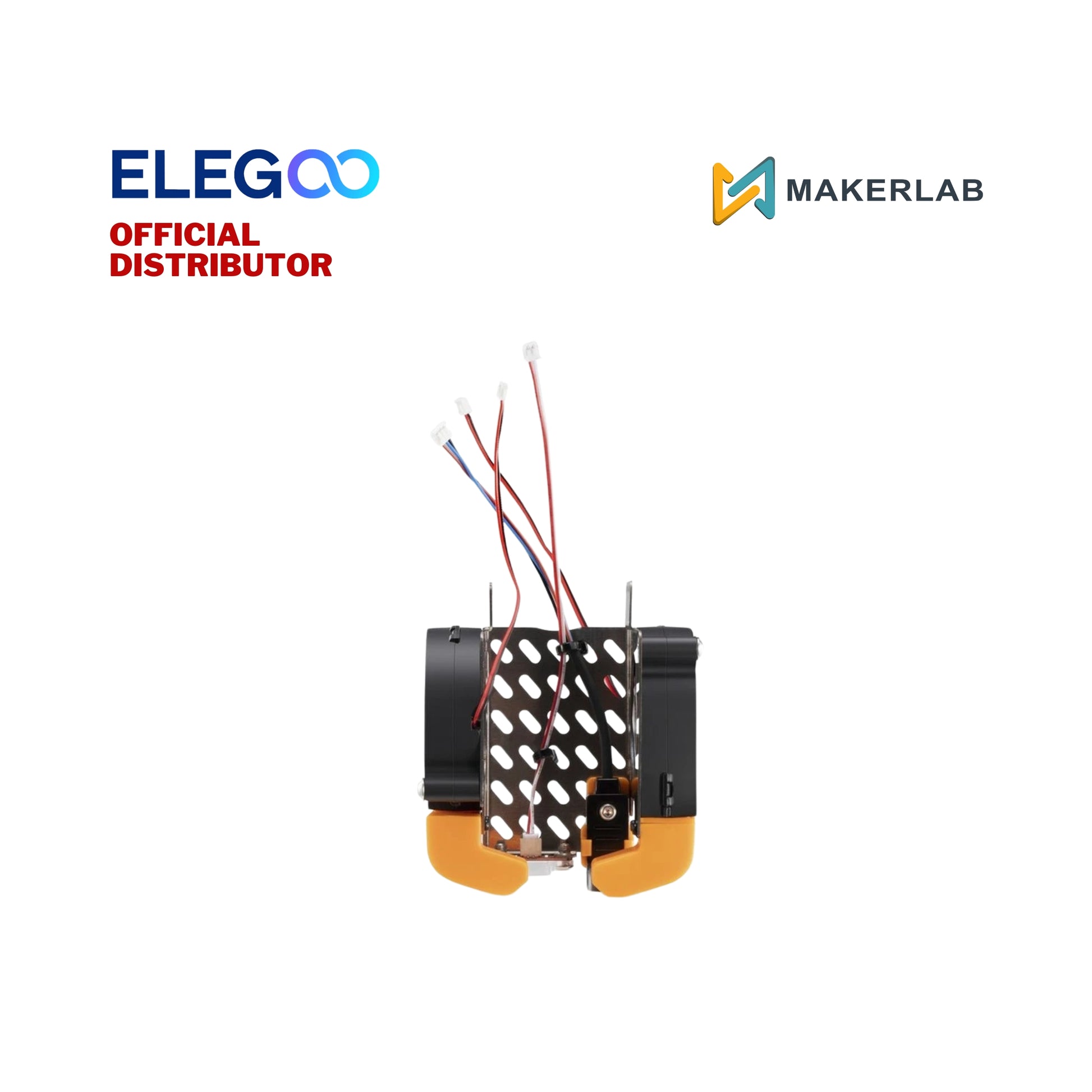

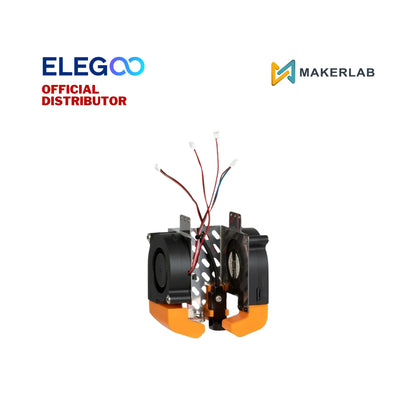

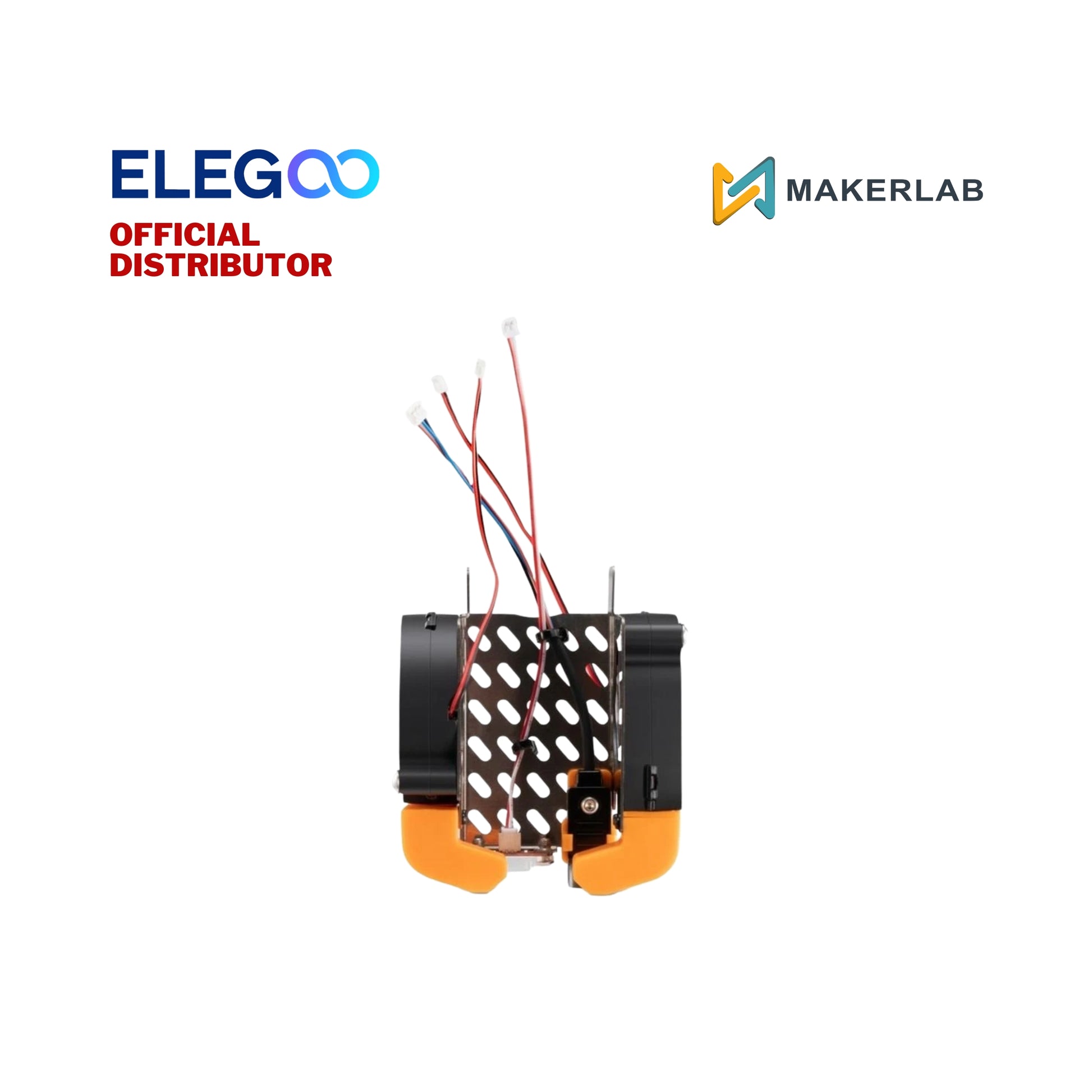

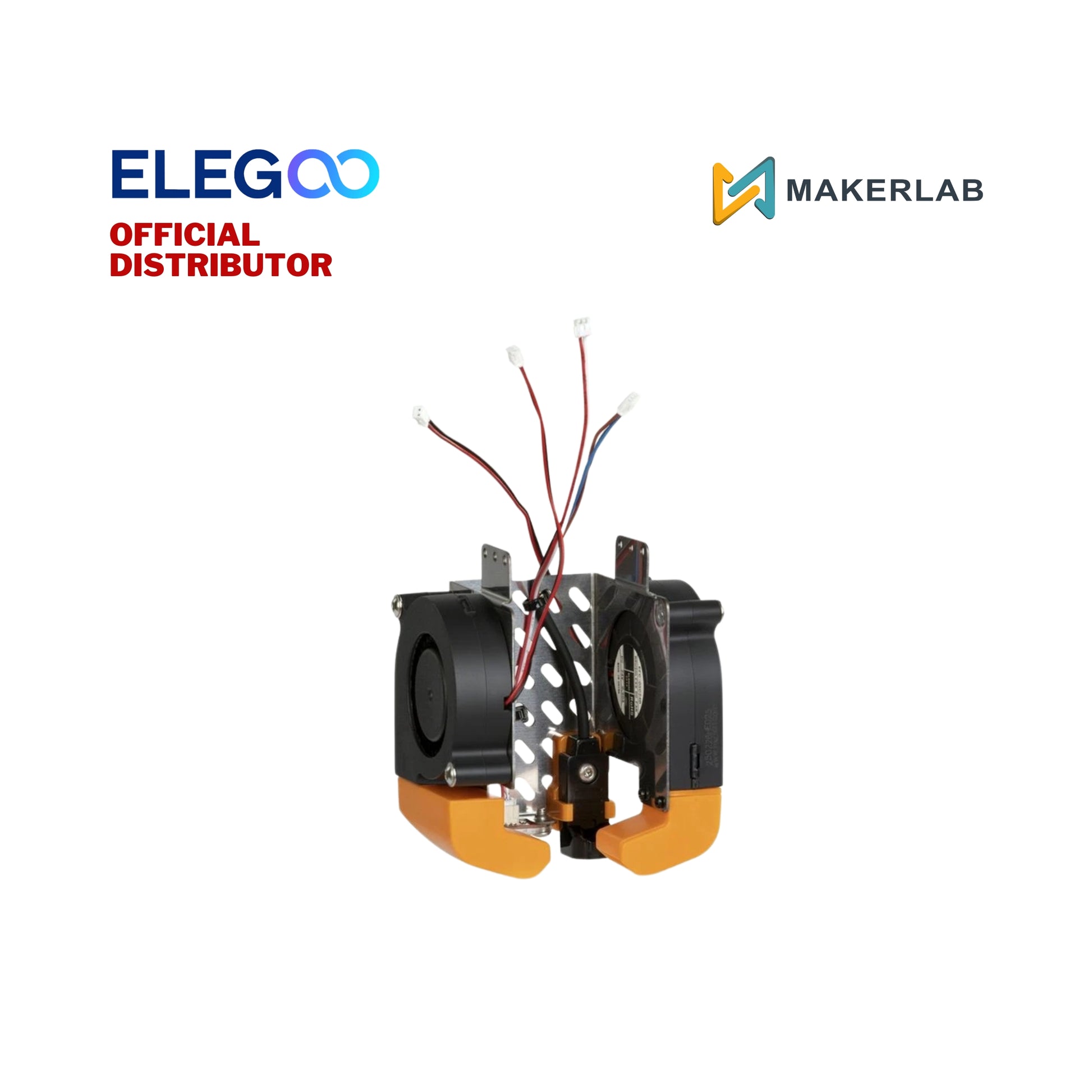

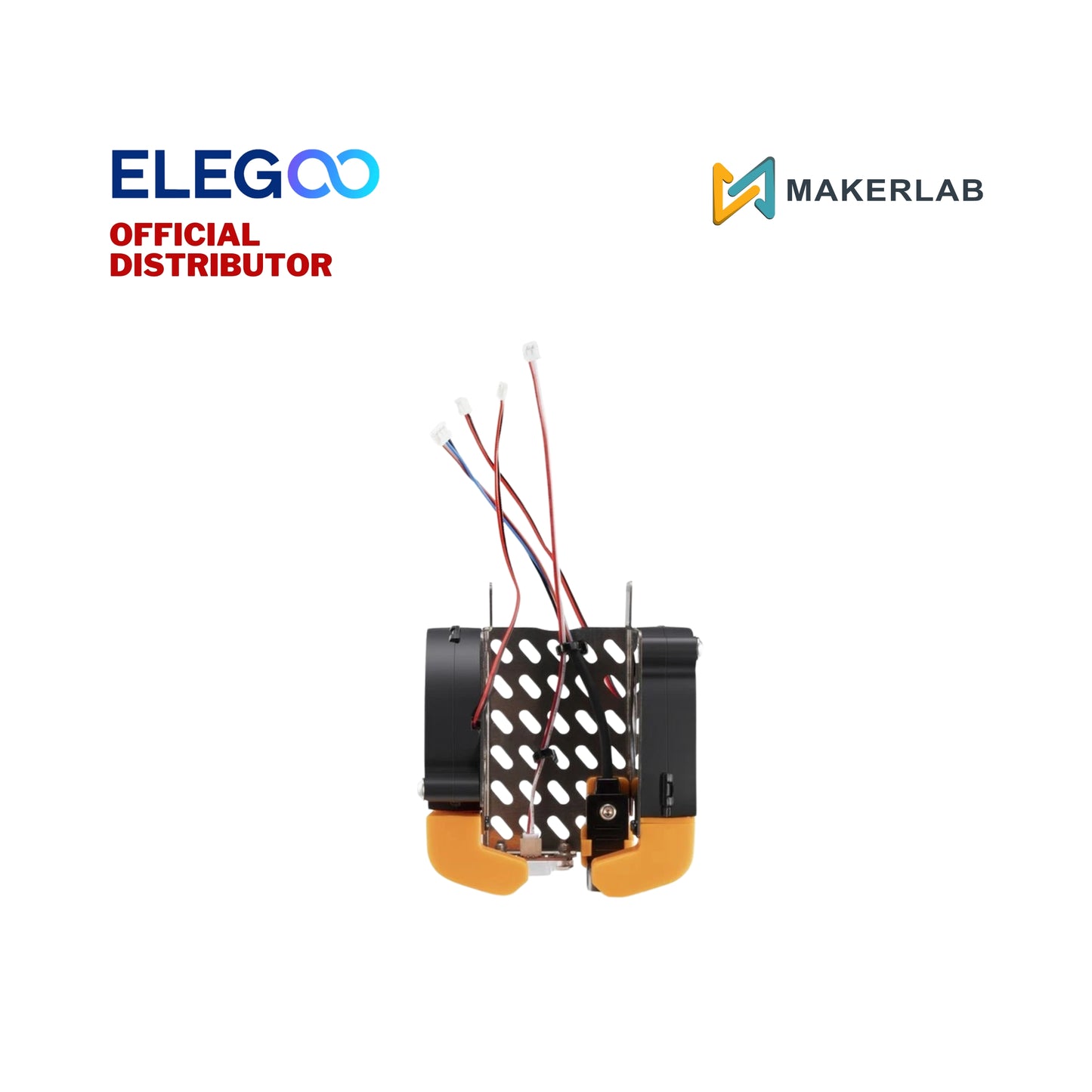

The Model Fan Assembly is a complete housing unit that integrates the entire cooling array for a single OrangeStorm Giga printhead. Because the Giga prints at massive scales and high speeds (300mm/s), standard cooling isn't enough; this assembly combines dual high-power blowers for the printed model and an axial fan for the hotend cold-end.
This assembly is a "drop-in" replacement part. It includes the structural shroud that directs airflow precisely to the nozzle tip, ensuring that even large-scale PLA bridges and steep 75° overhangs solidify instantly. It is essential for users adding additional printheads to their X-axis or replacing a damaged cooling shroud.
Features
Triple-Fan Integration: Houses two 5015 ball-bearing blower fans and one 4010 axial fan for comprehensive 360° cooling.
Intelligent Thermal Control: The assembly is programmed to stop automatically once a print is finished, reducing noise and extending the lifespan of the internal bearings.
Industrial Airflow: Generates a combined 42 CFM of airflow, specifically tuned to maintain dimensional accuracy on prints up to 1000 tall.
Dual-Sided Part Cooling: Features symmetrical air ducts that blast cool air from both the left and right sides of the nozzle to eliminate "one-sided" warping.
Ball Bearing Construction: Uses high-durability ball bearings in all fans to withstand the vibration and inertia of the Giga’s high-acceleration motion.
Specifications
Model: 20.206.0035
Compatible Printer: Elegoo OrangeStorm Giga
Fan Configuration: 2x 5015 Blower Fans + 1x 4010 Axial Fan
Blower Speed: 15,000 RPM (Max)
Airflow Volume: 42 CFM
Voltage: 24V DC
Housing Material: Injection-Molded Heat-Resistant Polymer
