Description

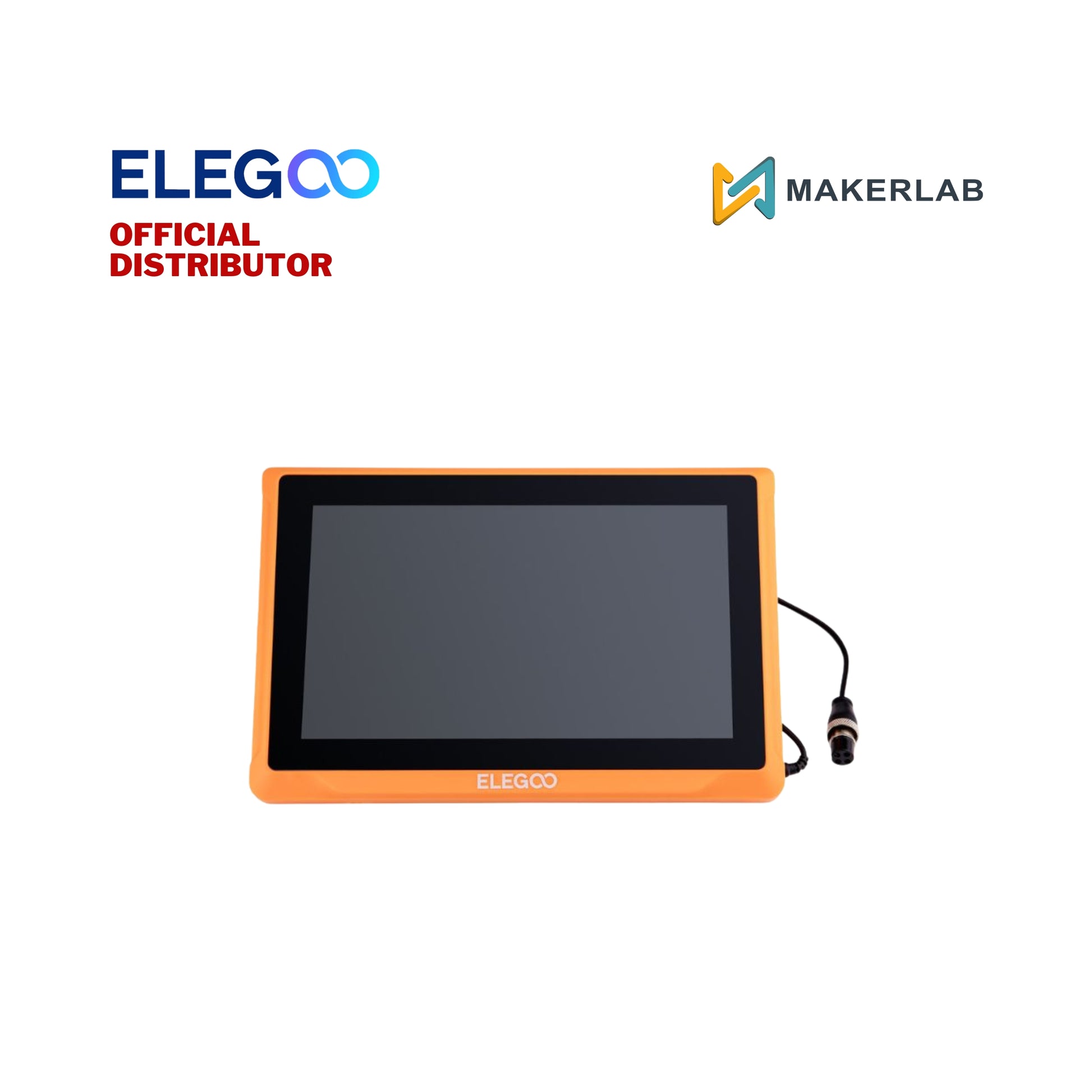

The Display Assembly is a sophisticated 10.1-inch capacitive touchscreen unit that serves as the primary command center for the OrangeStorm Giga. Unlike many fixed displays, this unit features a detachable design, allowing users to magnetically remove the screen from the printer frame for handheld operation. This is particularly useful for a printer of the Giga's size, where you may need to monitor the nozzle or leveling while standing several feet away from the main control pillar.
The assembly runs on a custom Linux-based UI that provides a real-time model preview, multi-zone heatbed monitoring, and multi-nozzle configuration. It is the hardware interface for the printer’s Klipper-based firmware system, offering smooth, smartphone-like responsiveness.
Features
10.1" HD Capacitive Touch: Large, bright display with a 1280 × 800 resolution, ensuring clear visibility of complex print data and status.
Portable Handheld Operation: Connected via a high-quality coiled spring cable, the screen can be detached for flexible positioning during maintenance or setup.
Klipper Interface: Specifically tuned to interact with the Giga’s RK3328 quad-core processor, supporting advanced features like live Z-offset tuning and input shaping calibration.
G-Code Model Preview: Allows users to visually verify the model being printed directly on the screen before the job starts.
Multilingual Support: Pre-loaded with support for 8 languages (English, French, German, Russian, Italian, Spanish, Japanese, and Chinese).
Rugged Housing: Encased in a durable industrial-grade polymer shell designed to withstand the vibrations of a large-format printing environment.
Specifications
Model Number: 20.203.0075
Compatible Printer: Elegoo OrangeStorm Giga
Screen Size: 10.1 Inches
Resolution: 1280 × 800 px
Display Type: HD Capacitive Touchscreen
Interface Port: Dedicated Screen Port
Operating System: Custom Linux-based UI
