Description

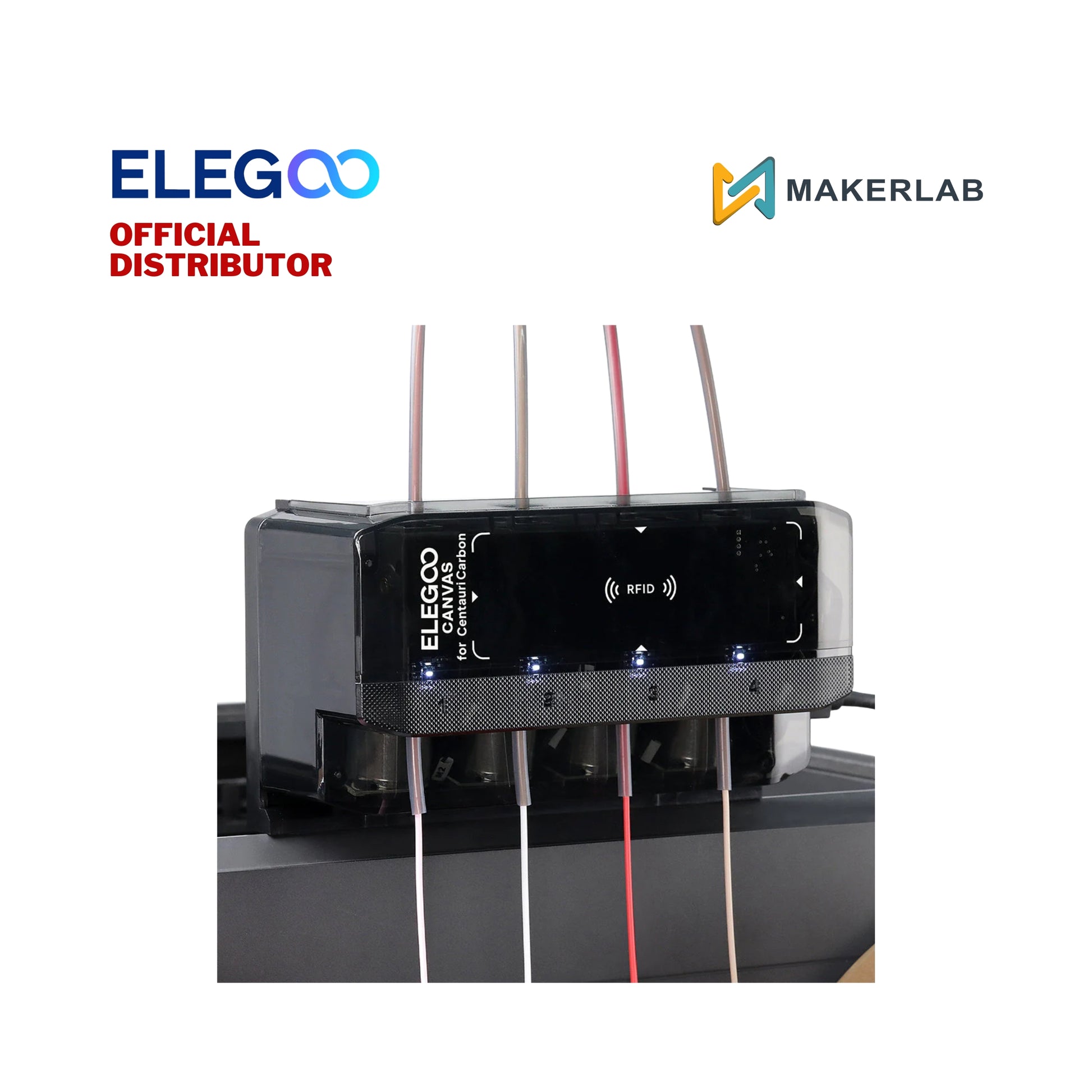

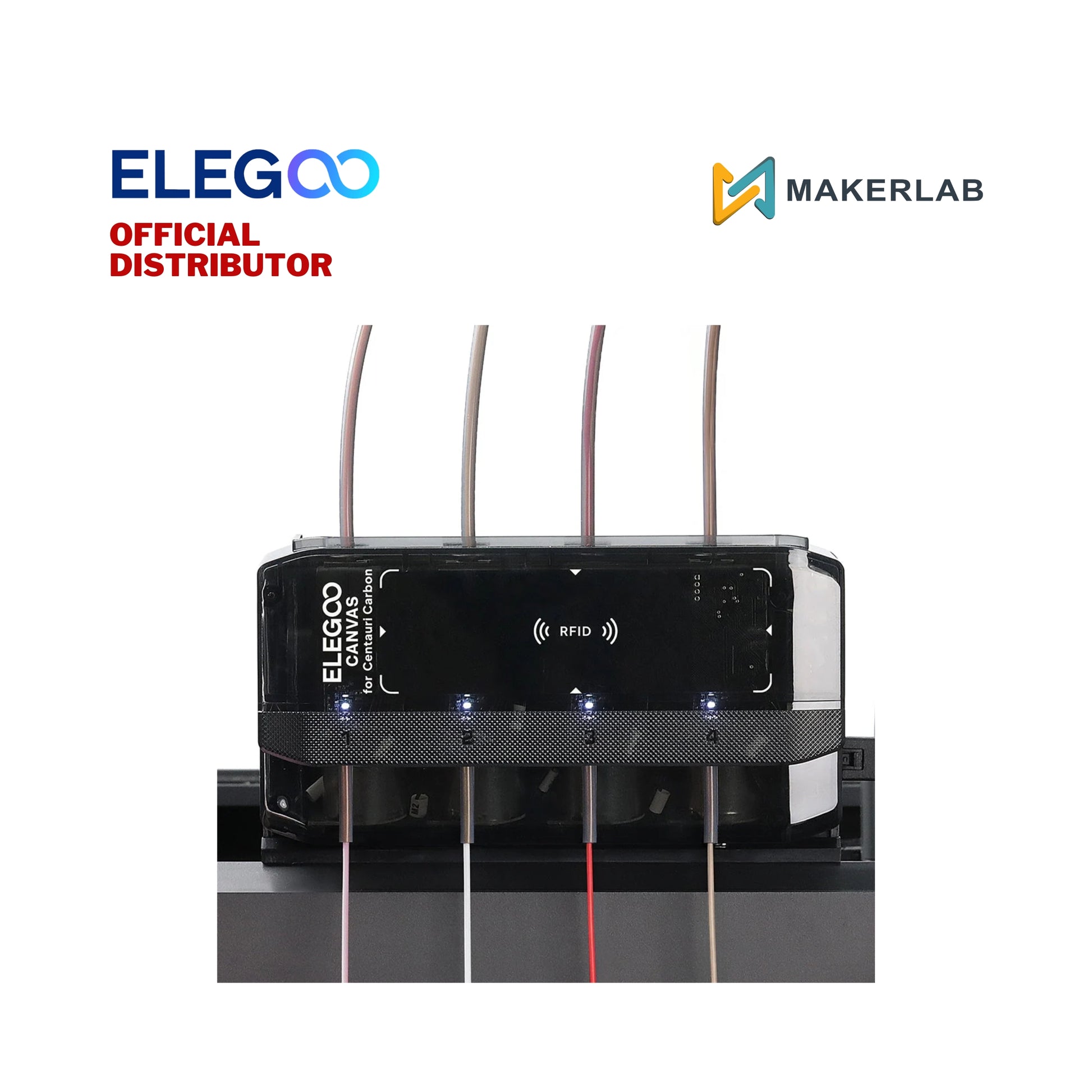

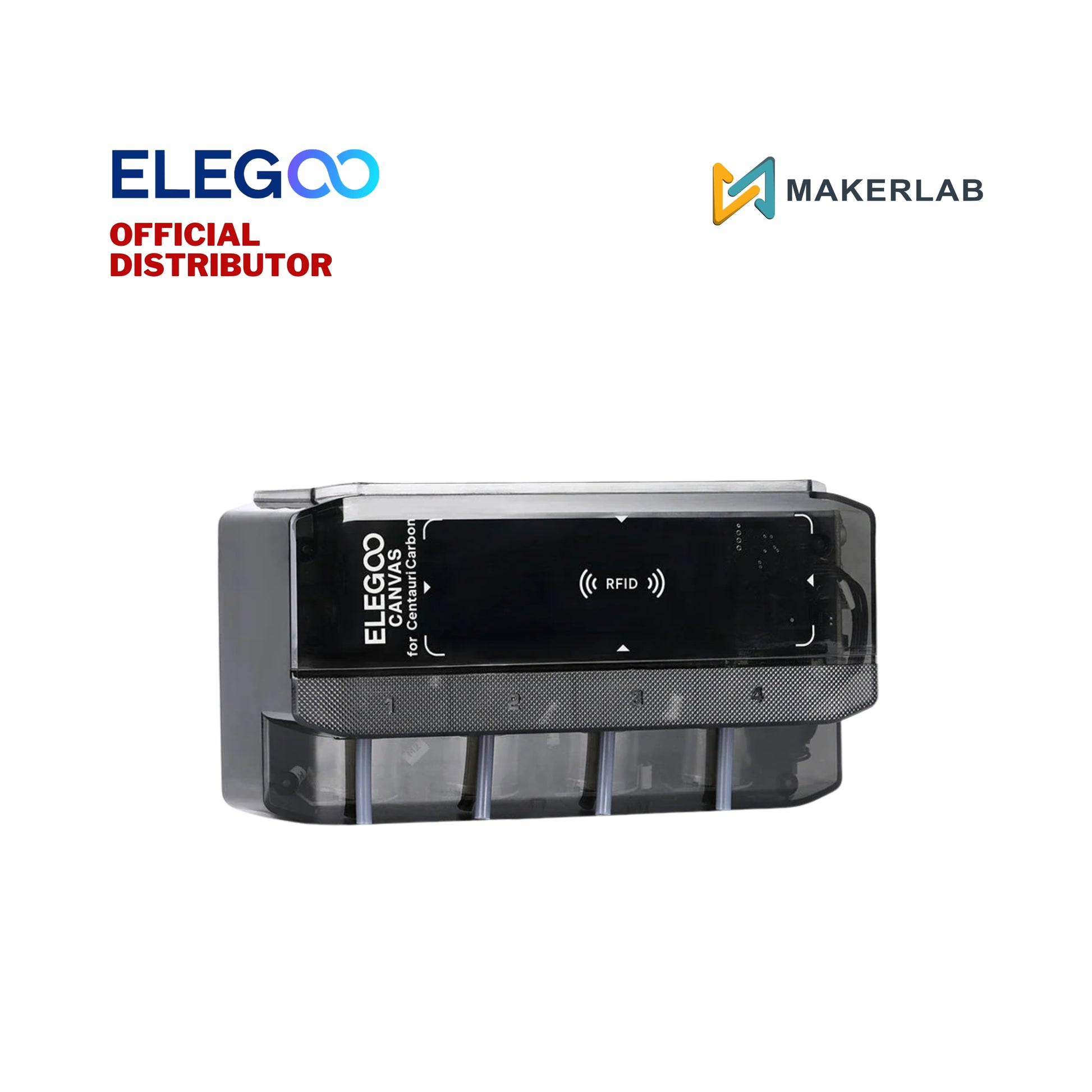

The Elegoo Canvas is an official multi-material automatic filament switching system designed specifically for the Elegoo Centauri Carbon CoreXY 3D printer platform.
Serving as Elegoo's answer to automated multi-color and multi-material printing, the Canvas unit manages up to 4 filament spools simultaneously (expandable via daisy-chaining depending on ecosystem setup). It actively drives, retracts, and feeds filament through a centralized hub directly to the toolhead. This enables continuous color switching, automated spool rollover (relay when one spool depletes), and printing complex geometries using dedicated breakaway or soluble support materials (such as PVA or TPU/PETG combinations).
Features
Unlock 4-Color Printing - Designed for vibrant prints with smooth, seamless color transitions. Four independent motors handle each filament, enabling fully automated 4-color printing in a single workflow that even beginners can handle.
Compatible with Everyday Materials - PLA, ABS, ASA, PETG, PC, and beyond. CANVAS is built to support a broad range of filaments, so you can choose the right material for every project, from everyday prints to more demanding applications.
Faster Prints with Instant Color Switching - Keep your creativity flowing with instant color switching, enabled by independent motor control and minimized feed paths.
RFID Filament Detection - Elegoo RFID-tagged filaments are auto-recognized, activating the recommended print settings for their type and color — no need to fiddle with options.
Filament Auto-Refill - Choose auto refill with multiple identical spools — when one spool runs out, printing continues smoothly with the next, so you can relax while the printer keeps working uninterrupted.
Tangle Prevention - Tangles are automatically detected and trigger a pause, while an upgraded spool holder tightly rewinds unused filament to minimize tangles and waste.
Specifications
Product Dimensions: 168 × 68 × 95 mm
Multicolor Capability: Supports up to 4 colors
Filament Diameter: 1.75mm
Spool Dimensions
Width: 40–70 mm, Inner diameter: 53–58 mm
Supported Filament
Ideal: PLA, PETG, ABS, ASA
Capable: PC, PA, PET, Fiber-Reinforced Filaments
Printing Speed: ≤500 mm/s (Recommended 250 mm/s)
Maximum Acceleration: 20000mm/s²
Machine Power: 7W
Rated Voltage: DC 24V (powered via the connector for the printer)
Feeding Method: Multi-channel independent control
RFID Filament Detection: Yes
Filament Tangle Detection: Yes
Filament Auto-Refill: Yes
OTA Upgrade: Yes
