Description

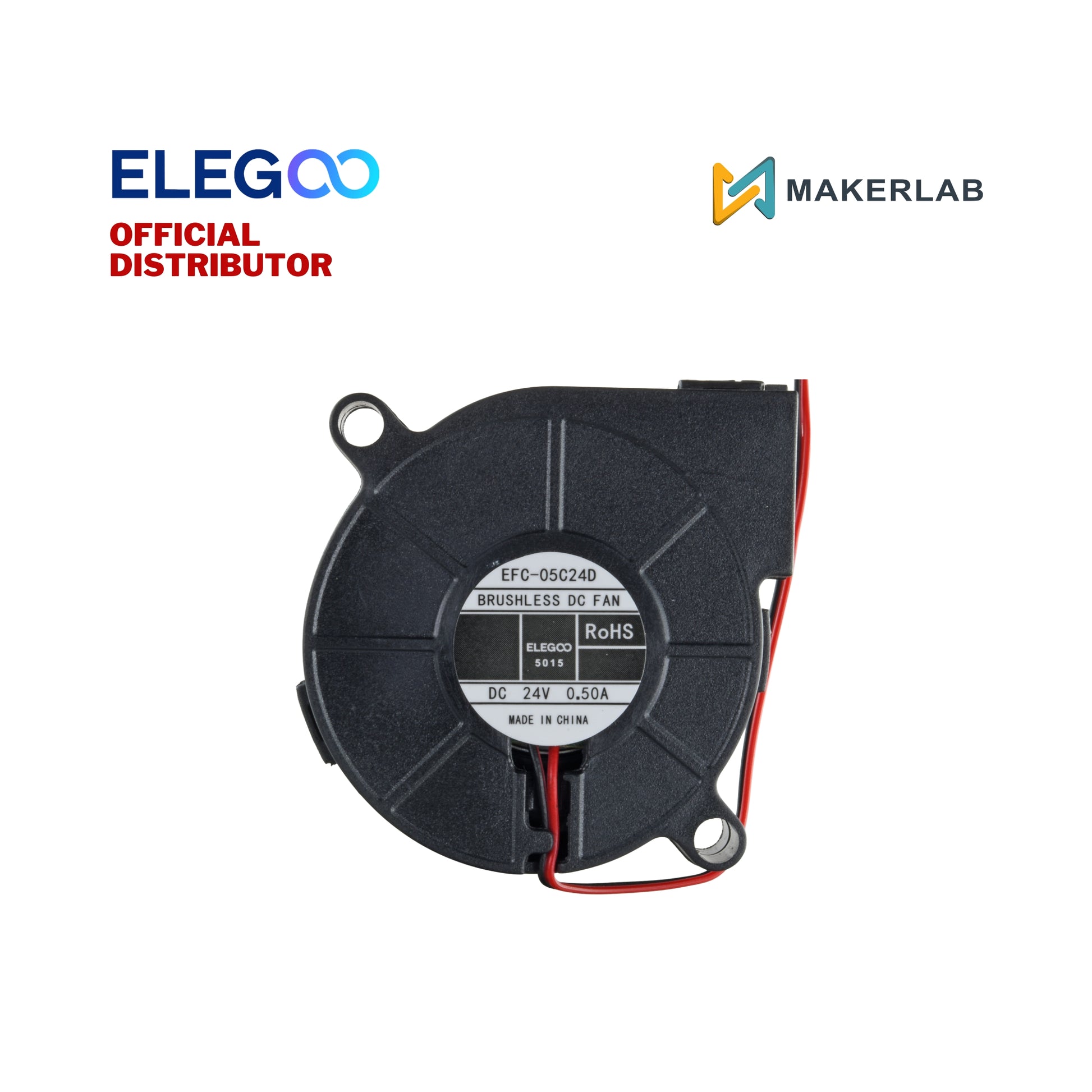

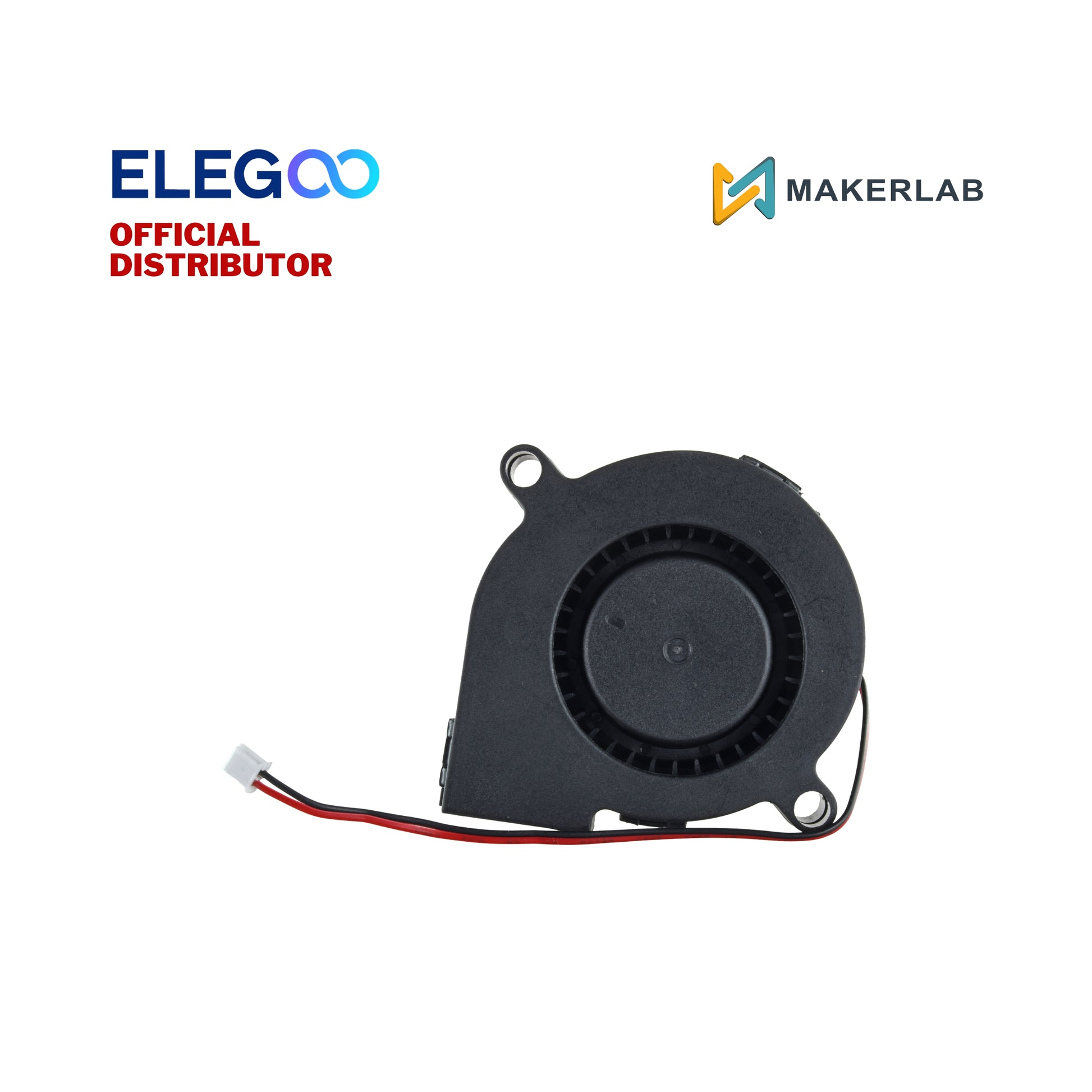

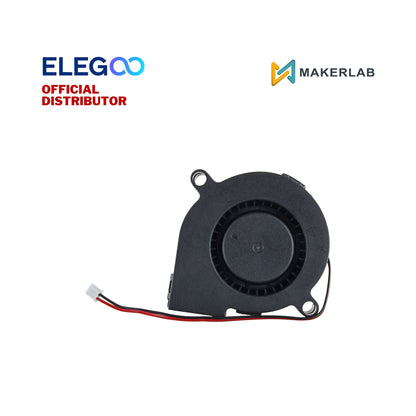

The 5015 Blower Fan is a centrifugal radial fan engineered specifically for Part Cooling. Unlike axial fans that move air in a straight line, this blower pulls air through the center and exhausts it at a high velocity through a side vent.
On the OrangeStorm Giga, two of these fans work in tandem to provide "Powerful Double-Sided Cooling." This setup is vital for high-speed printing at 300 mm/s, as it ensures that newly deposited layers of PLA or PETG are solidified instantly. This high-volume airflow is the reason the Giga can handle aggressive 75° overhangs and long bridges without drooping.
Features
High-Speed Ball Bearing: Utilizing dual ball bearings, this fan is rated for up to 15,000 RPM, providing significantly more longevity and stability than sleeve-bearing alternatives.
Centrifugal Airflow: Optimized for static pressure, allowing the fan to push air effectively through custom-designed cooling ducts on the toolhead.
Intelligent Control: Integrated with the Giga’s firmware to automatically stop once a print is complete, which reduces idle noise and saves energy.
High Volumetric Flow: Capable of contributing to the toolhead's total 42 CFM airflow capacity, essential for cooling large-scale models.
Plug-and-Play Design: Features the specific wiring length and micro-connector (JST) required for the Giga's toolhead PCB, eliminating the need for wire splicing.
Specifications
Model Number: 04.203.0025
Compatible Printer: Elegoo OrangeStorm Giga
Fan Type: Centrifugal Blower (Radial)
Bearing Type: Dual Ball Bearing
Dimensions: 50 x 50 x 15 mm
Operating Voltage: 24V DC
Rated Speed: ~15,000 RPM
Acoustic Noise: ~58 dBA (at full power)
