Description

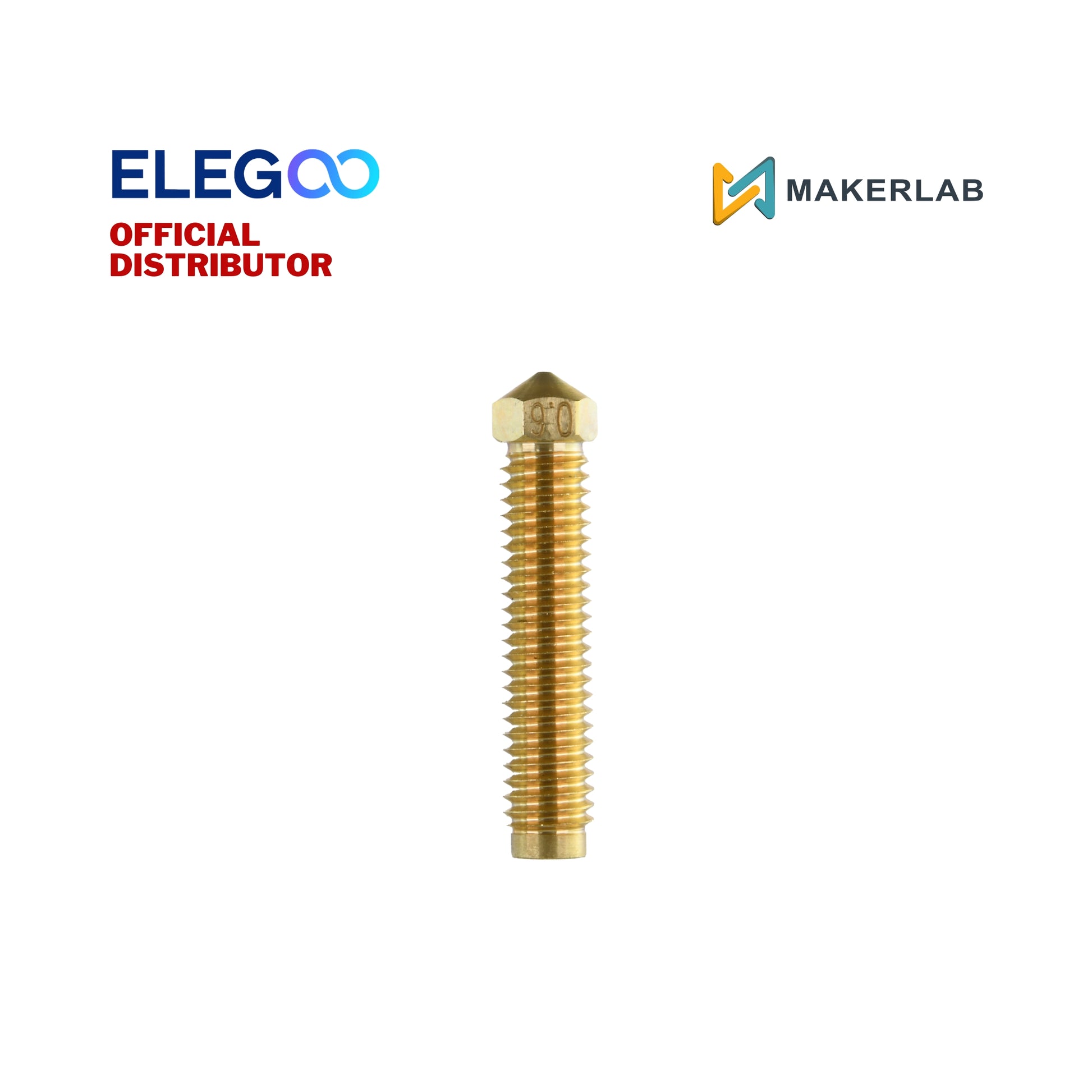

The 0.6mm Nozzle is the "standard" workhorse for the OrangeStorm Giga. While many desktop printers default to 0.4mm, the Giga utilizes this 0.6mm bore to better handle its massive 800 x 800 x 1000mm build volume. This larger diameter allows for wider extrusion lines and thicker layers, significantly reducing the total print time for oversized industrial models without sacrificing structural integrity.
Constructed from a high-conductivity Chrome-Zirconium-Copper alloy, this nozzle is engineered to maintain a stable 300°C temperature. It is specifically designed to work with the Giga's 60W ceramic heating element, ensuring that filament is melted uniformly even at speeds of 300 mm/s.
Features
High-Flow Geometry: The 0.6mm orifice is optimized for volumetric flow rates up to 35mm/s, essential for large-format printing.
Chrome-Zirconium-Copper Construction: Offers superior thermal conductivity compared to standard brass, ensuring rapid and even heat distribution for consistent extrusion.
300°C High-Temp Support: Fully compatible with the Giga’s titanium heat break, allowing for the printing of PLA, PETG, TPU, and more technical filaments.
Polished Internal Bore: Features a mirror-smooth inner wall (Ra < 0.4) to reduce filament friction and prevent clogging during multi-day print cycles.
M6 Threading: Standardized threading ensures a leak-proof, direct fit into the OrangeStorm Giga’s unique large-format heater block.
Specifications
Model Number: 02.207.0060
Compatible Printer: Elegoo OrangeStorm Giga
Nozzle Diameter: 0.6 mm
Filament Diameter: 1.75 mm
Material: Chrome-Zirconium-Copper / Hardened Brass
Max Temperature: 300°C
Thread Type: M6
Tolerance: ±0.01 mm
