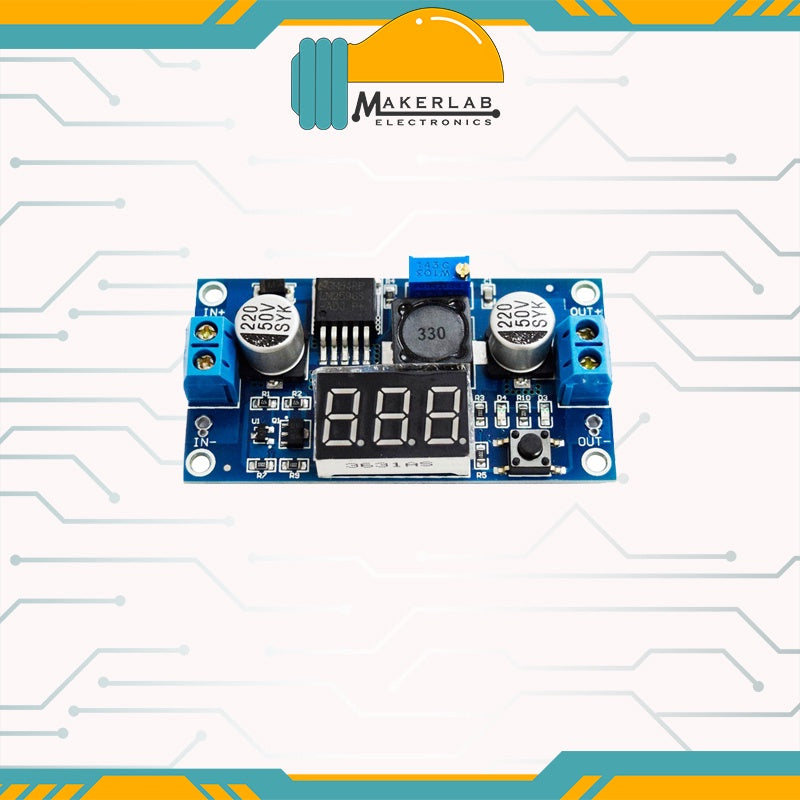

LM2596 DC-DC Buck Converter with 7 Segment Display

Description

This DC-DC Buck Converter with 7 Segment Display LM2596 shows the current input and output voltages on its built-in display. The LM2596 step-down switching regulator is capable of delivering current up to 3A, with an adjustable output voltage of 1.25V–30V via the trimpot.

Specifications

• Input voltage: 4V – 35V
• Adjustable output voltage: 1.25V – 30V
• Output current: 3A
• Display: 7-segment LED, shows input and output voltage
• PCB size: 68 × 35 mm

Documents

• LM2596 Datasheet
