Description

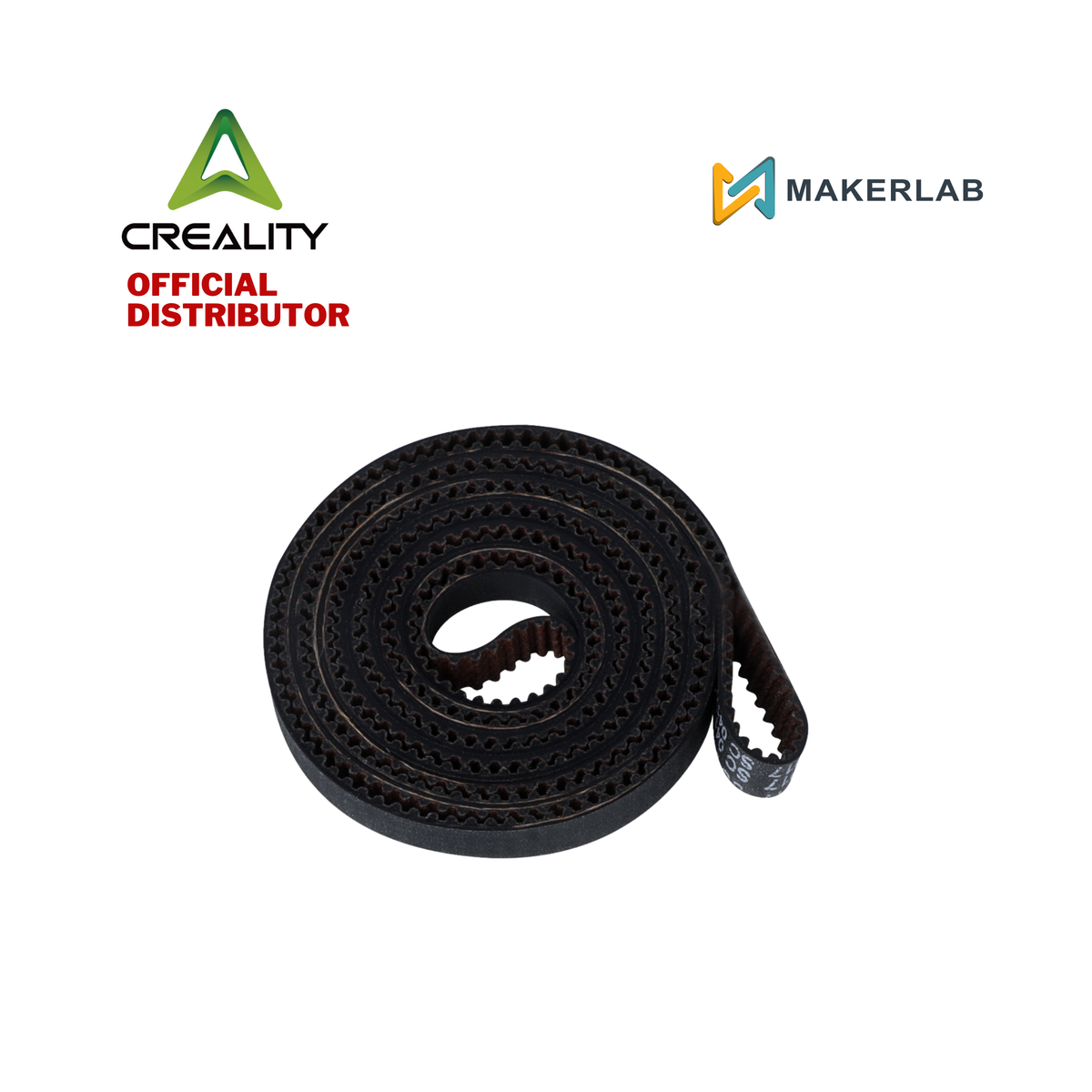

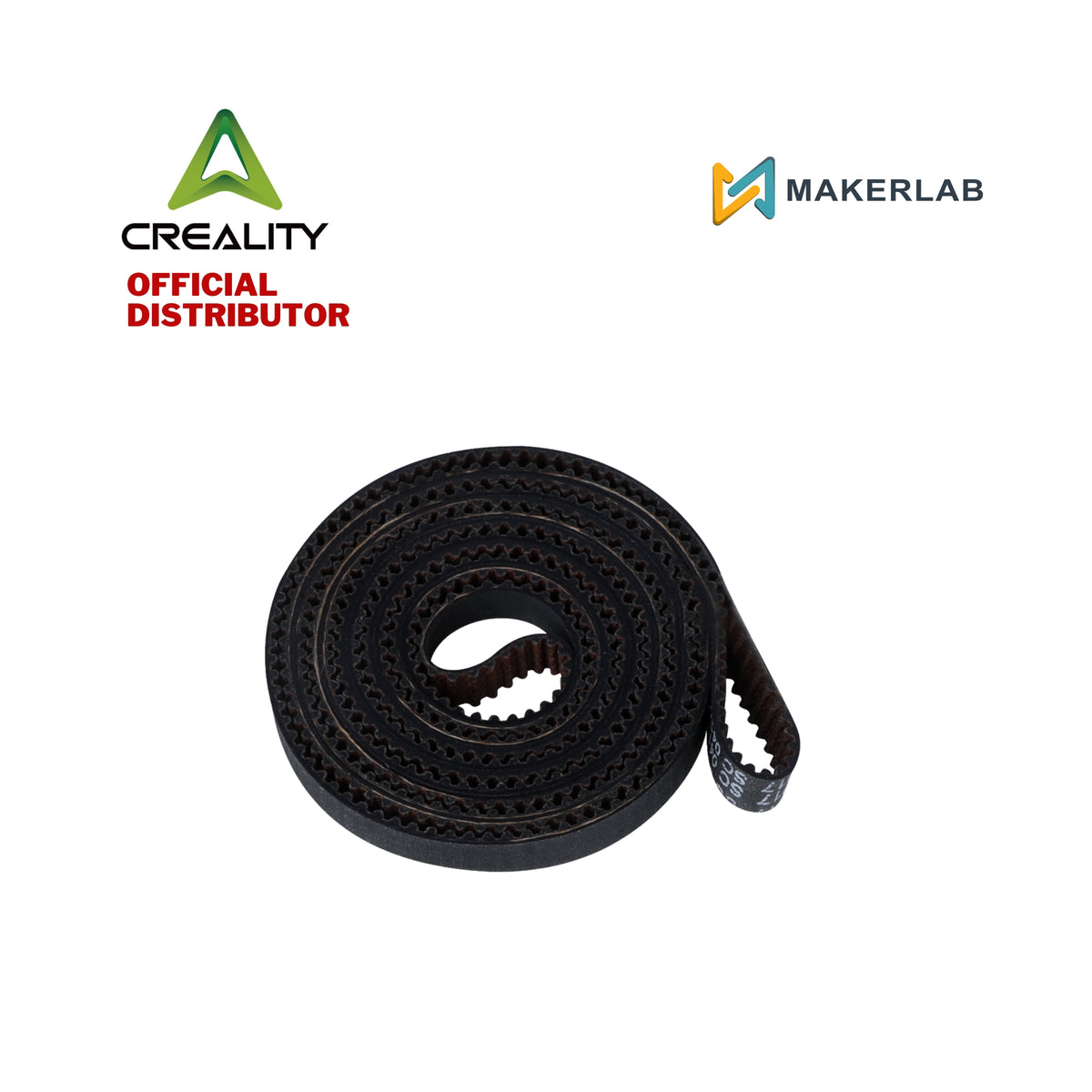

The Z-axis Loop Belt is a critical mechanical component for the K2 models. Unlike open-ended belts, this is a continuous closed-loop belt that synchronizes the dual Z-axis lead screws or motors.
Engineered for the high-performance demands of the K2 series, it ensures that the heavy build platform (350mm on the Plus model) moves with perfect vertical alignment. This level of precision is vital for eliminating "Z-banding" and ensuring consistent layer registration during high-speed prints.
Features
Perfect Synchronization: Ensures that both sides of the Z-axis gantry move in perfect unison, preventing the bed from tilting.
Closed-Loop Design: Eliminates the need for manual crimping or buckles, providing a stronger, more reliable transmission of power.
Fiberglass Core: Reinforced with internal fiberglass cords to prevent stretching, maintaining accurate Z-steps over thousands of hours of use.
High-Temperature Resistance: Rated to withstand environment temperatures up to 105°C, making it ideal for the K2's actively heated chamber.
Wear-Resistant Teeth: Features a low-friction nylon coating on the teeth to reduce mechanical noise and prevent the buildup of rubber debris.
Also Fits the M300: The K2 Pro belt is specified for both the K2 Pro and the M300.
Specifications
Compatible Printers: Creality K2
Belt Type: GT2 (Closed-Loop / Synchronous)
Belt Dimensions: 6mm Width, 976mm Length
Pitch: 2 mm
Material: Neoprene Rubber with Fiberglass Reinforcement
Heat Resistance: Up to 105°C
