Description

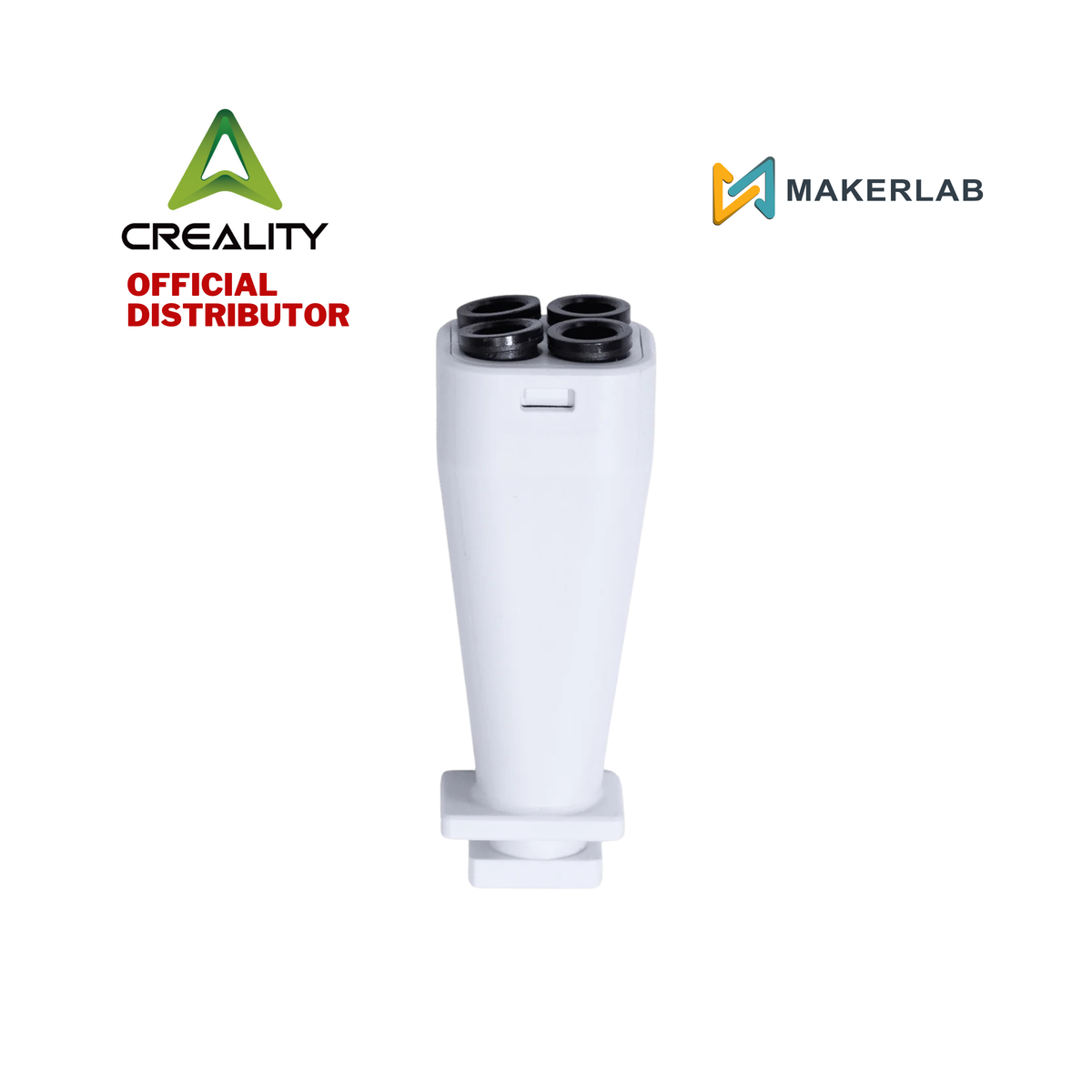

The i7 Toolhead Manifold is the convergence point of the printer's multi-material system. Also referred to by Creality as the Filament Hub, this 4-in-1 block accepts filament from up to four PTFE tubes and merges them into a single feed path leading down into the extruder assembly. Positioned above the filament sensor at the top of the toolhead, it keeps each incoming line separated, aligned, and correctly seated so the printer can select any of the four loaded materials on demand.
That routing job is what makes clean multi-color printing possible on the SPARKX i7 with the CFS Lite system. Each colour change sends filament through this block during unload and reload, so the internal channels see constant abrasion over long multi-material runs. Worn, scored, or clogged channels introduce friction that shows up as failed loads, jammed filament changes, inconsistent feeding, or mid-print colour swap errors. Fitting a fresh manifold restores smooth, low-friction guidance through all four paths and returns the toolhead to normal switching behaviour.
Features
Four-Way Filament Convergence: Accepts up to four separate PTFE feed lines and merges them into one clean path to the hotend.
Supports Automatic Filament Selection: Keeps each line correctly positioned so the printer can pick and load any of the four loaded materials without manual intervention.
Low-Friction Guidance: Smooth internal channels reduce drag and lower the risk of clogging during rapid loading and retraction cycles.
CFS Lite Compatible: Designed to work as part of the SPARKX i7's multi-colour and multi-material printing setup.
Toolhead-Mounted Position: Installs above the filament sensor within the toolhead assembly as part of the filament delivery path.
Genuine Creality Replacement: Original Creality spare part specifically listed for the SPARKX i7.
Precise Compatibility: Designed specifically for the Creality SPARKX i7.
Direct Service Replacement: Suitable for replacing a manifold with worn, scored, or clogged channels causing feeding and colour-change faults.
Dedicated Replacement Guide: Creality provides an official step-by-step filament hub replacement procedure for the i7 series.
Specifications
Product Name: Creality SPARKX i7 Toolhead Manifold
Part Number: 4004010321
Also Known As: i7 Filament Hub / 4-in-1 Manifold Hub / PTFE Manifold
Compatibility: Creality SPARKX i7
Type: Four-Way Filament Manifold
Application: Multi-Material Filament Routing to the Extruder
Manufacturer: Shenzhen Creality 3D Technology Co., Ltd.
