Description

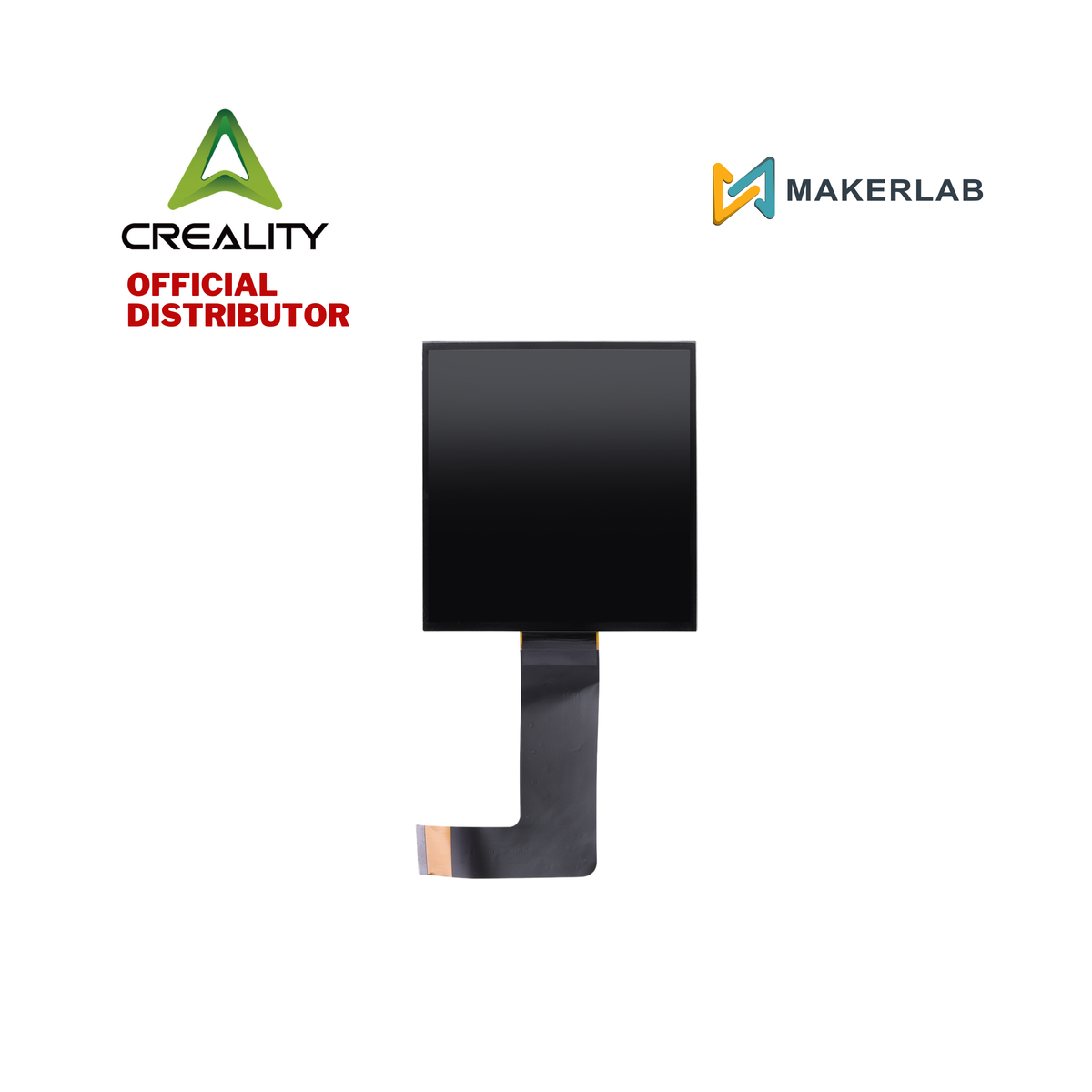

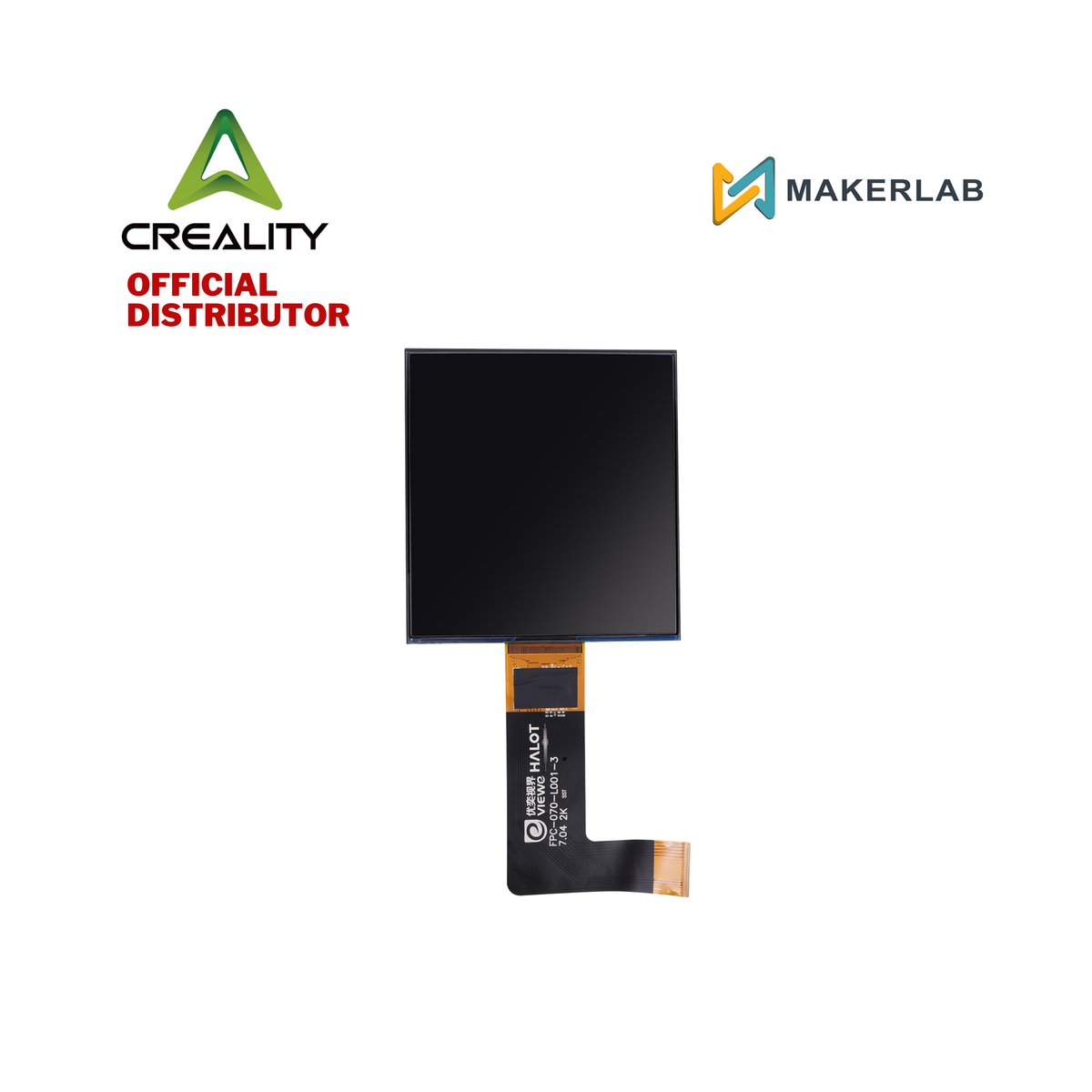

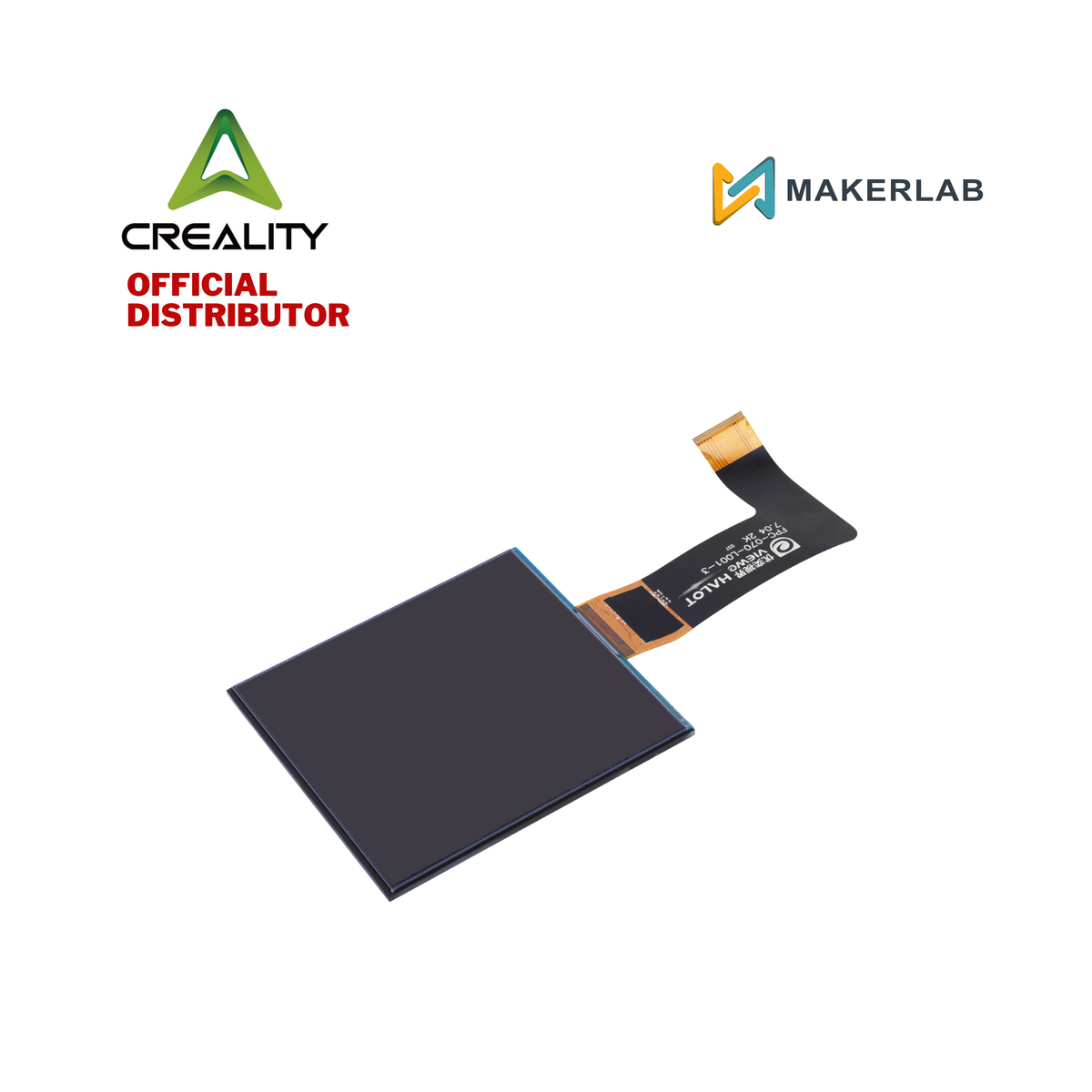

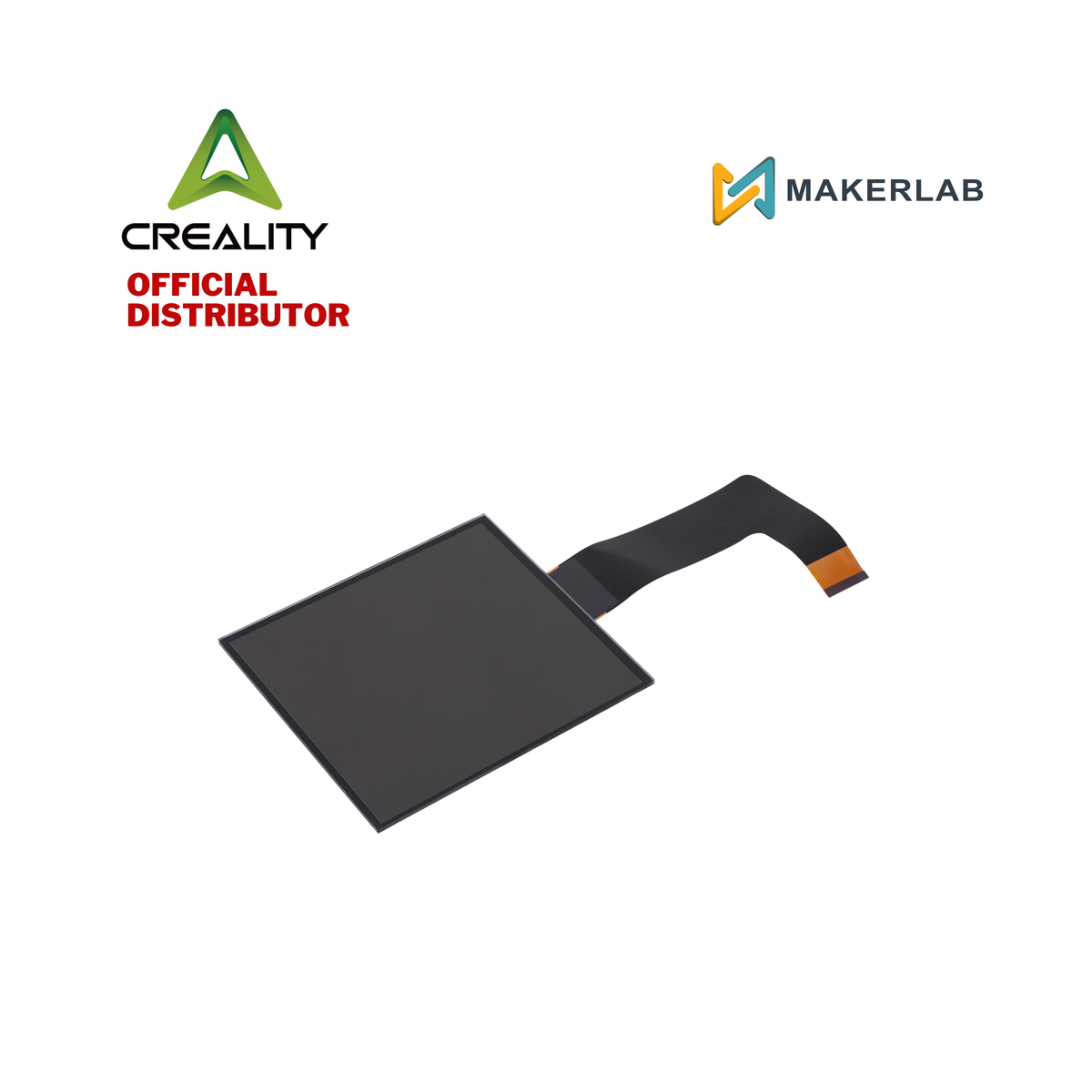

The Print Screen Kit is the 7.04-inch monochrome masking LCD of the Creality HALOT-ONE PRO — the component that forms every layer of a resin print. It sits above the light source and selectively blocks or passes 405nm UV light to cure each cross-section of the model in the resin vat. At 2560 × 2400 (3K) resolution it delivers 0.051mm XY accuracy on the HALOT-ONE PRO.
The masking LCD is a consumable. Continuous UV exposure degrades the panel over time, and resin leaks, punctures from failed prints, or a dropped build plate can damage it outright. Symptoms of a worn or failing screen include dead pixels or lines appearing in prints, patchy or incomplete curing, layers that fail to adhere, and steadily declining print detail. Creality officially lists 4001150011 as the HALOT-ONE PRO print screen.
Features
7.04-Inch Monochrome LCD: Original panel size and type for the HALOT-ONE PRO, preserving the printer's designed accuracy.
2560 × 2400 (3K) Resolution: Delivers the 0.051mm XY axis accuracy the HALOT-ONE PRO is specified for.
Monochrome Panel: Mono LCDs allow faster curing and longer service life than older RGB panels.
405nm UV Compatible: Matched to the printer's integral 405nm light source.
Restores Print Quality: Replacing a degraded screen eliminates dead pixels, patchy curing, and loss of fine detail.
Genuine Creality Replacement: Original Creality spare part specifically listed for the HALOT-ONE PRO.
Direct Service Replacement: Suitable for replacing a screen damaged by resin leakage, puncture, or normal UV wear.
Specifications
Product Name: Creality HALOT-ONE PRO Print Screen (LCD)
Part Number: 4001150011
Compatibility: Creality HALOT-ONE PRO
Type: Monochrome Masking LCD / Print Screen
Screen Size: 7.04 inch
Resolution: 2560 × 2400 (3K)
XY Axis Accuracy: 0.051 mm
Light Source Wavelength: 405 nm
Manufacturer: Shenzhen Creality 3D Technology Co., Ltd.
Product Category: Resin 3D Printer LCD Screen
