Description:

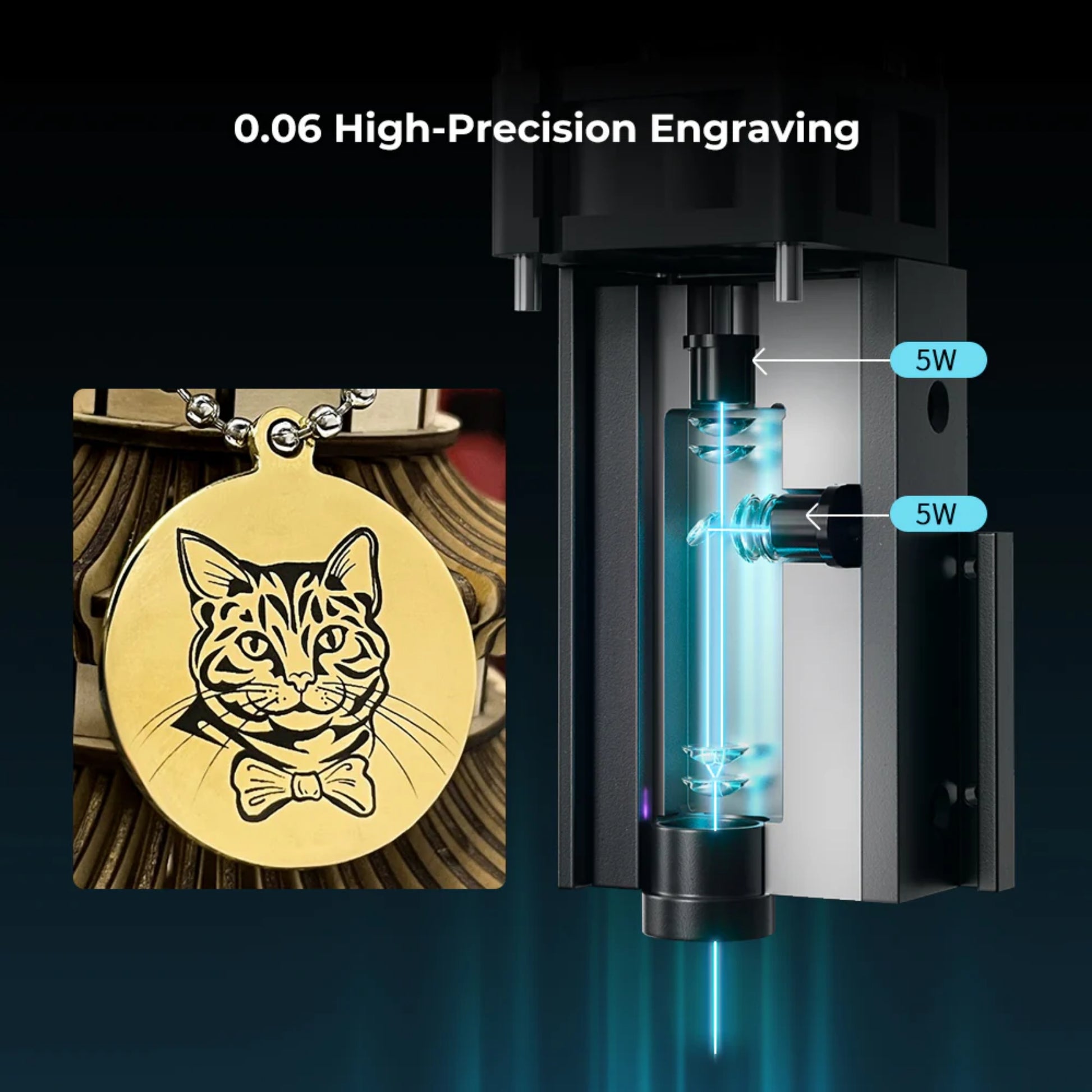

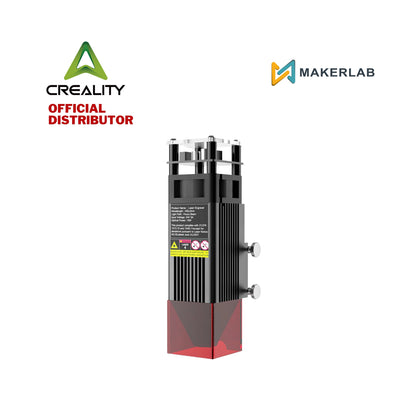

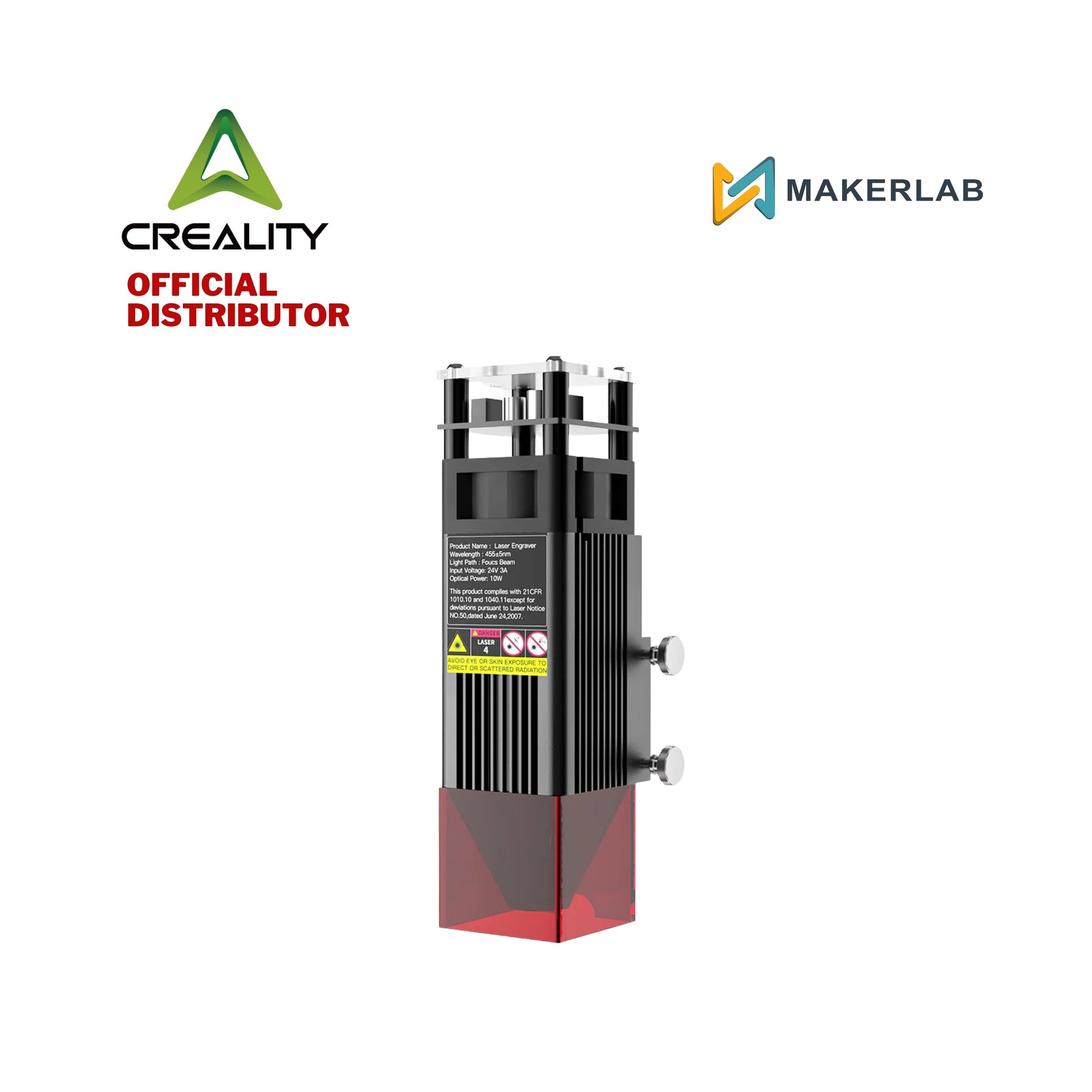

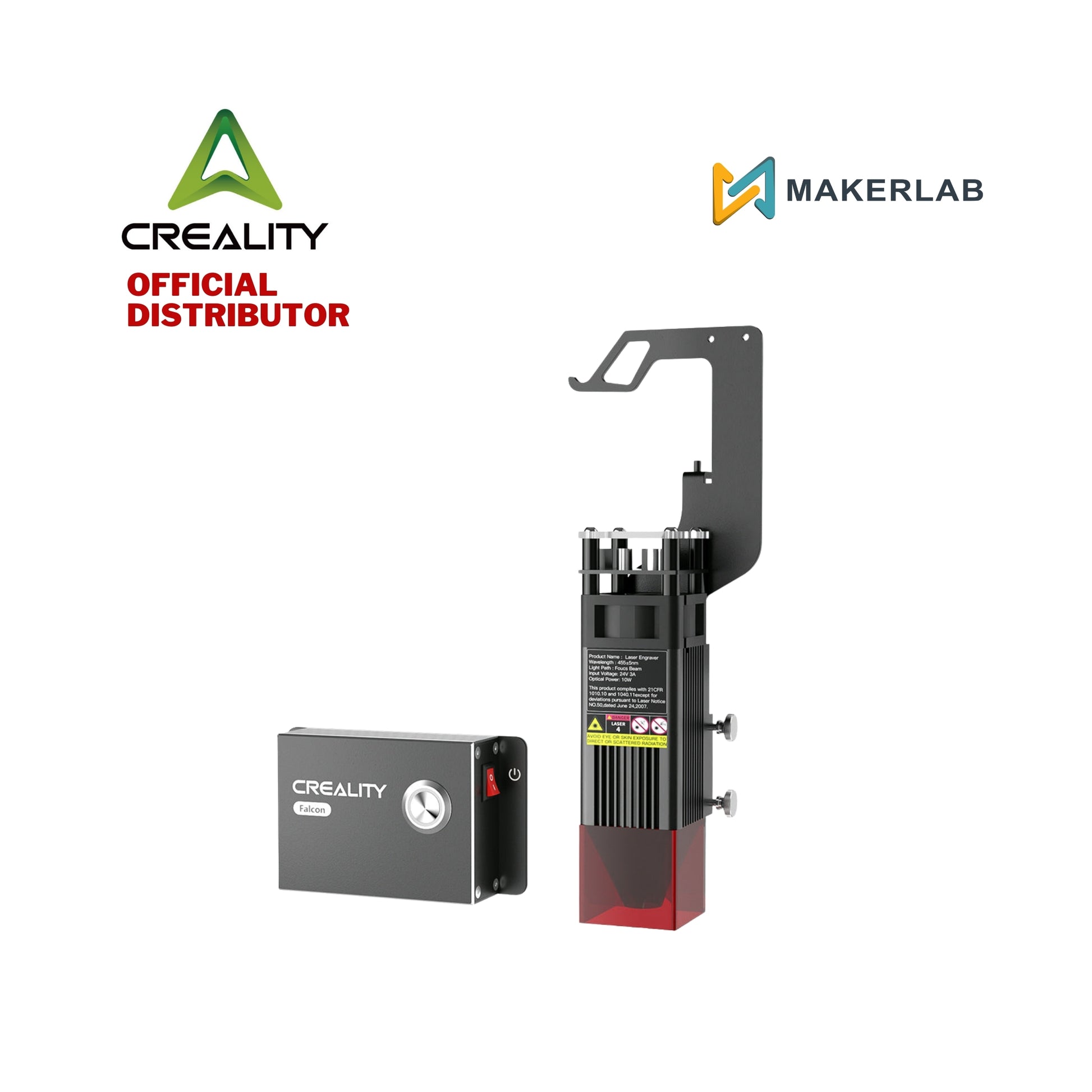

The Creality 10W Laser Module is a "plug-and-play" upgrade specifically designed for the Ender series ecosystem. Utilizing advanced diode compression technology, it combines two 5W laser beams into a single 10W point, resulting in a significantly smaller focal spot and higher energy density.

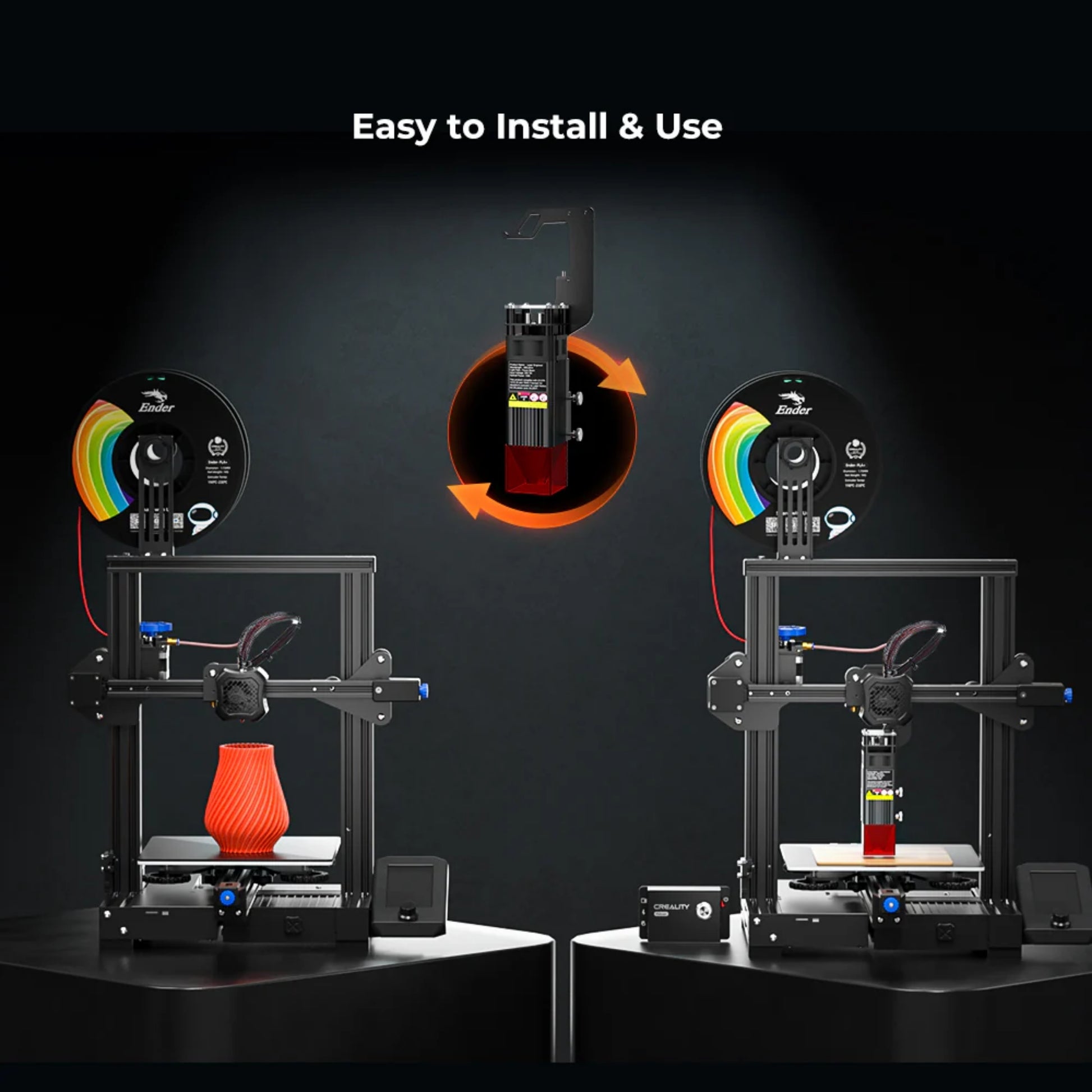

This module is capable of cutting through materials that standard 1.6W or 5W lasers cannot, such as 12mm wood boards in a single pass. It features an integrated air-cooling system and a specialized protective shield that filters UV light, allowing for a safer and cleaner engraving experience. The kit includes a magnetic mounting plate that attaches directly to the printer's gantry, requiring no complex mechanical modification.
Features:
High-Power Cutting: The 10W output is strong enough to cut through basswood, acrylic, and bamboo, as well as engrave on stainless steel and ceramics.
Compressed Spot Technology: Achieves a precise focal spot of approximately 0.06mm x 0.06mm, enabling high-detail photo engraving and clean cutting edges.

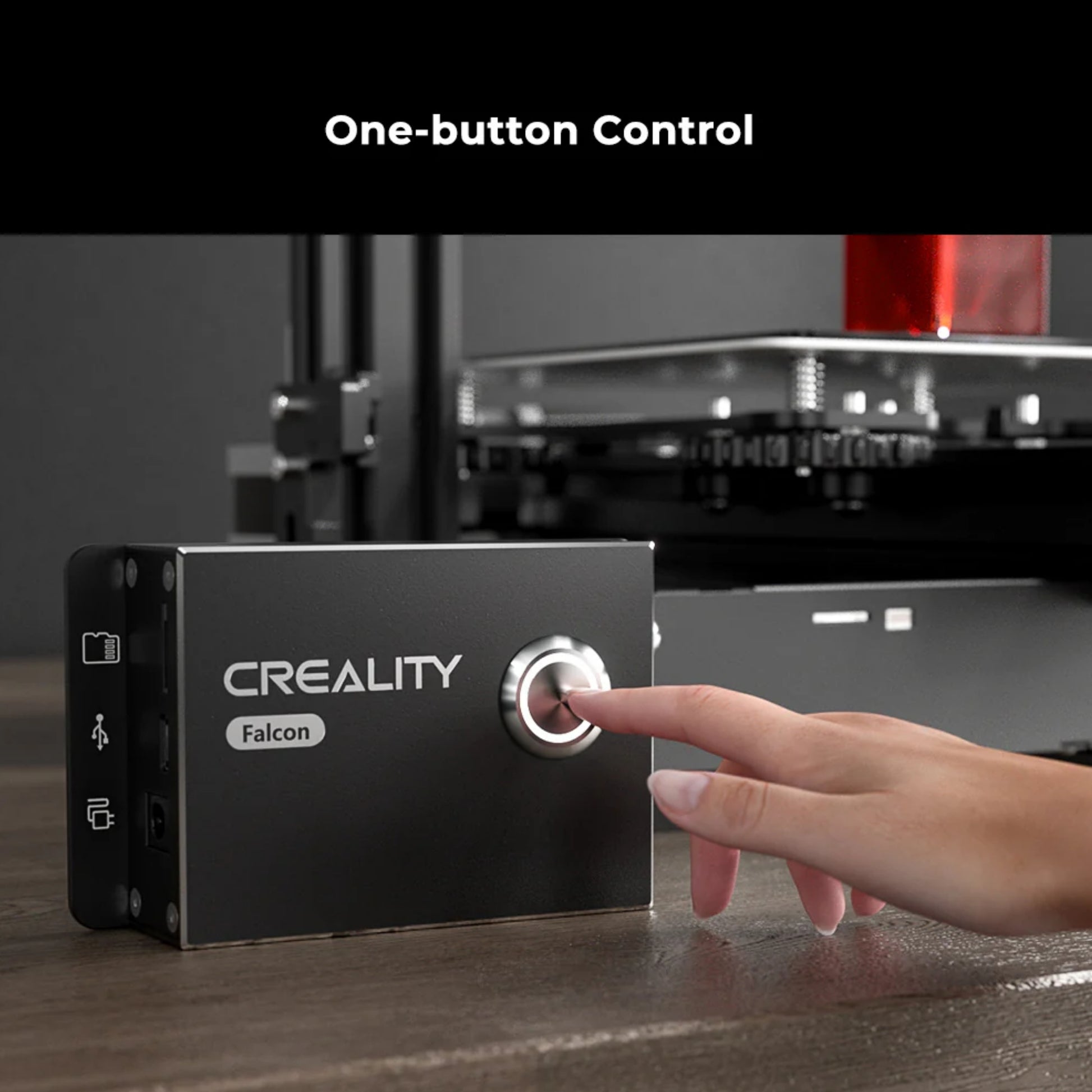

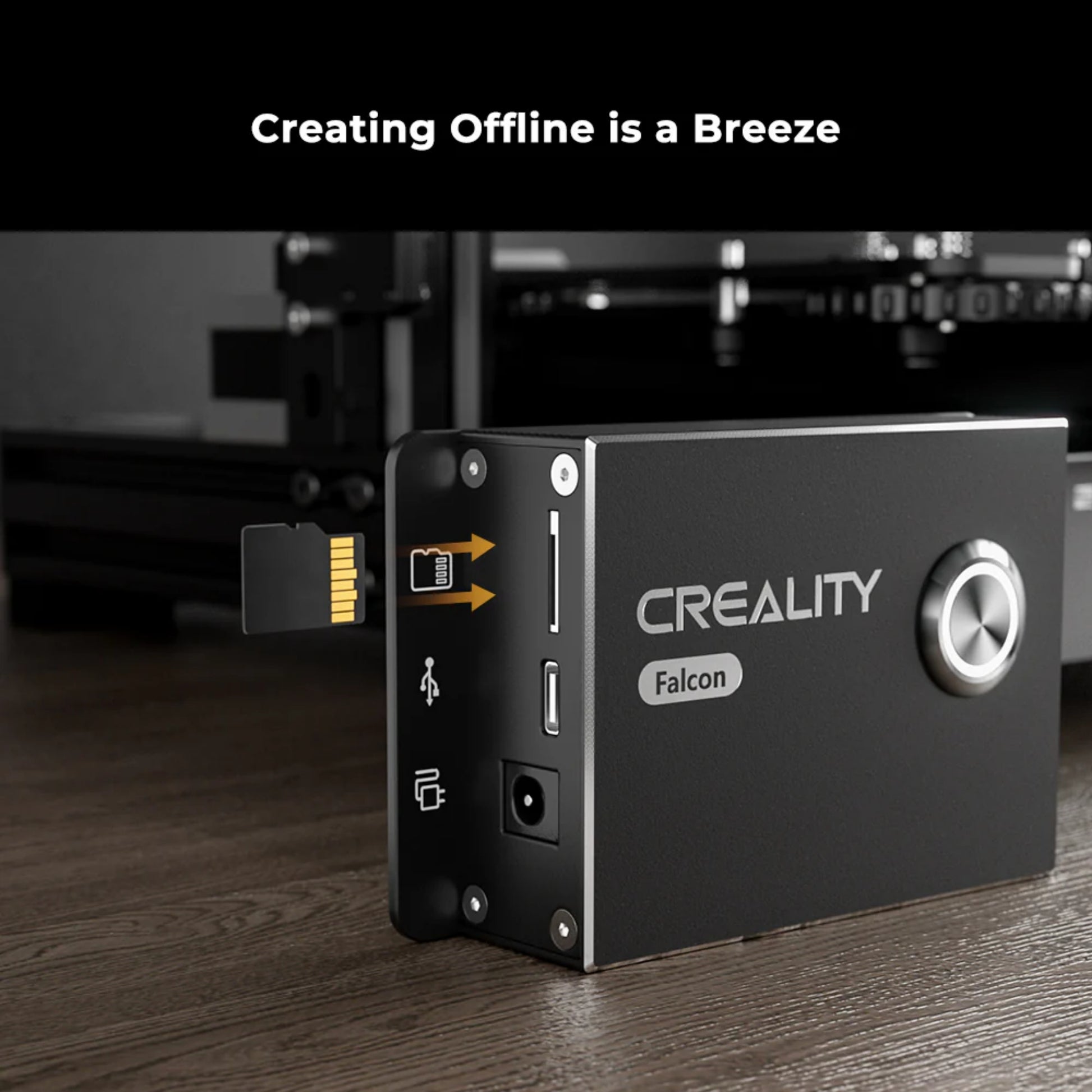

One-Button Control: Includes a dedicated control box for offline operation, allowing you to start, pause, or stop the laser with ease.
Safety Protection: Features a built-in fan for smoke dissipation and a UV-filtering eye shield that blocks $90\%$ of harmful radiation.
Air Assist Compatibility: Designed with a nozzle structure that facilitates the addition of air assist to prevent charring on the edges of wood.

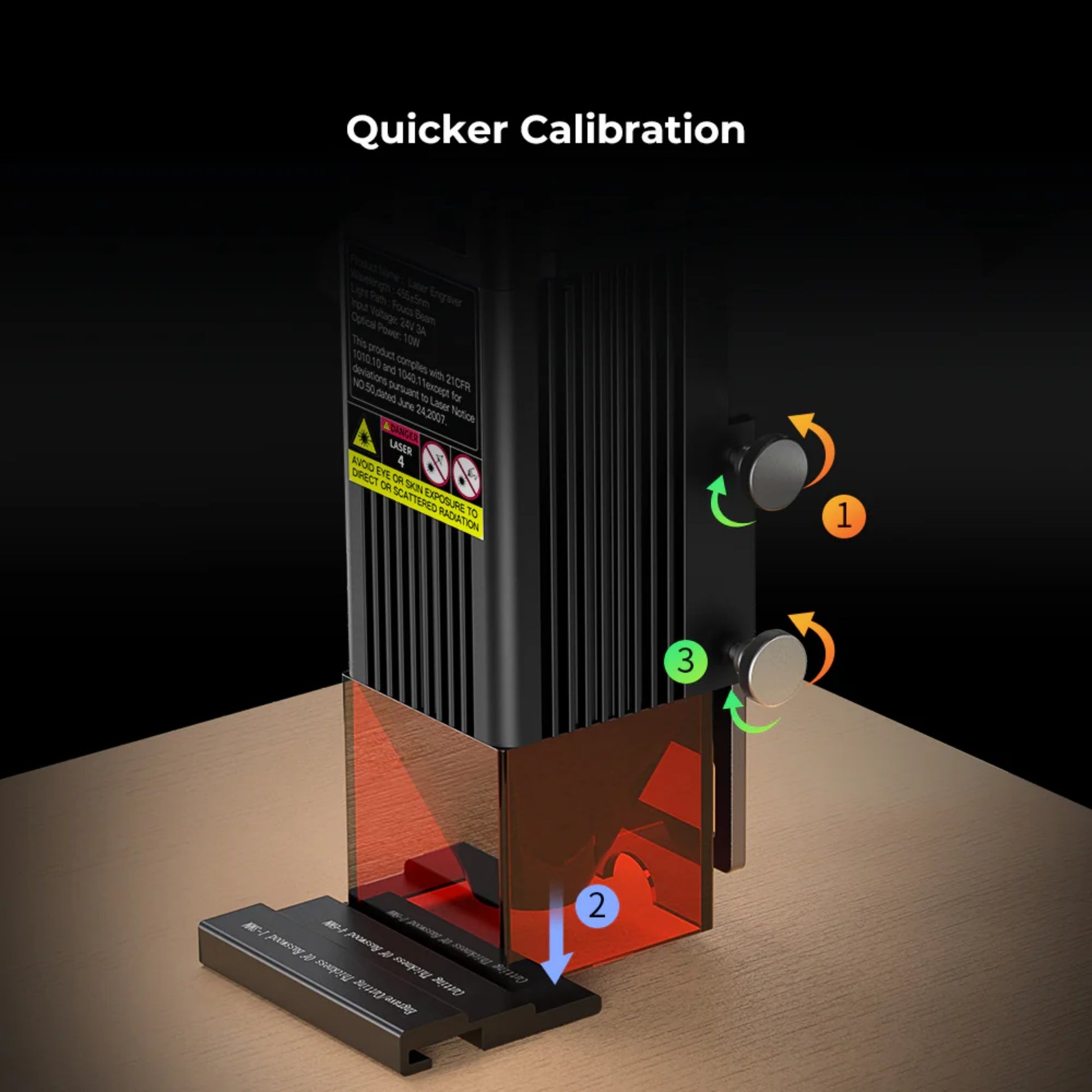

Easy Calibration: Includes a fixed-focus bar to quickly set the perfect distance between the lens and the workpiece.
Specifications:
Part Number: 4001100068
Laser Power: 10W
Laser Source: Semiconductor Diode
Wavelength: 455±5nm (Blue Laser)
Engraving Accuracy: 0.06 mm

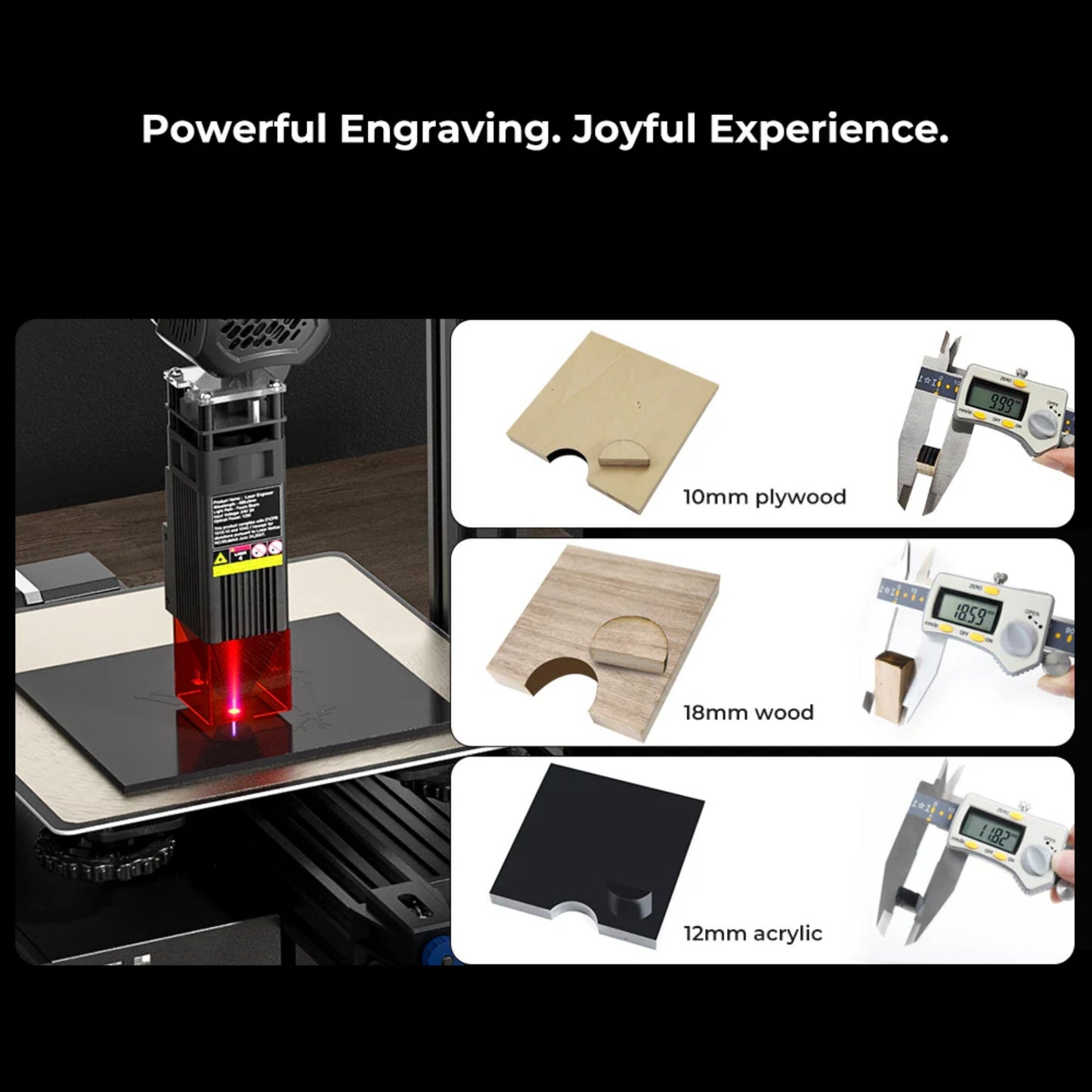

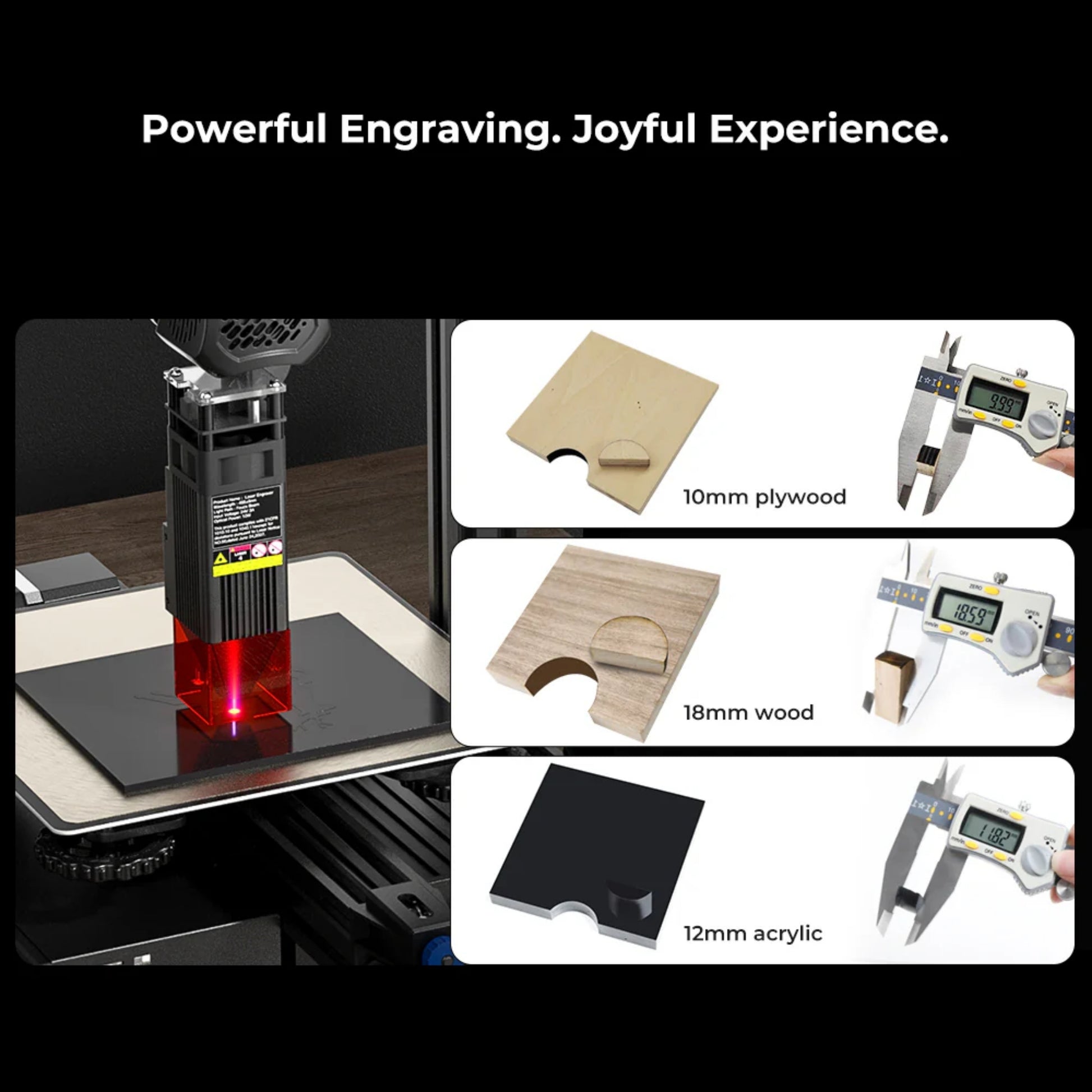

Cutting Capacity: Up to 12mm (Wood), 10mm (Acrylic)
Input Voltage: 24V DC
Compatibility: Ender-3 V2
