Description

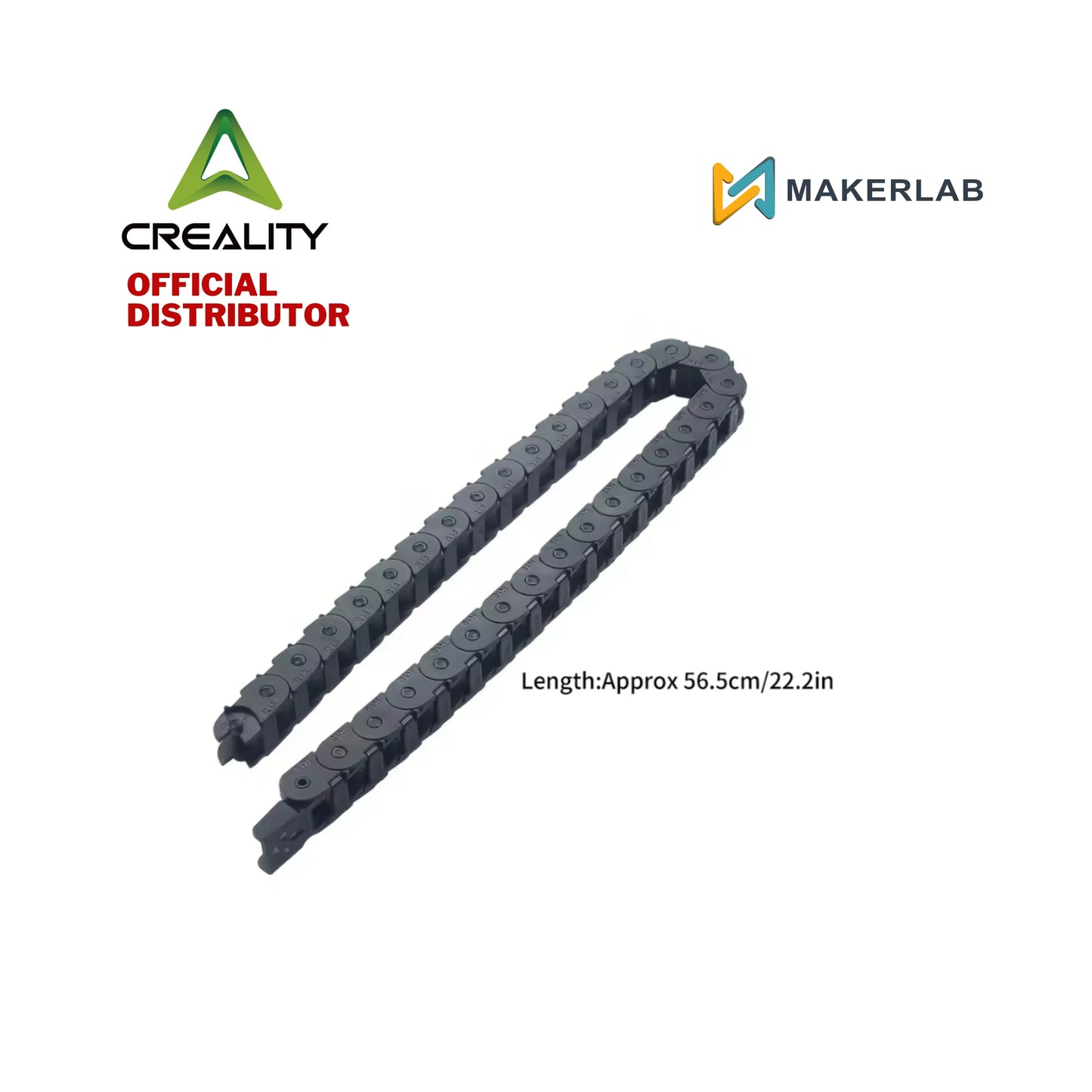

The K2 Plus Drag Chain is an essential structural part that ensures the electrical cables and PTFE filament tubes move smoothly during high-speed printing. Given that the K2 Plus operates at accelerations up to 30,000mm/s, a standard loose cable bundle would whip or snag; this tank track style chain constrains the cables to a specific bend radius, preventing fatigue and internal wire breakage.
Constructed from reinforced Nylon (PA66), it is designed to withstand the 60°C active chamber temperature of the K2 Plus without sagging or becoming brittle over time.
Features
High-Speed Stability: Specifically engineered to remain rigid during the K2 Plus ultra-fast 600mm/s travel moves, preventing cable flop that could ghost the print.
Optimized Bend Radius: Prevents the internal data cables and the PTFE tube from kinking, ensuring consistent filament extrusion and reliable sensor communication.
Low-Friction Nylon: Made from self-lubricating PA66 material to reduce noise and wear during the millions of cycles expected in a production environment.

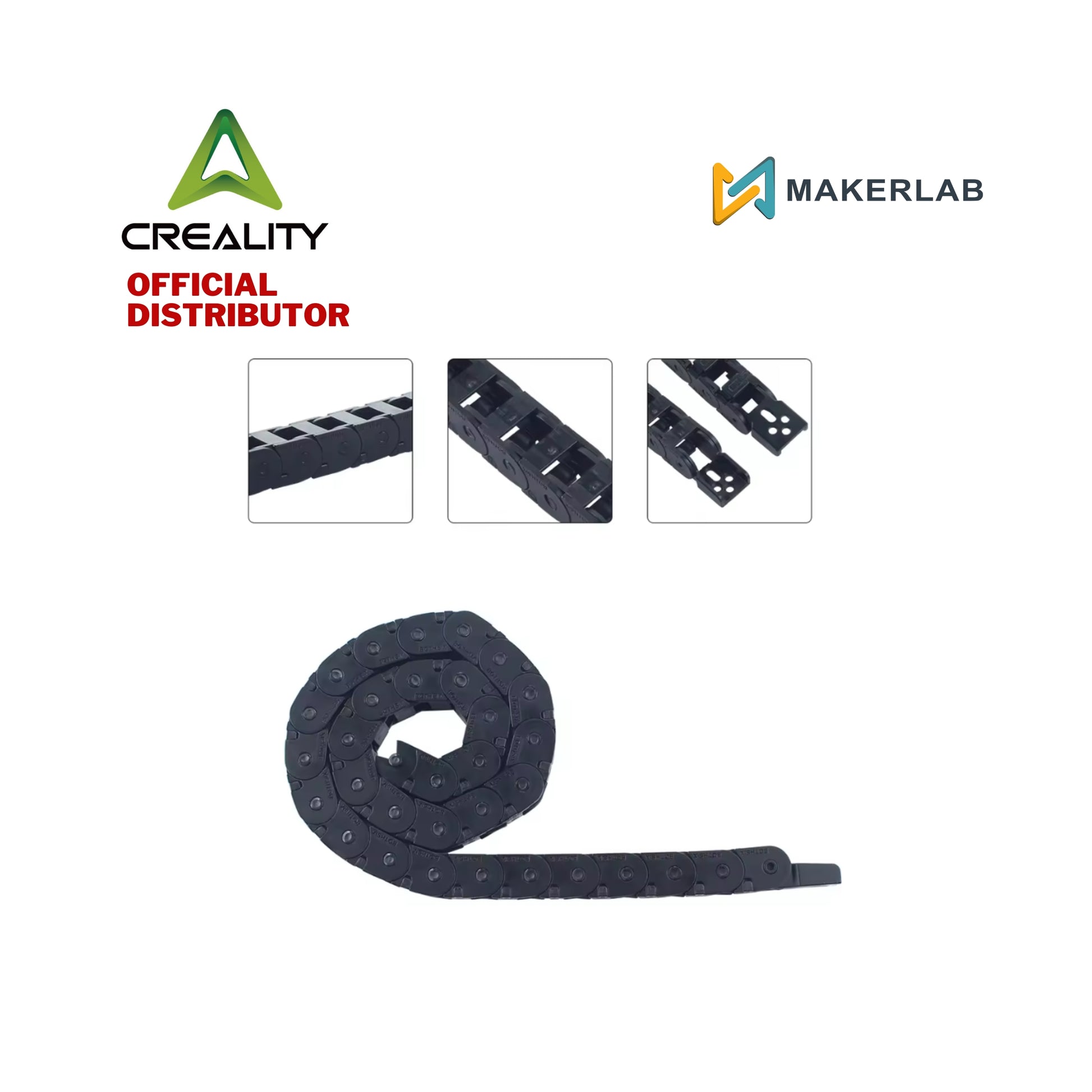

Open-Link Design: Features snap-open cross-links that allow for easy cable inspection or the addition of new wires (such as camera or LED upgrades) without unthreading the entire harness.

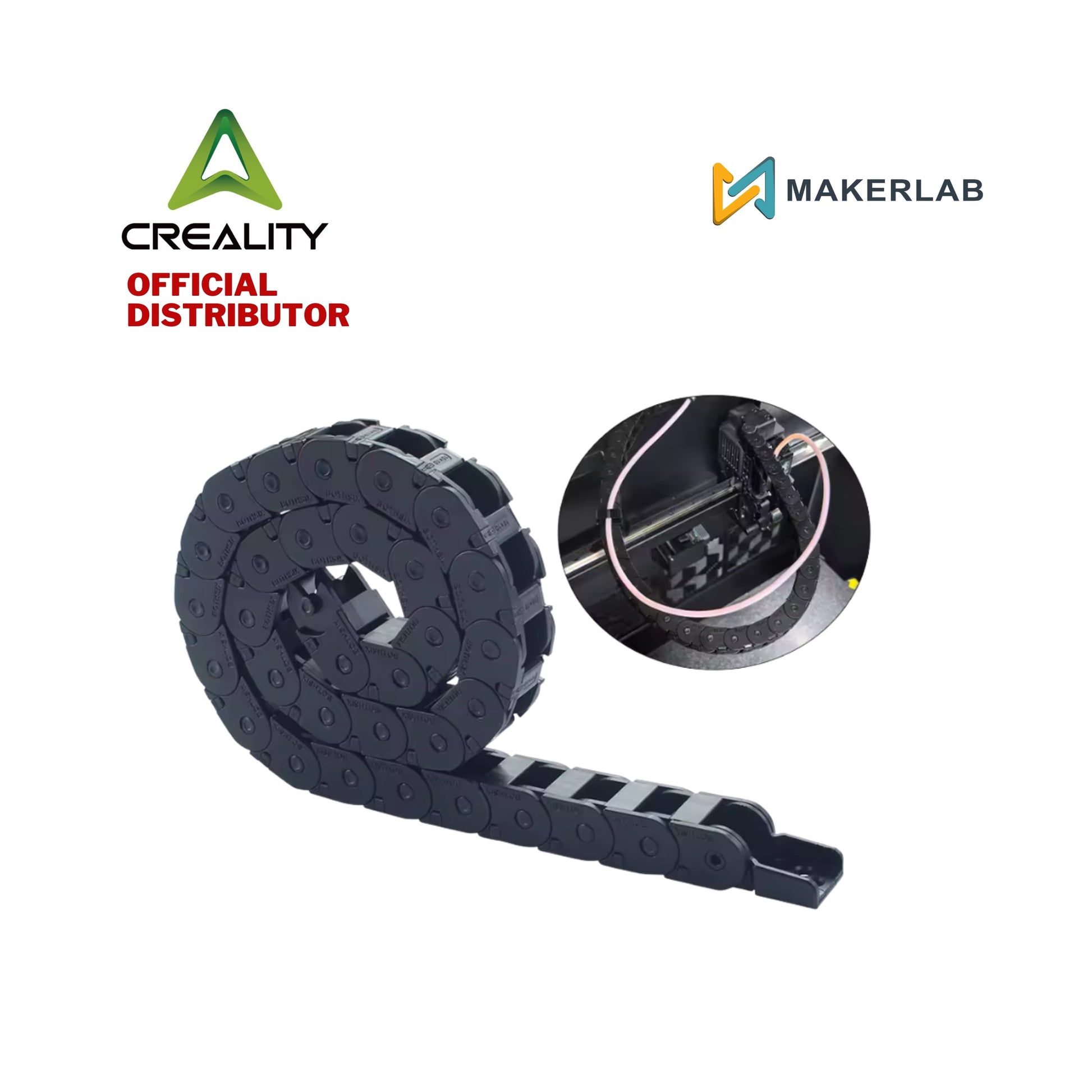

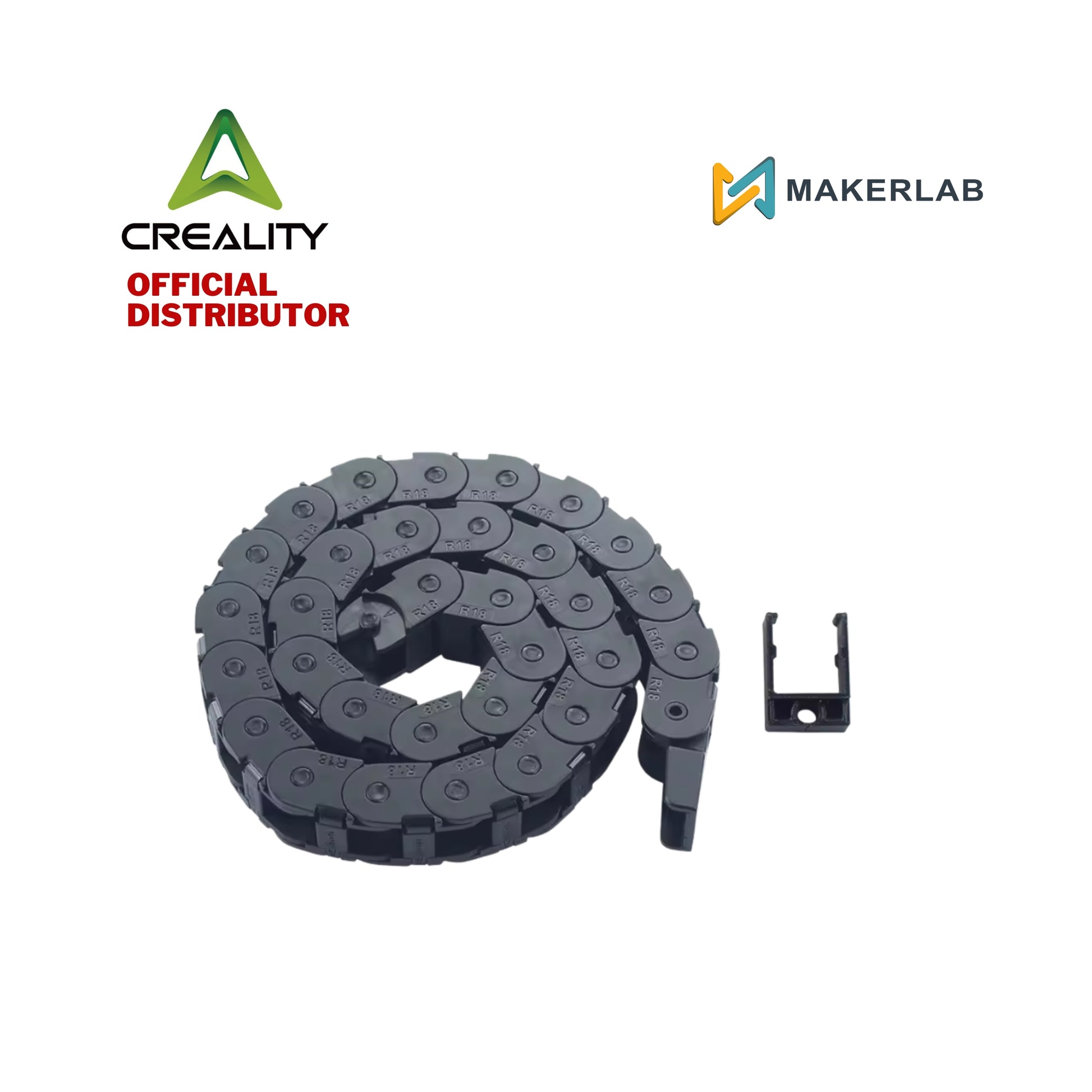

Direct Fit: Comes with the specific end-brackets required to bolt directly onto the K2 Plus gantry and the rear chassis frame.
Specifications
Model Number: 205990621
Compatibility: Creality K2 Plus
Material: Reinforced Nylon PA66
Type: Bridge-Type (Openable)

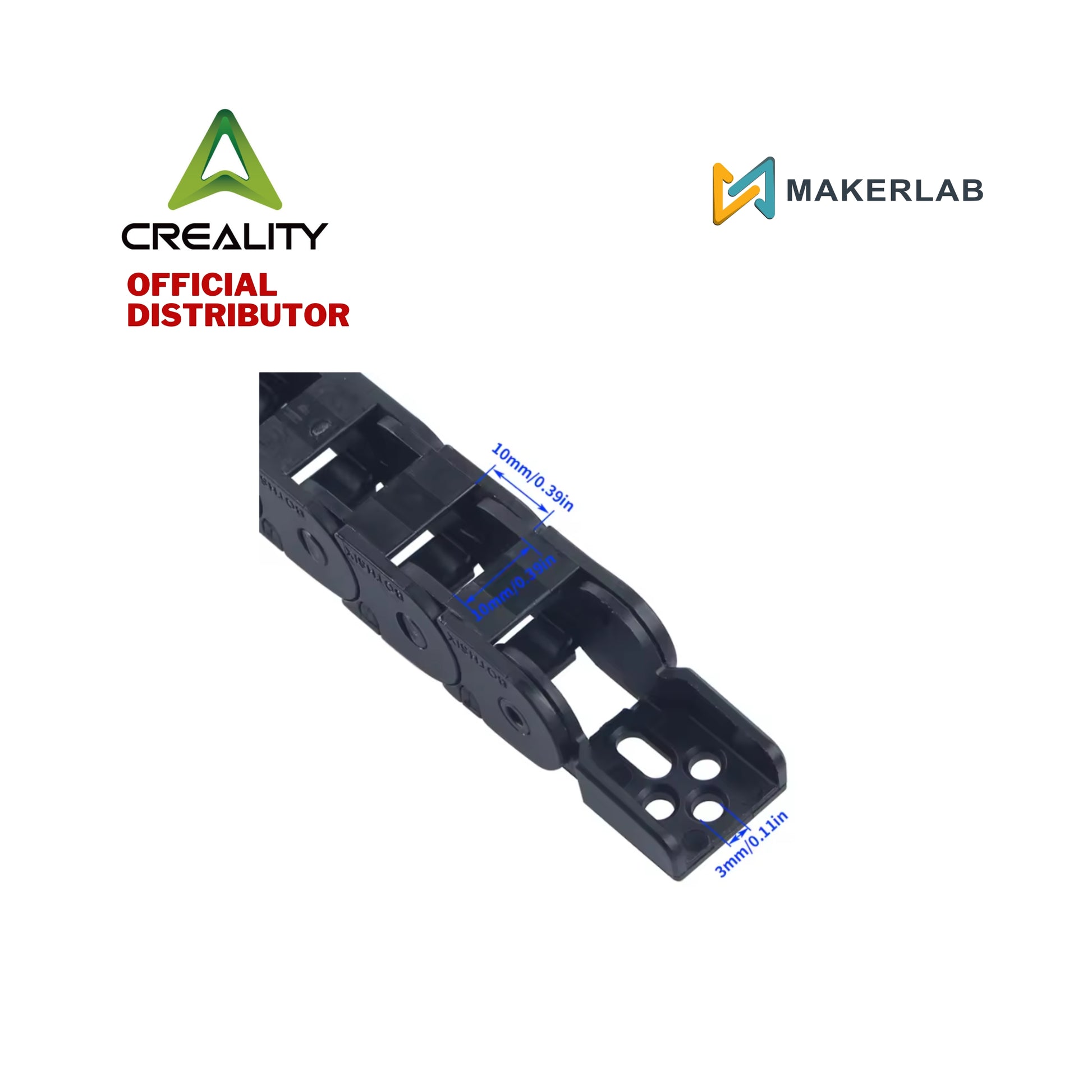

Inner Dimensions: ~10×15 mm
Pitch: ~18 mm
Operating Temp: Up to 100°C
Color: Industrial Black
