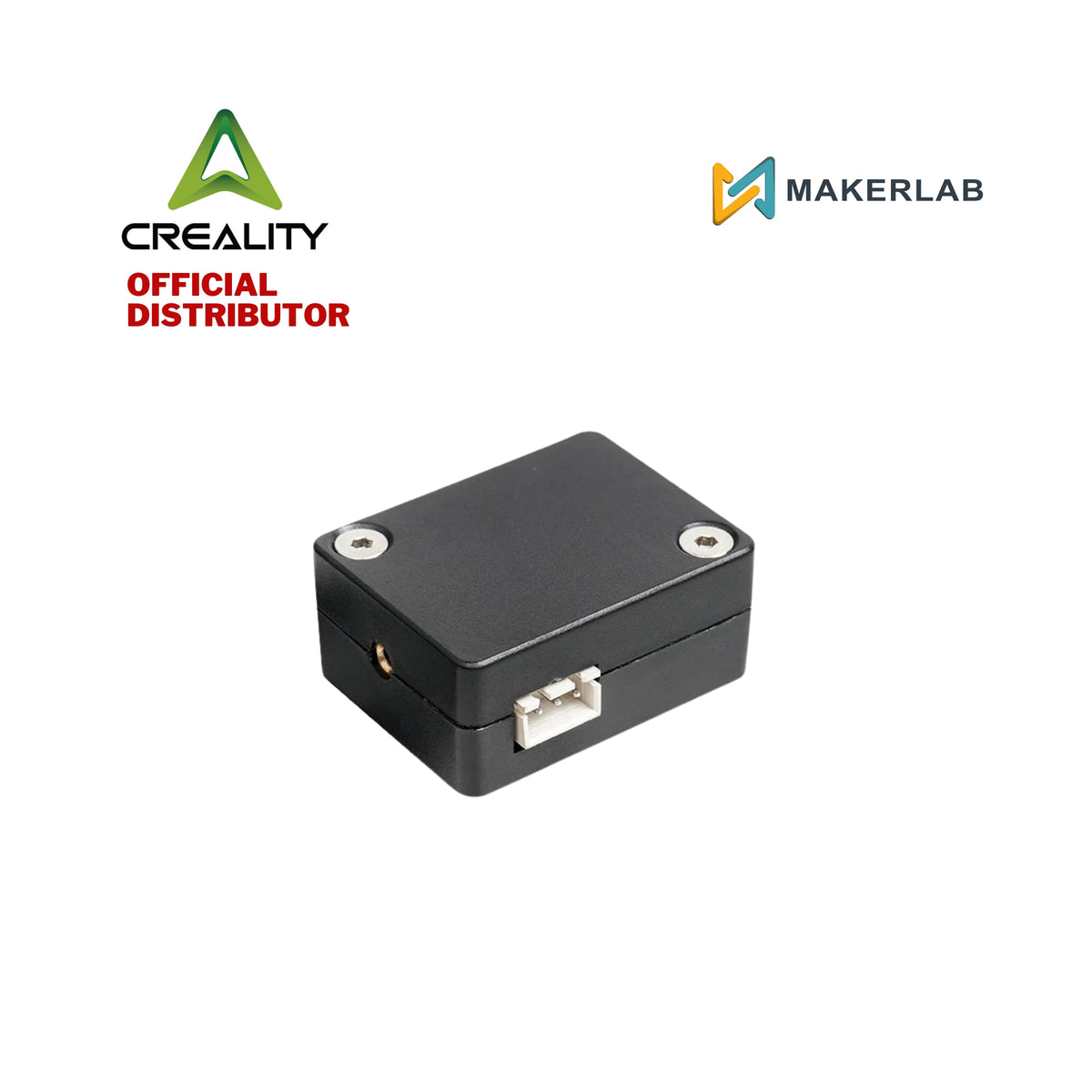

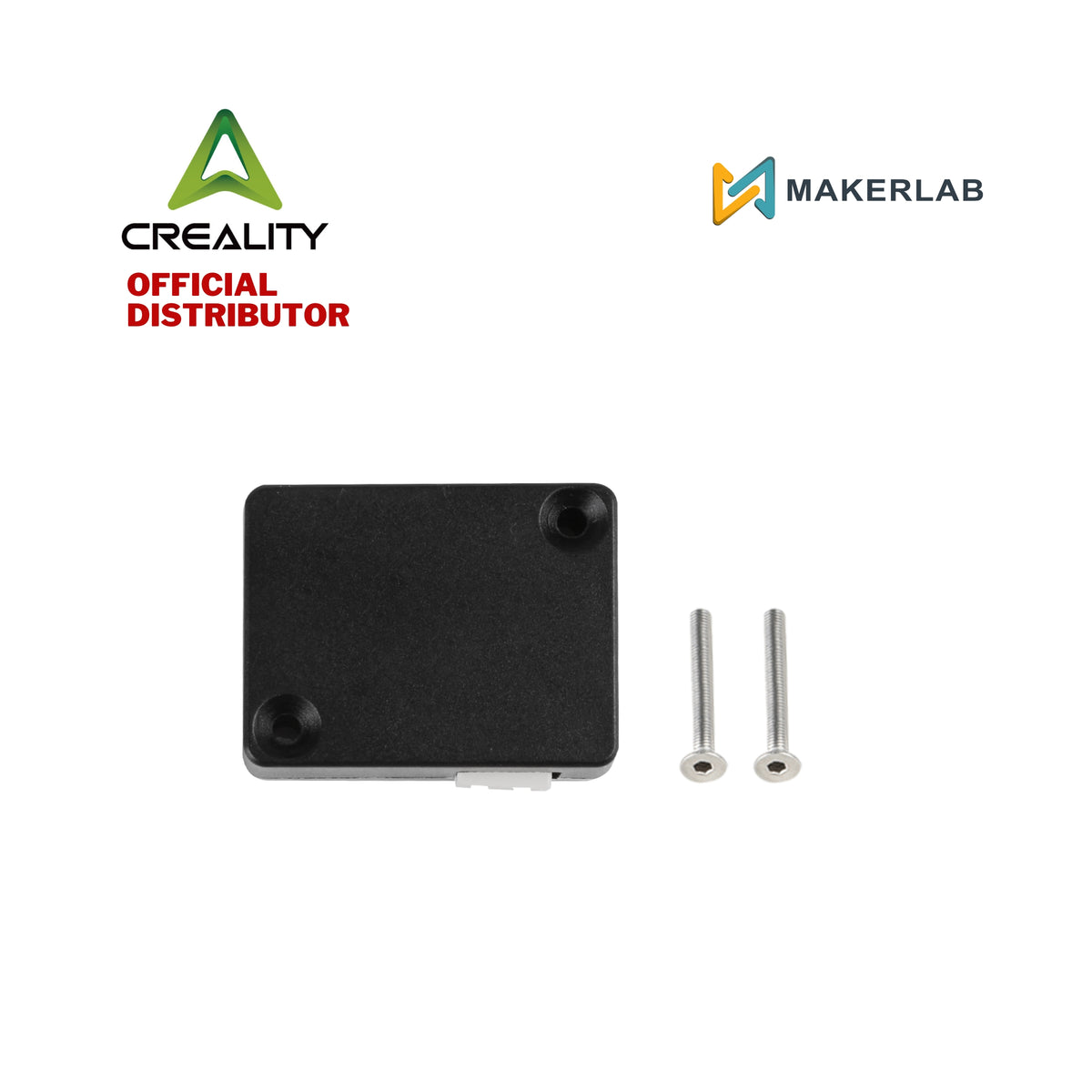

Description
The Filament Sensor Kit acts as an automated "pause" button for your 3D printer. Using an internal mechanical limit switch, the sensor detects when the filament has run out or snapped. Upon detection, it immediately sends a signal to the printer’s motherboard to pause the print and park the toolhead.

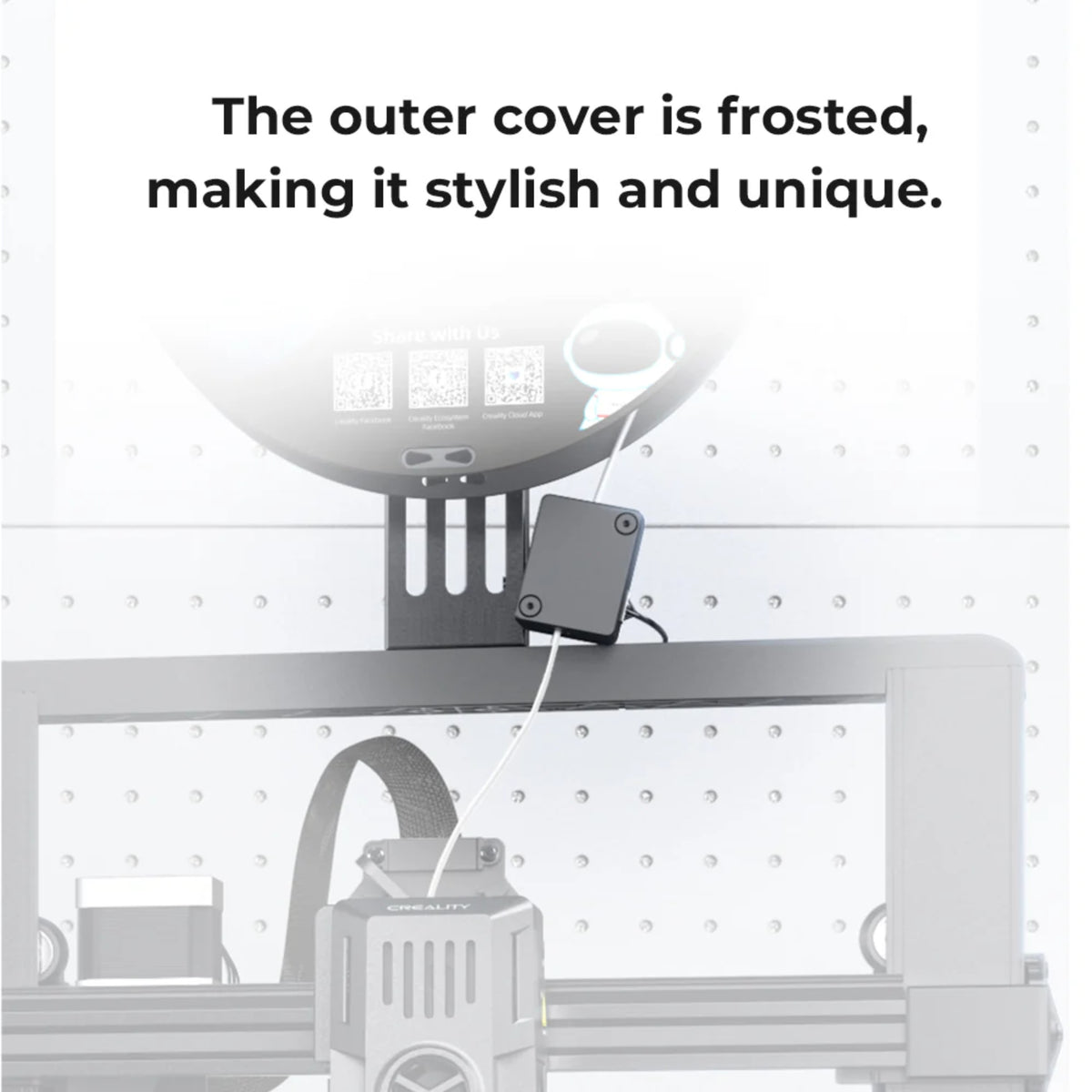

This kit features a redesigned frosted outer cover that matches the modern aesthetic of the V3 KE series. Inside, it contains a specialized low-friction metal guide that ensures the filament slides through smoothly without creating extra tension on the extruder, which is vital for maintaining print quality at high speeds.
Features
Automatic Pause & Resume: Instantly halts printing when filament is missing, allowing you to reload a new spool and resume exactly where it left off.
Integrated LED Indicator: * Blue LED On: Filament is present and feeding normally.

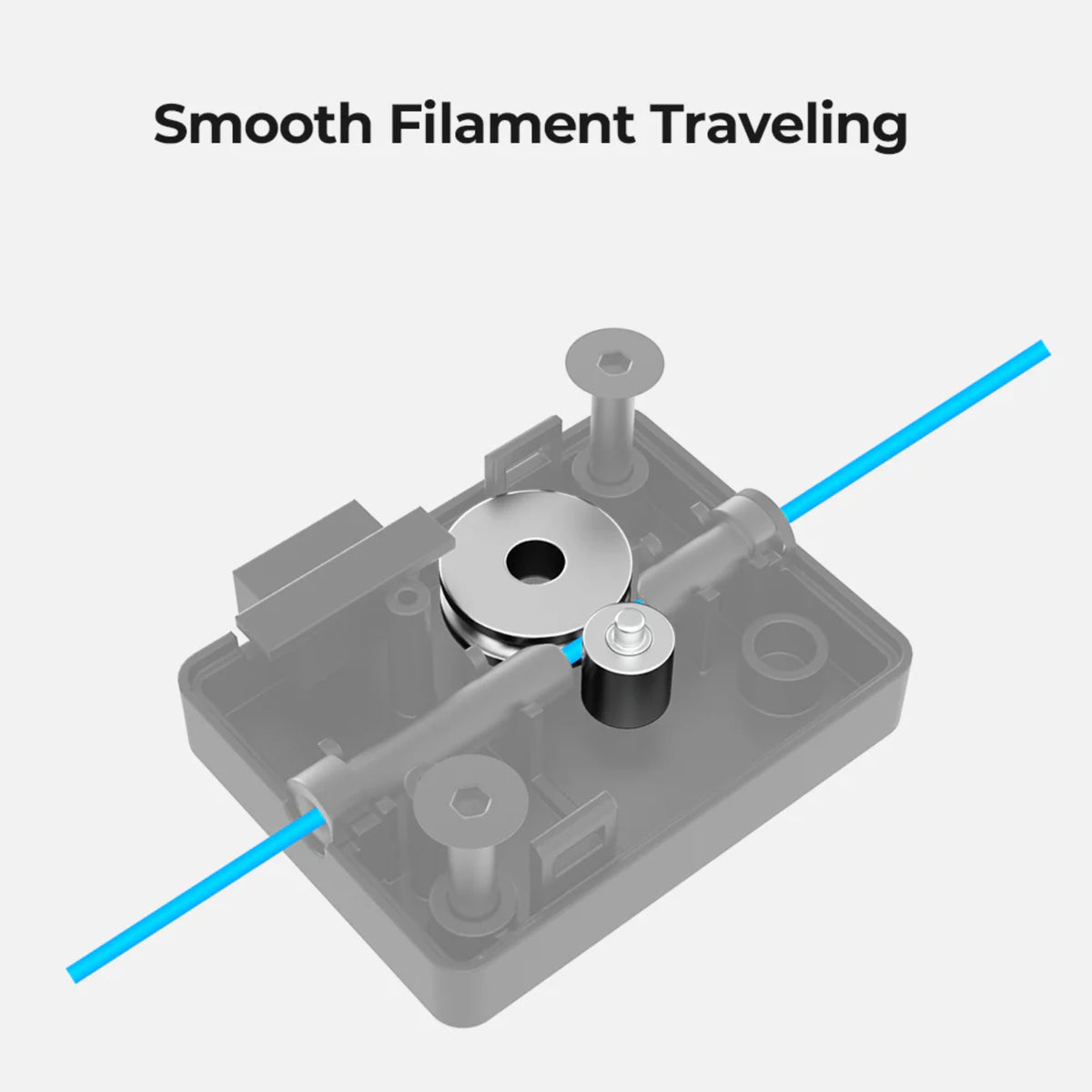

Frictionless Metal Guider: Built-in polished metal entry and exit points minimize resistance, preventing the "drag" that can cause under-extrusion.
Modularized Design: A compact, independent module that mounts directly to the printer frame for a clean, professional look.
Simple Plug-and-Play: Comes with the correct wiring harness (3-pin to 4-pin) to plug directly into the J12 port on the Ender-3 V3 KE motherboard.
Specifications
Model Number: 4001090012
Compatible Printers: Ender-3 V3 KE
Sensing Method: Mechanical Micro-switch
Filament Diameter: 1.75 mm
Nominal Voltage: 5V
Current Rating: 20mA
Housing Material: Frosted ABS / Metal Guider
