Description

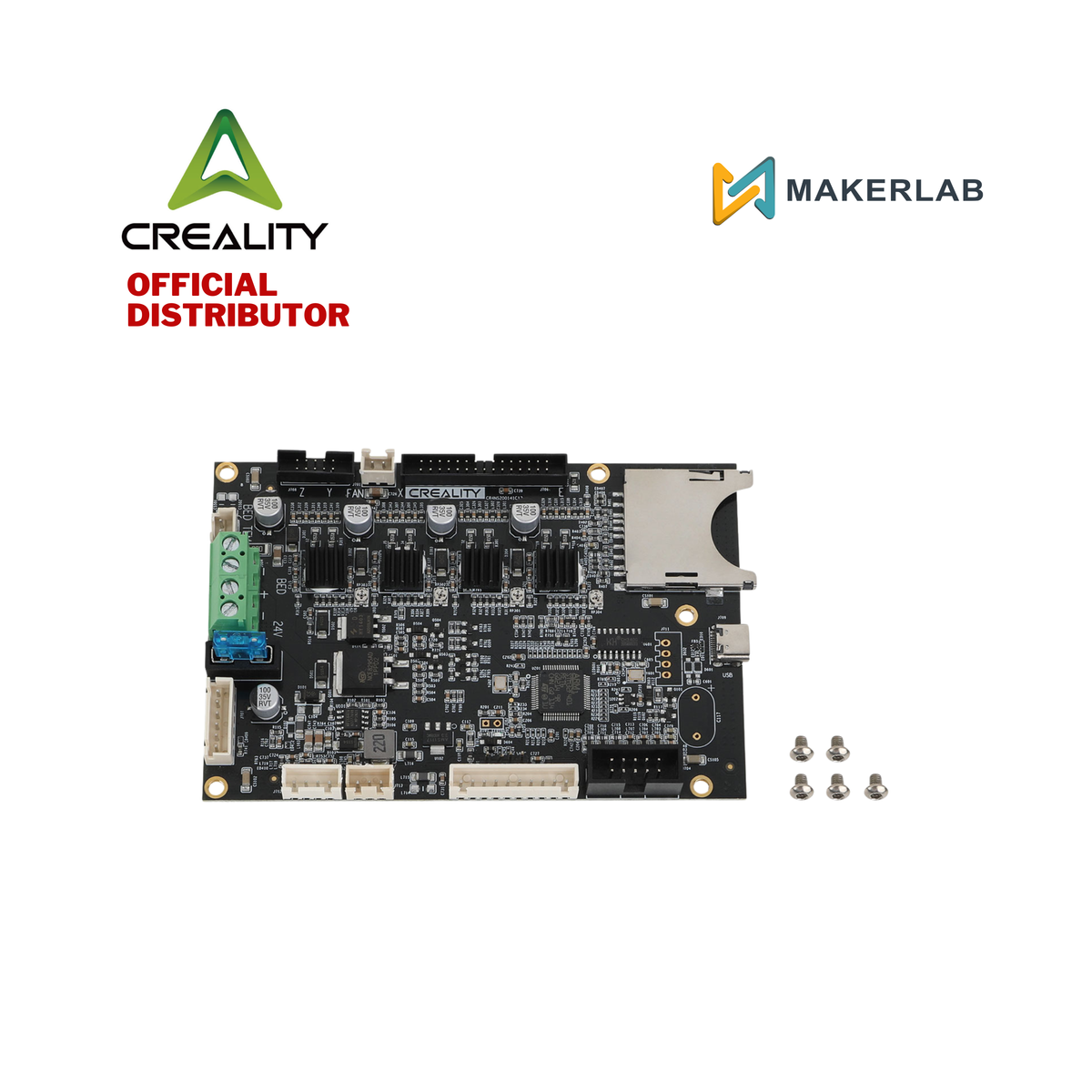

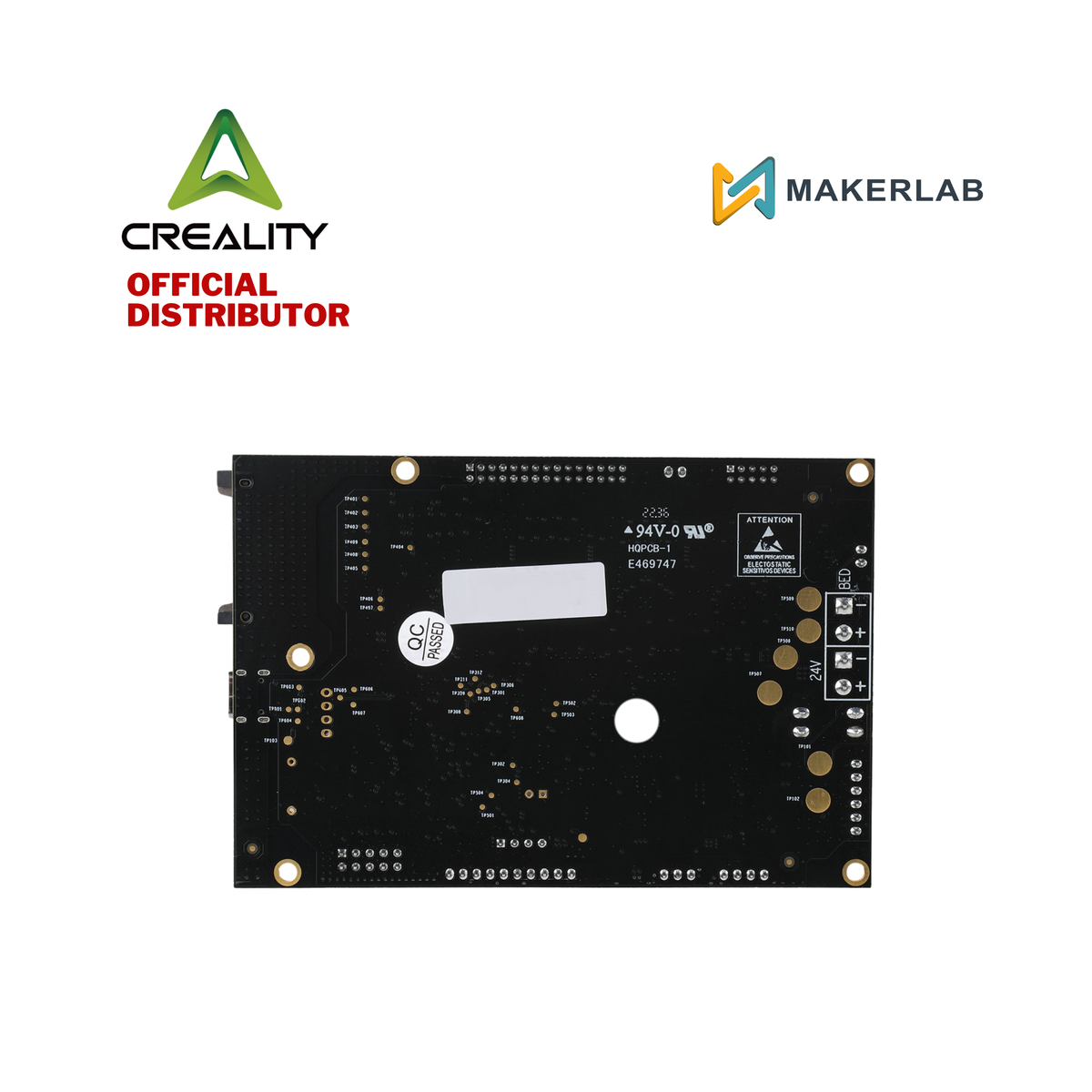

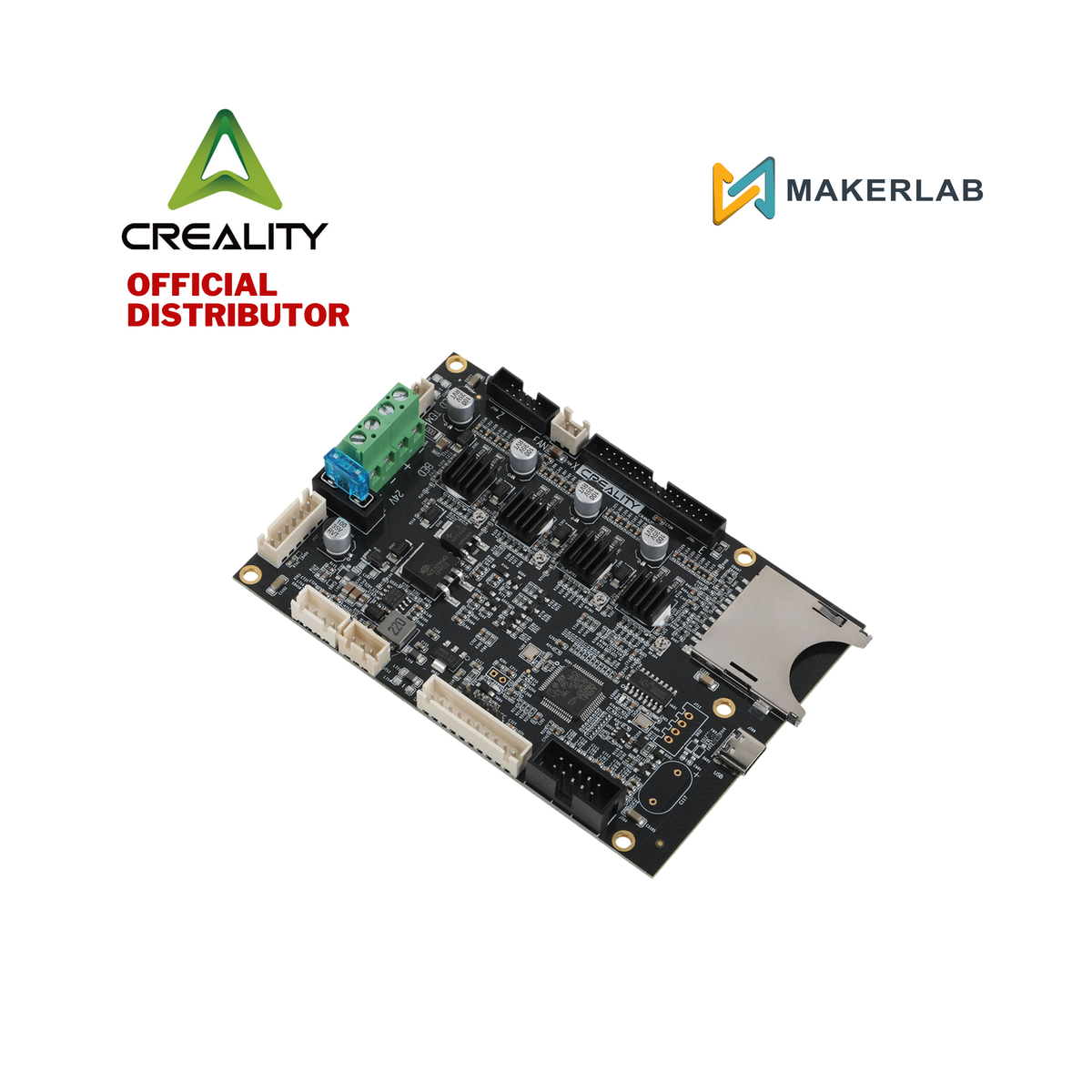

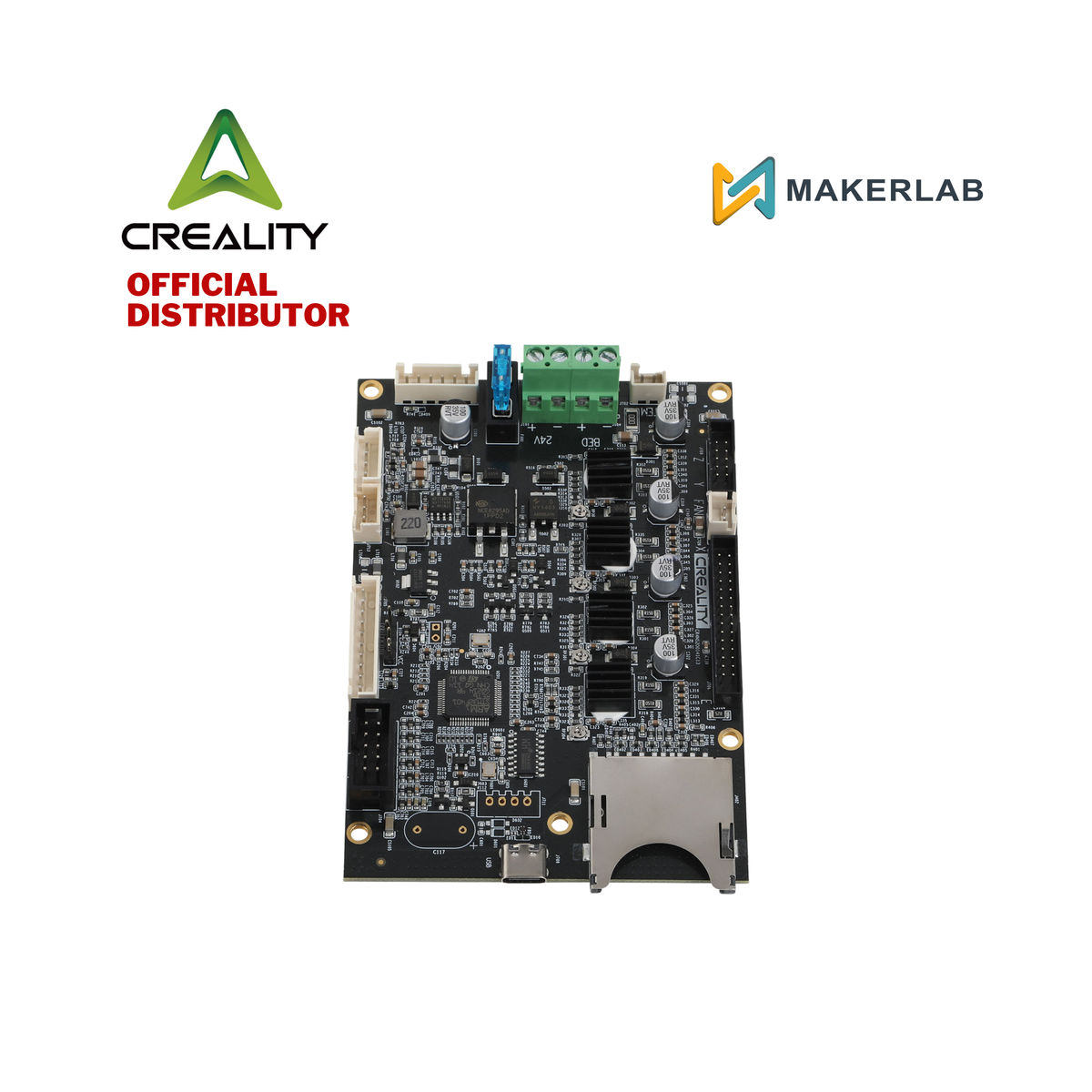

The Ender-5 S1 Silent Motherboard is the core control board of the Creality Ender-5 S1, coordinating motion, temperature, and every other function on the printer. It is a V1.3 32-bit board built on an STM32F401RET6 processor with TMC2208 silent stepper drivers — the combination that delivers Ender-5 S1's quiet operation and its stable motion at up to 250mm/s with 2000mm/s² acceleration.
This genuine Creality replacement board is suitable for Ender-5 S1 units that will not boot, lose motor or heater control, throw persistent thermal or driver errors, or show visible damage to the board. Creality officially lists 4002020059 as the Ender-5 S1 Silent Motherboard.
Features
TMC2208 Silent Stepper Drivers: Delivers markedly quieter motor operation compared with standard drivers, one of the defining characteristics of the Ender-5 S1.
32-Bit STM32F401RET6 Processor: Provides the processing headroom for smooth high-speed motion and stable temperature control.
V1.3 Board Revision: The original board version specified for the Ender-5 S1.
Full System Control: Coordinates motion, extruder and bed heating, cooling, and CR Touch auto-leveling.
Well-Positioned Connectors: Quality ports laid out for secure, stable connection of every printer component.
Genuine Creality Replacement: Original Creality spare part specifically listed for the Ender-5 S1.
Precise Compatibility: Designed specifically for the Creality Ender-5 S1.
Direct Service Replacement: Suitable for restoring a printer with a failed or damaged mainboard.
Specifications
Product Name: Creality Ender-5 S1 Silent Motherboard
Part Number: 4002020059
Compatibility: Creality Ender-5 S1
Type: Silent Motherboard Kit
Board Version: V1.3
Architecture: 32-bit
Processor: STM32F401RET6
Stepper Drivers: TMC2208
Manufacturer: Shenzhen Creality 3D Technology Co., Ltd.
Product Category: 3D Printer Mainboard
