Description

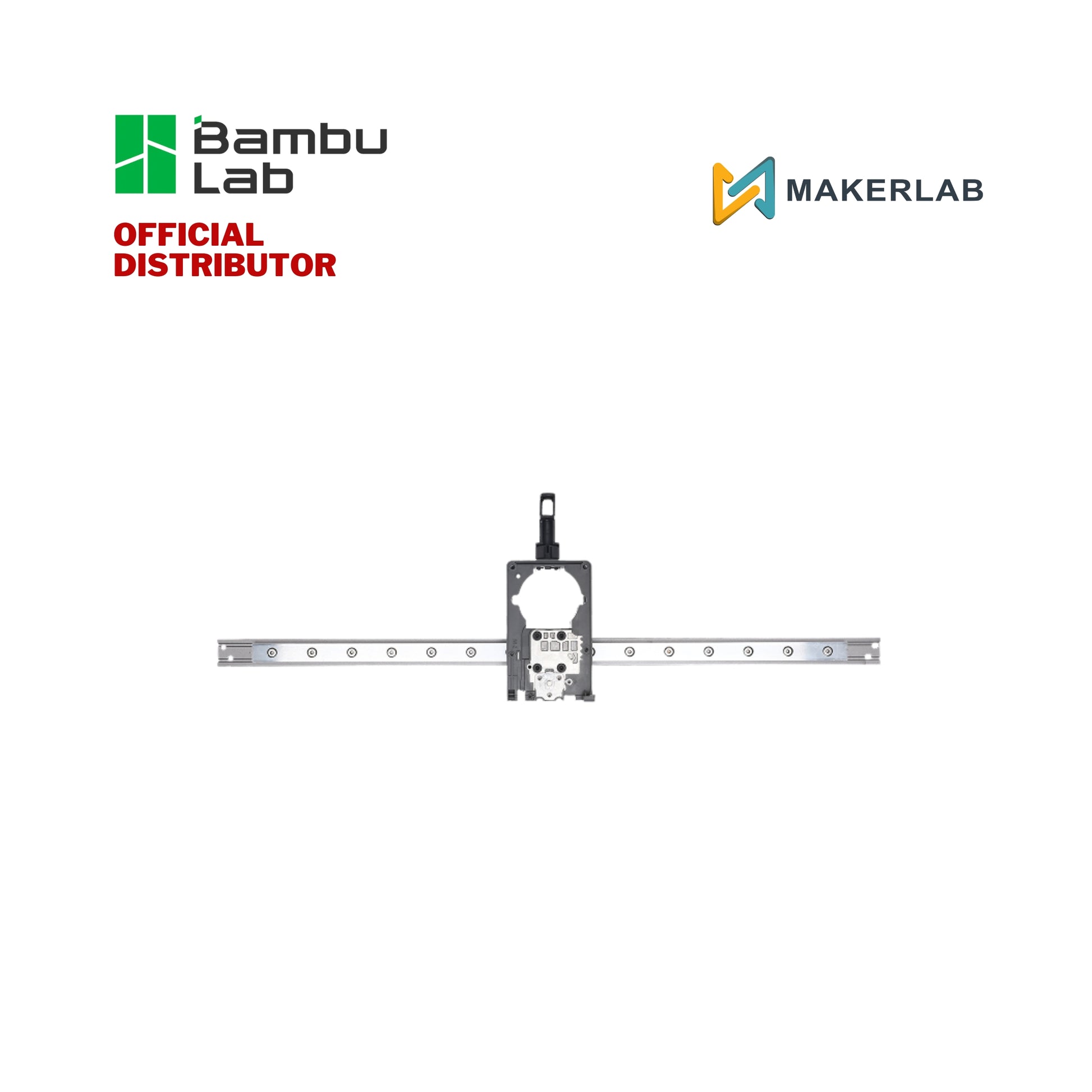

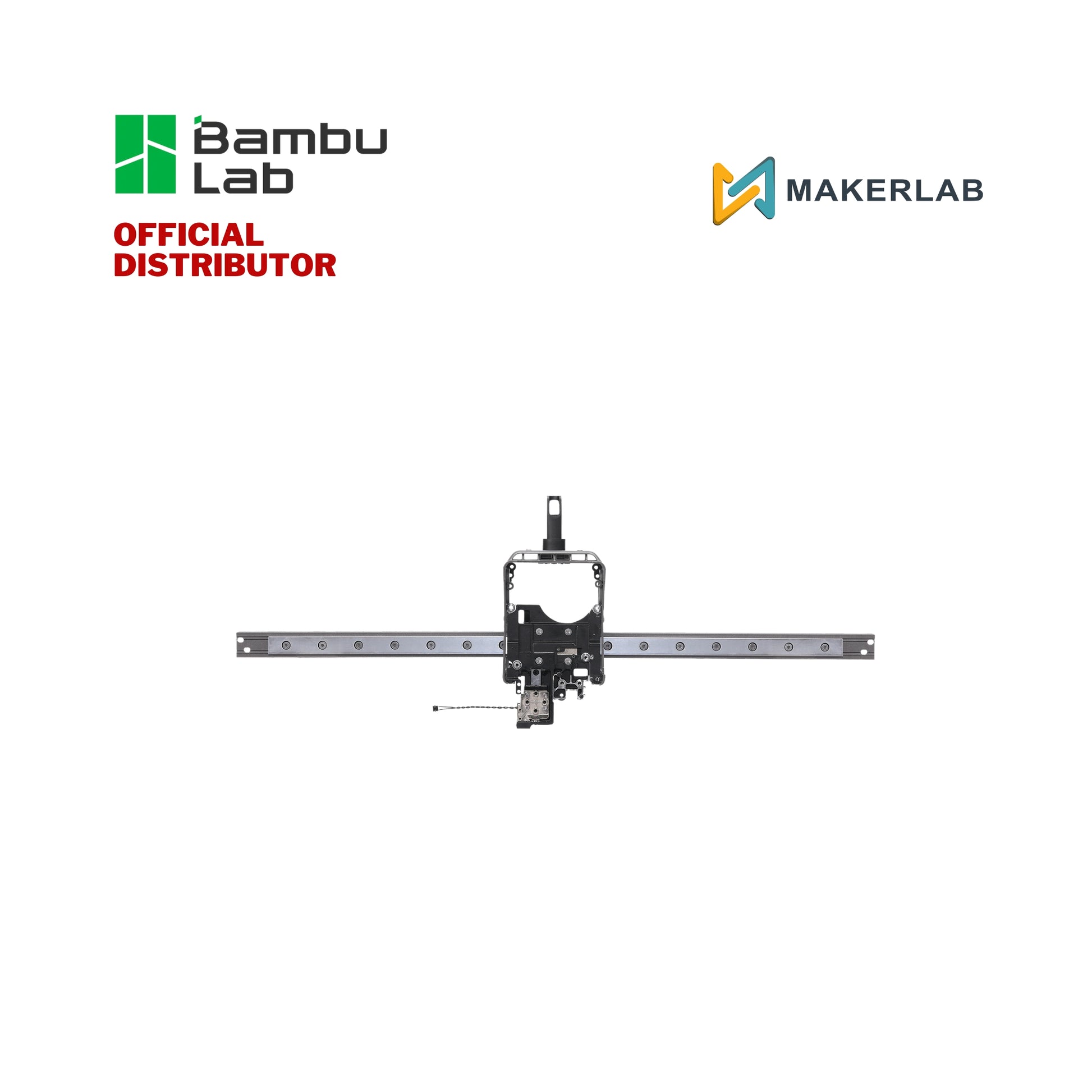

The X-Axis Assembly consists of the linear rail, lifting bracket, and the toolhead middle frame, and it controls the toolhead's movement along the X-axis.
Features
Lightweight Motion Dynamics: Designed with a high strength-to-weight ratio to allow for travel speeds up to 1000mm/s without excessive vibration.
Industrial Linear Guides: Features a high-precision linear rail system that provides smooth, low-friction movement and long service intervals.
Thermal Expansion Compensation: Specifically engineered to resist warping or bowing when the H2S chamber reaches its peak operating temperature of 65°C.
Integrated Belt Path: Comes pre-configured for the H2S's high-tension belt system, ensuring perfect parallel alignment with the Y-axis.
Plug-and-Play Precision: Factory-calibrated for straightness and perpendicularity to minimize "tramming" time during installation.
Installation
In the Box
For H2S
-
X-Axis Assembly*1
-
Screw driver*1
-
Screws Kit
For H2C
Compatibility
H2S and H2C
Specifications
Materials: Plastic, Metal
Color: Silver
Packaging Weight: 1.037 kg
Packaging Size: 460*180*110 mm
