Description

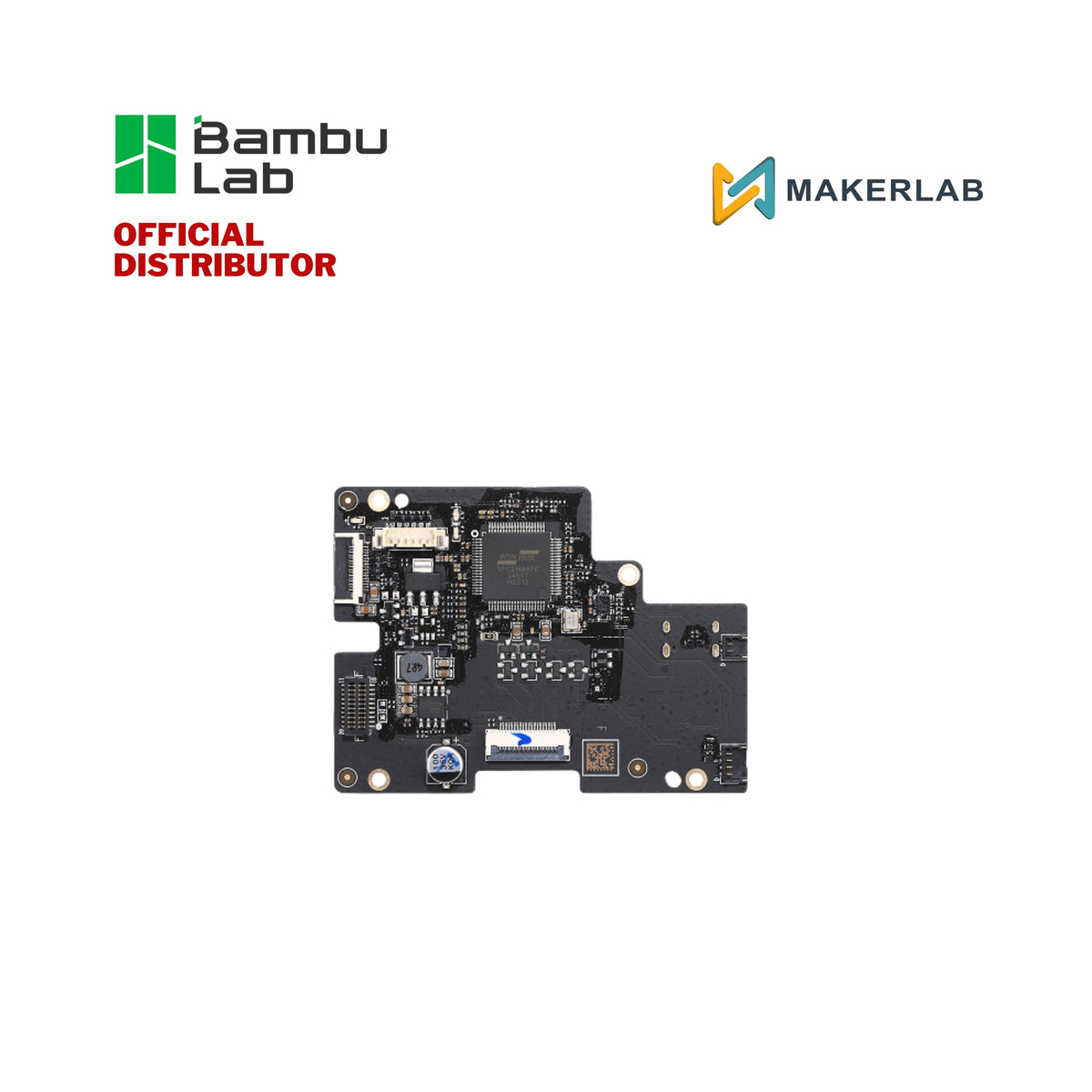

A circuit board that implements the associated actions of the printer's filament extrusion (such as feeding, withdrawing, retraction, temperature adjustment, etc.).
Features
All-in-One Connectivity: Features dedicated ports for the part-cooling fan, hotend heating element, thermistor, filament sensor, and the Eddy leveling sensor.
Servo Controller Integration: Specifically designed to interface with the P2S 3508 servo motor, allowing for the precise 20kHz feedback loop required for DynaSense technology.
Gold-Plated High-Current Pins: The heater and fan connectors use reinforced, gold-plated pins to handle continuous high-current loads without overheating or contact fatigue.
EMI Shielding Design: The board layout is optimized to minimize electromagnetic interference between the high-power heater lines and the sensitive low-voltage sensor signals.
Direct Plug-and-Play: Pre-flashed with the necessary localized firmware to communicate with the P2S Motion Control system immediately upon installation.
Installation
In the Box
-TH board*1
-BT2x5 screw *1
-Adhesive tape*1
-Foam*1
Compatibility
P2 Series
Specifications
Materials: PCBA, Plastic
Color: Black
