Description

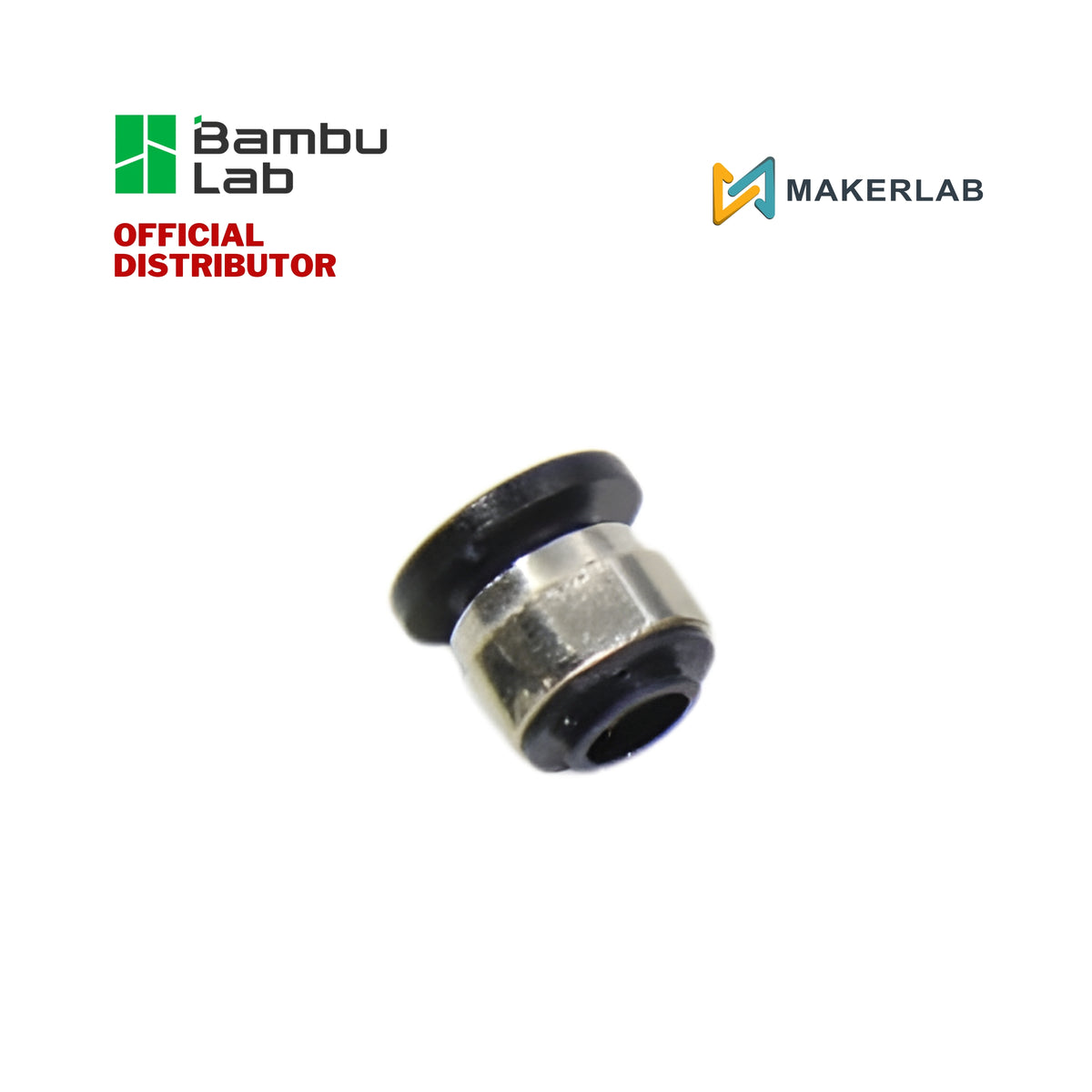

The PTFE Tube Connector is primarily mounted on the back of the printer. It serves as the bridge between the filament buffer (or AMS output) and the toolhead's intake. This connector is vital for maintaining a smooth, snag-free filament path, which is essential for successful multi-material prints and high-speed operation.
Unlike a simple passthrough coupler, the Tube Connector is directional. It is designed to allow filament to slide effortlessly from the "IN" side (buffer) to the "OUT" side (toolhead) while providing enough tension to keep the tubes securely seated during the rapid retractions of the AMS.
Features
Directional Flow Control: Clearly marked "IN" and "OUT" ports to prevent filament edges from catching on the internal junction.
Tool-Free Quick Release: Features standard pneumatic "push-to-release" rings, allowing for fast maintenance or manual filament feeding without removing the tubes entirely.
Low Friction Design: The internal bore is polished to minimize drag, helping to prevent the extruder motor overload errors common with worn-out couplers.
Stable Alignment: Ensures that the two PTFE tubes are perfectly centered, eliminating the risk of filament getting stuck at the transition point.
Universal Series Support: Specifically built to withstand the high-cycle retractions of the AMS across both the X1 and P1 flagship series.
Specifications
Model: FAC063
Compatibility: X1C, X1E, P1P, P1S, P2S
Materials: Engineering Plastic, Internal Stainless Steel Teeth
Tube Size: Compatible with 4.0 mm (OD) PTFE Tubing
Directional: Yes (Marked IN/OUT)
