Description

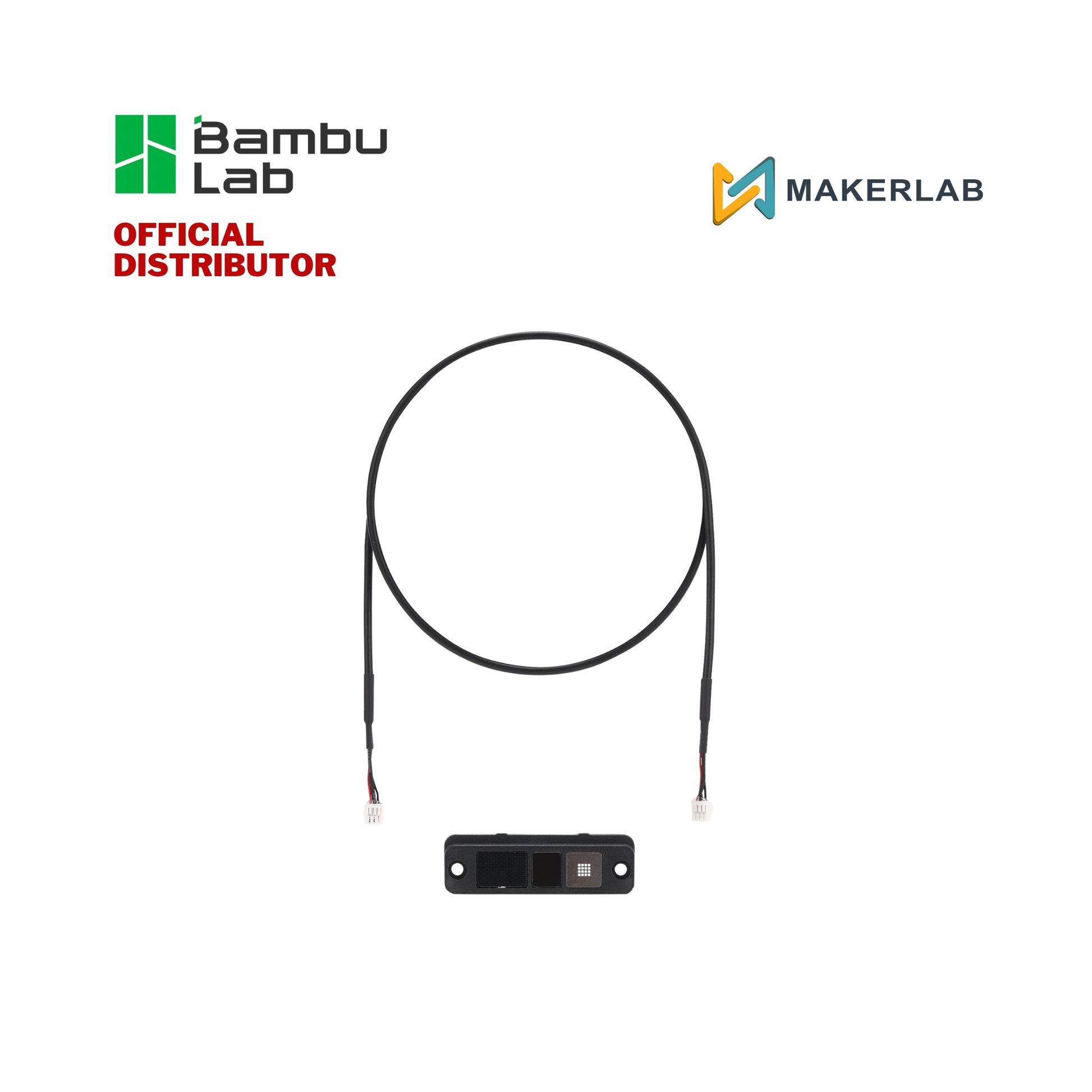

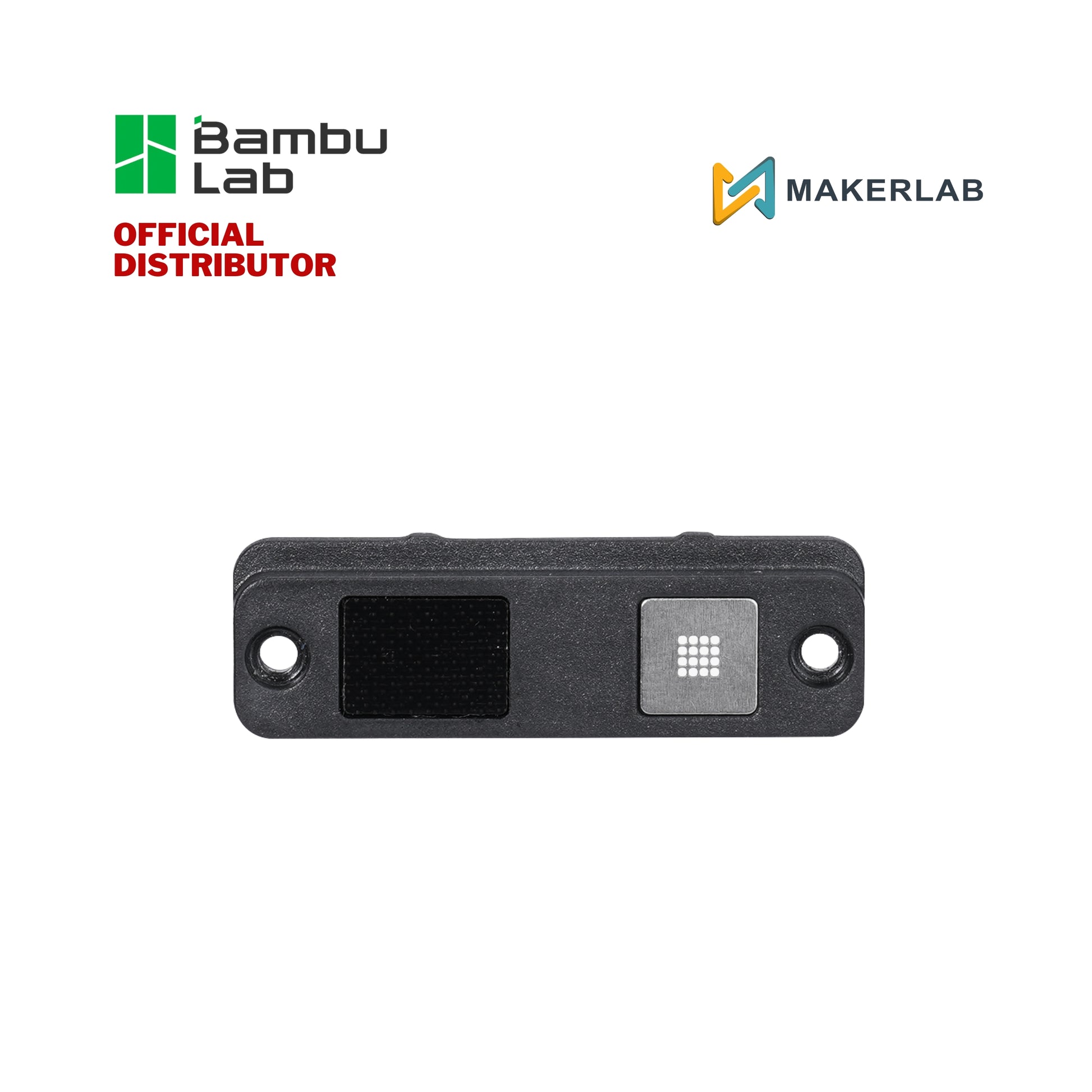

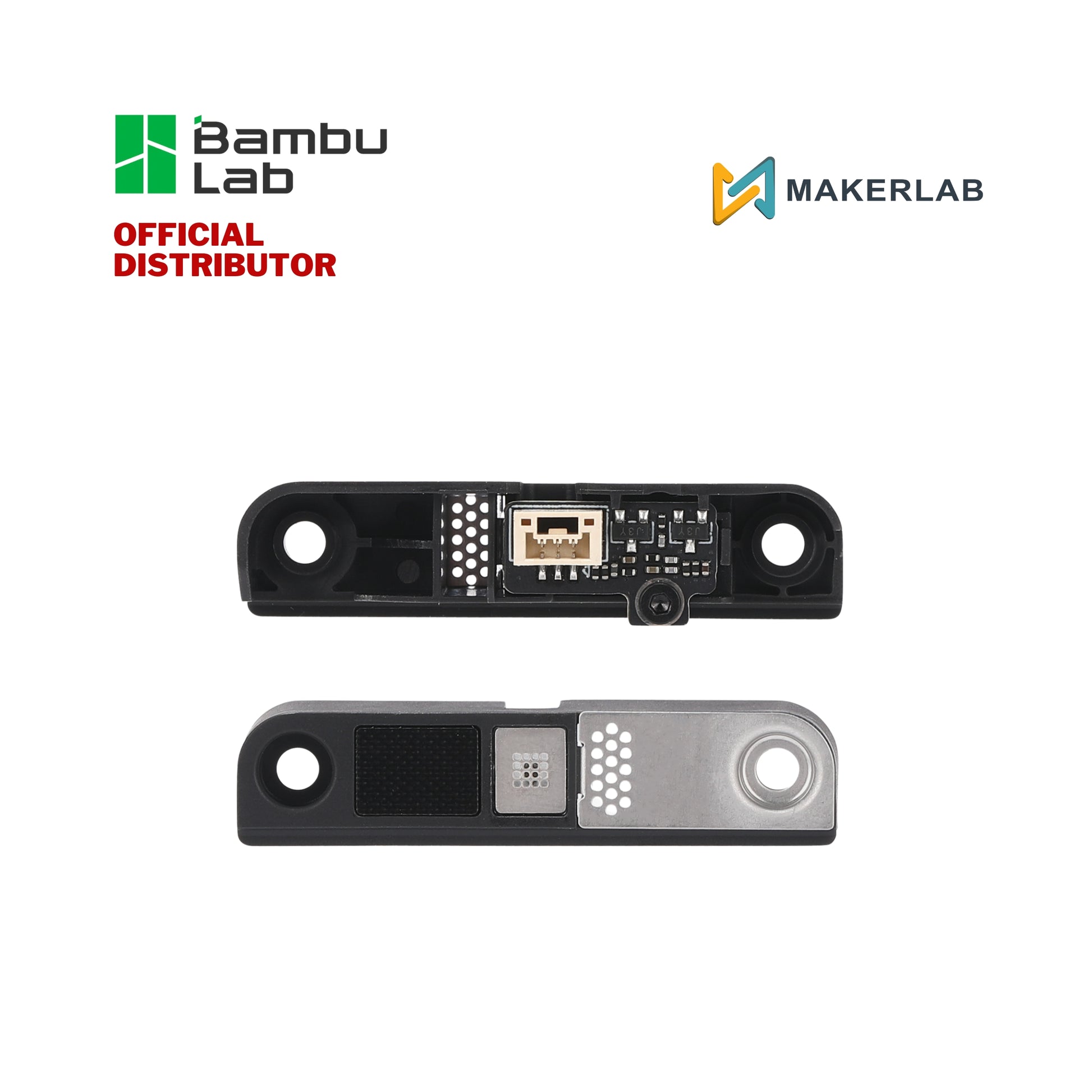

The Nozzle Offset Calibration Sensor is installed at the back of the heatbed and is used for calibrating the nozzle's position.
Features
Dual-Nozzle Synchronization: Automatically aligns the XY coordinates of the left and right nozzles, ensuring seamless material transitions in multi-color or multi-material prints.
Z-Offset Precision: Facilitates the measurement of height differences between nozzles, preventing the "inactive" nozzle from dragging across the print or the bed.
Inductive Detection: Uses magnetic induction to find the center of the nozzle tip, making it more reliable than purely mechanical or optical "homing" methods.
Plug-and-Play Replacement: Comes as a complete module with a pre-terminated connector for easy maintenance if the sensor becomes contaminated or damaged.
In the Box
For H2C
For H2D
- Nozzle Offset Calibration Sensor*1
- M2-5 Screw*2
For X2D
- Nozzle Offset Calibration Sensor *1;
-ST3x6 Screw *2
Compatibility
H2D, H2C, and X2D
Specifications
H2D and H2C
Materials: Metal, Plastic
Color: Black
Packaging Weight: 0.025 kg
Packaging Size: 60*60*30 mm
X2D
Materials: Metal
Color: Black
Packaging Weight: 0.007KG
Packaging Size: 60*60*30mm
