Description

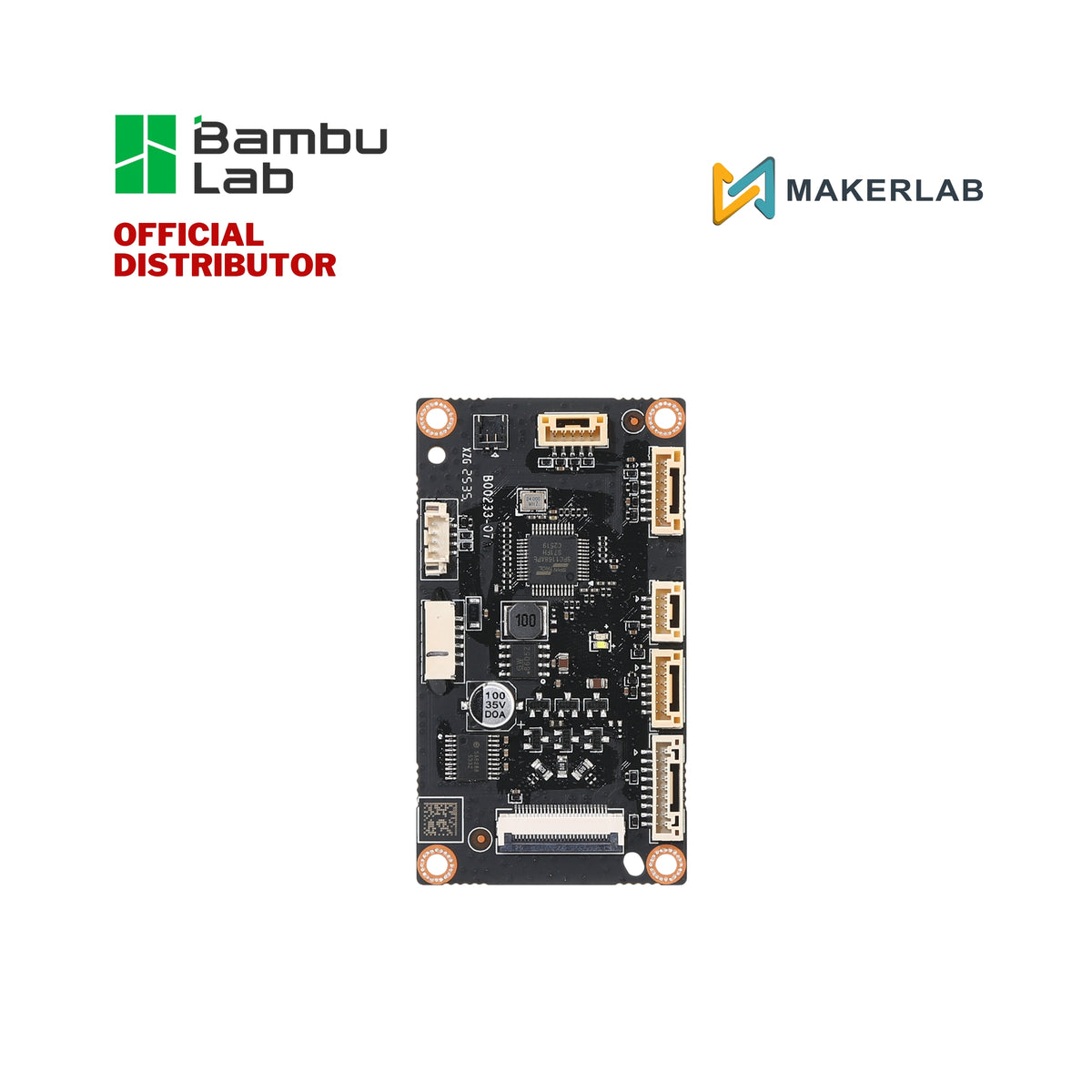

The Induction Hotend Rack Control Board is the core control unit of the Vortek system, responsible for centralized motion control and high-precision status feedback. It integrates a drive circuit that precisely controls the rack motor, enabling automatic pickup and placement of the hotend assembly. Additionally, it processes feedback signals from the hotend docking unit and the homing Hall sensor to ensure accurate hotend positioning and rack alignment calibration.
Features
Multi-Channel Management: Capable of monitoring and controlling up to 6 individual hotend docking stations simultaneously.
Precise Motor Driver: Integrated stepper driver specifically tuned for the 3513 Rack Motor, ensuring smooth and silent vertical indexing of the hotend rows.
Intelligent Presence Detection: Processes signals from the Hall Effect sensors in the docks to prevent "ghost" tool-change attempts and ensure system safety.
High-Temperature PCB Design: Uses a high-TG (Glass Transition Temperature) substrate to prevent board warping or circuit failure during long-term industrial use.
Plug-and-Play Connectors: Features specialized vibration-resistant headers for the motor, docks, and the main system bus cable.
Installation
Learn more about the replacement of Induction Hotend Rack Control Board on
Bambu Lab Wiki.

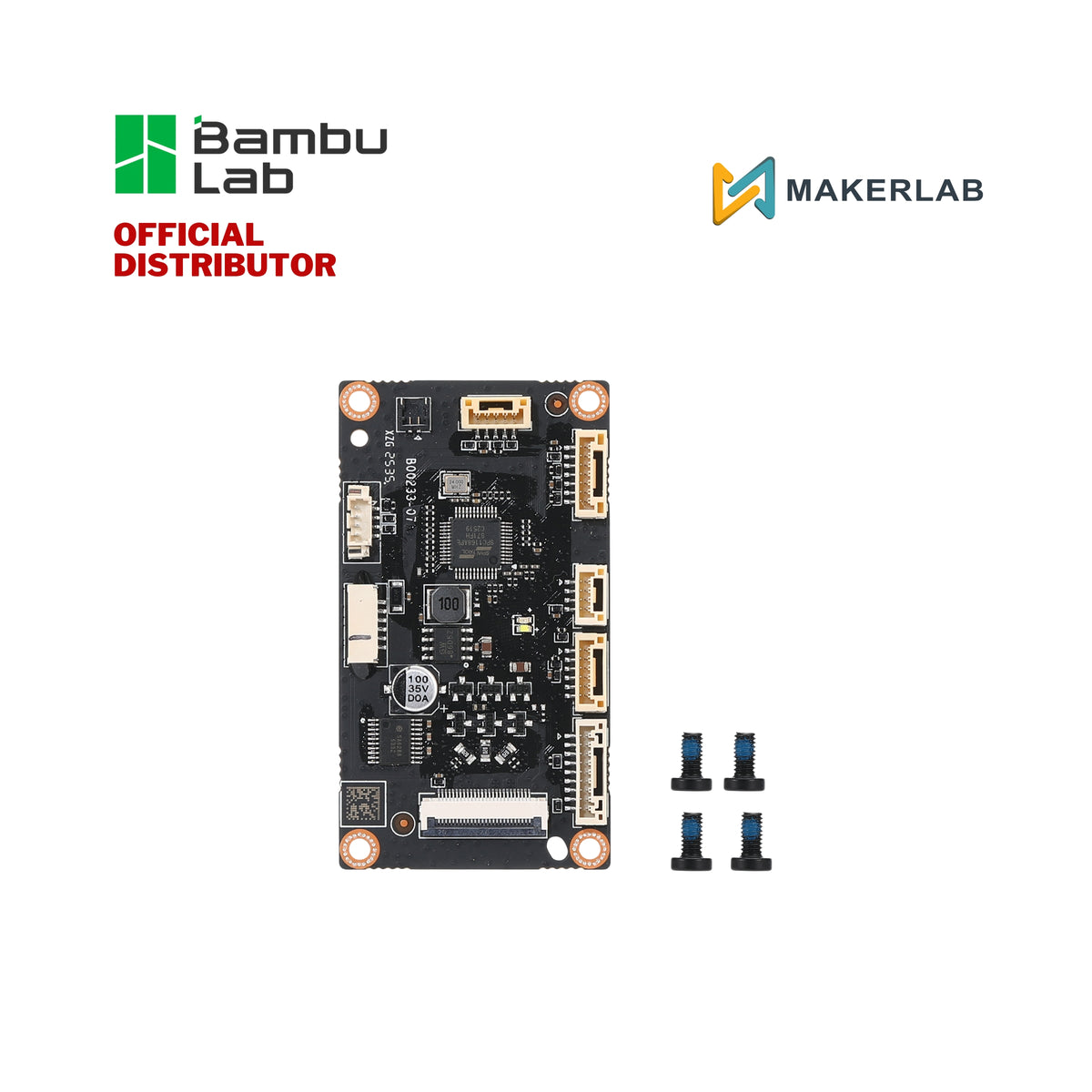

In the Box
- Induction Hotend Rack Control Board *1
- M2.5x5 Screw * 4
Compatibility
H2C and H2C Laser
Specifications
Material: PCBA
Color: Brown
