Description

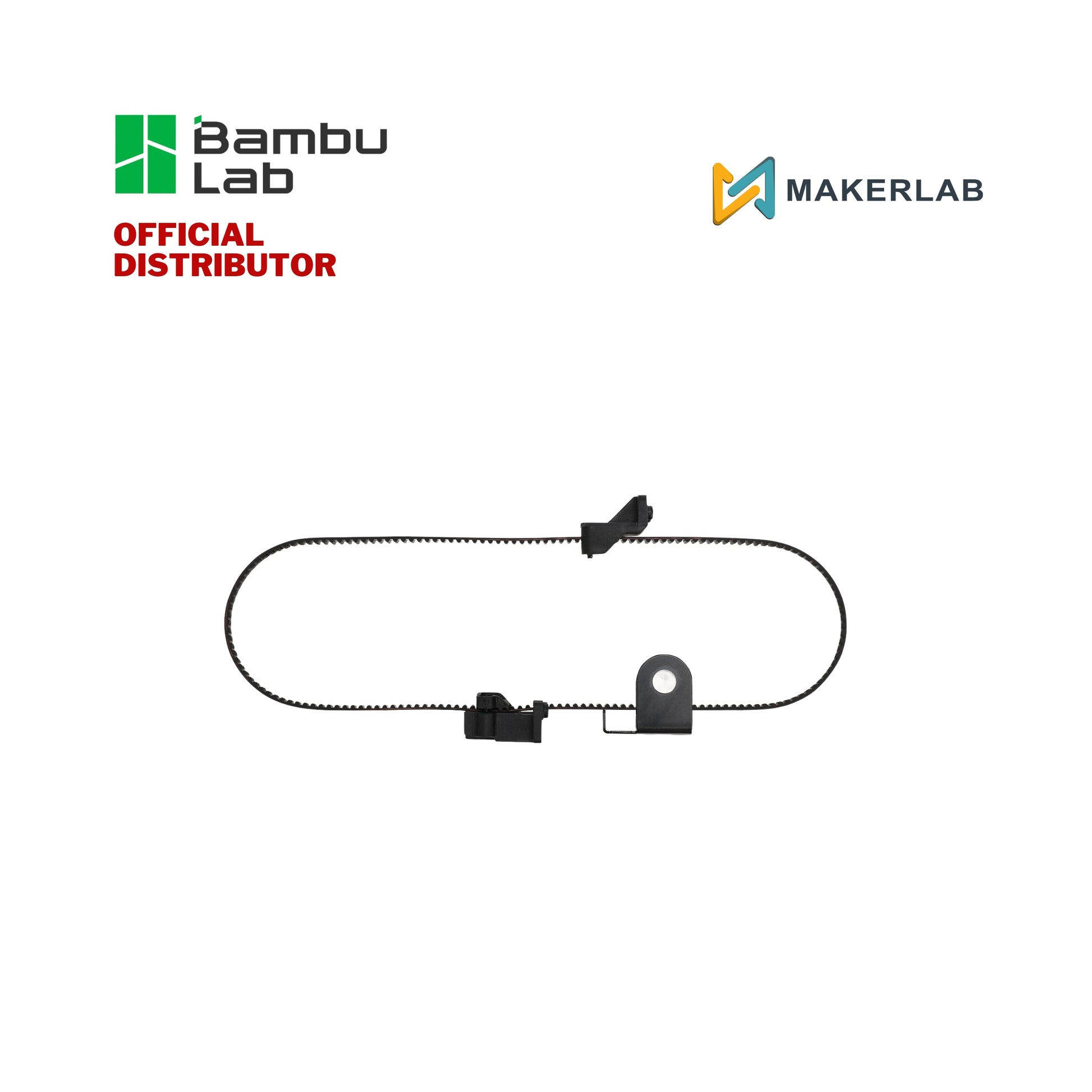

The Induction Hotend Rack Belt Assembly is the power transmission core of the Vortek system. It transfers the rotational motion generated by the 3513 Induction Hotend Rack Motor into precise linear lifting motion of the induction hotend rack.
Features
Vortek System Core: The primary mechanism that enables fully automated, multi-nozzle printing workflows.
High-Precision Linear Motion: Designed to position the hotend docks with sub-millimeter accuracy to ensure seamless docking with the toolhead.
Industrial-Grade Belt: Features a high-tensile, fiber-reinforced belt designed to handle the frequent lifting cycles of a production-grade machine.
Integrated Hall Sensor Logic: Works in tandem with the rack's Hall plates to provide real-time positioning data to the printer's MC board.
Low-Maintenance Design: Built with self-lubricating idler components to ensure smooth operation within the H2C's 65°C actively heated chamber.
Installation
Learn more about the replacement of Induction Hotend Rack Belt Assembly on
Bambu Lab Wiki.

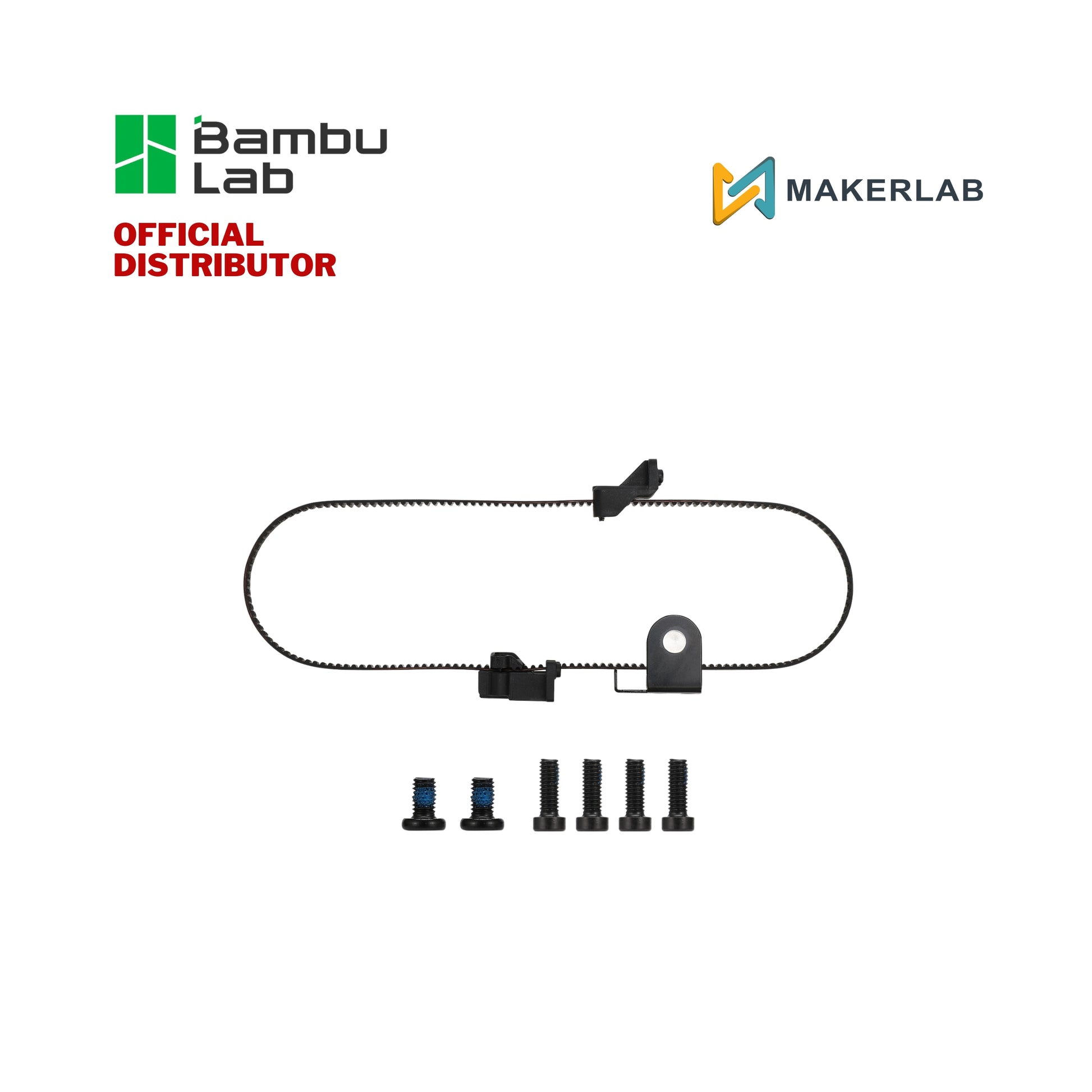

In the Box
- Induction Hotend Rack Belt Assembly *1
- M3x5 Screw *2
- BT2x8 Screw *4
Compatibility
H2C and H2C Laser
Specifications
Material: Metal, Plastic
Color: Black, Gray
Packaging Weight: 0.016 kg
Packaging Size: 60*60*30 mm
