Description

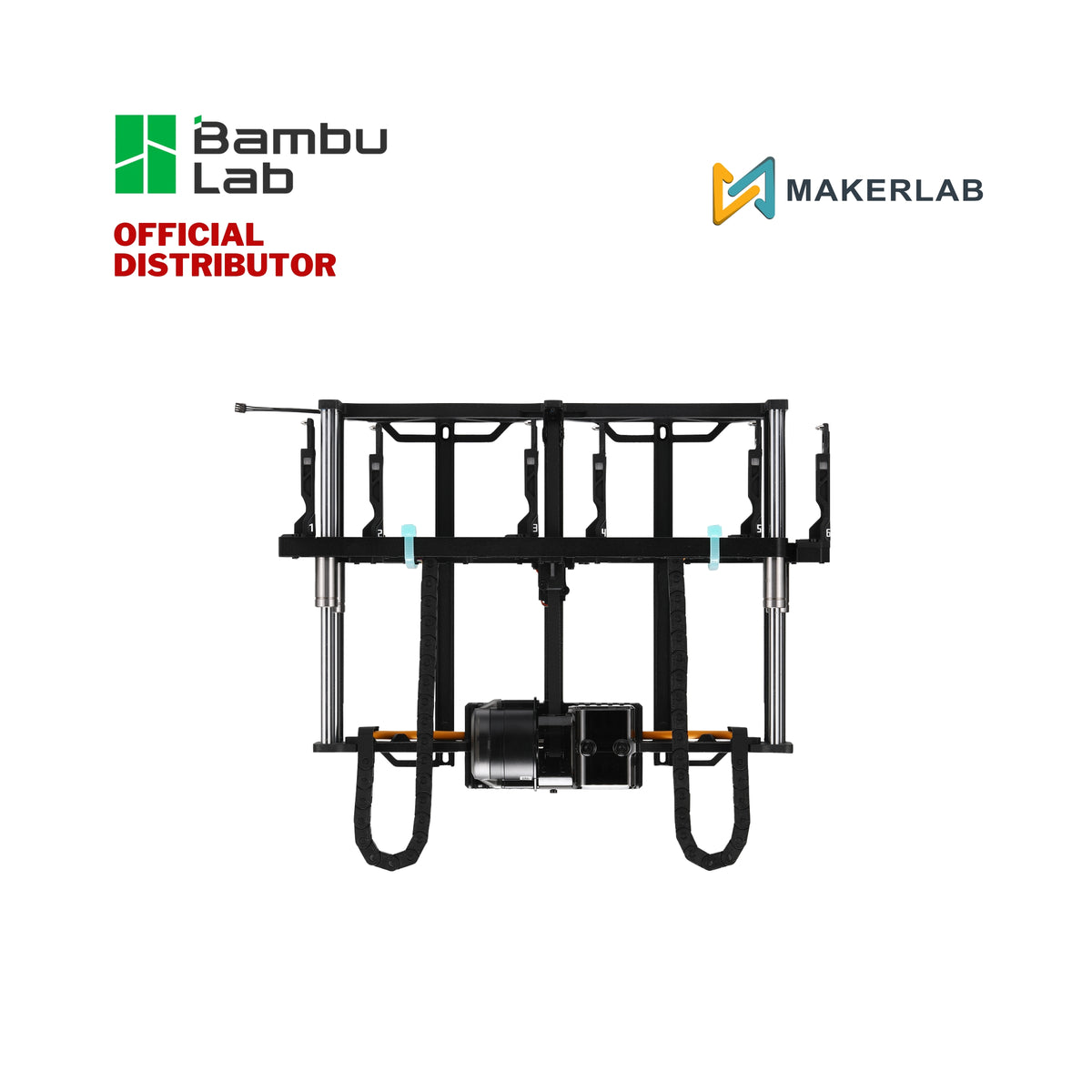

The Induction Hotend Rack Assembly is the core component of the Vortek system, comprising key modules such as the 3513 Induction Hotend Rack Motor, Induction Hotend Rack Belt Assembly, Induction Hotend Dock Assembly, and Induction Hotend Rack Control Board (excluding the Induction Hotend Latch Actuator). As the central functional unit of the system, it integrates all core functions, including hotend storage, automated pick-and-place, in-position detection, and rack positioning calibration.
Features
Full System Integration: Includes the Rack Frame (FAC187), Rack Motor (FAM022), Control Board (DLB059), and individual Hotend Docks (FAC190) in one unit.
6-Slot Capacity: Provides organized storage for a complete library of hotends, enabling fully automated multi-material industrial workflows.
Vertical Indexing Motion: Features a precision rack-and-pinion style movement that allows the storage rows to move vertically, saving horizontal space within the building chamber.
Factory Calibrated: Pre-aligned to ensure that the magnetic docks and Hall Effect sensors are in perfect position for reliable "Pick-and-Place" operations.
Vibration Dampened: Designed with internal structural bracing to prevent the tool-changing rack from resonating during high-speed 600mm/s printing.
Installation
Learn more about the replacement of Induction Hotend Rack Assembly on
Bambu Lab Wiki.

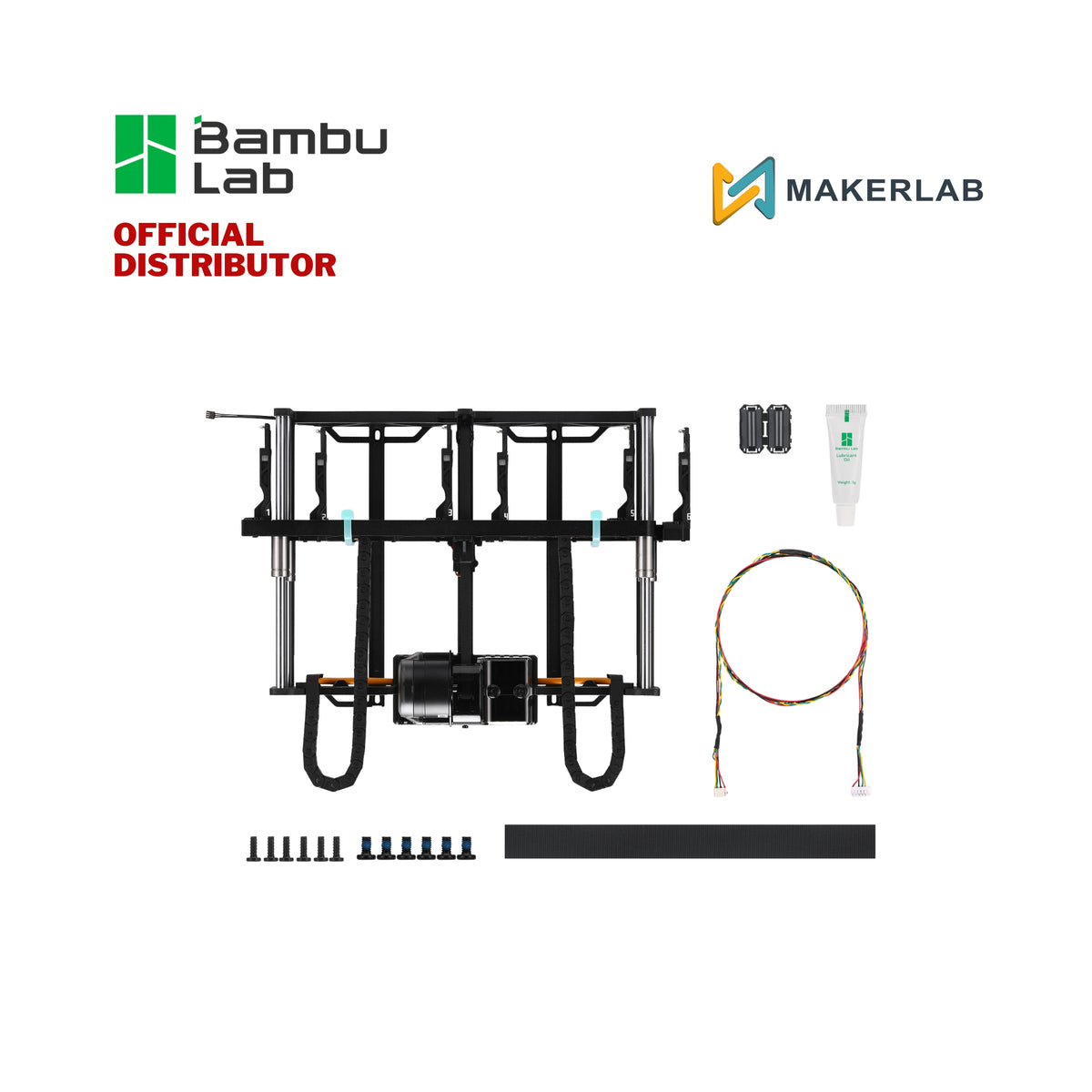

In the Box
Compatibility
H2C and H2C Laser
Specifications
Material: Metal
Color: Black
